SLP14/T

مكبر صوت منخفض التجهيز على الحائط أنيق

SLP14/T
صور أكبر

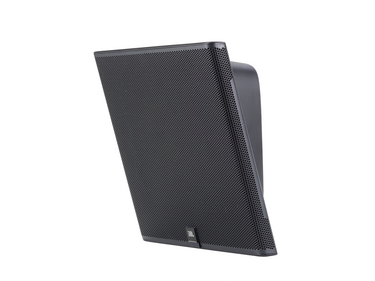

Sleek, Low-Profile On-Wall Loudspeaker
The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

الميزات

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1” silk-dome tweeter
  • Power handling: 50W continuous pink noise, 100W continuous program
  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes

التنزيلات

Specifications
  اللغة الحجم تاريخ التحميل
file type icon SLP14/T Spec Sheet
en تم التحديث: مارس 2025
en  1.88 MB مارس 2025
Manuals
  الحجم تاريخ التحميل
file type icon SLP Installation Guide
تم التحديث: سبتمبر 2022
424 KB سبتمبر 2022
Brochures
  الإصدار اللغة الحجم تاريخ التحميل
file type icon Control Contractor Brochure (2024)
en الإصدار D, تم التحديث: فبراير 2024
en  14 MB فبراير 2024
CAD Drawings
  اللغة الحجم تاريخ التحميل
file type icon SLP Wall Bracket 2D and 3D Drawings
en تم التحديث: يوليو 2023
en  174 KB يوليو 2023
file type icon SLP Dimensional & CAD Drawings
تم التحديث: ديسمبر 2022
  3.02 MB ديسمبر 2022
Declaration of Conformity
  اللغة الحجم تاريخ التحميل
file type icon SLP Series Declaration of Conformity
en تم التحديث: يوليو 2023
en  124 KB يوليو 2023
Certifications
  اللغة الحجم تاريخ التحميل
file type icon SLP 14/T HETMA Approval
en تم التحديث: يونيو 2024
en  353 KB يونيو 2024
Speaker Tunings
  الإصدار الحجم تاريخ التحميل
file type icon Commercial, CBT, and AWC Tunings 220616
الإصدار A, تم التحديث: مايو 2023
557 KB مايو 2023
  63.6 KB أكتوبر 2025
SLP EASE Files
  الحجم تاريخ التحميل
file type icon SLP14/T - SLP EASE File
تم التحديث: يناير 2023
1.35 MB يناير 2023
SLP CLF Files
  الحجم تاريخ التحميل
file type icon SLP14/T - SLP CLF File
تم التحديث: يناير 2023
326 KB يناير 2023

إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.

القطع والخدمة

المواصفات

Frequency Range (-10dB) 70 Hz - 20 kHz (on wall)
Frequency Response (+/-3 dB) 80 Hz - 18 kHz (on wall)
Power Rating 100W Continuous Program (2 hrs)
50W (200W peak) Continous Pink Noise (2 hrs)
30W (120W peak) Continuous Pink Noise (100 hrs)
Sensitivity 85 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 108 dB peak (102 dB continuous, 2 hr) @ 1m
Coverage Angle 140°H x 120°V
Directivity Factor (Q) 6.9
Directivity Index (DI) 8.4 dB
Nominal Impedance 8Ω (at 8Ω tap setting)
Transformer Taps 70V: 25 W, 12.5 W, 6.3 W, 3.2W
100V: 25 W, 12.5 W, 6.3 W
Driver 120 mm (4.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 20 mm (0.79 in) titanium dome tweeter with neodymium magnet with aluminum former.
Terminals 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
Enclosure Material Polycarbonate + ABS Fireproof, UL94V-0 flammability rated
Color Available in black or white (-WH). Paintable.
Dimensions 286mm W x 263mm H x H100mm D (11.3 x 10.4 x 3.9 in)
Net Weight 2.8kg (6.2 lbs)
Included Accessories Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
