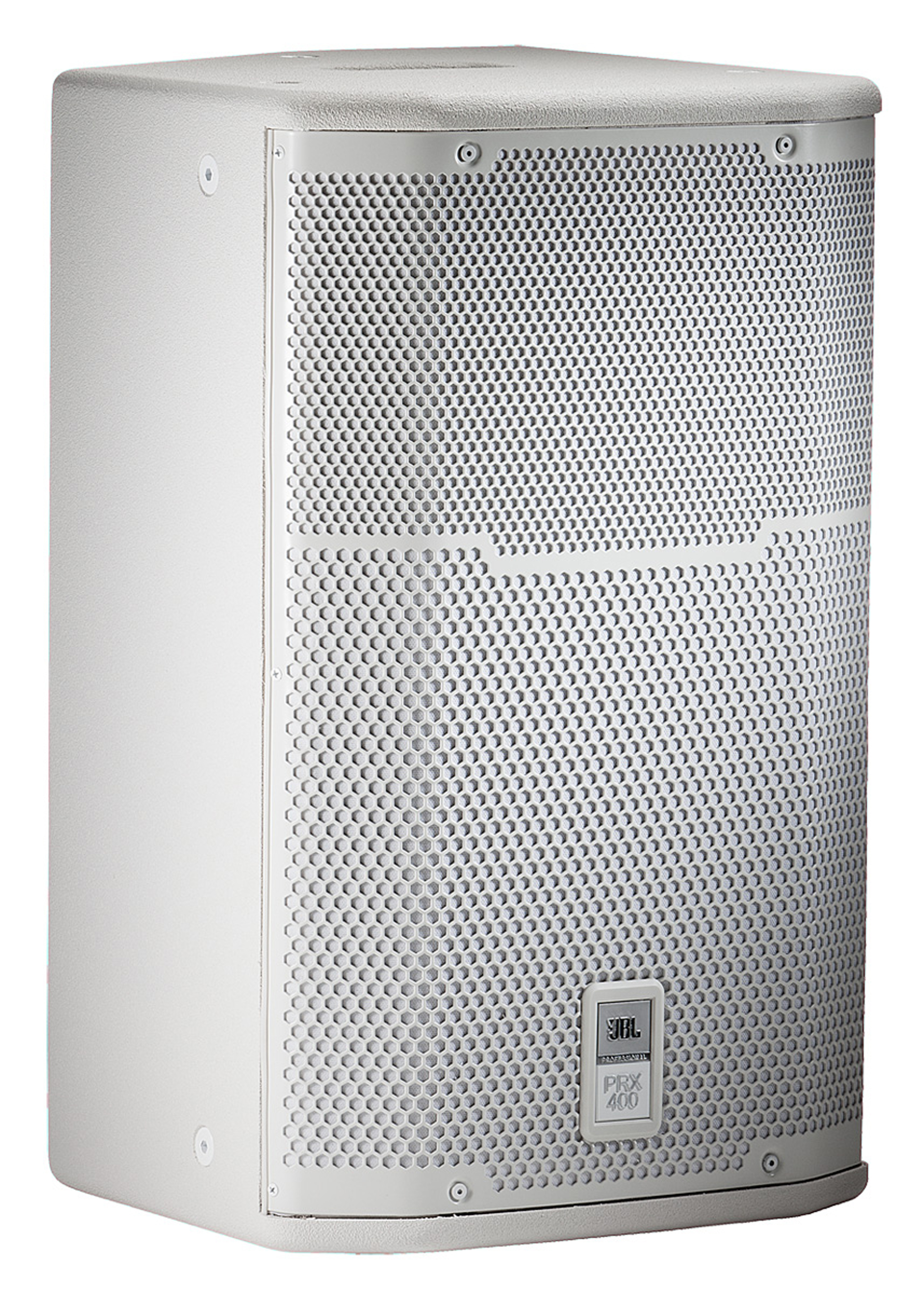

12" Two-Way White Utilitly/Stage Monitor Loudspeaker System
PRX412M-WH is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.
صور أكبر
الميزات
- 12" woofer
- 1" polymer diaphragm compression driver
- Compact and low-profile for minimal obstruction of audience sight-lines
- 90° x 50° coverage for even and smooth response on and off axis
- Heavy Duty 16-gauge protective screen-backed steel grille
- Tough DuraFlex™ enclosure finish
Applications
- Speech reinforcement
- Live performance stage monitoring
- Reinforcement of vocal and acoustic music
التنزيلات
Specifications
| الحجم | |
|
|
1010 KB |
Brochures
| الحجم | |
|
|
991 KB |
|
|
8.45 MB |
الإصدار B,
تم التحديث: أغسطس 2025
Compliances
| الحجم | |
|
|
144 KB |
Images
| الحجم | |
|
|
2.94 MB |
Speaker Tunings
| الحجم | |
|
|
41.2 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| Frequency Range (-10dB) | 50 Hz – 20 kHz |
| Frequency Response (±3 dB) | 62 Hz – 19 kHz |
| Coverage Pattern | 90° x 50° nominal |
| System Sensitivity | 95 dB SPL (1w@1m) |
| Power Rating, Pink Noise | 300 W / 600 W / 1200 W(Continuous/Program/Peak) |
| Maximum SPL (1m) | 126 dB SPL peak |
| Nominal Impedance | 8 ohms |
| Dimensions (H x W x D) | 574 mm x 353 mm x 399 mm(22.6 in x 13.9 in x 15.7 in) |
| Net Weight | 16 kg (35 lbs.) |
الملحقات
PRX412M-CVR | Padded Cover for PRX412M
صور أكبر
Padded Cover for PRX412M. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
JBLPOLE-GA | JBL Gas Assist Speaker Pole
صور أكبر
Gas Assist Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm Adapter. The JBLPOLE-GA is the easiest speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Raise and Lower the Speaker with Ease!
- Strong and Easy-to-Use “Z” knob
- Incredibly Sturdy Pole
- M20 Threaded Pole Mount
- Fits most subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products
الوثائق
-
JBL pole Gas Assist
[41.6 KB]
-
JBL pole Gas Assist detail
[70.2 KB]
-
JBLPOLE-GA Data Sheet
[314 KB]
JBLTRIPOD-GA | JBL Gas Assist Speaker Tripod
صور أكبر
Lift-assist Aluminum Tripod Speaker Stand with Integrated Speaker Adapter. The JBLTRIPOD-GA is an incredibly easy speaker stand to use thanks to the internal pneumatic shock that literally raises the speaker for you. The stand’s internal shock easily raises speakers weighing 35 lbs and less with no effort from the user.
- Gas assist adjustable from 3’8” (1118MM) to 6’7” (2007MM)
- Gas assist tripod that lifts the speaker for you using an internal air-powered shock
- Designed for use with the following JBL models; JRX200,PRX400, STX800, EON, PRX700, VRX900
الوثائق
-
JBLTRIPOD-GA Data Sheet
[231 KB]
-
JBL Tripod Gas Assist Closed
[36.2 KB]
-
JBL Tripod Gas Assist Closed Extended
[30.5 KB]
-
JBL Tripod Gas Assist Open
[41.7 KB]
-
JBL Tripod Manual Adjust Open
[39.5 KB]
JBLTRIPOD-MA | JBL Manual Adjust Speaker Tripod
صور أكبر
Aluminum Tripod Speaker Stand with Secure Locking Pin and 150 lbs Load Capacity. To assist you in lifting your speaker, we’ve added a durable Lift Ring on the telescoping tube to give your upper hand something to push against when raising the speaker to the desired height.
- Adjustable from 4’2” (1270MM) to 6’5” (1956MM)
- Manual adjust speaker tripod
- Designed for use with the following JBL models; JRX200, PRX400, STX800, EON, PRX700, VRX900
الوثائق
-
JBLTRIPOD-MA Data Sheet
[228 KB]
JBLPOLE-MA | JBL Manual Adjust Speaker Pole
صور أكبر
Manual Adjust Speaker Pole with M20 Threaded Lower End, 38mm Pole & 35mm. The JBLPOLE-MA features an amazing height adjustment collar that features an ergonomic “Z” knob that provides comfortable adjustment. The strongest fitting made, the height adjustment collar prevents over- tightening and breakage issues associated with all plastic designs.
- Lightweight
- Metal die-cast collars
- M20 Threaded socket
- Fits all subwoofers with standard M20 pole threading (JBL PRX, VRX, STX and SRX818)- Please reffer to individual products to confirm
الوثائق
-
JBLPOLE-MA Data Sheet
[258 KB]
-
JBL pole Manual Adjust
[40.7 KB]
-
JBL pole Manual Adjust Detail
[87.7 KB]
