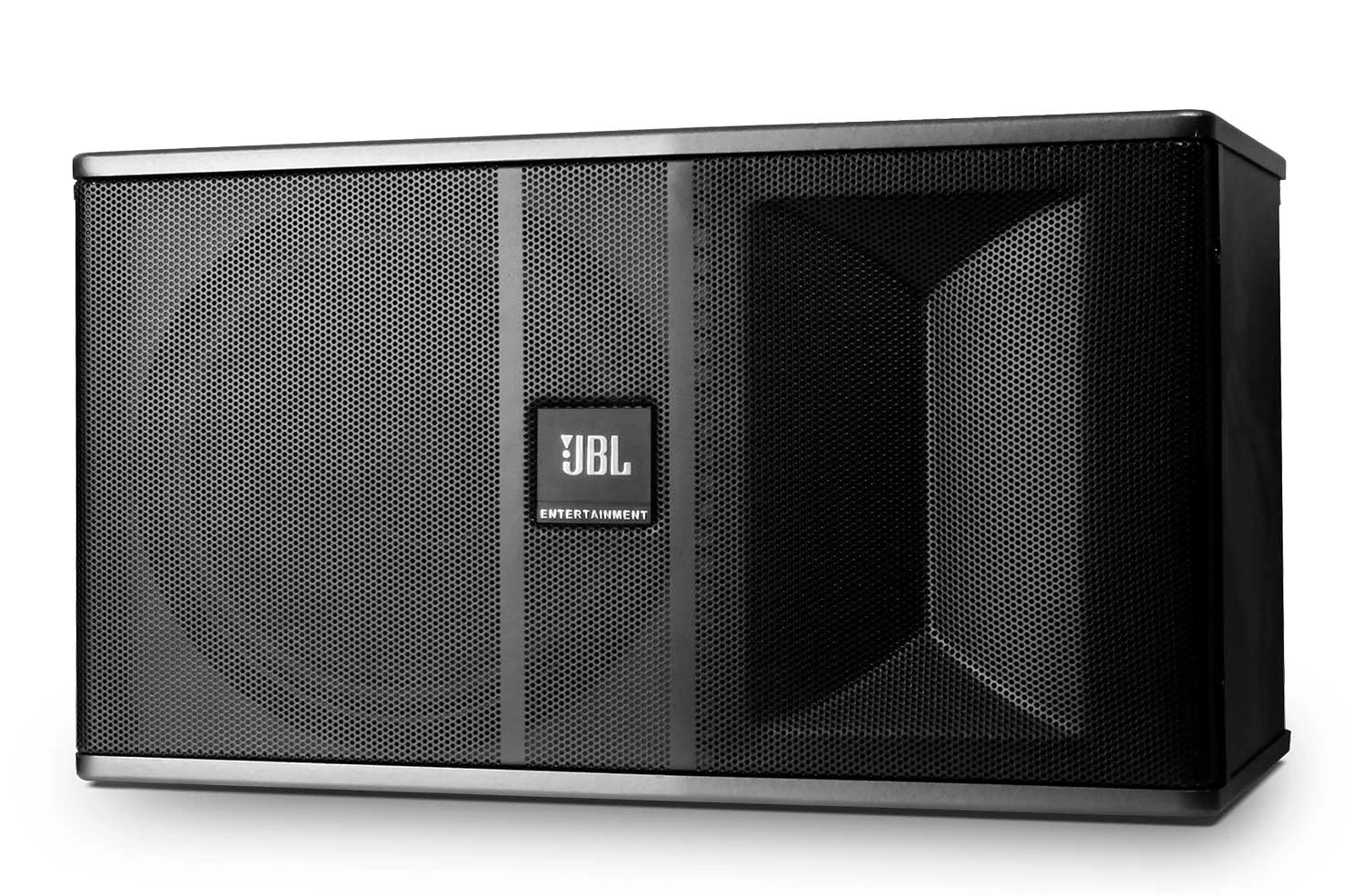

10 Inch Full Range Loudspeaker System
The Ki81 is a 2-way full range speaker designed for the karaoke market. The Ki82 utilizes a single 10” woofer and dual 3” cone tweeters.
صور أكبر
الميزات
- Specially designed 10” woofer with high power handling and low distortion and power compression
- Dual 3” cone tweeters provide excellent high frequency response
- Unique acoustic lens optimizes high frequency directivity
- Precision crossover with protection circuitry built in
- Durable MDF enclosure
التنزيلات
Spec Sheets
| الحجم | |
|
|
374 KB |
|
|
428 KB |
إذا أدت أي من الروابط أعلاه إلى أحرف غريبة في متصفحك، يرجى النقر بزر الماوس الأيمن على الملف لحفظه على جهاز الكمبيوتر الخاص بك.
القطع والخدمة
المواصفات
| System Type | 10′′, 2-way, bass-reflex |
| Frequency Range (-10dB) | 48 Hz - 17 KHz |
| Frequency Response (±3 dB) | 64 Hz - 14 KHz |
| System Sensitivity (1w @ 1m) | 90 dB |
| Nominal Impedance | 8 ohms |
| Maximum SPL *2 | 113 dB (119 dB peak) |
| Power Rating *3(Continuous/Program/Peak) | 200W/400W/800W |
| Coverage Pattern | 110° x 100° (H x V) |
| Dimensions (H x W x D) | 290 mm x 505 mm x 320 mm(11.4 in x 19.9 in x 12.6 in ) |
| Net Weight | 11 kg (24.3 lbs) |
| LF Driver | 1 x 10” Woofer |
| HF Driver | 2 x 3” Tweeter |
| Input Connectors | Binding post |
| Enclosure | Vinyl covered 12 mm MDF |
