15" 2-Way Speaker System


15" 2-Way Speaker System

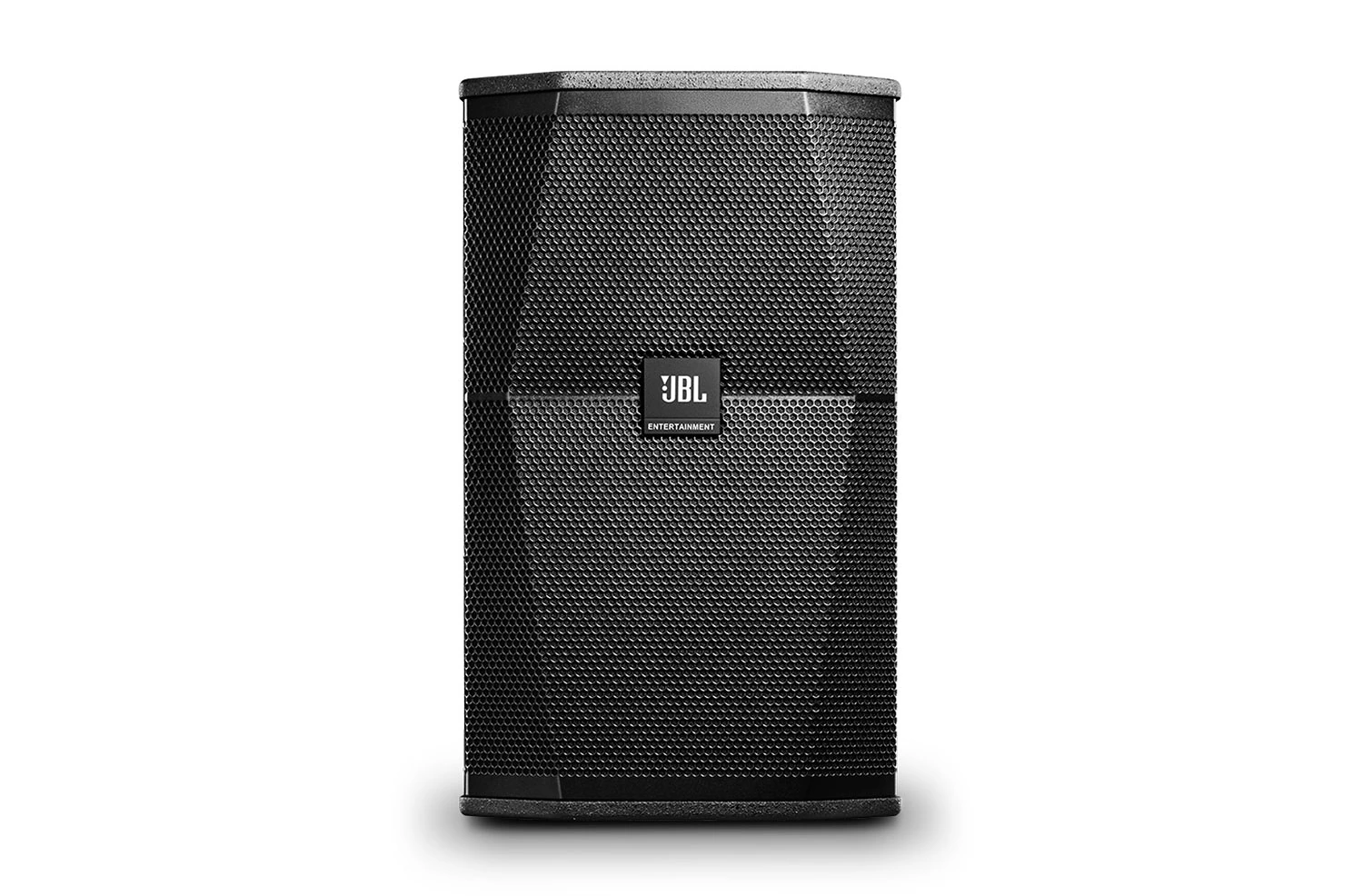

XS15 is a vented 15-inch full-range speaker system designed by JBL Entertainment to satisfy the demand for powerful bass punch and pristine vocal at high-class KTV chain stores or clubs.

For the high notes, XS15 uses a patent JBL 2414H-C 1” polymer diaphragm compression driver not only for its crystal clear high and mid vocal but also its contribution to reliability of the entire system. For the bass part, JBL engineered a new high-efficiency transducer capable of handling high power and reproducing more low frequency energy than its peers. A precision-engineered passive network critically eliminates band overlap and does a great job bringing each sound detail into full play. Balanced coverage across the KTV room is guaranteed by a 100° × 70° (H × V) horn, whenever the speaker is positioned in landscape or portrait mode.

XS15 houses all the acoustical components in a rugged enclosure made from premium quality MDF. Layout of components and transducers is an outcome of rounds of meticulous computing and simulation in order to achieve better frequency response in a more compact cabinet. Multiple high-strength suspension hardware and one speaker pole receptacle are provided to meet different installation requirements. The edgy front grille is machined from 16-gauge steel, for protection of internal components from foreign objects and drink splash. Just like else JBL entertainment product lines, XS15 also comes with a JBL Entertainment signature – the illuminating logo powered by JBL PSL (Passive Sound Lighting) technology, which will be constantly on when the singer keeps singing to his/her mic.


  • JBL 2414H-C 1” polymer diaphragm compression driver for crystal clear vocal reproduction
  • JBL designed low frequency transducer brings higher power handling and stronger bass energy
  • A precision-engineered passive network critically eliminates band overlap and reveals each note detail
  • 100° × 70° (H × V) horn for balanced coverage
  • Rugged enclosure made from premium quality MDF
  • Multiple high-strength suspension hardware for suspension installation
  • Speaker pole receptacle for using with a tri-pod or subwoofer system
  • High-strength edgy front grille protects the internal components from foreign objects or drink splash
  • JBL Logo powered by PSL technology
  • For entertainment businesses, e.g. high-end KTV chain stores, clubs, etc.


  Version Language Size Uploaded
Spec Sheets (Pdf)s
XS15 Spec Sheet - Eng
updated: 12月02日
    558.9 KB 12月02日
XS15 Spec Sheet - Cn
updated: 12月02日
    779.4 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


System Type 15”, 2-way, bass-reflex
Frequency Response (-10dB) 45 Hz – 20 kHz
Frequency Response (±3 dB) 75 Hz – 18 kHz
System Sensitivity (1w @ 1m) 98 dB
标称阻抗 8 Ω
Maximum SPL (1m) 123 dB (129 dB peak)
额定功率 350 W / 700 W / 1400 W (continuous / program / peak)
覆盖范围 100° × 70° (H × V)
HF 驱动程序 1 × JBL 2414H-C
低频驱动单元 1 × 15” woofer
Enclosure Trapezoid, 15 mm, MDF
Suspension Attachment 13 points, M10 threaded hardware; 35mm OmniMount pole mount socket
外观颜色 Textured paint, black
网罩 Powder coated, 1.5 mm perforated steel
Input Connector 1 × Neutrik Speakon® NL4MP
尺寸(高 x 宽 x 厚) 680 mm × 407 mm × 449 mm (26.8 in × 16.0 in × 17.7 in)
净重量 24.9 kg (54.9 lbs)
