VX9 (Available in China and APAC Only)

数字处理器

VX9 (Available in China and APAC Only)

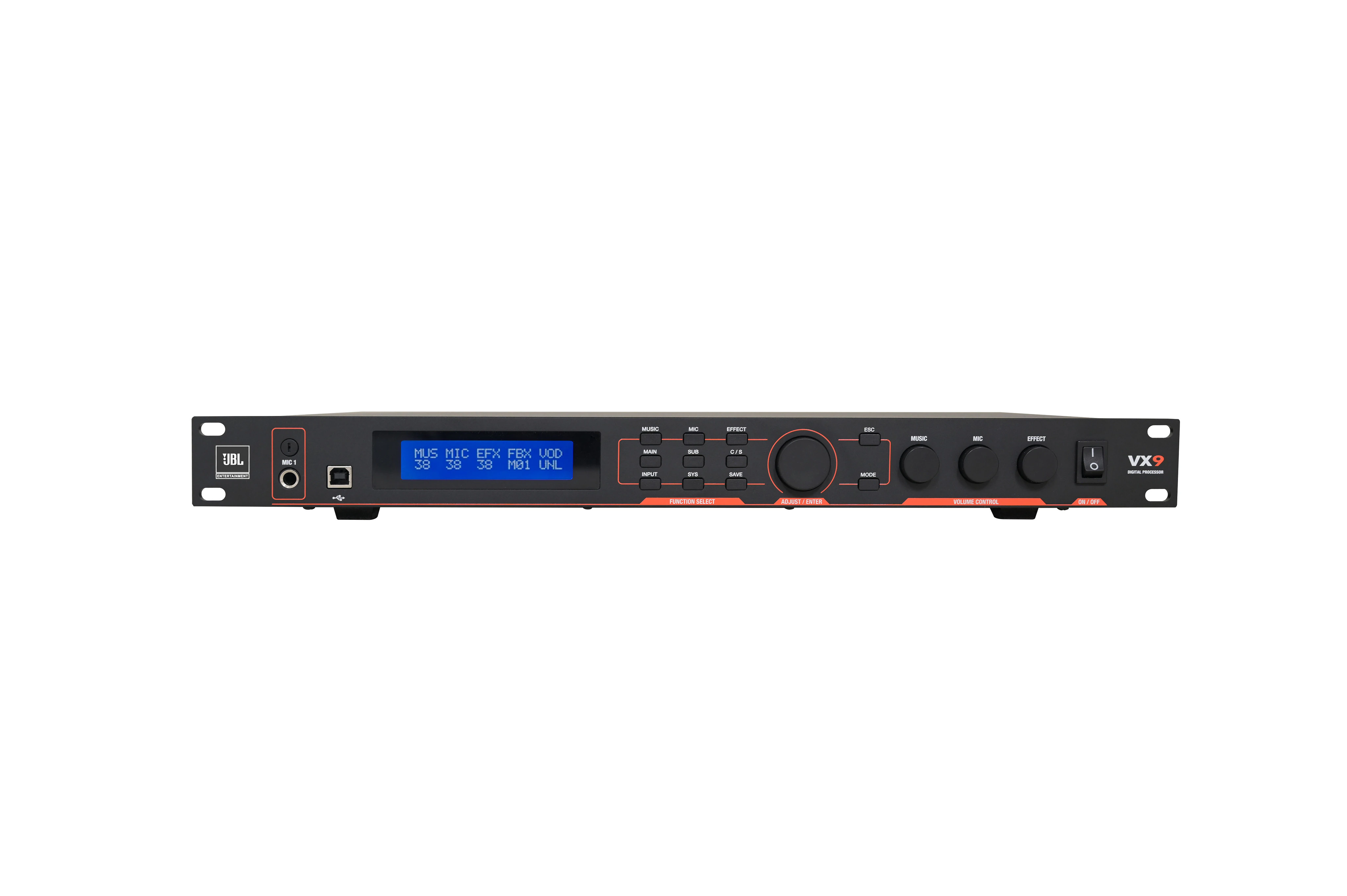

较大的图像

JBL VX9 Series 为集成音频演示系统带来了传奇的 JBL 保真度和性能。JBL VX9 Series 凭借简单、经济、无缝的系统,使音乐和语音能够清晰一致地被听到,并提供了大量的连接选项、操作性和未来保障。VX9 集成了 JBL 扬声器和麦克风的出厂预设。VX9 的处理能力凭借 JBL Professional 多年的经验,提供了最佳的 KTV 体验。

汇聚了 10 多年的 KTV 系统经验和 75 年的扬声器设计,VX9 集成了 JBL Professional 完整解决方案的所有系统组件,包括 JBL KTV 扬声器、Crown 功放和 JBL 无线麦克风。全新改进的 PC GUI,支持可调整显示尺寸,便于操作。VX9 提供 16 个专为 JBL Professional KTV 扬声器和 JBL Professional 麦克风设计的调音预设,为音乐输入提供 15 段参数均衡器,为四个独立麦克风输入各提供 20 段参数均衡器。回声引擎和混响效果由独立 DSP 分别处理。提供 RS232 接口用于中央自动化系统和智能家居。

JBL 产品一直是全球专业制作设施的首选,包括录音棚、电影院、音乐厅和体育馆、剧院以及电视广播中心。JBL VX9 将 KTV 体验提升至专业级别。

特点

High Performance
Highly integrated, redundant voice processing resources, from JBL acoustic technology, crystal sound, solid bass present, best value performance.

Reliability
Following the strictly controlled manufacturing standards to ensure high quality production.

Minimalist
Short learning curve for experienced KTV engineers and operators as the operation and user interface design is similar to the KTV industry.

Compatibility
Meeting the demands of all sizes of KTV facilities by providing various input and output formats.

Fully functional
The operation interface is specially designed for KTV, with friendly operation, free scaling, resizable, and the interface can be moved at will. Both input and output have spectrum display.

下载

Manuals
  大小 上传日期
101.0 MB 2月 2025
Software
  版本 大小 上传日期
download icon for VX9 Digital Signal Processor VX9 Digital Signal Processor
版本 1.1.2, 更新: 4月 2026
1.1.2   94.0 MB 4月 2026
Spec Sheets
  语言 大小 上传日期
file type icon VX9 Spec Sheet
zh 更新: 2月 2025
zh  2.3 MB 2月 2025
file type icon VX9 Spec Sheet
en 更新: 2月 2025
en  4.4 MB 2月 2025

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Digital Input Connector Optical / Co-axial
Digital Input Formats S/PDIF (24-bit), EIAJ CP-340, IEC 958
Digital Input System Delay 1.7 ms
Analog Input Mic Input 4 x 1/4" TS
Analog Input Music Input 2 x stereo pairs RCA
Analog Input Mic Input Impedance 8 kΩ
Analog Input Music Input Impedance 10 kΩ
Analog Input Max Input Level > 18 dBu
Analog Output Connector 6 x XLR unbalanced
Analog Output REC Connector 1 x stereo pairs RCA
Analog Output Impedance 300 Ω
Analog Output Max. Output Level > 18 dBu
Analog Output THD + N ≤ 0.5% @ 20 Hz - 20 kHz
Analog Output Crosstalk ≤ -90 dB
Analog Output S/N Ratio > 100 dB @ A-weighted
Analog Output Noise Floor < 80 uV @ A-weighted, gain to max
工作温度 0 °C to 45 °C
存储温度 -20 °C to 60 °C
湿度 Max 90% non-condensing
USB USB 2.0 Type-B
RS-232 DB9

显示

Dot matrix LCD

尺寸

482 x 204 x 44 mm
净重量 3.6 Kg
Mains Voltage AC 220 V / 50 Hz

功耗

≤ 25 W
