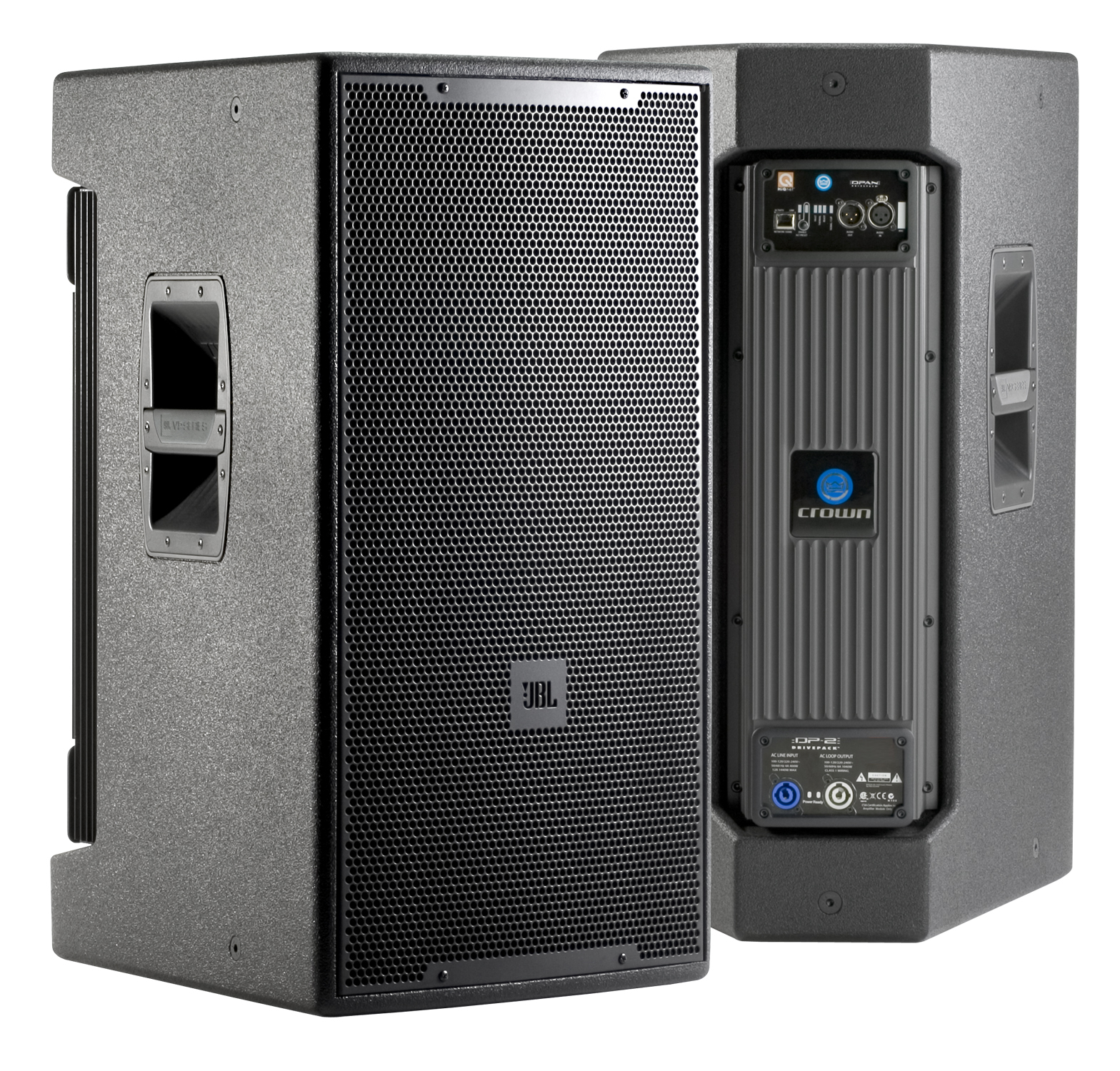

Powered 15 in. 2-way Integrated Loudspeaker System
The VP7215/95DPAN is a powered 15" 2-way integrated loudspeaker system featuring 2200 watts of peak output power, 1100 watts continuous, and onboard digital signal processing.
较大的图像
特点
- Powered bi-amplified full-range loudspeaker with JBL DrivePack® technology for portable or installed use.
- 2200 Watts peak output power, 1100 Watts continuous.
- HiQnet™ compatible; network control.
- 15-inch Differential Drive® low-frequency driver for extended low-frequency output .
- 90° x 50°coverage.
- Stylized and ergonomically designed powder-coated die cast aluminum handles.
- Six 3-inch fly track suspension points and fourteen M10 fittings (optional detachable flying fittings and forged eye bolt kits available).
下载
| Size | ||||
VP Series Brochure
updated: 11月 2023
|
2.7 MB | |||
|
DPDA Input Module Spec Sheet
updated: 11月 2023
|
475.0 KB | |||
|
VP7215/95DP Spec Sheet
updated: 11月 2023
|
1.1 MB | |||
Specifications | ||||
VP DPDA Spec Sheet
updated: 7月 2019
|
5.9 MB | |||
|
DPDA Input Module Spec Sheet
updated: 7月 2019
|
475.0 KB | |||
|
VP7215/95DP Spec Sheet
updated: 7月 2019
|
903.0 KB | |||
Manuals | ||||
|
VP User's Guide
updated: 10月 2019
|
1.5 MB | |||
|
VP DrivePack DPC2 User's Guide
updated: 10月 2019
|
1.0 MB | |||
Brochures | ||||
|
VP Series Brochure
updated: 7月 2019
|
2.7 MB | |||
CAD Drawings | ||||
|
VP Series
updated: 10月 2019
|
2.5 MB | |||
|
VP7215/64DP/95DP 2D DXF
updated: 10月 2019
|
217.0 KB | |||
|
VP7215/95DP 3D DXF
updated: 7月 2019
|
340.9 KB | |||
|
VP7215/95DP 2D PDF
updated: 7月 2019
|
54.4 KB | |||
Compliances | ||||
|
VP Series Declaration of Conformity
updated: 10月 2019
|
93.3 KB | |||
Ease Data | ||||
|
VP Series Ease Files
updated: 10月 2019
|
261.0 KB | |||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21.0 MB | |||
Images | ||||
|
VP7215 Photo
updated: 7月 2019
|
1.4 MB | |||
Simulation Data | ||||
|
JBL Pro ALL CLF Files
version 12-10-21,
updated: 5月 2023
|
24.0 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 频率范围 | 45 Hz to 20 kHz (-10 dB) |
频率响应 |
60 Hz to 18 kHz ( ± 3 dB) |
| 覆盖范围 | 90° x 50° rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Maximum Peak Output1 | 137 dB SPL 1m |
| Low Frequency Section | JBL 2265G, 381 mm (15 in) dia.,76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled |
| Bandpass Nominal Impedance | 4 ohms |
| High Frequency | JBL2452H-SL, 100mm (4in) titanium damped diaphragm, 1.5in. exit |
| DP2 Internal Amplification Output (at nominal load) | 2200 Watts Peak, 1100 Watts Continuous |
| DP2 Output (Continuous IEC shaped pink noise into rated load impedance) | 750LF/350HF Watts |
| DP2 Output Section | 2-Channel, Class I |
| Audio Input Connector | XLR with loop-through |
| Signal Processing | DSP based limiters for mechanical and thermal protection |
| AC Power Oprating Range | Auto Select 90-132VAC/216-264VAC, 50/60Hz |
| AC Input Connector | Neutrik PowerCon |
| AC Loop-thru | Neutrik PowerCon |
| AC Current Requirement: | 6A per system at 120V, 3A per system at 240V |
| Box Construction | 5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish. |
| Suspension System | 6 standard air-cargo 3 in. track and 14 M10 fittings |
| 网罩 | 14 Gauge Black powder-coated perforated steel with foam backing |
| 尺寸（高 x 宽 x 厚） | 765.3 x 447.6 x 523.5 mm(30.13 x 17.62 x 20.61 in.) |
| 净重量 | 38.6 kg (85 lb) |
