VLA-C2100

Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

VLA-C2100
较大的图像

Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

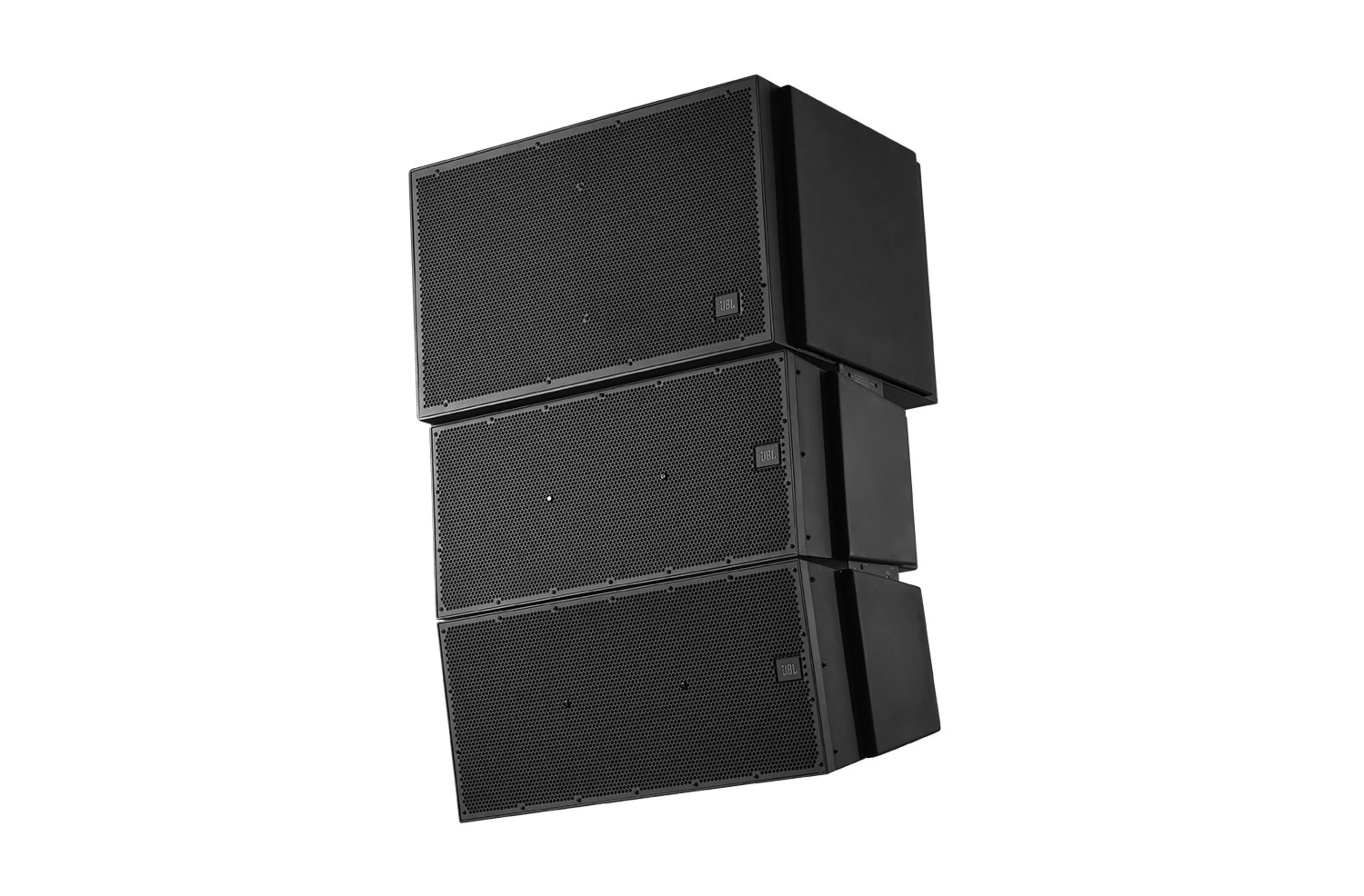

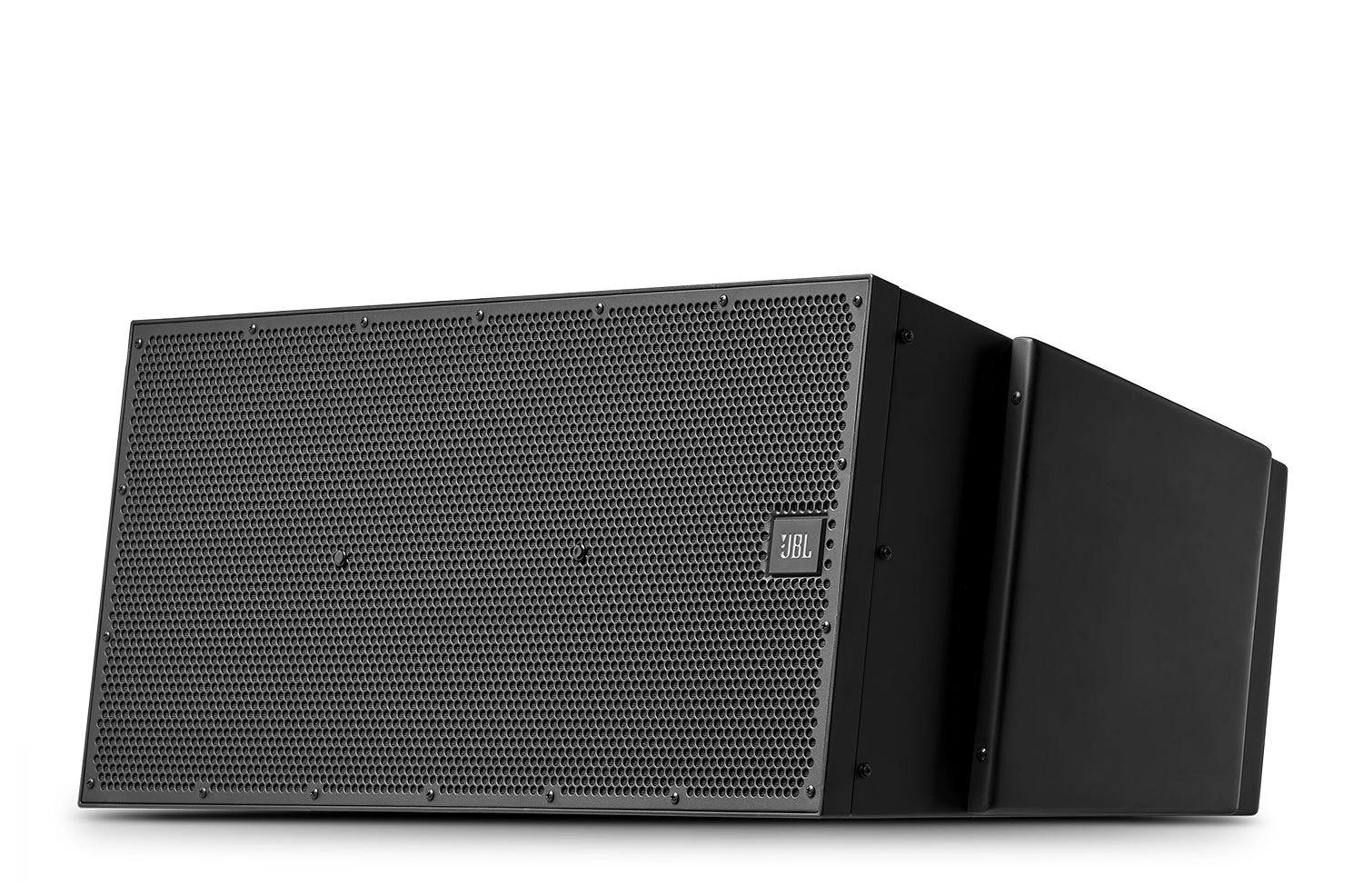

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.

The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.

The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.

特点

  • Compact line array module optimized for permanent install applications
  • Advanced technology component transducers for low weight and high output
  • Outdoor IP55 rated enclosure for protection from dust and water
  • Comprehensive rigging points for creating a line array configuration
  • Fiberglass box construction and weatherized components
  • Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
  • 100° horizontal coverage pattern

下载

  Version Language Size Uploaded
Specifications
file type icon VLA-C2100 SpecSheet
version C, updated: 8月 2023
  731.5 KB 8月 2023
Manuals
file type icon VLA-C Compact Users Guide
updated: 10月 2019
    6.5 MB 10月 2019
CAD Drawings
file type icon VLA-Compact Customer Drawings
en version B, updated: 7月 2022
en  3.9 MB 7月 2022
file type icon VLA-C2100 Revit Files
updated: 7月 2022
    7月 2022
Software
file type icon VLA-C Calculator Instructions
version C, updated: 7月 2020
  3.3 MB 7月 2020
platform icon VLA-C Calculator
version 1.1.2, updated: 7月 2020
1.1.2     5.5 MB 7月 2020
Application Guides
file type icon Loudspeakers for Sports Facilities
en updated: 5月 2021
  en  5.7 MB 5月 2021
Accessories
file type icon VLA-C-SB2 2D Dimensional Drawing PDF
en version A, updated: 10月 2020
en  157.1 KB 10月 2020
file type icon VLA-C-SB2 Suspension Brkt Kit Contents & Instructions
version A, updated: 10月 2020
  1.5 MB 10月 2020
Ease Data
file type icon VLAC Rev B (Mar 2020) EASE GLL
updated: 10月 2020
    9.0 MB 10月 2020
Preset Libraries
file type icon VLA-C DCi Preset Library - R2.0
version 2.0, updated: 11月 2023
2.0    746.6 KB 11月 2023
file type icon VLA-C iTech HD Preset Library - R2.0
version 2.0, updated: 11月 2023
2.0    637.4 KB 11月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 86 Hz - 18 kHz
Frequency Response (±3 dB) 109 Hz – 15.3 kHz
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs 50 W Continuous Pink Noise (200 W peak), 100 hrs
Full-Range 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Coverage Pattern (-6 dB) Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz) Vertical: Varies with array size and configuration
Amplifiers Crown DCi Family with DSP on-boardRecommended: Crown DCi 2 | 1250N Crown DCi 4 | 1250N/ND/DA Crown DCi 2 | 2400N Crown DCi 4 | 2400N
低频驱动单元 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
HF 驱动程序 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
音箱材料 Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
网罩 Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using VLA-C2100 Bracket Plate (included with VLA-C2100)VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
环境 IP-55 rating per IEC529 (dust protected and protected against jets of water)

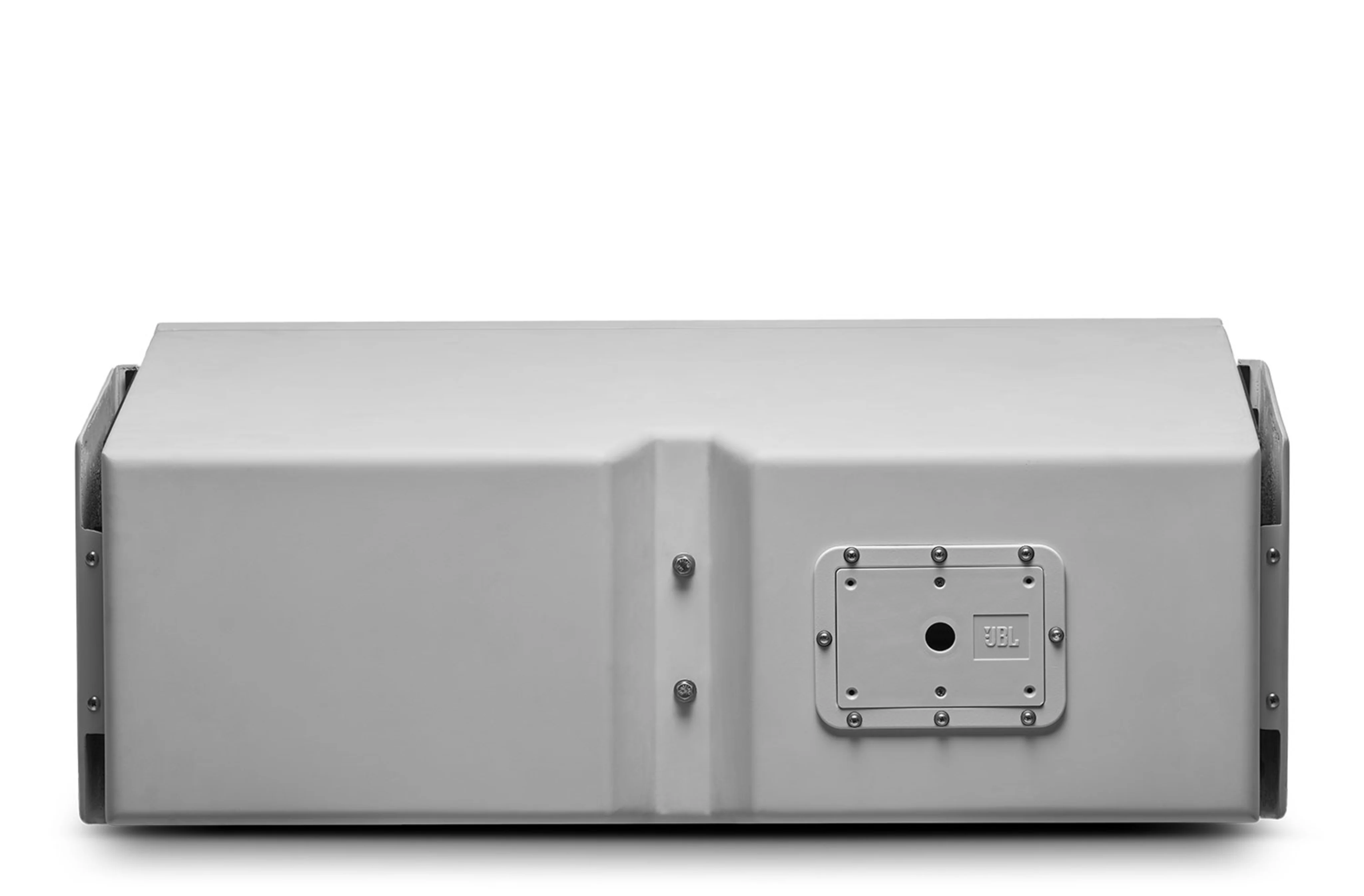

Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Colors -GR: Gray (similar to Pantone 420C), -BK: Black
尺寸(高 x 宽 x 厚) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (each) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)

随附配件

2 x VLA-C2100 Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
Optional Accessories VLA-C-SB2 (JBL-VLACSB2BK) Suspension Bracket Kit
