STX835

Dual 15" Three-Way with Horn-Loaded MF/HF section, slot-loaded LF

STX835

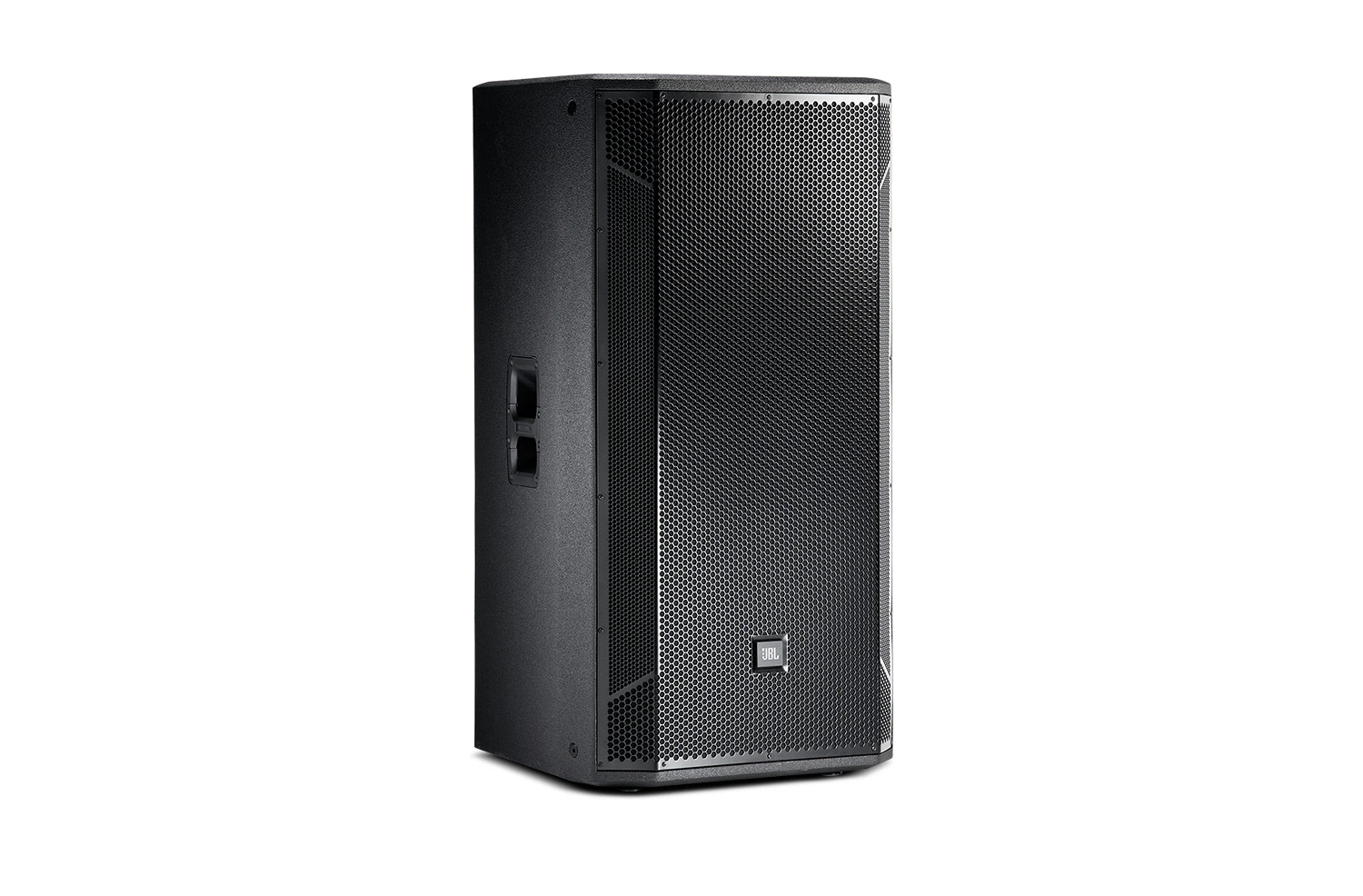

较大的图像

Dual 15" Three-Way with Horn-Loaded MF/HF section, slot-loaded LF

A slot-loaded dual 15" three-way system with horn-loaded mid and high sections, designed for full-range use in stand-alone applications or for use in high performance environments as the premier ground stack passive top box. Designed to be placed over the STX828, this cabinet can be used in multiples in a high density situation; the STX835 can deliver amazing sound clarity at high SPL’s. The STX835’s 60 degree by 40 degree mid- and high-frequency waveguides allows two cabinets to be splayed for wide angle coverage.



特点

  • (15 in.) Vented Gap Cooling™ low-frequency driver for extended low-frequency output.
  • CMCD™ Cone Midrange Compression Driver™ provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherence.
  • 60°x 40° coverage.
  • Bi-amplified or full-range passive operation.
  • Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
  • 14-Gauge steel grille lined with acoustically transparent cloth.


下载

  Version Language Size Uploaded
Specifications
file type icon STX835 Spec Sheet
updated: 7月 2019
    1.2 MB 7月 2019
Brochures
file type icon STX800 Brochure
updated: 10月 2020
    3.0 MB 10月 2020
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.5 MB 10月 2020
CAD Drawings
file type icon STX Series 3D Drawings
updated: 10月 2020
    6.9 MB 10月 2020
file type icon STX Series 2D PDF Drawings
updated: 10月 2020
    735.9 KB 10月 2020
file type icon STX Series 2D DXF Drawings
updated: 10月 2020
    2.6 MB 10月 2020
Compliances
file type icon STX800 Series Declaration of Conformity
updated: 10月 2020
    144.9 KB 10月 2020
Speaker Tunings
file type icon STX800 V4/V5 Crown I-Tech HD
updated: 10月 2020
    618.7 KB 10月 2020
file type icon STX800 V4/V5 Crown IT4x3500HD
updated: 10月 2020
    786.5 KB 10月 2020
file type icon STX800 V4 Crown XTi2
updated: 10月 2020
    490.2 KB 10月 2020
Images

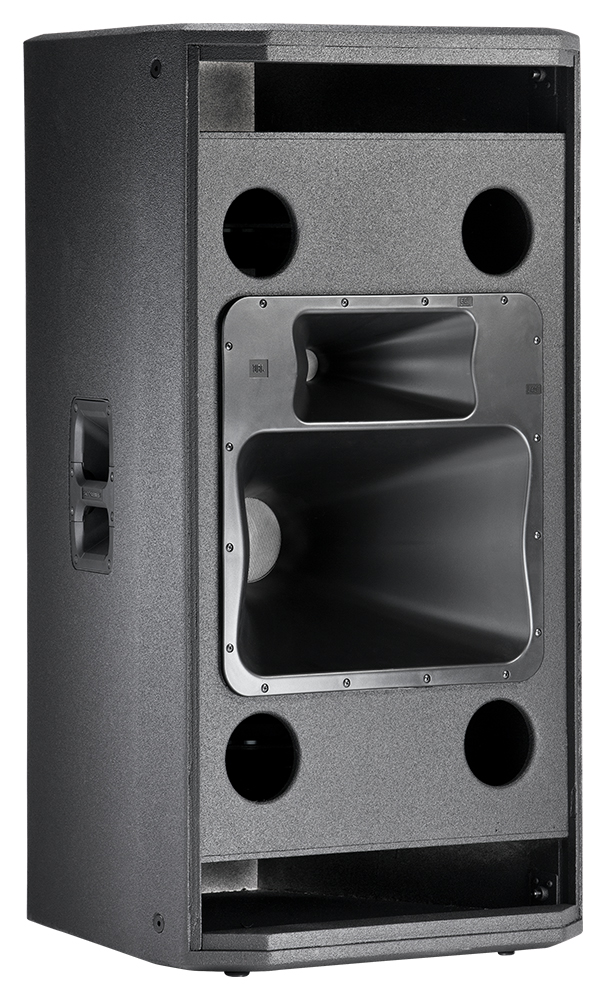

file type icon STX835 Fr Angle No Grill
updated: 7月 2019
    370.9 KB 7月 2019

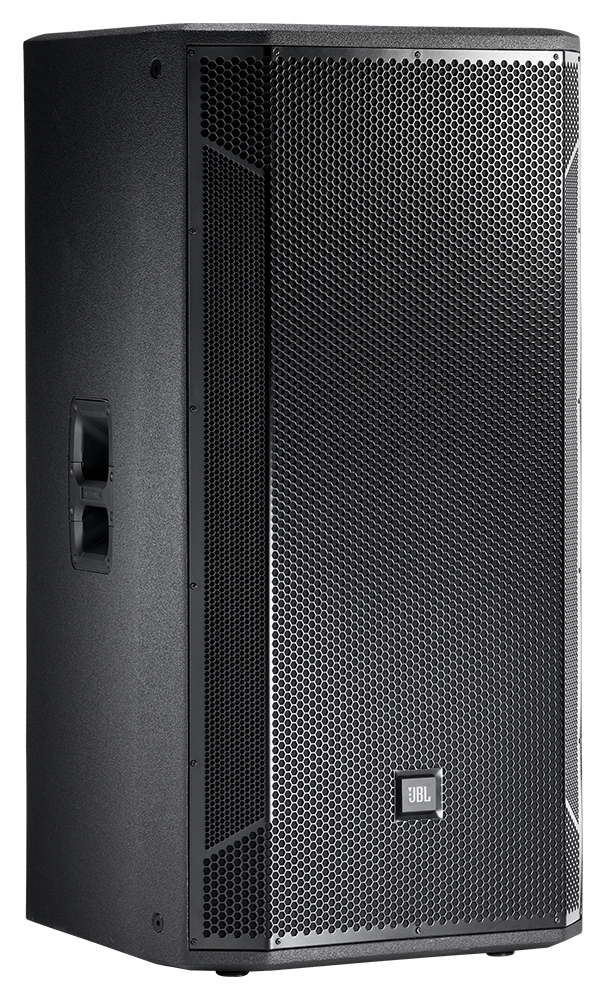

file type icon STX835 Front Angle
updated: 7月 2019
    580.2 KB 7月 2019

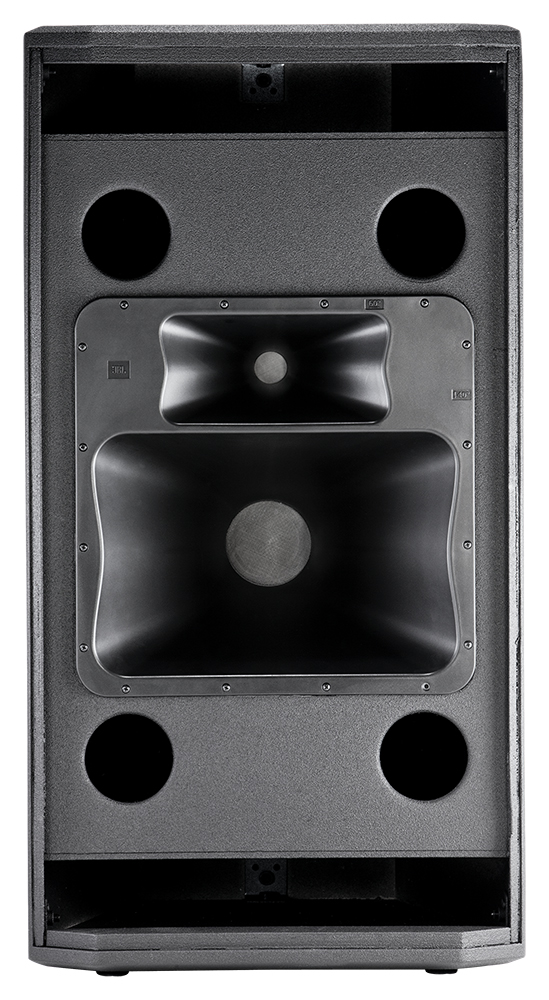

file type icon STX835 Front No Grill
updated: 7月 2019
    320.1 KB 7月 2019

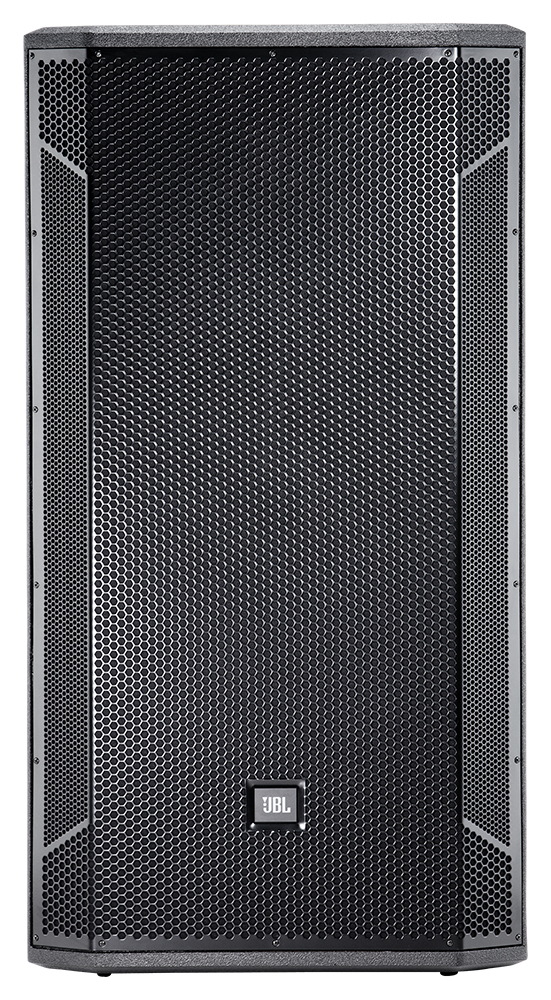

file type icon STX835 Front
updated: 7月 2019
    664.4 KB 7月 2019
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 32 Hz-20 kHz
Frequency Response (±3 dB) 43 Hz-20 kHz
覆盖范围 60˚ × 40˚ nominal

灵敏度

96 dB
额定功率 1600 W / 3200 W / 6400 W(Continuous/Program/Peak)
Maximum SPL (1m) 134 dB SPL Peak
标称阻抗
输入接口 Two NL4
Operational Modes Full Range/Bi-Amp with internal passive mid-high crossover network
尺寸(高 x 宽 x 厚) 1066 mm x 568 mm x 573 mm(42.0" x 22.4" x 22.6")
净重量 57.1 kg (126 lbs)
