STX828S

Dual 18" Bass Reflex Subwoofer

STX828S

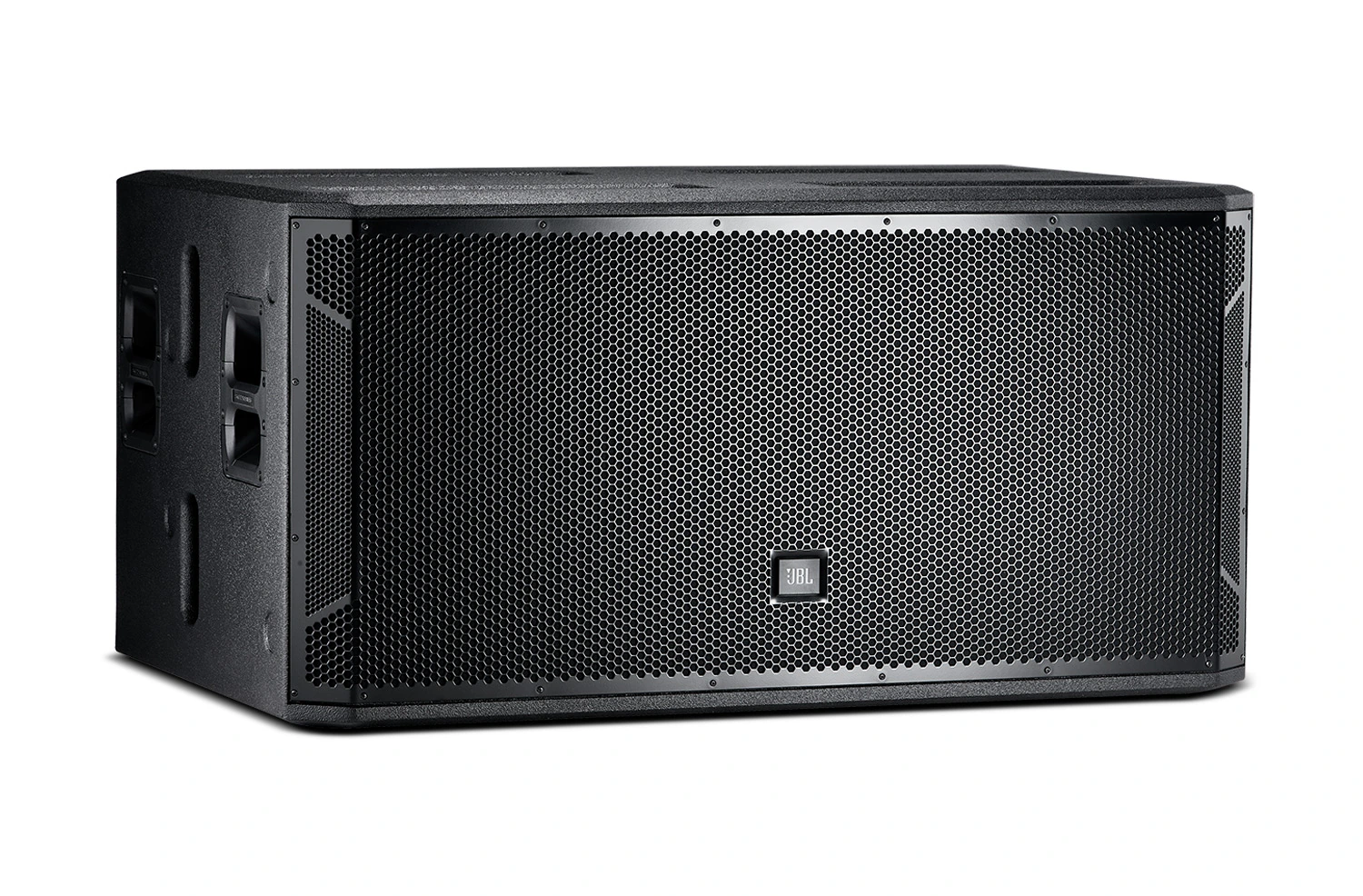

较大的图像

Dual 18" Bass Reflex Subwoofer

A dual 18" high power subwoofer system in a front-loaded, vented enclosure designed for maximum low-frequency performance. The STX828 has an optional wheel kit. Two drivers give 2,000 watts of continuous pink noise power handling, 4kW program and 8 kW peak.



特点

  • Dual 18 in. Super Vented Gap™ woofers for extended low frequency output.
  • Dual 18 in. Super Vented Gap™ woofers for extended low frequency output.
  • Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
  • 14-Gauge steel grille lined with acoustically transparent cloth.


下载

  Version Language Size Uploaded
Specifications
file type icon STX828S Spec Sheet
updated: 7月16日
    1.2 MB 7月16日
Brochures
file type icon STX800 Brochure
updated: 10月23日
    3.0 MB 10月23日
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月22日
    2.5 MB 10月22日
CAD Drawings
file type icon STX Series 3D Drawings
updated: 10月22日
    6.9 MB 10月22日
file type icon STX Series 2D PDF Drawings
updated: 10月23日
    735.9 KB 10月23日
file type icon STX Series 2D DXF Drawings
updated: 10月23日
    2.6 MB 10月23日
Compliances
file type icon STX800 Series Declaration of Conformity
updated: 10月23日
    144.9 KB 10月23日
Speaker Tunings
file type icon STX800 V4/V5 Crown IT4x3500HD
updated: 10月22日
    786.5 KB 10月22日
file type icon STX800 V4 Crown XTi2
updated: 10月22日
    490.2 KB 10月22日
file type icon STX800 V4/V5 Crown I-Tech HD
updated: 10月22日
    618.7 KB 10月22日
Images

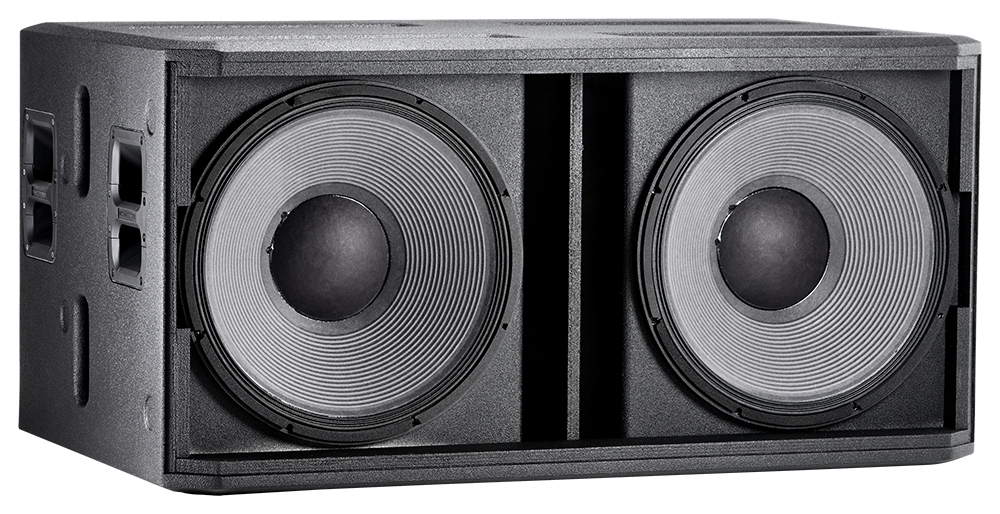

file type icon STX828S Fr Angle No Grill
updated: 7月16日
    389.8 KB 7月16日

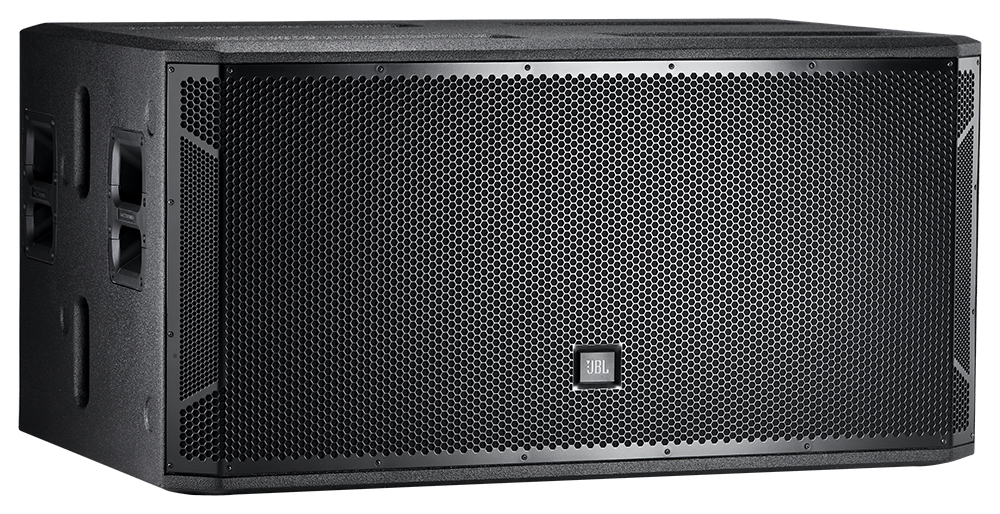

file type icon STX828S Front Angle
updated: 7月16日
    546.9 KB 7月16日

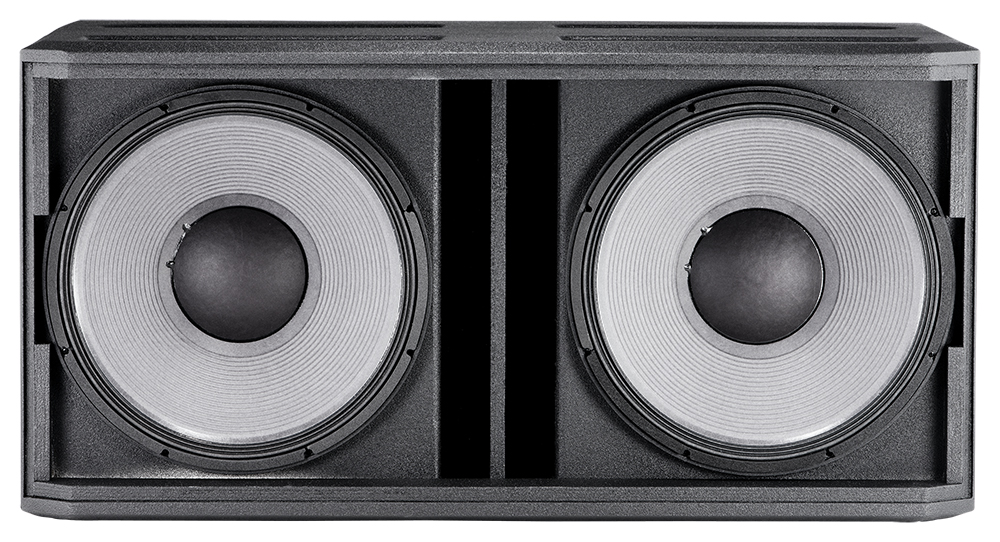

file type icon STX828S Front No Grill
updated: 7月16日
    414.8 KB 7月16日

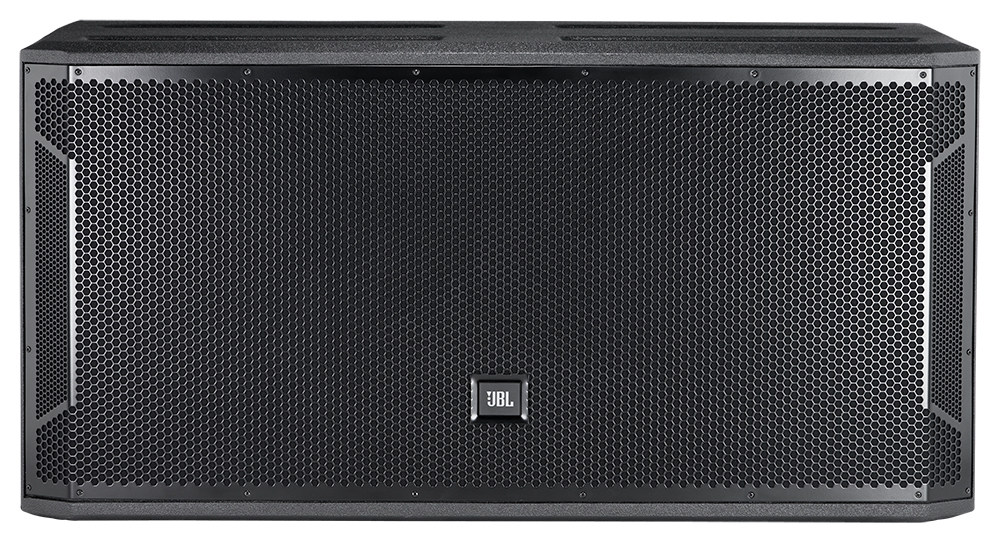

file type icon STX828S Front
updated: 7月16日
    553.7 KB 7月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 32 Hz-250 Hz
Frequency Response (±3 dB) 37 Hz-120 Hz

灵敏度

99 dB
额定功率 2000 W / 4000 W / 8000 W(Continuous/Program/Peak)
Maximum SPL (1m) 138 dB SPL Peak
标称阻抗
输入接口 Two NL4
Operational Modes Subwoofer
尺寸(高 x 宽 x 厚) 564 mm x 1137 mm x 714 mm(22.2" x 44.8" x 28.1")
净重量 82 kg (180 lbs)
