Dual 15" Two-Way, Bass-Reflex


Dual 15" Two-Way, Bass-Reflex

A dual 15" two-way speaker designed for maximum impact, portability and ease of use. With a wide frequency range and broad 90 degree by 50 degree coverage angles, this speaker is ideal for bands or DJ’s as their primary PA, use as a side-fill on a concert stage, or as an install speaker in a dance club or performance venue.



  • Compact and very high-power.
  • Dual (15") Vented Gap Cooling™ low-frequency drivers for very high acoustic output.
  • 102 mm (4 in) voice-coil neodymium compression driver for high-power capacity and very light-weight
  • 90°x 50° coverage.
  • Bi-amplified or full-range passive operation.
  • Twelve M10 suspension points may be used with optional M10 eyebolts.
  • Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
  • 14-Gauge steel grille lined with acoustically transparent cloth.


  Version Language Size Uploaded
file type icon STX825 Spec Sheet
updated: 7月16日
    1.1 MB 7月16日
file type icon STX800 Brochure
updated: 10月23日
    3.0 MB 10月23日
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月22日
    2.5 MB 10月22日
CAD Drawings
file type icon STX Series 3D Drawings
updated: 10月22日
    6.9 MB 10月22日
file type icon STX Series 2D PDF Drawings
updated: 10月23日
    735.9 KB 10月23日
file type icon STX Series 2D DXF Drawings
updated: 10月23日
    2.6 MB 10月23日
file type icon STX800 Series Declaration of Conformity
updated: 10月23日
    144.9 KB 10月23日
Speaker Tunings
file type icon STX800 V4/V5 Crown IT4x3500HD
updated: 10月22日
    786.5 KB 10月22日
file type icon STX800 V4 Crown XTi2
updated: 10月22日
    490.2 KB 10月22日
file type icon STX800 V4/V5 Crown I-Tech HD
updated: 10月22日
    618.7 KB 10月22日

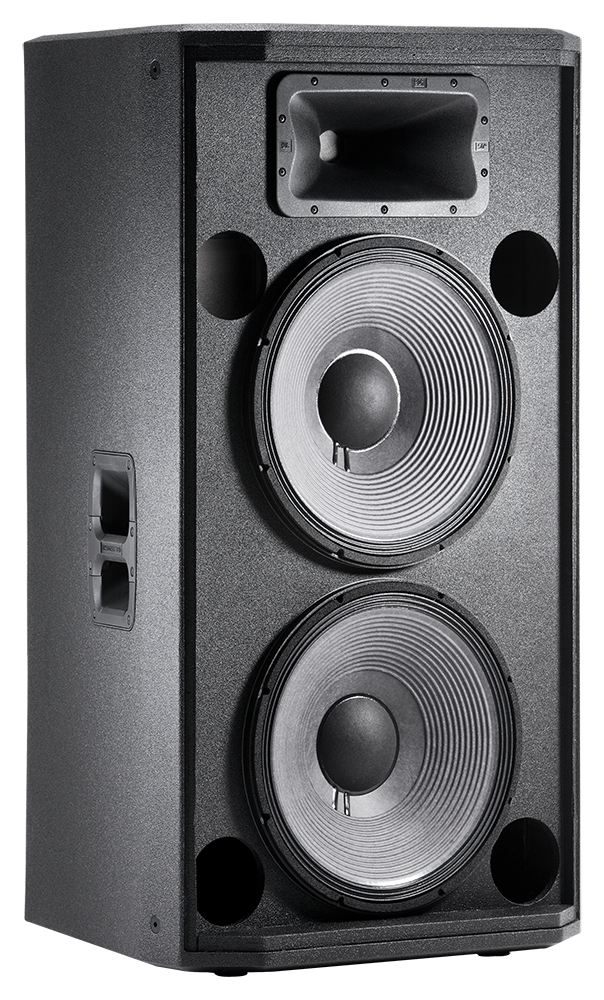

file type icon STX825 Fr Angle No Grill
updated: 7月16日
    462.5 KB 7月16日

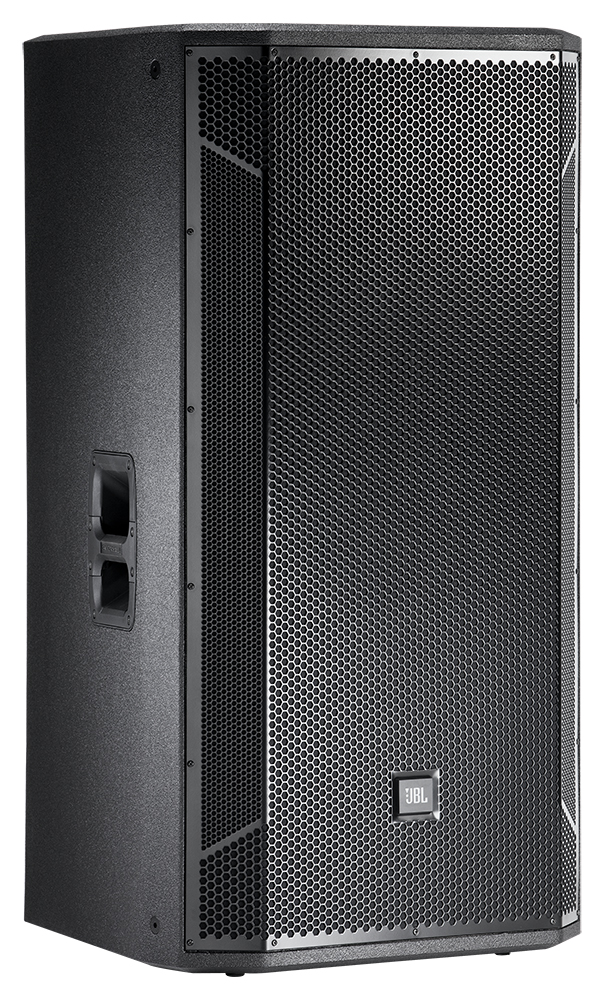

file type icon STX825 Front Angle
updated: 7月16日
    602.0 KB 7月16日

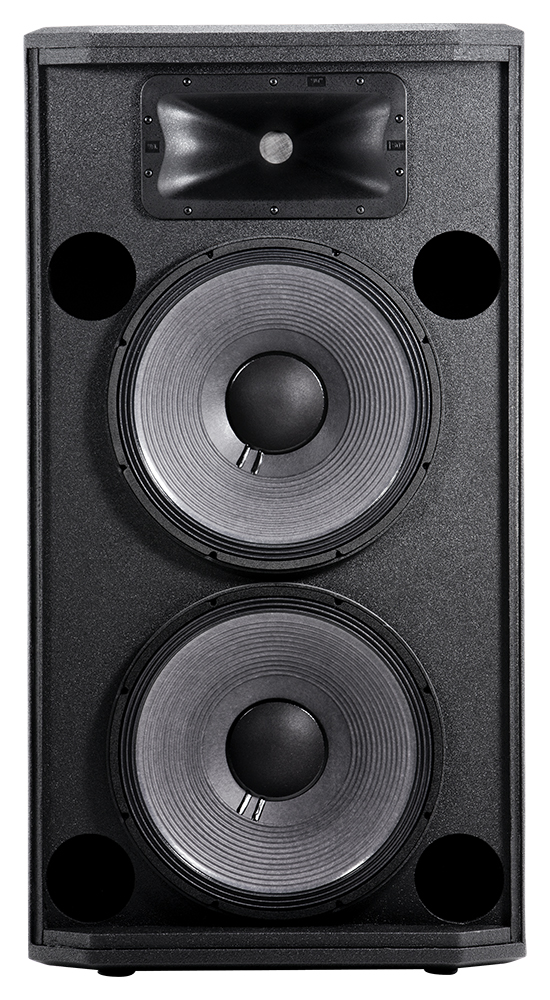

file type icon STX825 Front No Grill
updated: 7月16日
    428.4 KB 7月16日

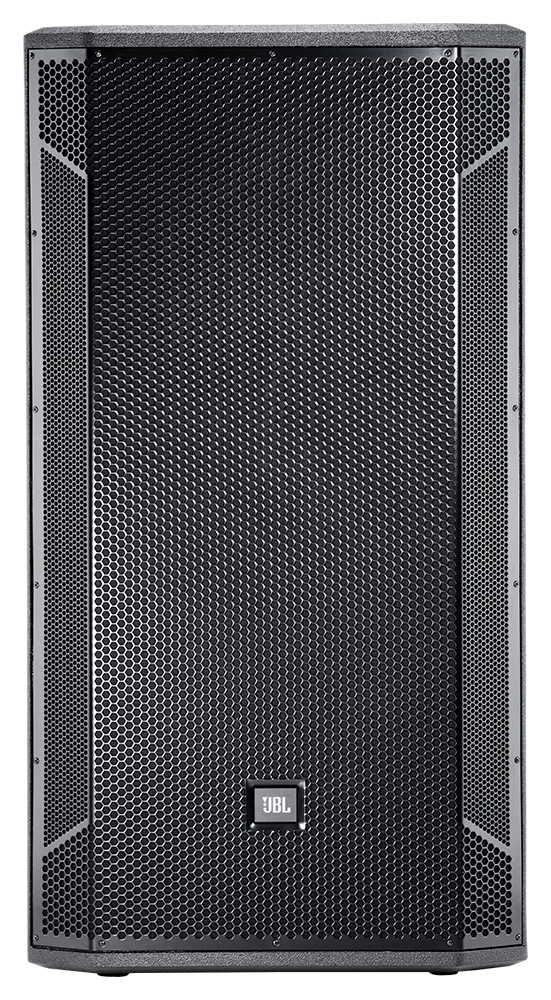

file type icon STX825 Front
updated: 7月16日
    664.4 KB 7月16日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


频率范围 (-10dB) 34 Hz-20 kHz
Frequency Response (±3 dB) 42 Hz-19 kHz
覆盖范围 90˚ × 50˚ nominal


98 dB
额定功率 1600 W / 3200 W / 6400 W(Continuous/Program/Peak)
Maximum SPL (1m) 136 dB SPL Peak
输入接口 Two NL4
Operational Modes Full Range/Bi-Amp
尺寸(高 x 宽 x 厚) 1066 mm x 568 mm x 573 mm(42.0" x 22.4" x 22.6")
净重量 51 kg (112 lbs)
