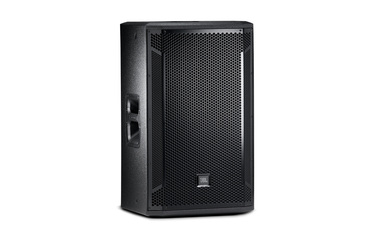

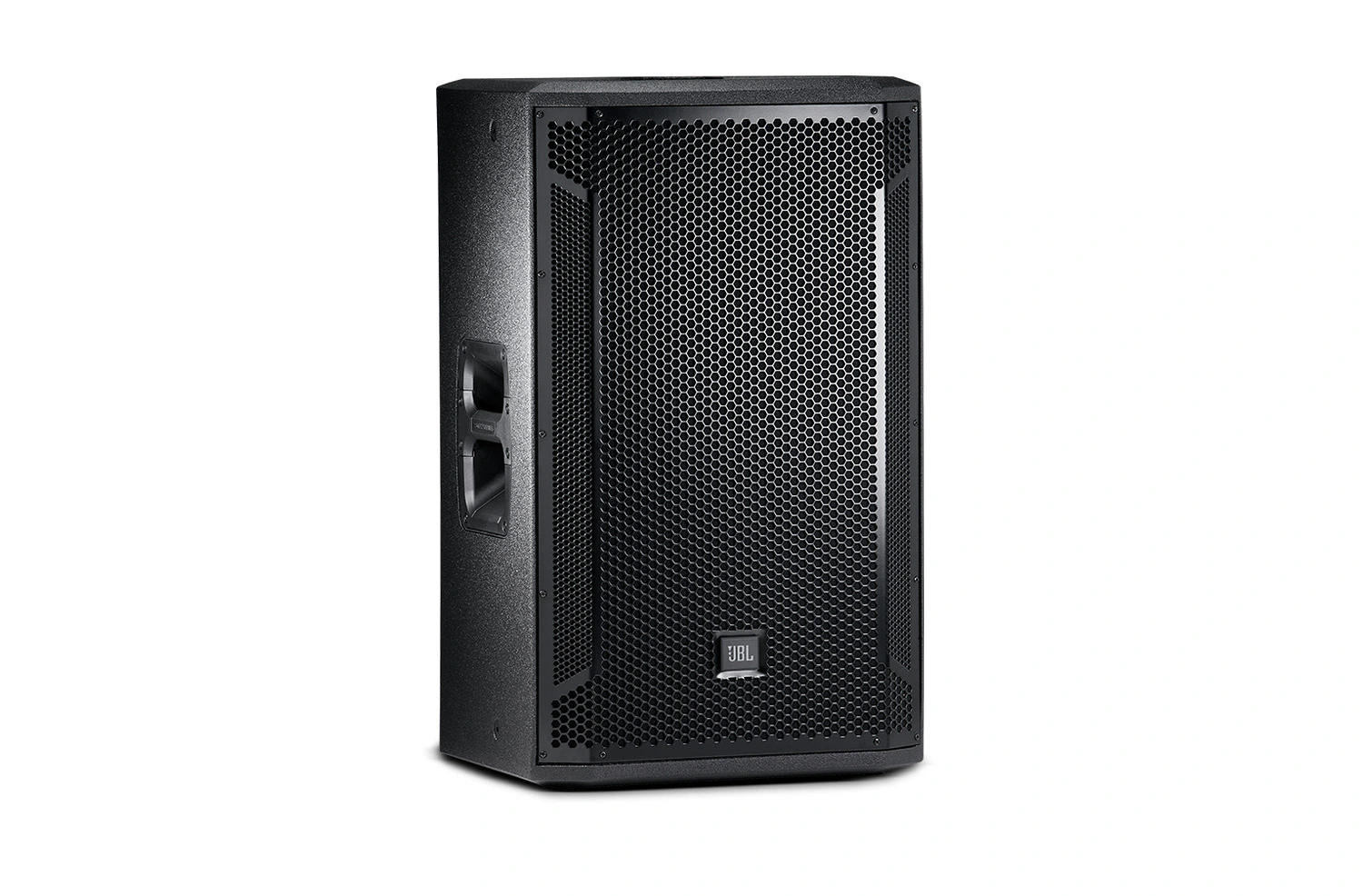

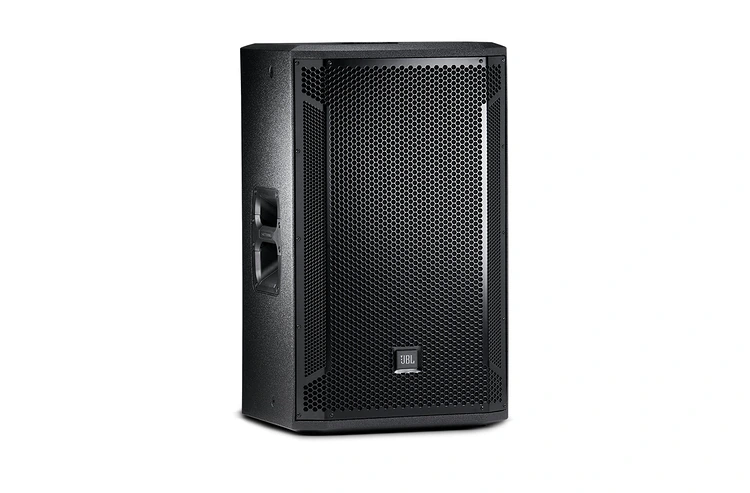

STX815M

15" Two-Way, Bass-Reflex, Stage Monitor/Utility

STX815M
较大的图像

15" Two-Way, Bass-Reflex, Stage Monitor/Utility

A single 15" lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor, it offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.



特点

  • Compact and low-profile for minimal obstruction of audience sight-lines.
  • 70°x 70° nominal coverage.
  • Bi-amplified or full-range passive operation.
  • Pole socket for applications requiring pole or tripod mounting.
  • Twelve M10 suspension points.
  • High power handling, low distortion Vented Gap Cooling™ LF driver.
  • 3 in. (diaphragm) neodymium magnet compression driver.
  • Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
  • 14-Gauge steel grille lined with acoustically transparent cloth.


下载

  Version Language Size Uploaded
Specifications
file type icon STX815M Spec Sheet
updated: 10月 2020
    1.3 MB 10月 2020
Brochures
file type icon STX800 Brochure
updated: 10月 2020
    3.0 MB 10月 2020
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.5 MB 10月 2020
CAD Drawings
file type icon STX Series 3D Drawings
updated: 10月 2020
    6.9 MB 10月 2020
file type icon STX Series 2D PDF Drawings
updated: 10月 2020
    735.9 KB 10月 2020
file type icon STX Series 2D DXF Drawings
updated: 10月 2020
    2.6 MB 10月 2020
Compliances
file type icon STX800 Series Declaration of Conformity
updated: 10月 2020
    144.9 KB 10月 2020
Speaker Tunings
file type icon STX800 V4/V5 Crown IT4x3500HD
updated: 10月 2020
    786.5 KB 10月 2020
file type icon STX800 V4 Crown XTi2
updated: 10月 2020
    490.2 KB 10月 2020
file type icon STX800 V4/V5 Crown I-Tech HD
updated: 10月 2020
    618.7 KB 10月 2020
Images

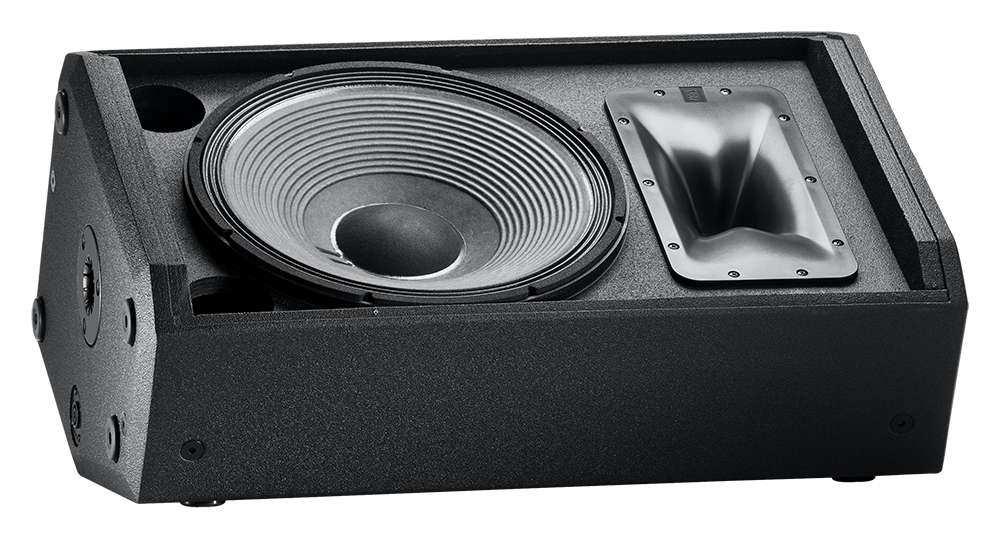

file type icon STX815M Monitor No Grill
updated: 10月 2020
    318.6 KB 10月 2020

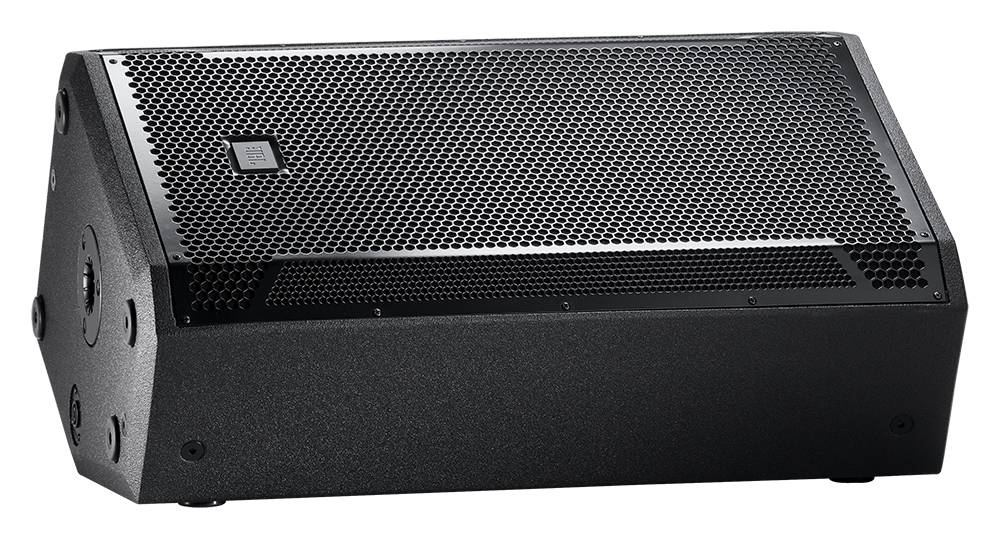

file type icon STX815M Monitor
updated: 10月 2020
    447.7 KB 10月 2020

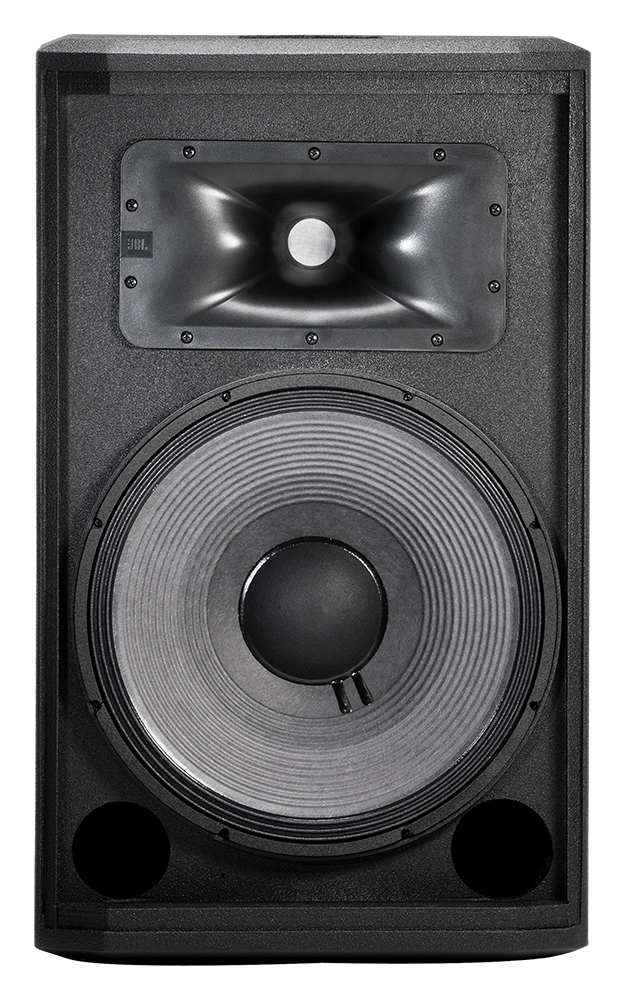

file type icon STX815M Front No Grill
updated: 10月 2020
    434.4 KB 10月 2020

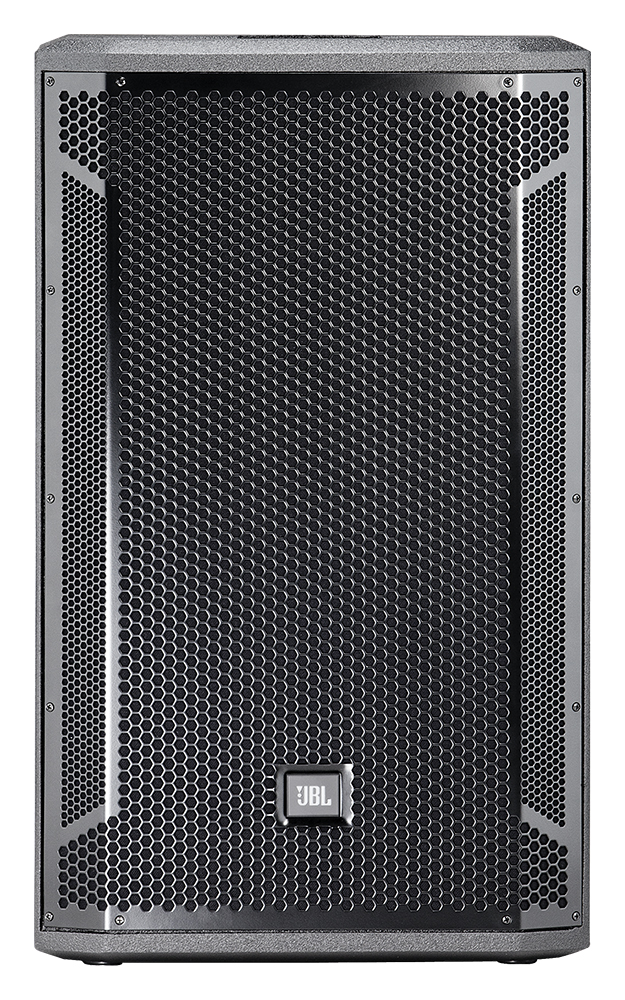

file type icon STX815M Front
updated: 10月 2020
    683.8 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率范围 (-10dB) 41 Hz-20 kHz
Frequency Response (±3 dB) 55 Hz-20 kHz
覆盖范围 70˚ × 70˚ nominal

灵敏度

96 dB
额定功率 800 W / 1600 W / 3200 W(Continuous/Program/Peak)
Maximum SPL (1m) 131 dB SPL Peak
标称阻抗
输入接口 Two NL4
Operational Modes Full Range/Bi-Amp
尺寸(高 x 宽 x 厚) 721 mm x 436 mm x 329 mm (28.4" x 17.2" x 13.0")
净重量 26 kg (58 lbs)
