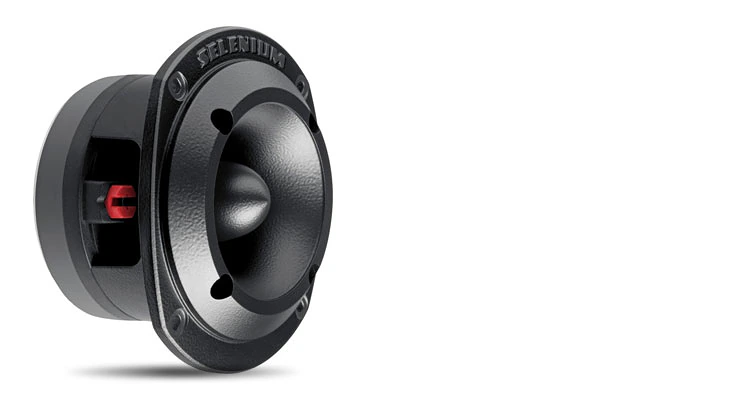

ST400 BLK (停产)

Super Tweeter

ST400 BLK
较大的图像

ST400 BLK

Ideal super tweeter when the reproduction of high frequencies must define the instruments. Recommended for PA systems, stage monitors and most sound reinforcement systems in general. Extremely high sensitivity and lower distortion.

下载

  Version Language Size Uploaded
Data Sheets
file type icon ST400 BLK Spec Sheet
updated: 10月 2019
    359.1 KB 10月 2019
Brochures
file type icon Components Full Line 2015 Catalog
updated: 8月 2020
    1.3 MB 8月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Impedance (ohms) 8
RMS (W) 150
Musical Program (W) 300
SPL 1W @ 1m (dB) 111
频率范围 (-10dB) 3.000 to 20.000
Voice Coil Diameter 1.7 (42)
Sound Dispersion HxV 40° x 40°
Magnet weight (g) 15 (430)
Diaphragm Phenolic
Housing material Plastic
