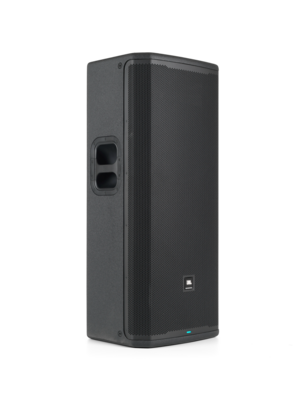

JBL Professional PRX925

较大的图像

JBL PRX925 通过先进的声学设计、全面的 DSP、无与伦比的功率性能和耐久性，以及通过 JBL Pro Connect 应用程序提供的完整 BLE 控制，将专业便携式 PA 性能提升到了新的水平。这款功率放大、双向、双 15 英寸系统在最大音量下可提供清晰度和清晰感，同时具有前所未有的 SPL 和低频性能，非常适合需要更多低频支持的大型场所。

PRX925 的业界领先 DSP 套件可通过机载彩色液晶屏或 JBL Pro Connect 应用程序访问，具备 12 段参数均衡器用于系统调优、集成的 dbx 自动反馈抑制等功能。JBL Pro Connect 应用程序让 Android 或 iOS 移动设备可以控制混音器和 DSP 功能，包括管理广泛的设置和效果。最多可控制 10 个支持 JBL Pro Connect 应用程序的系统和扬声器。

PRX925 设计用于承受路演的严苛考验。18 毫米桦木箱体采用优化支撑，可提供流畅、准确的低频响应。PRX900 系统由业界领先的测试和验证协议强化，并包括前所未有的 7 年保修。

特点

Transducers:
- Dual 915H 15” ferrite magnet woofers
- JBL 2408H-1 1.5” poly-annular diaphragm compression driver
Updated JBL image control waveguides improve dispersion
FEA flared port design reduces air noise and distortion
Low-noise, low-distortion gain staging design
Lightweight, efficient Class D amplification
Power: 2,000 watts peak/1,000 watts RMS
Frequency response: 43 Hz - 20 kHz @4pi (-10 dB); 54 Hz - 17 kHz @4pi (-3 dB)
Dispersion: 90° x 50°
Max SPL: 137.7 dB
Crossover frequency: 1,700 Hz
Color LCD screen provides access to comprehensive DSP suite
DriveRack Technology includes Automatic Feedback Suppression, system limiter and 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems
Optimized presets for pairing full-range speakers with subwoofers
JBL Pro Connect app allows full system control of up to 10 JBL Pro Connect app-enabled speakers and systems
18 mm birch cabinet with optimized bracing delivers smooth, accurate low-frequency response
I/Os:
- 2 XLR balanced Combo jacks
- 1 3.5mm aux
- 2 XLR-M loop-through
- 1 XLR-M Mix out
Two integrated side handles
Suspension/mounting: single 36mm pole socket, eight M10 suspension points
Quiet fanless operation
Ultra-low system latency: <1ms
Net weight: 37.3 kg (82.2 lbs); gross weight: 43 kg (94.7 lbs)
Dimensions: 1058.5 mm x 446 mm x 434 mm (41.6 in x 17.5 in x 17.1 in) (H x W x D)
Shipping dimensions: 1110 mm x 535 mm x 535 mm (43.7 in x 21 in x 21 in) (H x W x D)

下载

Brochures

	版本	语言	大小	上传日期
JBL 2025 PPA Brochure 版本 B, 更新: 8月 2025	B		8.5 MB	8月 2025

Declaration of Conformity

	语言	大小	上传日期
PRX925 & PRX935- Declaration of Conformity (UKCA) 更新: 12月 2024		142.0 KB	12月 2024
PRX925 & PRX935- Declaration of Conformity (CE) 更新: 12月 2024		210.9 KB	12月 2024

Spec Sheets

	语言	大小	上传日期
PRX925- Spec Sheet 更新: 1月 2025		1.2 MB	1月 2025

EASE Files

	语言	大小	上传日期
PRX925 EASE File 更新: 10月 2025		1.6 MB	10月 2025

User Guides

	版本	语言	大小	上传日期
PRX900 User Guide 版本 C, 更新: 3月 2026	C		5.3 MB	3月 2026

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

频率范围 (-10dB)	43 Hz - 20 kHz (4π)
Frequency Range (-3 dB)	54 Hz - 17 kHz (4π)
覆盖范围	90° x 50°
Transducer Impedence	Rated: Woofer: 8 Ω Tweeter: 8 Ω
Max SPL	137.7 dB
额定功率	2000W Peak
散热	Natural Convection No Fan
分频点	1700 Hz
I/O	x2 Combo Inputs and x1 3.5 mm Stereo Jack x2 XLR Through Out and x1 Mix Out
Suspension/Mounting	8x M10 Suspension Point and Single 36 mm Pole Mount
Product Dimensions (H x W x D)	1058.5 x 446 x 434 mm (41.7 x 17.6 x 17.1 in)
净重量	37.3 kg (82.2 lbs)
