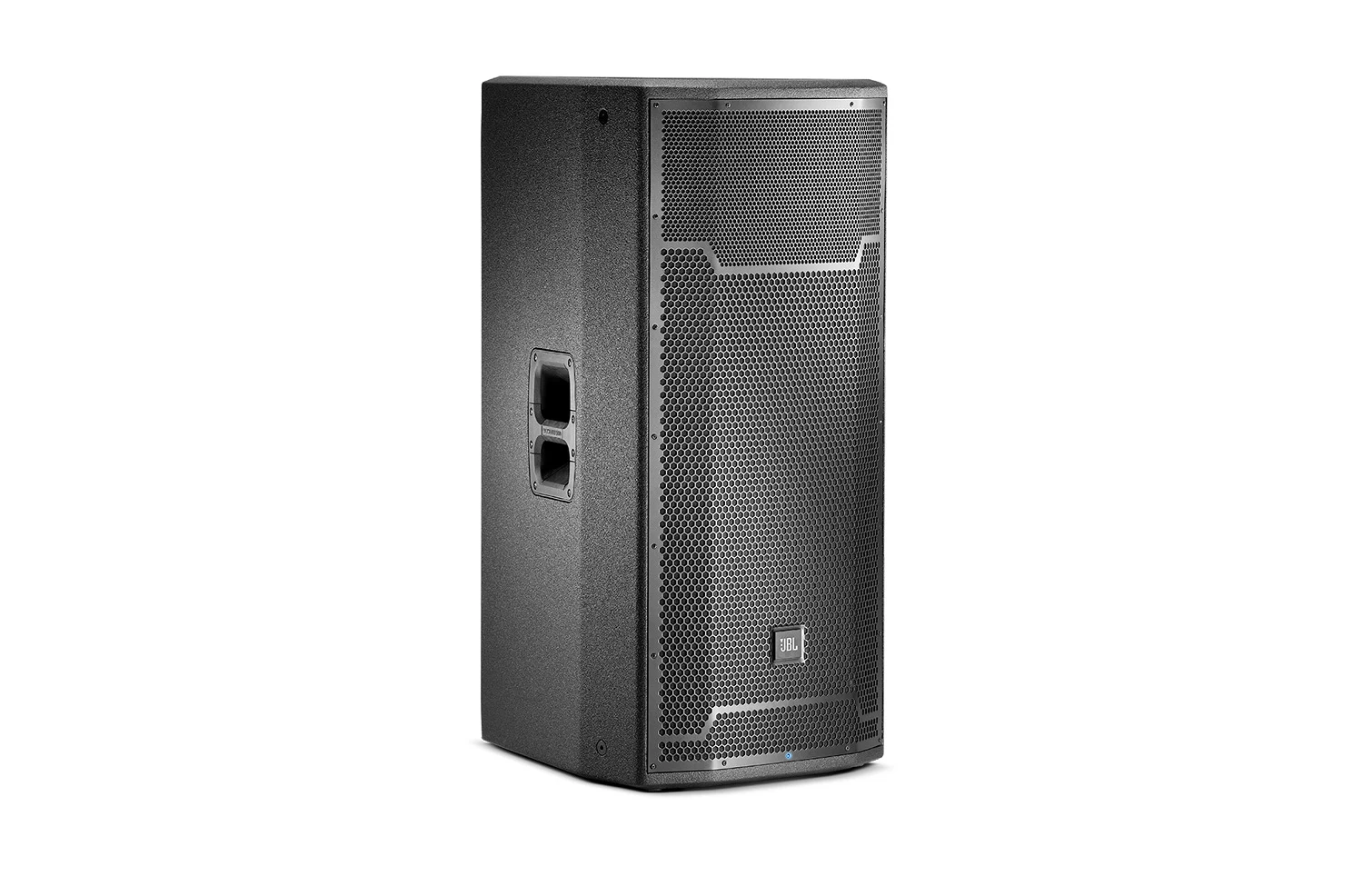

15" Three-Way Full-Range Main System
The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a broad bandwidth.
较大的图像
特点
- 136 dB peak SPL
- 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
- 165 mm (6.5 in) horn loaded midrange transducer
- 1.5" diameter next generation JBL neodymium compression driver
- JBL designed waveguide for accurate coverage
- Efficient Class-D amplifier technology
- Normal and Boost user selectable EQ presets
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Line level and direct microphone input capability
- Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
- Multiple injection molded handles with backing cup for easy transport
- Integrated M10 suspension points for easy setup
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
- Cloth backed, dent-resistant 16 gauge steel grilles
- This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX718XLF, complete control over the entire audio spectrum is attained. As with all the full-range PRX700 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.
- The PRX735 is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth. The PRX735 is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
- All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
1000 lbs. each. - The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.
下载
| Size | ||||
Data Sheets | ||||
PRX735 Datasheet
updated: 7月 2019
|
2.3 MB | |||
Specifications | ||||
|
PRX735 Spec Sheet
updated: 7月 2019
|
640.4 KB | |||
Brochures | ||||
|
Portable Sound Full Line 2015 Catalog
updated: 10月 2020
|
2.5 MB | |||
CAD Drawings | ||||
PRX700 2D Drawings CAD
updated: 10月 2020
|
6.4 MB | |||
|
PRX700 2D Drawings PDF
updated: 10月 2020
|
704.2 KB | |||
Compliances | ||||
|
PRX700 Declaration of Conformity
updated: 10月 2020
|
133.1 KB | |||
User Guides | ||||
|
PRX700 Users Guide
updated: 10月 2020
|
2.0 MB | |||
|
PRX700 Users Guide Spanish
updated: 10月 2020
|
779.5 KB | |||
|
PRX700 Users Guide French
updated: 10月 2020
|
898.5 KB | |||
Accessories | ||||
|
PRX700 Users Guide German
updated: 10月 2020
|
906.0 KB | |||
Images | ||||
|

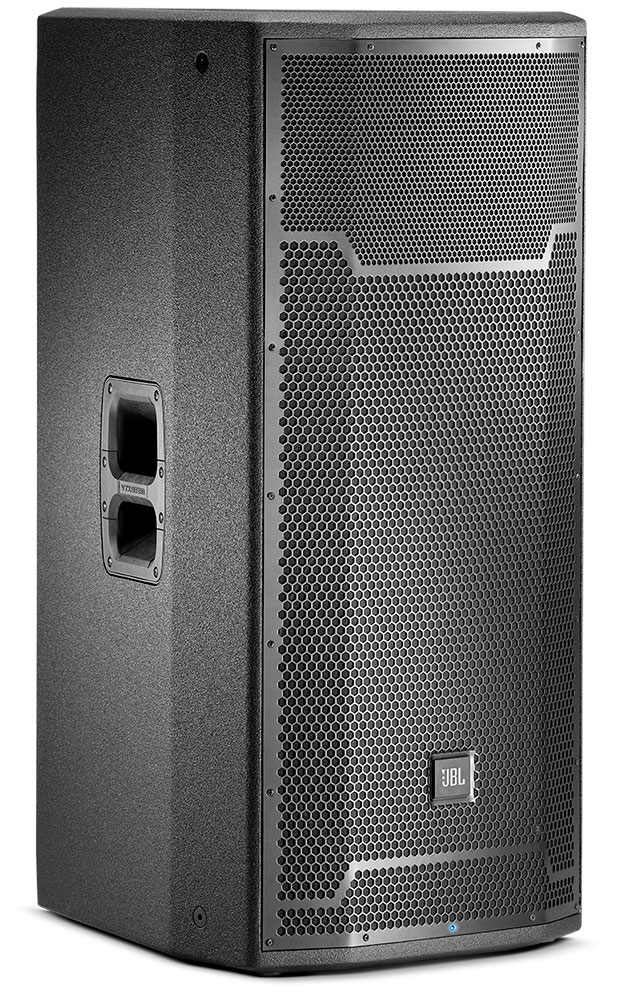

PRX735 Front Angle
updated: 7月 2019
|
252.1 KB | |||
|

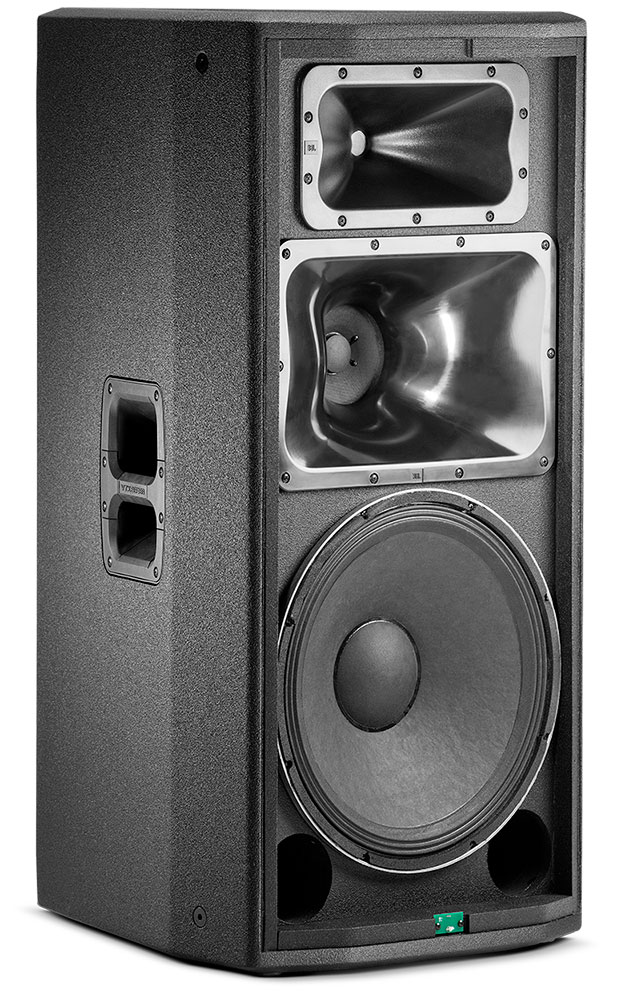

PRX735 Fr Angle No Grill
updated: 7月 2019
|
167.6 KB | |||
|

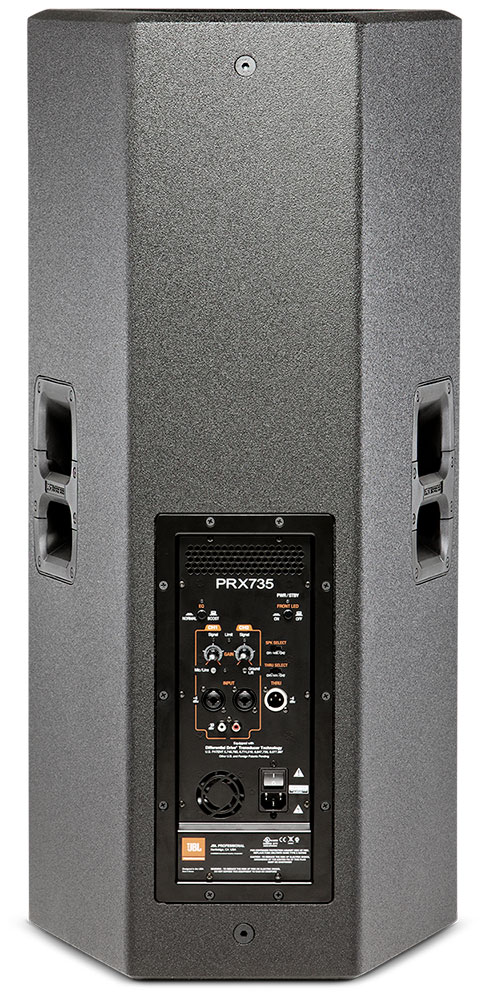

PRX735 Back
updated: 7月 2019
|
156.1 KB | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21.0 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 额定功率 | 1500 W |
| AC power input | 100V - 240V~ 50/60 Hz |
| 频率范围 (-10dB) | Normal: 35 Hz – 20 kHzBoost: 34 Hz – 20 kHz |
| Frequency Response (±3 dB) | Normal: 42 Hz – 20 kHzBoost: 39 Hz – 20 kHz |
| 覆盖范围 | 90° x 50° nominal |
| Directivity Index (DI) | 10.5 dB |
| Directivity Factor (Q) | 11.2 |
| 分频点 | 480 Hz, 2.0 kHz |
| Maximum SPL (1m) | Normal: 136dBBoost: 136dB |
| Signal Indicators | Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio. |
| Dynamic Control (Input) | dbx Type IV™ limiter circuit |
输入阻抗 |
20K Ohms (balanced), 10K Ohms (unbalanced) |
| 低频驱动单元 | 1 x JBL 275G 380mm (15 in) woofer |
| MF Driver | 1 x JBL 196H 165mm (6.5 in) horn-loaded midrange transducer |
| HF 驱动程序 | 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver" |
| Enclosure | Trapezoidal, 18 mm, plywood |
| Suspension / Mounting | 12 x M10 Suspension Points |
| Transport | 2 x integrated handle with injection molded backing cup |
| 外观颜色 | Obsidian DuraFlex™ finish |
| 网罩 | Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. |
| 输入接口 | 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input |
| Output Connector | 1 male XLR balanced output |
| 尺寸（高 x 宽 x 厚） | 952.5 mm x 445.0 mm x 537.97 mm(37.5 in x 17.52 in x 21.18 in) |
| 净重量 | 34.9 kg (77 lb) |
accessories
PRX835W-CVR | Deluxe Padded Protective Cover for PRX835W or PRX735
较大的图像
Deluxe padded cover for PRX835W or PRX735. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
