PRX718XLF (China & Asia)

18" Self-Powered Extended Low Frequency Subwoofer System

PRX718XLF (China & Asia)
较大的图像

18" Self-Powered Extended Low Frequency Subwoofer System

The PRX718XLF, extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with extreme efficiency and control.



特点

  • 134 dB peak SPL
  • 18" Differential Drive® low-frequency driver for low-distortion and higher SPL
  • Efficient Class-D amplifier technology
  • DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
  • Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
  • 2 x XLR-1/4" combination inputs, with 2 x XLR loop-thru
  • • 20 mm threaded pole socket for solid, secure satellite speaker mounting.
  • Multiple handles with comfort rubber grips for easy transport
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles

  • The PRX718XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX718XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
  • The PRX718XLF is a high performance self-powered subwoofer system. The PRX718XLF is comprised of a powerful 2278H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
  • The amplifier input panel offers stereo inputs with XLR or ¼ inch jack compatibility. A user selectable crossover ensures a smooth transition to full-range system connected to the stereo outputs. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


下载

  Version Language Size Uploaded
Data Sheets
file type icon PRX718XLF Datasheet
updated: 7月 2019
    2.5 MB 7月 2019
Specifications
file type icon PRX718XLF Spec Sheet
updated: 7月 2019
    938.0 KB 7月 2019
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.5 MB 10月 2020
CAD Drawings
file type icon PRX700 2D Drawings CAD
updated: 10月 2020
    6.4 MB 10月 2020
file type icon PRX700 2D Drawings PDF
updated: 10月 2020
    704.2 KB 10月 2020
Compliances
file type icon PRX700 Declaration of Conformity
updated: 10月 2020
    133.1 KB 10月 2020
User Guides
file type icon PRX700 Users Guide
updated: 10月 2020
    2.0 MB 10月 2020
file type icon PRX700 Users Guide Spanish
updated: 10月 2020
    779.5 KB 10月 2020
file type icon PRX700 Users Guide French
updated: 10月 2020
    898.5 KB 10月 2020
Accessories
file type icon PRX700 Users Guide German
updated: 10月 2020
    906.0 KB 10月 2020
Images

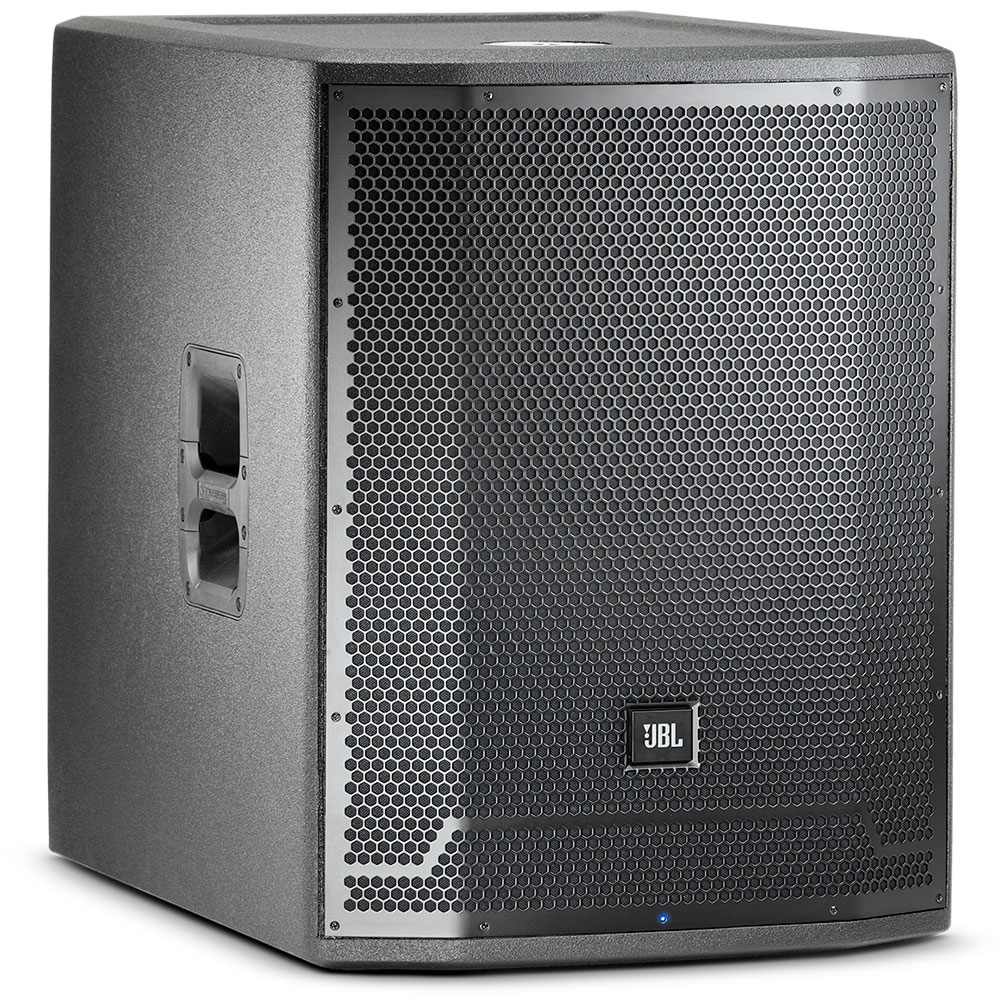

file type icon PRX718XLF Front Angle
updated: 7月 2019
    366.0 KB 7月 2019

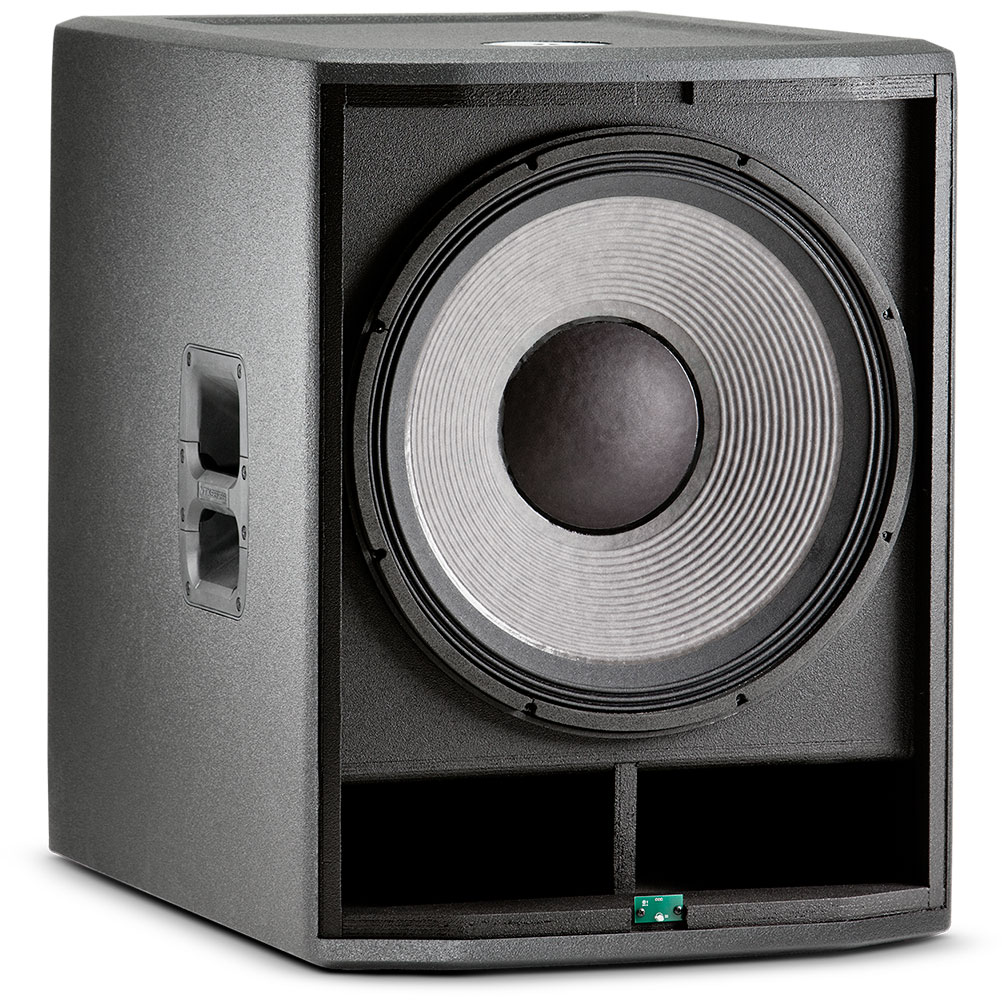

file type icon PRX718XLF Angle No Grill
updated: 7月 2019
    256.5 KB 7月 2019

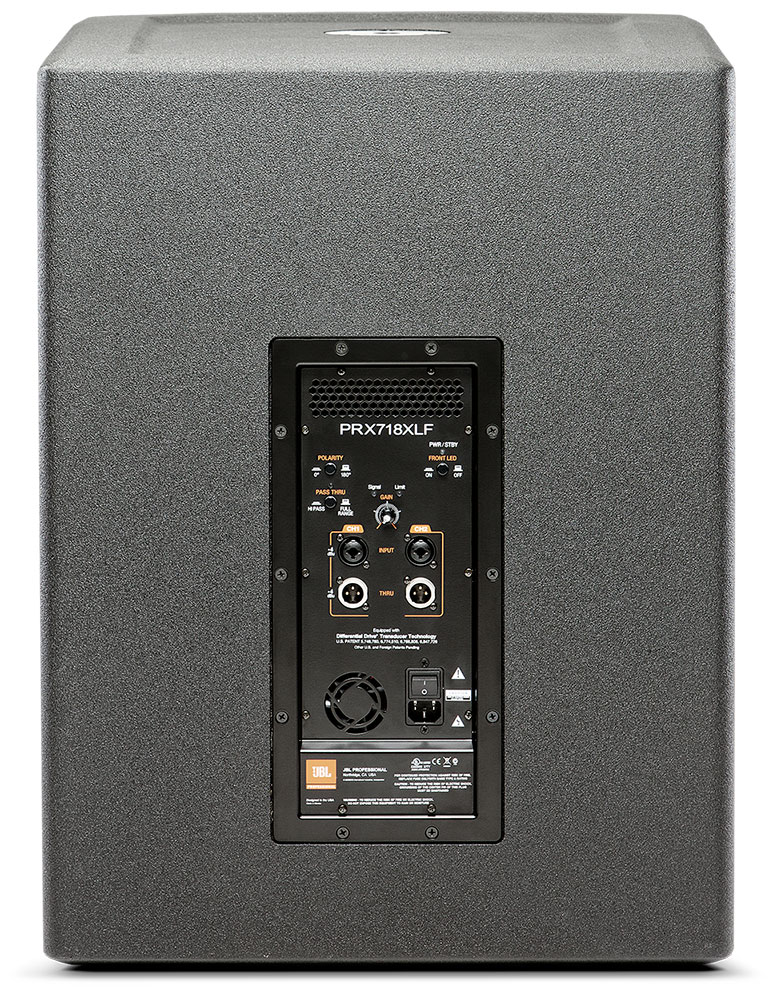

file type icon PRX718XLF Back
updated: 7月 2019
    295.4 KB 7月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

accessories

PRX818XLFW-CVR | Deluxe Padded Protective Cover for PRX818XLFW or PRX718XLF
PRX818XLFW-CVR Main photo
较大的图像

Deluxe padded cover for PRX818XLFW or PRX718XLF. Water Resistant Black Nylon Exterior, 5mm Padding, Handle Access Openings.
