PRX710 (China & Asia)

10" Two-Way Multipurpose Self-PoweredSound Reinforcement System

PRX710 (China & Asia)

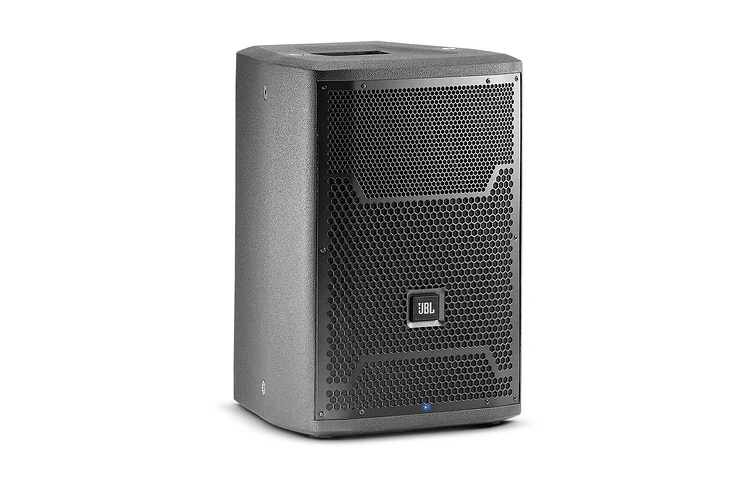

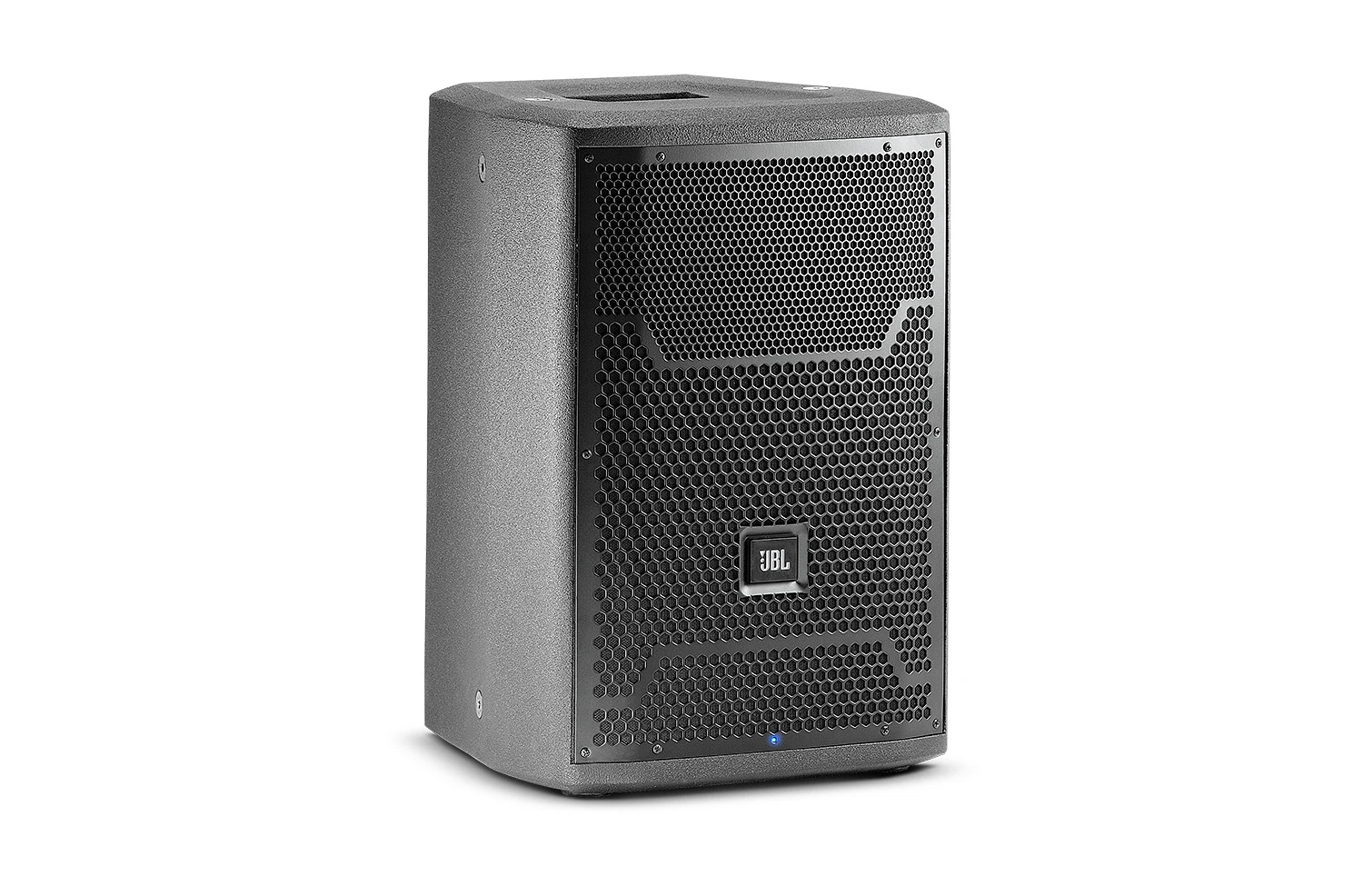

较大的图像

10" Two-Way Multipurpose Self-Powered Sound
Reinforcement System

PRX710 is a compact and ultra-lightweight speaker in the PRX700 Series. It has been designed to deliver maximum performance for its weight and size.



特点

  • 133 dB peak SPL
  • 10" low-frequency driver for low-distortion and higher SPL
  • 1.5" diameter next generation JBL neodymium compression driver
  • JBL designed waveguide for accurate coverage
  • Efficient Class-D amplifier technology
  • Normal and Boost user selectable EQ presets
  • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
  • Line level and direct microphone input capability
  • Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
  • Integrated 36 mm pole mount socket
  • Integrated handle with injection molded backing cup for easy transport
  • Integrated M10 suspension points for easy setup
  • Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
  • Cloth backed, dent-resistant 16 gauge steel grilles

  • The PRX710 is the most compact and versatile speaker in the PRX700 Series. Designed to deliver maximum performance for its weight and size as a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX712 is a perfect match with a PRX700 Series subwoofer, offering a high performance self-powered sub/sat system.
  • The PRX710 is comprised of a 10" woofer, a 2408H-2, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 100° by 60° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
  • All PRX700 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX700 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of
    1000 lbs. each.
  • The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.


下载

  Version Language Size Uploaded
Data Sheets
file type icon PRX710 Datasheet
updated: 10月 2020
    2.3 MB 10月 2020
Specifications
file type icon PRX710 Spec Sheet
updated: 10月 2020
    833.7 KB 10月 2020
Brochures
file type icon Portable Sound Full Line 2015 Catalog
updated: 10月 2020
    2.5 MB 10月 2020
CAD Drawings
file type icon PRX700 2D Drawings CAD
updated: 10月 2020
    6.4 MB 10月 2020
file type icon PRX700 2D Drawings PDF
updated: 10月 2020
    704.2 KB 10月 2020
Compliances
file type icon PRX700 Declaration of Conformity
updated: 10月 2020
    133.1 KB 10月 2020
User Guides
file type icon PRX700 Users Guide
updated: 10月 2020
    2.0 MB 10月 2020
file type icon PRX700 Users Guide Spanish
updated: 10月 2020
    779.5 KB 10月 2020
file type icon PRX700 Users Guide French
updated: 10月 2020
    898.5 KB 10月 2020
Accessories
file type icon PRX700 Users Guide German
updated: 10月 2020
    906.0 KB 10月 2020
Images

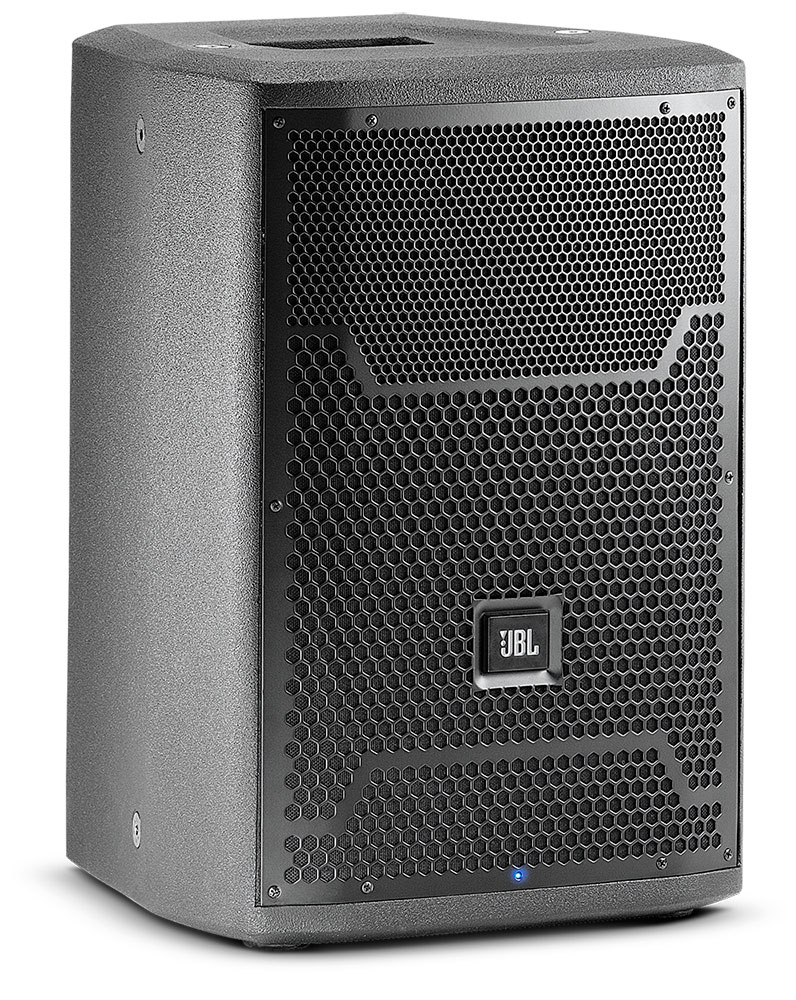

file type icon PRX710 Front Angle
updated: 10月 2020
    298.2 KB 10月 2020

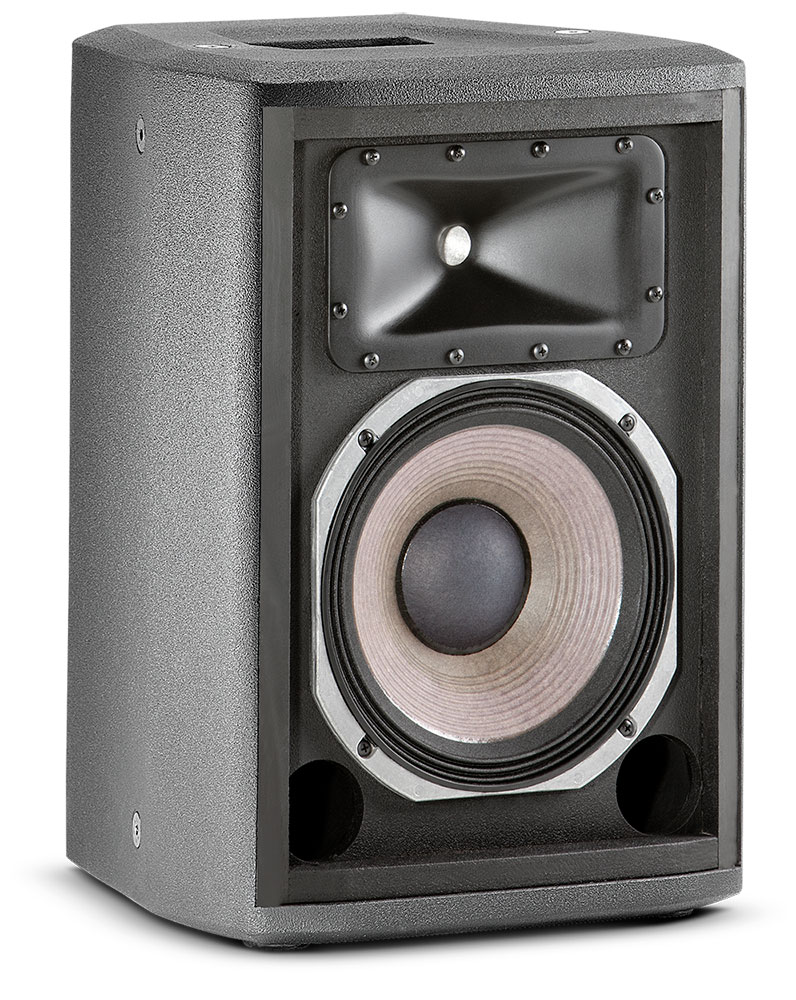

file type icon PRX710 Fr Angle No Grill
updated: 10月 2020
    208.6 KB 10月 2020

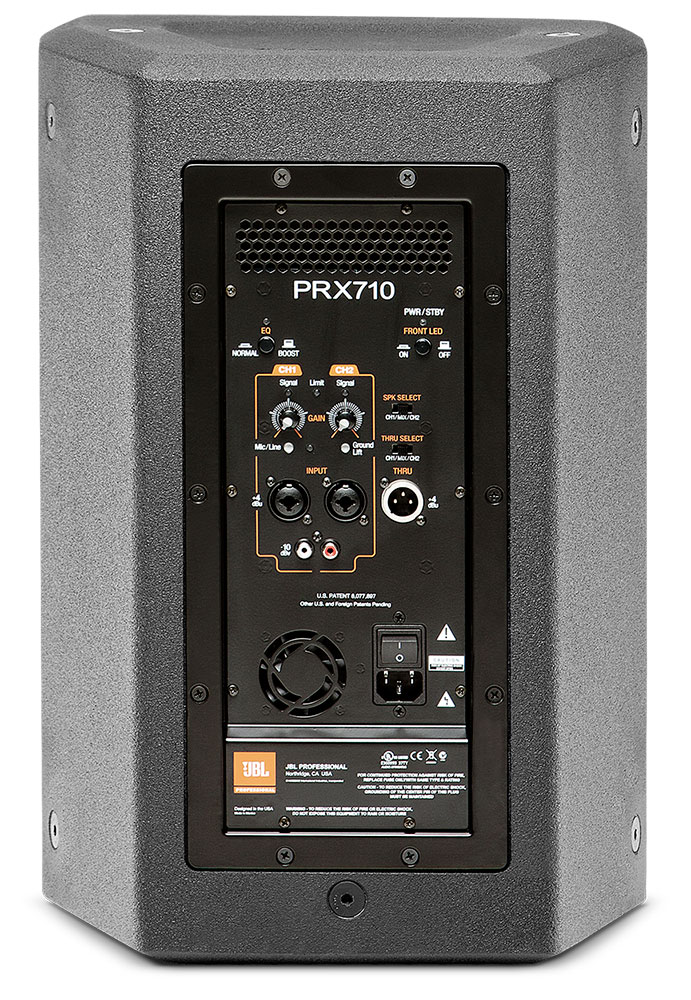

file type icon PRX710 Back
updated: 10月 2020
    221.7 KB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

额定功率 1500 W
AC power input 100V - 240V~ 50/60 Hz
频率范围 (-10dB) Normal: 50 Hz – 19.6kHzBoost: 42.9 Hz – 20kHz
Frequency Response (±3 dB) Normal: 63.5 Hz – 18.5kHzBoost: 53 Hz – 18.6kHz
覆盖范围 100° x 60° nominal
Directivity Index (DI) 9 dB
Directivity Factor (Q) 8
分频点 1.9 kHz
Maximum SPL (1m) 133 dB
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is actingSignal: Green LED indicates signal presentPower/Standby: Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit

输入阻抗

20K Ohms (balanced), 10K Ohms (unbalanced)
低频驱动单元 1 x JBL M110-4 250mm (10 in) woofer
HF 驱动程序 1 x JBL 2408H-2 37.5 mm (1.5") annular polymer diaphragm, neodymium compression driver
Enclosure Trapezoidal, 18 mm, plywood
Suspension / Mounting single 36 mm pole socket, 8 x M10 Suspension Points, 1 x M10 pull back point
Transport 1 x integrated handle with injection molded backing cup
外观颜色 Obsidian DuraFlex™ finish
网罩 Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
输入接口 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
输出连接器 1 male XLR balanced output
尺寸(高 x 宽 x 厚) 498.7 mm x 335.6 mm x 322.3 mm(19.63 in x 13.21 in x 12.69 in)
净重量 16.4 kg (36 lb)
