Pasion 6F

Passive 6.5” Full-Range Karaoke Loudspeaker with Front-Facing Port

较大的图像

Passive 6.5” Full-Range Karaoke Loudspeaker with Front-Facing Port

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 6F is a passive 6.5” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 6F continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 6F is perfect for a wide array of karaoke venues and applications. The Pasión 6F features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features two 3” high-efficiency tweeters and a specially-designed 6.5” woofer that provide excellent high-frequency response and high-power handling, low distortion and minimum power compression, respectively.

In addition to unmatched audio performance, the Pasión 6F features a premium, sleek design. Adding to the stylish look and feel, the 6F features an illuminated and rotatable JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Also, the 6F is the only full-range speaker in the Pasión Series with a front-facing low-frequency port, which provides wide bass coverage and added installation options. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 6F enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

特点

  • Passive 2-way, bass-reflex full-range karaoke loudspeaker
  • 6.5” low-frequency woofer and dual 3” high-frequency tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Front-facing low-frequency port provides more installation possibilities
  • Rated power of 100W and sensitivity of 87db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the rotatable JBL Entertainment logo
  • Combines with the Pasión 12SP subwoofer via speaker strut for a portable solution

下载

  Version Language Size Uploaded
Pasion 6F Spec Sheet-中国
zh updated: 11月22日
  zh  380.7 KB 11月22日
Compliances
    314.2 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 2-way, Bass-Reflex
LF (1) x 6.5″ Woofer
HF (2) x 3″ Cone Tweeter
Frequency Response (-10dB) 53 Hz - 17 kHz

频率响应

60Hz – 18kHz
阻抗 8 Ohms
Rated Power 100 W

灵敏度

87 dB
Maximum SPL (1m) 107 dB

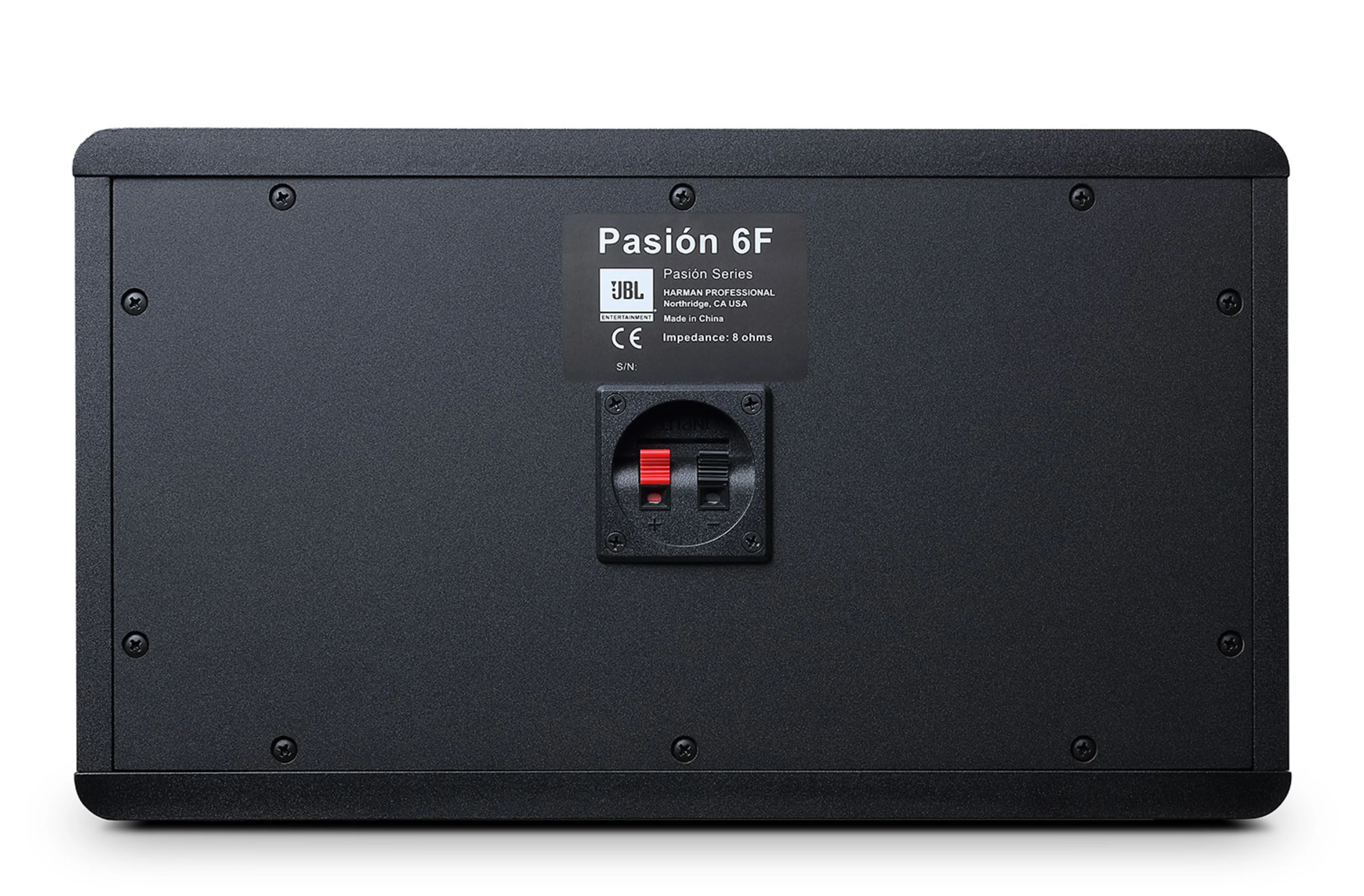

Acoustic Port Front Facing
Logo Rotatable, Illuminated
输入通道 Spring push type terminal
ENCLOSURE CONSTRUCTION Vinyl Laminated MDF
