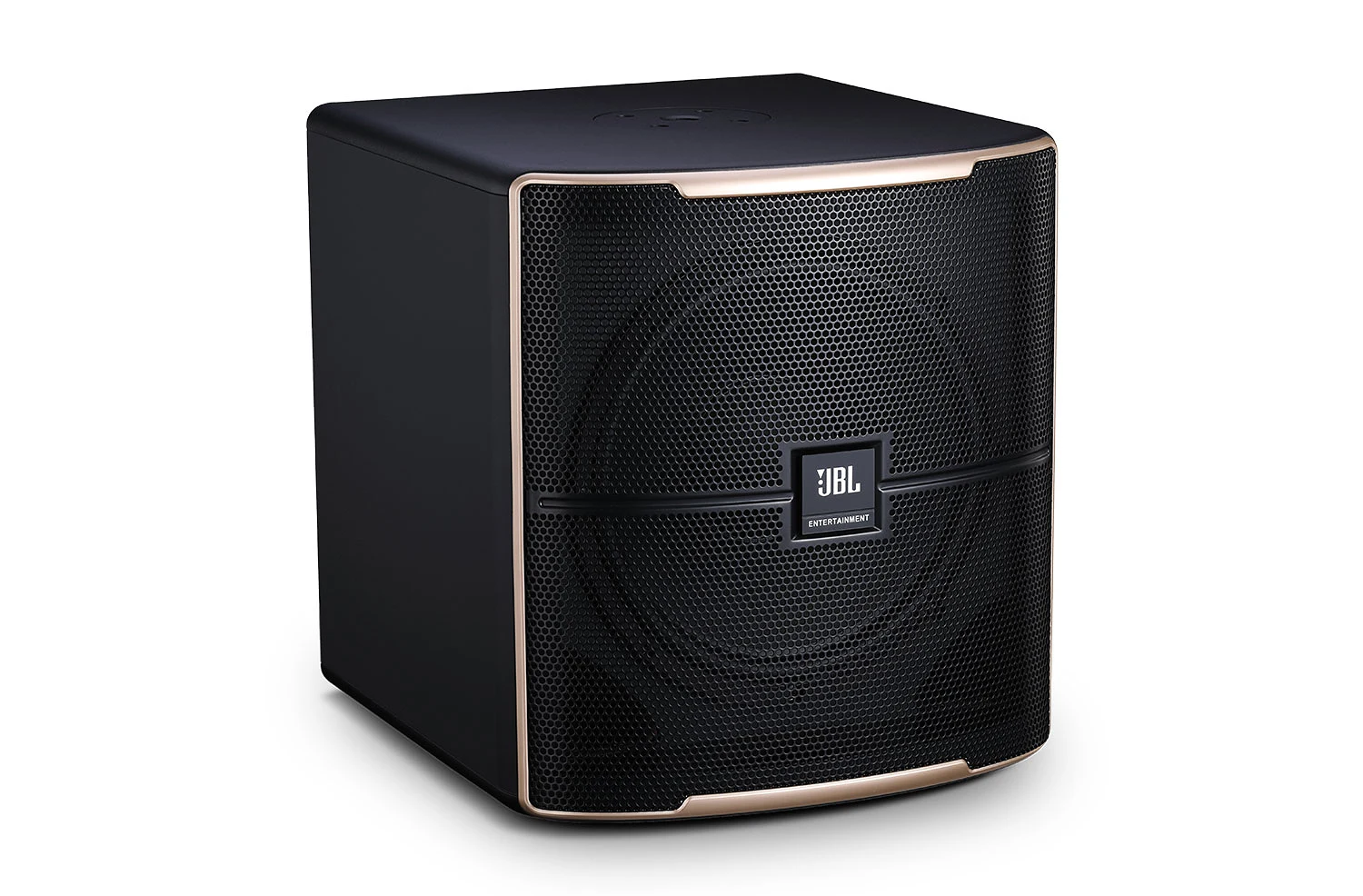

Pasion 12SP

Powered 12” Karaoke Subwoofer

Pasion 12SP
较大的图像

Powered 12” Karaoke Subwoofer

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 12SP is a powered 12” karaoke subwoofer—JBL’s first in the KTV range—that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV subwoofer, the Pasión 12SP continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional bass performance, the Pasión 12SP is perfect for a wide array of karaoke venues and applications. The 12” subwoofer features JBL’s signature karaoke tuning that offers outstanding low-frequency response, while its 300W power rating provides plenty of output to bring the karaoke party to the next level. In addition to unmatched audio performance, the subwoofer features a premium, sleek form factor that is designed to fit a variety of commercial KTV venues and restaurant entertainment rooms. Altogether, with premium bass quality, excellent output and striking aesthetics, the JBL Pasión 12SP enhances KTV environments and provides karaoke-goers a memorable karaoke experience.

特点

  • Powered 1-way, bass-reflex subwoofer with 12” driver
  • Rated power of 300W, frequency response of 30Hz – 300Hz and sensitivity of 95db offer unmatched output and sound quality
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • JBL karaoke tuning provides excellent bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of KTV venues
  • Can be combined with Pasión 6F speaker via speaker strut for a portable solution

下载

  Version Language Size Uploaded
Specifications
file type icon Pasión 12SP Spec Sheet
en updated: 4月 2022
  en  708.4 KB 4月 2022
Compliances
file type icon JBL Pasion Series EU Declaration fo Conformity
updated: 10月 2019
    314.2 KB 10月 2019
Quick Start Guides
file type icon Pasion 12SP Quick Start Guide - Chinese
zh updated: 1月 2020
  zh  1.6 MB 1月 2020
file type icon Pasion 12SP Quick Start Guide - English
en updated: 1月 2020
  en  1.7 MB 1月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

电源 300W RMS (450W dynamic)
VOLUME -∞ - +10dB

频率响应

40Hz - 160Hz
分频点 40Hz - 160Hz (variable) 24 dB/octave
PHASE 0° - 180°

输入

1x (R+L RCA); 1x XLR

输出

(Link): 1x (R+L RCA); 1x XLR
系统类型 Front facing, bass-reflex

电源

100~240V 50/60Hz (120V, 60Hz (US); 220~230V, 50/60Hz (EU))
POWER CONSUMPTION(STANDBY) < 0.5W
SIZE (W × D × H) 396 × 464 × 430 mm
重量 22.65KG
