Pasion 12

Passive 12” Full-Range Karaoke Loudspeaker

Pasion 12

Passive 12” Full-Range Karaoke Loudspeaker

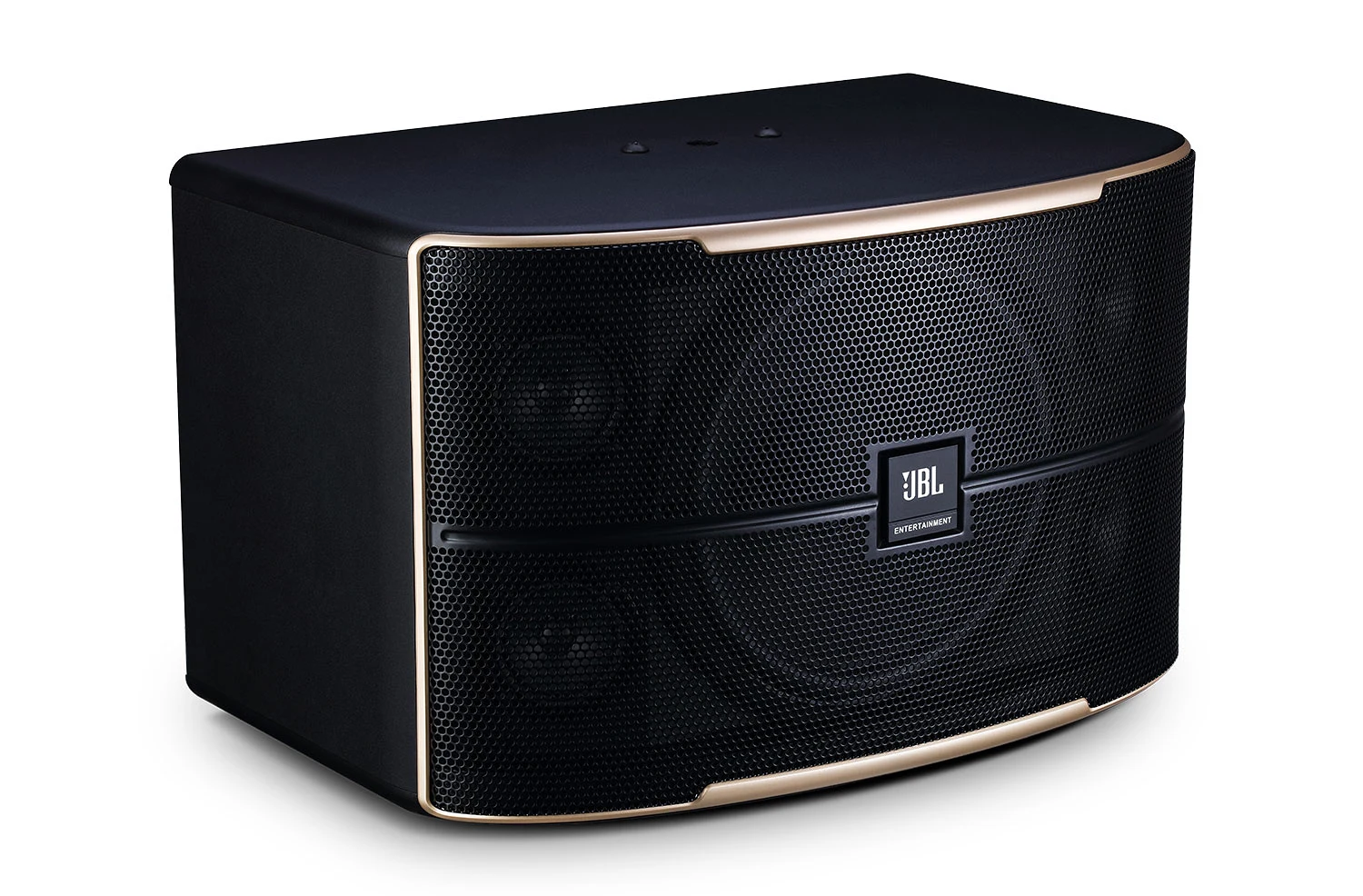

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 12 is a passive 12” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 12 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 12 is perfect for a wide array of karaoke venues and applications. The Pasión 12 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features four 3” high-efficiency tweeters that provide crystal-clear highs and mids, while the specially-designed 12” woofer offers high-power handling, low distortion and minimum power compression.

In addition to unmatched audio performance, the Pasión 12 features a premium, sleek design. Adding to the stylish look and feel, the loudspeaker features an illuminated JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 12 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.


  • Passive 3-way, bass-reflex full-range karaoke loudspeaker
  • 12” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 250W and sensitivity of 91db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the JBL Entertainment logo


  Version Language Size Uploaded
file type icon Pasión 12 Spec Sheet
en updated: 12月 2020
  en  829.2 KB 12月 2020
file type icon Pasión 12 Spec Sheet CN
zh updated: 12月 2020
  zh  549.4 KB 12月 2020
file type icon JBL Pasion Series EU Declaration fo Conformity
updated: 10月 2019
    314.2 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 3-way, Bass-Reflex
LF (1) x 12″ Woofer
MF (2) x 3” Cone Tweeter
HF (2) x 3″ Cone Tweeter
频率范围 (-10dB) 47 Hz - 17 kHz


45Hz – 18kHz
阻抗 8 Ohms
Rated Power 250 W


91 dB
Maximum SPL (1m) 115 dB
Acoustic Port Rear Facing
Logo Illuminated
输入通道 Binding Post
