Pasion 10

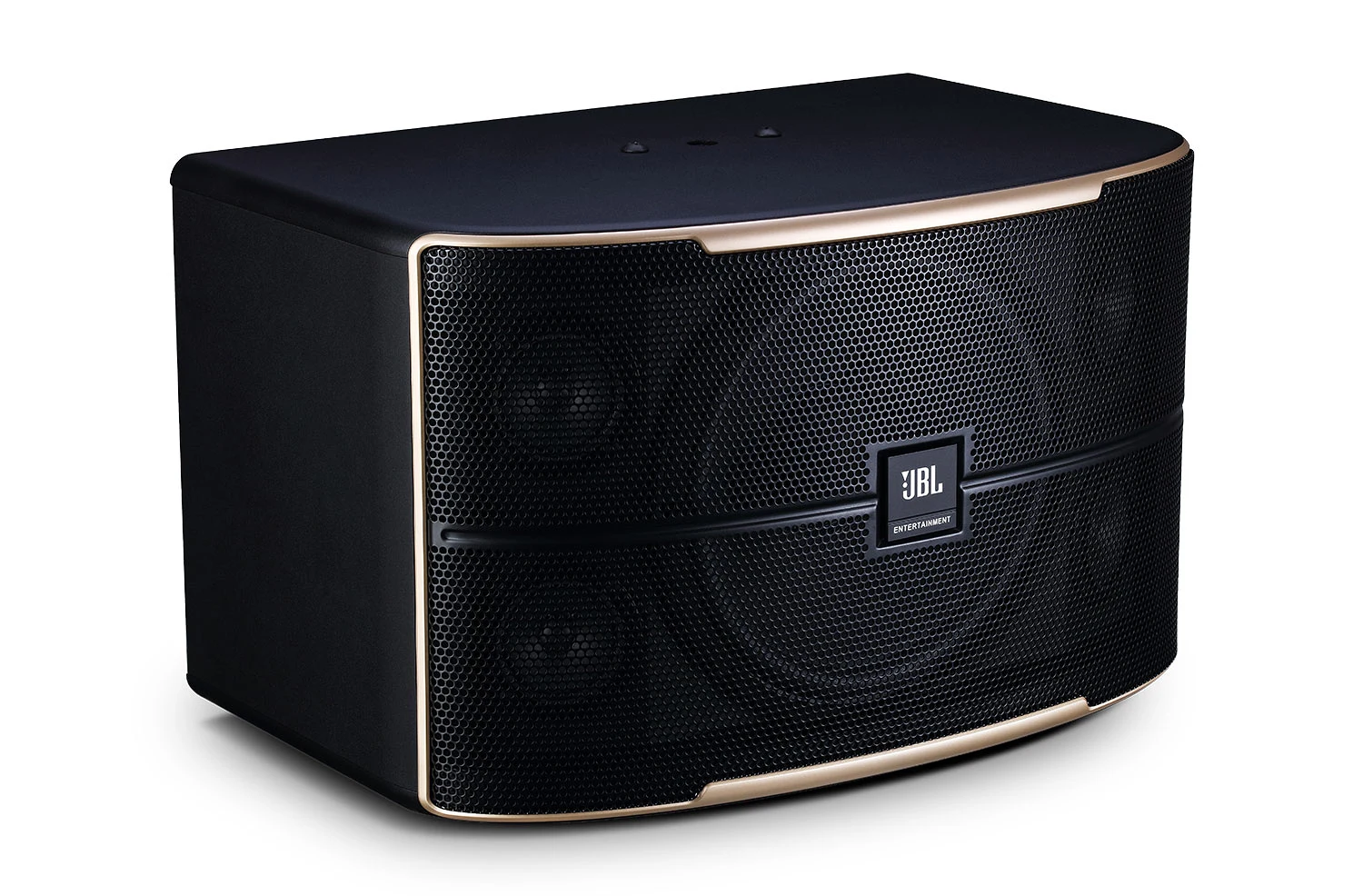

Passive 10” Full-Range Karaoke Loudspeaker

较大的图像

Passive 10” Full-Range Karaoke Loudspeaker

The Pasión Series marks JBL’s next generation of karaoke speakers. Delivering JBL’s legendary performance, the Pasión 10 is a passive 10” full-range karaoke loudspeaker that is designed for sound reinforcement for commercial karaoke applications. As a premium KTV speaker, the Pasión 10 continues JBL’s pedigree as a leading karaoke-speaker brand.

With exceptional sonic clarity, the Pasión 10 is perfect for a wide array of karaoke venues and applications. The Pasión 10 features JBL’s signature karaoke tuning that offers outstanding vocal and bass performance for KTV environments. Plus, the speaker features four 3” high-efficiency tweeters that provide crystal-clear highs and mids, while the specially-designed 10” woofer offers high-power handling, low distortion and minimum power compression.

In addition to unmatched audio performance, the Pasión 10 features a premium, sleek design. Adding to the stylish look and feel, the loudspeaker features an illuminated JBL Entertainment logo, which allows venue owners to showcase the JBL brand and system quality. Altogether, with excellent audio performance and striking aesthetics, the JBL Pasión 10 enhances KTV venues and provides karaoke-goers a memorable karaoke experience.

特点

  • Passive 3-way, bass-reflex full-range karaoke loudspeaker
  • 10” low-frequency woofer, dual 3” high-frequency tweeters and dual 3” mid-range tweeters
  • Specially designed low-frequency woofer fitted with demodulating aluminum ring for high-power handling, low distortion and minimum power compression
  • Rated power of 200W and sensitivity of 90db offer unmatched output and sound quality
  • JBL signature karaoke tuning provides excellent vocal and bass performance
  • Sleek, stylish and modern design that is well-suited for a wide array of interior room designs
  • PSL (Passive Sound Lighting) Technology illuminates the JBL Entertainment logo

下载

  Version Language Size Uploaded
Pasion 10 Spec Sheet-英语
en updated: 12月02日
  en  612.2 KB 12月02日
Pasion 10 Spec Sheet-中国
zh updated: 12月02日
  zh  468.8 KB 12月02日
Compliances
JBL Pasion Series EU Declaration fo Conformity
updated: 10月31日
    314.2 KB 10月31日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 3-way, Bass-Reflex
LF (1) x 10″ Woofer
MF (2) x 3” Cone Tweeter
HF (2) x 3” Cone Tweeter
Frequency Response (-10dB) 50 Hz - 17 kHz

频率响应

48Hz – 18kHz
阻抗 8 Ohms
Rated Power 200 W

灵敏度

90 dB
Maximum SPL (1m) 113 dB
Acoustic Port Rear Facing
Logo Illuminated
输入通道 Binding Post
ENCLOSURE CONSTRUCTION Vinyl Laminated MDF
