MTS10

10” Full-Range Loudspeaker System

较大的图像

10” Full-Range Loudspeaker System

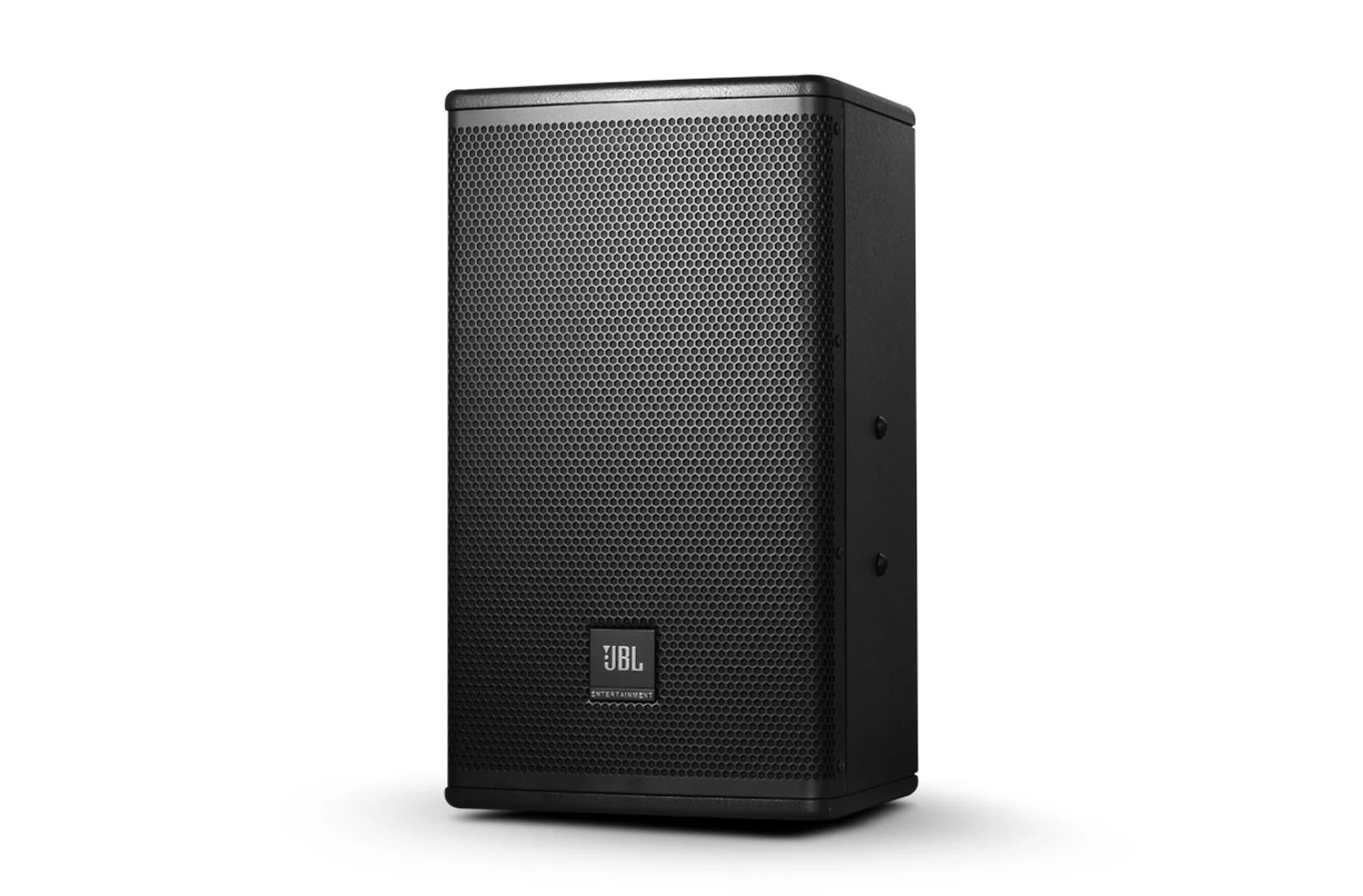

MTS10 is a professional-grade 10” (254 mm) two-way speaker system designed for karaoke rooms. The two-way speaker combines a custom-made 10” woofer with a patent JBL 2414H-C compression driver, and stands itself out for high power handling, large dynamic, warm vocal ranges and extended low bands. Its 70° × 100° coverage pattern provides smooth and even coverage whether installed in vertical or horizontal orientation.

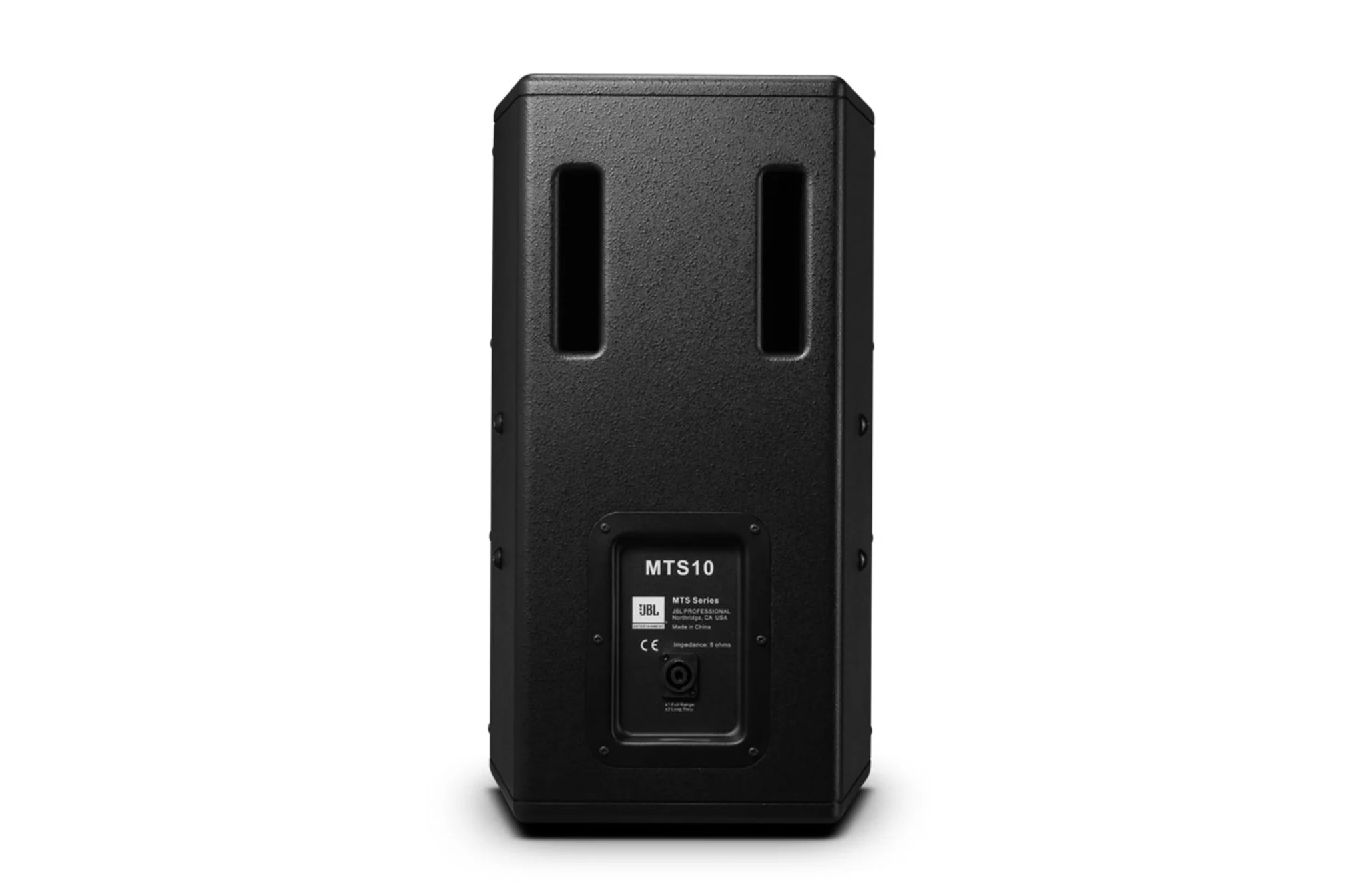

MTS10 is designed in a low profile and can easy blend into any karaoke rooms. The rugged enclosure is constructed of 15 mm high quality MDF and finished in a durable coating. The front grille is made from 18-gauge steel and backed with acoustic fabrics for protection of drivers and components inside. A Neutrik® Speakon® NL4MP connector is provided for reliable connection with a professional amplifier. To meet different installation requirements, three (3) pairs of M10 threaded suspension points and a 35 mm pole-mount socket are made available.

特点

  • 10″ custom LF driver featuring high-power handling and extended low frequency response
  • JBL patent compression HF driver for warm vocal reproduction in great detail
  • Enclosure constructed of 15 mm MDF with durable painting
  • 70° × 100° coverage pattern with smooth response on and off axis
  • 18-gauge steel front grille for protection of internal components
  • 35 mm pole-mount socket
  • Sound reinforcement for karaoke venues
  • Can be used with subwoofers

下载

  Version Language Size Uploaded
Brochures (Pdf)s
Karaoke Catalogue Brochure
updated: 12月02日
    4.1 MB 12月02日
Spec Sheets (Pdf)s
MTS10 Spec Sheet - Eng
updated: 12月02日
    896.2 KB 12月02日
MTS10 Spec Sheet - Cn
updated: 12月02日
    610.7 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 10″, 2-way, bass-reflex
频率范围 (-10dB) 50 Hz - 20 kHz
Frequency Response (±3 dB) 85 Hz - 18 kHz
Sensitivity (1W, 1m) 94 dB
标称阻抗 8 Ohms
Maximum SPL 119 dB (125 dB peak)
Power Rating (Continuous/Program/Peak) 300 W/600 W/1200 W
覆盖范围 70° × 100° (H × V)
尺寸(高 x 宽 x 厚) 524 mm × 297 mm × 320 mm20.6 inch × 11.7 inch × 12.6 inch
净重量 14.2 Kg (31.3 lbs)
低频驱动单元 1 × 10″ (254 mm) woofer
HF 驱动程序 1 × JBL 2414H-C
输入连接器 1 × Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, MDF
