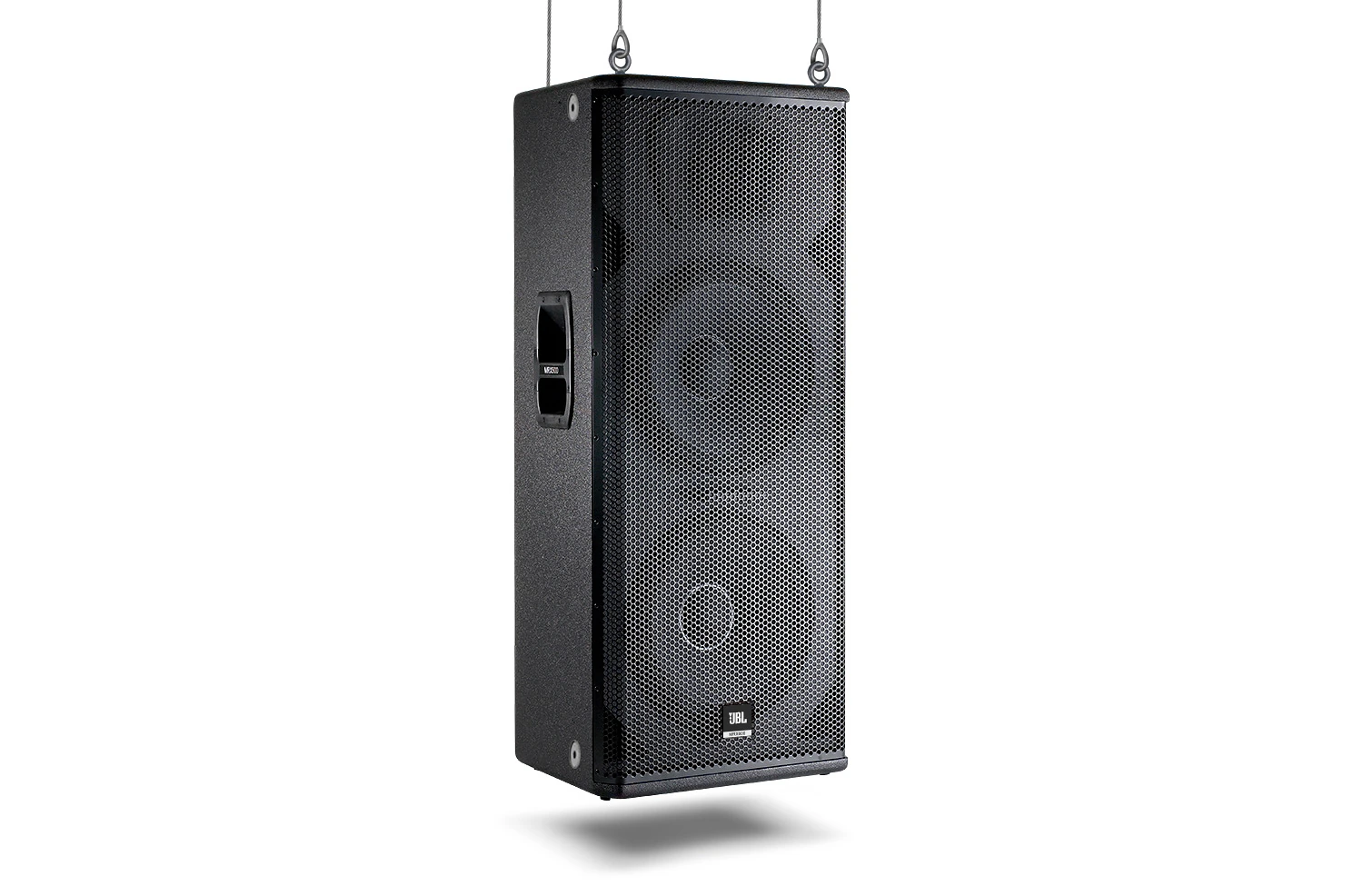

MRX625 (停产)

Dual 15" High-Power, Two-Way Speaker


Dual 15" High-Power, Two-Way Speaker

The MRX625 is an excellent choice when the application calls for high performance and simplicity. A pair of MRX625s and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues.


  • Lightweight and high-power
  • Dual 15" Differential Drive® woofer for high-power capacity and extended LF performance
  • 1.5" annular polymer diaphragm compression driver
  • 70° x 70° coverage
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • 12 rigging points for suspension applications
  • Live sound reinforcement for vocals and musical instruments
  • High-level music playback


  Version Language Size Uploaded
file type icon MRX Family
updated: 10月 2019
    392.3 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


频率范围 (-10dB) 40 Hz - 20 kHz
Frequency Response (±3 dB) 57 Hz - 20 kHz
覆盖范围 70° x 70° nominal
Crossover Mode Passive
分频点 1.8 kHz
Power Rating (Continuous/Program/Peak) 800 W/ 1600 W/ 3200 W, 2 hrs 700 W/ 1400 W/ 2800 W, 100 hrs
Maximum SPL (1m) 129 dB SPL continuous (135 dB SPL peak)
System Sensitivity (1w @ 1m) 100 dB SPL
低频驱动单元 2 x JBL 265H 380 mm (15 in) Differential Drive® woofers
HF 驱动程序 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
标称阻抗 4 ohms
Enclosure Trapezoidal, 15/18mm, plywood
Suspension / Mounting 12 points (3 top, 3 bottom, 2 each side, 2 rear), M10 thread hardware
Transport 2 x die-cast handles with backing cup
外观颜色 Black DuraFlex™ finish
网罩 Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
输入接口 Neutrik® Speakon® NL-4 (x2), one on each end
尺寸(高 x 宽 x 厚) 1240 mm x 535 mm x 460 mm (48.75 in x 21.0 in x 18.0 in)
净重量 38.7 kg (85 lb)
