15" High-Power, Two-Way Speaker


15" High-Power, Two-Way Speaker

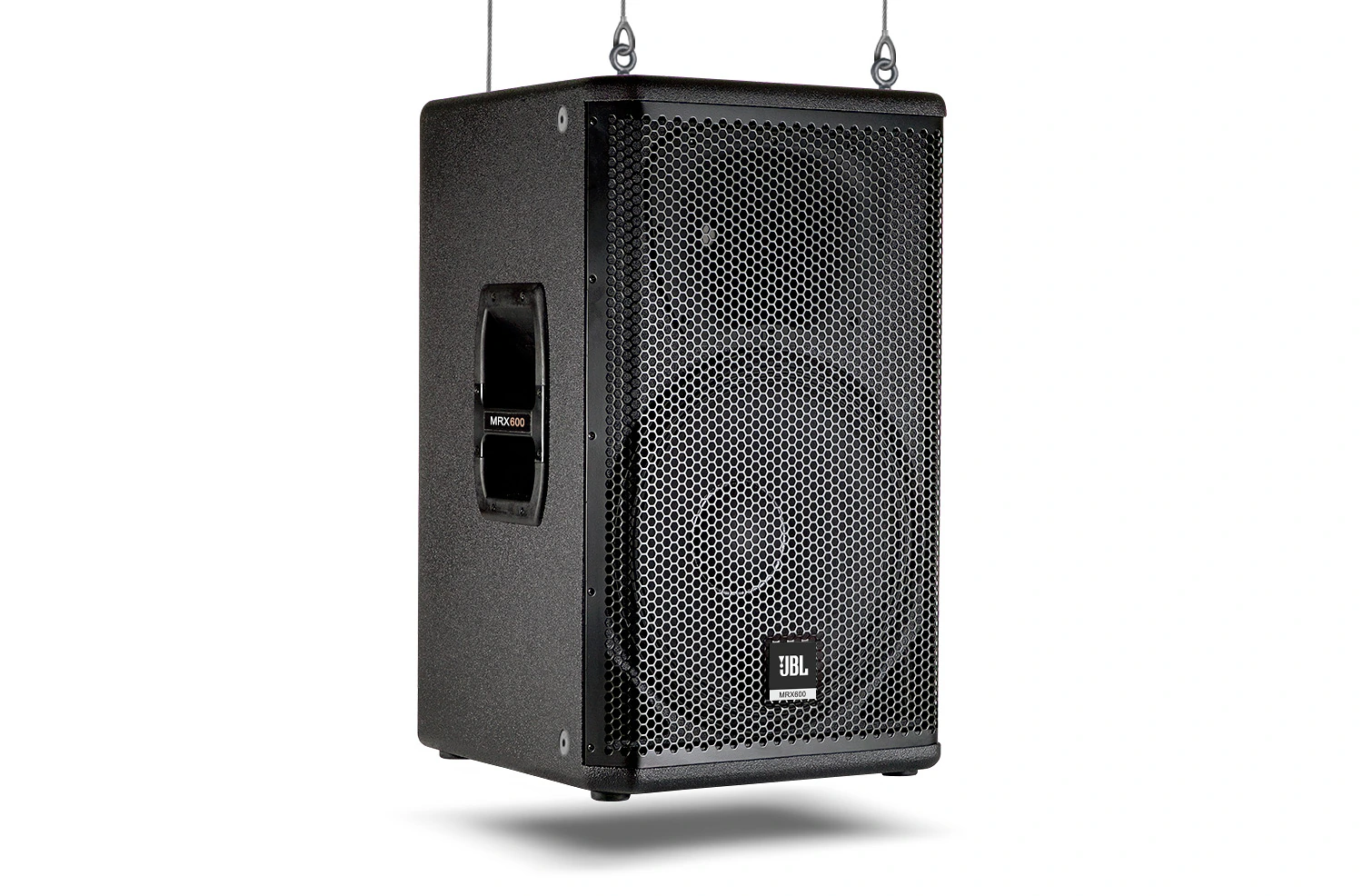

The MRX615 is high-power, lightweight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The MRX615 is comprised of a 380 mm (15 in) 265H Differential Drive® woofer which handles 400 watts (continuous) yet the entire system weighs only 20 kg (44 lbs). For the high frequencies, the 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn.


  • Lightweight and high-power
  • 15" Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5" annular polymer diaphragm compression driver
  • 70° x 70° coverage
  • Dual-angle pole socket for applications requiring tripod mounting.
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • 13 rigging points for suspension applications
  • Reinforcement of music and speech in entertainment, live or pre-recorded applications
  • High-performance satellite speaker for use with subwoofers


  Version Language Size Uploaded
file type icon MRX Family
updated: 10月 2019
    392.3 KB 10月 2019

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


频率范围 (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz - 20 kHz
覆盖范围 70° x 70° nominal
Crossover Mode Passive
分频点 1.7 kHz
Power Rating (Continuous/Program/Peak) 400 W/ 800 W/ 1600 W, 2 hrs 350 W/ 700 W/ 1400 W, 100 hrs
Maximum SPL (1m) 124 dB SPL continuous (130 dB SPL peak)
System Sensitivity (1w @ 1m) 98 dB SPL
低频驱动单元 1 x JBL 265H 380 mm (15 in) Differential Drive® woofer
HF 驱动程序 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, Neodymium compression driver
标称阻抗 8 ohms
Enclosure Trapezoidal, 15/18mm, plywood
Suspension / Mounting 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 thread hardware; Dual angle (0° or -10°) 35 mm pole socket
Transport 2 x die-cast handles with backing cup
外观颜色 Black DuraFlex™ finish
网罩 Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
输入接口 Neutrik® Speakon® NL-4 (x2), one on each end
尺寸(高 x 宽 x 厚) 700 mm x 435 mm x 470 mm (27.25 in x 17.5 in x 18.5 in)
净重量 20 kg (44 lbs)
Optional Accessories SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole
