MRX612M

12" Two-Way Stage Utility/ Monitor Speaker

较大的图像

12" Two-Way Stage Utility/ Monitor Speaker

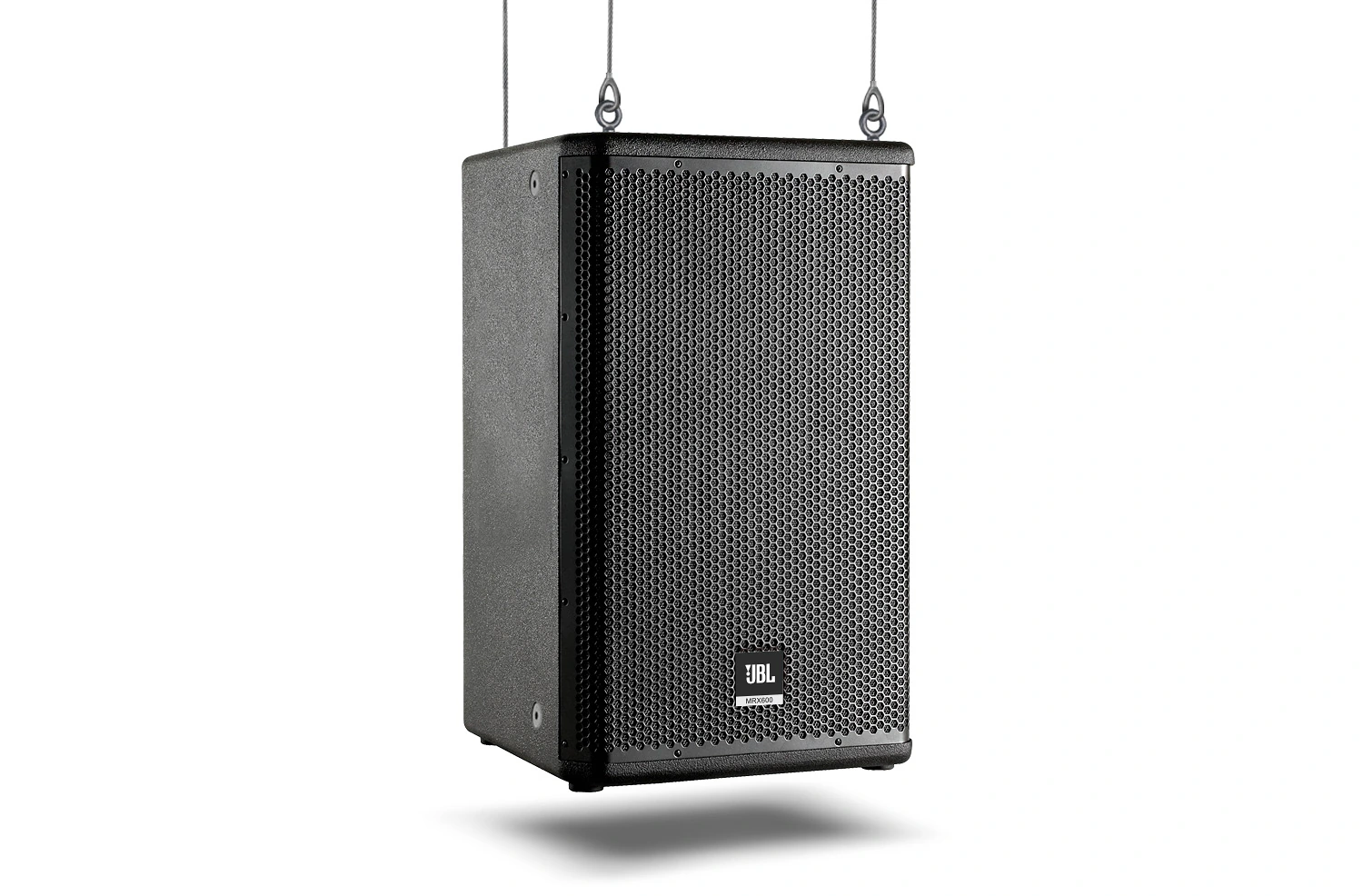

The MRX612M is a premium, utility/monitor speaker. The MRX612M uses a JBL 262H 305 mm (12 in) Differential Drive® woofer and a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 400 watts (continuous) power capacity. A 70° x 70° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation.

特点

  • 12" Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5" annular polymer diaphragm compression driver
  • Compact and low-profile for minimal obstruction of audience sight-lines
  • 70° x 70° coverage for even and smooth response on and off axis
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • 13 rigging points for suspension applications
  • Speech reinforcement
  • Live performance stage monitoring
  • Reinforcement of vocal and acoustic music
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Images
MRX Family
updated: 10月18日
    392.3 KB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

Frequency Response (-10dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 90 Hz - 20 kHz
覆盖范围 70° x 70° nominal
Crossover Mode Passive
分频频率 1.7 kHz
Power Rating (Continuous/Program/Peak) 400 W/ 800 W/ 1600 W, 2 hrs 350 W/ 700 W/ 1400 W, 100 hrs
Maximum SPL (1m) 123 dB SPL continuous (129 dB SPL peak)
System Sensitivity (1w @ 1m) 97 dB SPL
低频驱动单元 1 x JBL 262H 305 mm (12 in) Differential Drive® woofer
HF 驱动程序 1 x JBL 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
标称阻抗 8 ohms
Enclosure Symmetrical stage monitor, 15/18 mm, plywood
Suspension / Mounting 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 thread hardware; Dual angle, 35 mm pole socket
Transport Integrated handle / input cup
外观颜色 Black DuraFlex™ finish
网罩 Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing.
输入连接器 Neutrik® Speakon® NL-4 (x2), one on each end
尺寸(高 x 宽 x 厚) 645 mm x 380 mm x 345 mm (25.25 in x 15.0 in x 13.5 in)
净重量 15.4 kg (34 lbs)
Optional Accessories SS2-BK: Tripod speaker stand SS3-BK: Satellite speaker pole
