MRX528S

Dual 18 in. Bass-Reflex Subwoofer, High Power, Vertical Orientation for Stacking Full-Range

较大的图像

Dual 18 in. Bass-Reflex Subwoofer, High Power, Vertical Orientation for Stacking Full-Range Systems

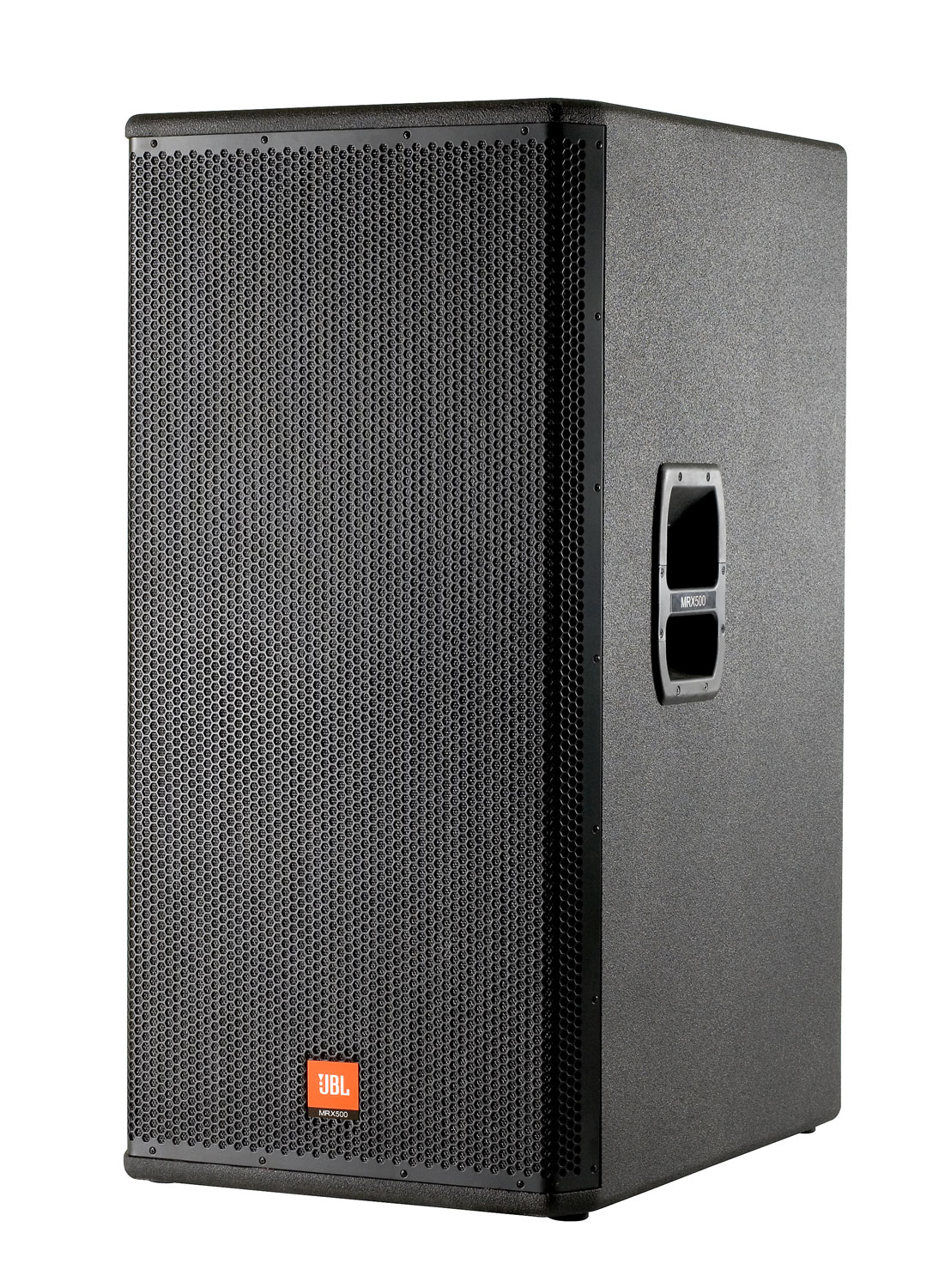

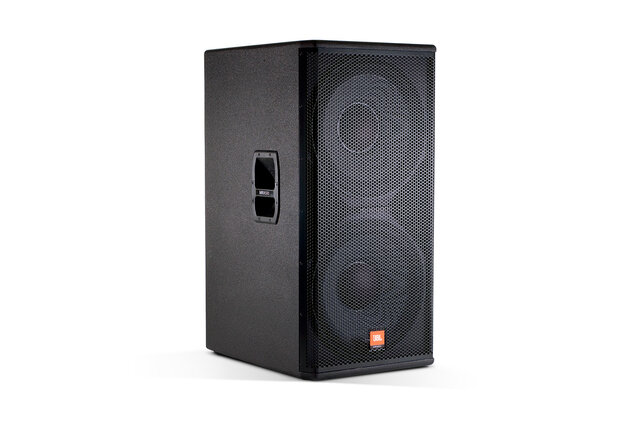

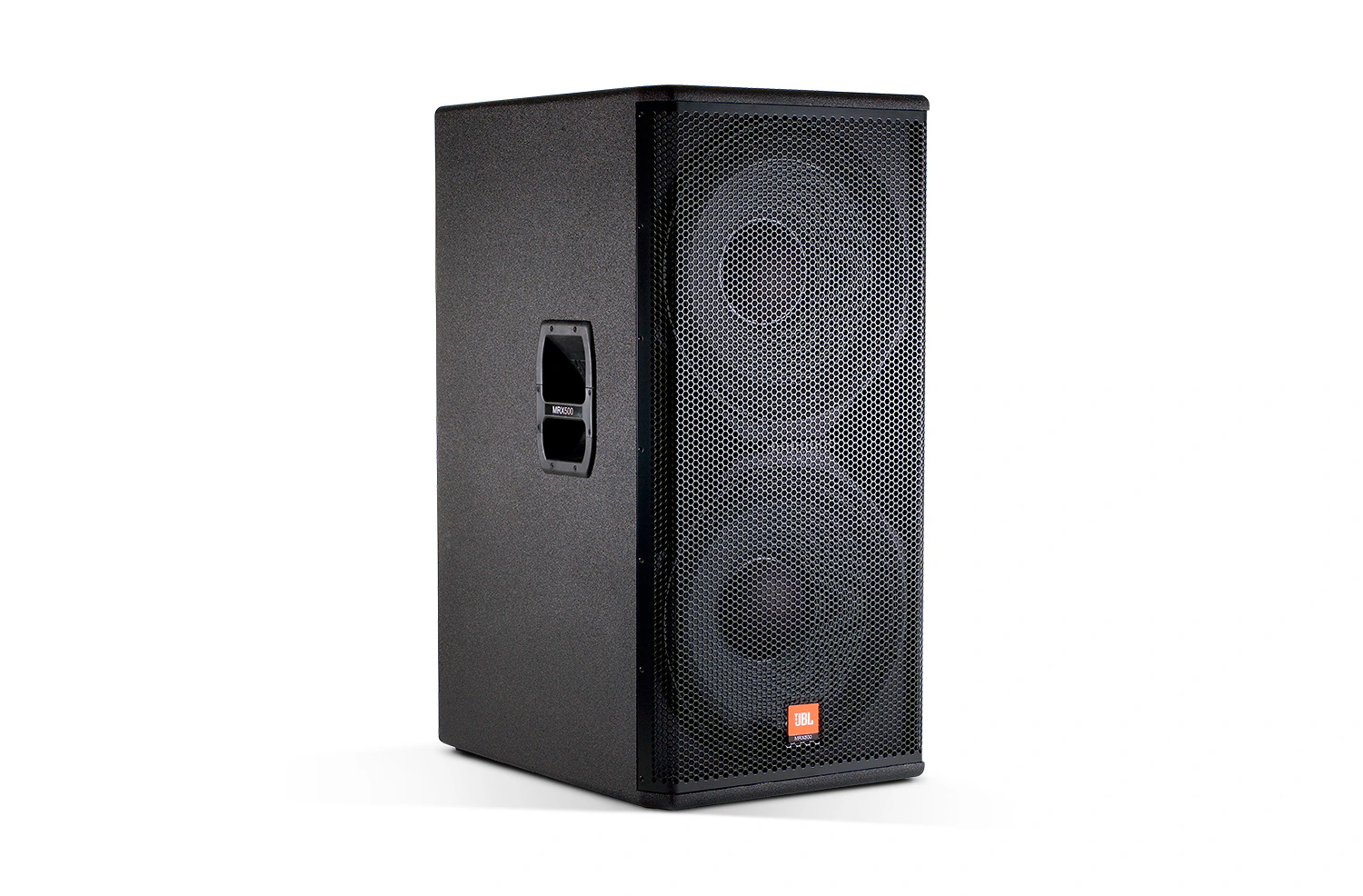

The MRX528S is a portable, dual eighteen-inch, subwoofer speaker system.

特点

  • Dual 18 inch, 2044H drivers for extended low-frequency output
  • Large vents for reduced distortion
  • Vertical orientation for convenient ground stacking
  • Tough DuraFlexT enclosure finish
  • Live performance venues
  • Mobile and fixed DJ systems
  • The MRX528S is a compact, high power subwoofer system containing dual 2044H 457 mm (18") woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. It is also configured in an upright format to permit the convenient stacking of fullrange enclosures on top without the need for an additional pole.
  • The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. The input panel incorporates a pair of Neutrik® Speakon® NL-4 connectors wired in parallel. The MRX528S is supplied with pins +1/-1 connected to the woofer. This may be easily reconfigured to work with cabling systems intended to drive subwoofers on pins +2/-2.
  • The enclosure is constructed of quality plywood, coated in JBL’s rugged DuraFlex™ finish and is braced to maximize low-frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

下载

  Version Language Size Uploaded
Brochures
MRX Brochure
updated: 10月22日
    2.2 MB 10月22日
Compliances
    90.5 KB 10月18日
Owner's Manuals
MRX528S Information
updated: 7月17日
    48.1 KB 7月17日
Spec Sheets (Pdf)s
MRX528S Spec Sheet
updated: 10月23日
    206.3 KB 10月23日
Hi Res Images
MRX528S
updated: 10月23日
    496.8 KB 10月23日
User Guides
MRX User Guide
updated: 10月22日
    2.5 MB 10月22日
Images
MRX Family
updated: 10月18日
    392.3 KB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
