MRX518S

18 in. Bass-Reflex Subwoofer, Super Compact with Top Pole Mount for Satellite Speaker Mounting

MRX518S
较大的图像

18 in. Bass-Reflex Subwoofer, Super Compact with Top Pole Mount for Satellite Speaker Mounting

The MRX518 is a portable, eighteen-inch, subwoofer speaker system.

特点

  • 18 inch, 2044G driver for extended low-frequency output
  • Large vent area for reduced distortion
  • Low profile and compact
  • Tough DuraFlexT finish enclosure
  • Live performance venues
  • Mobile and fixed DJ systems

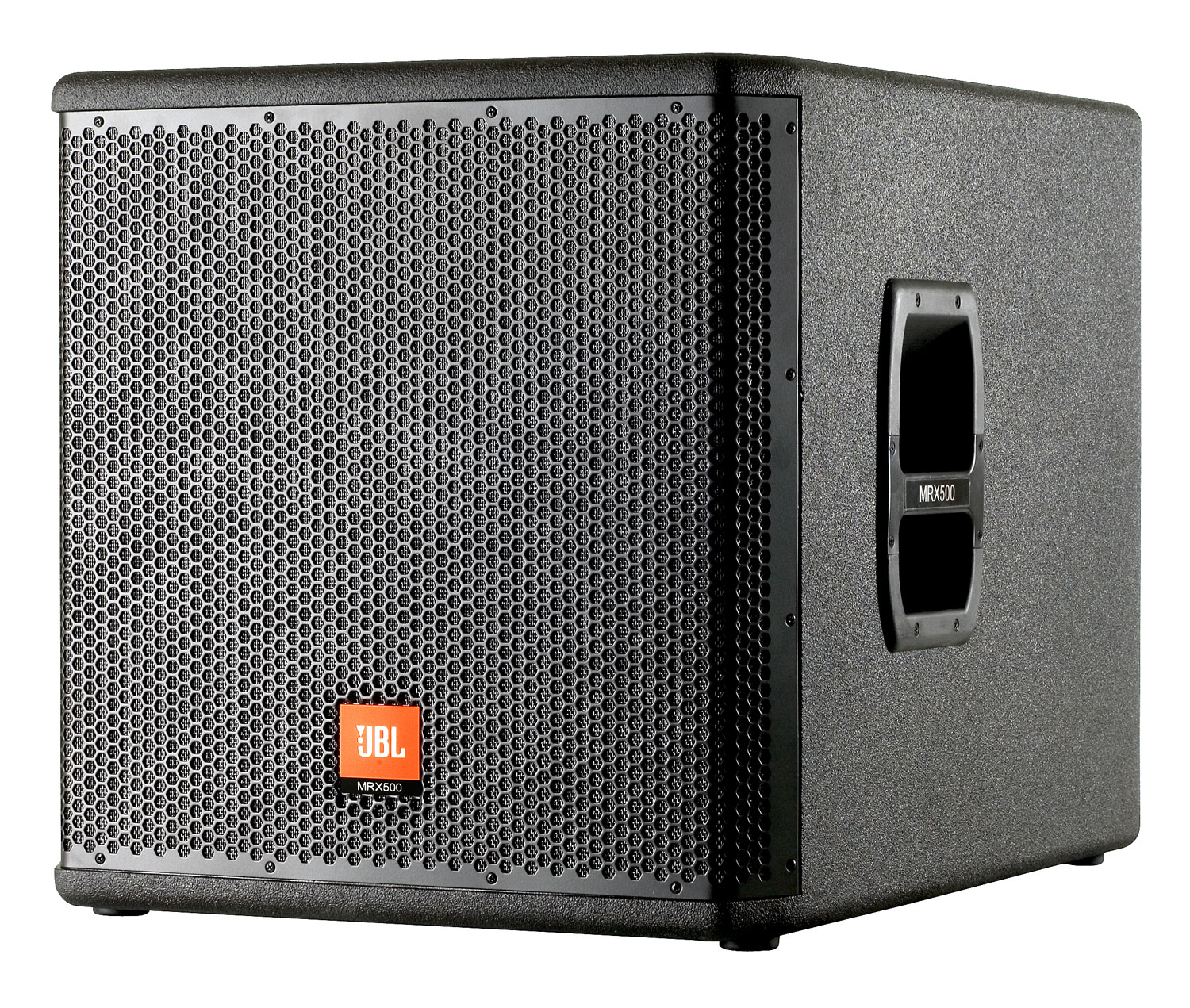

  • The MRX518S is a compact, high power subwoofer system containing a 2044G 457 mm (18") woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes.
  • The input panel incorporates a pair of Neutrik® Speakon® NL-4 connectors wired in parallel. The MRX518S is supplied with pins +1/-1 connected to the woofer. This may be easily reconfigured to work with cabling systems intended to drive subwoofers on pins +2/-2. For "Subwoofer/Satellite" configurations, the MRX518S is equipped with a top-mounted, 36 mm pole mount socket that can receive the optional SS3-BK pole. This can be used to mount speakers equipped with standard 35 mm pole sockets and weighing up to 50 kg (100 lbs). The enclosure is constructed of top quality plywood, coated in JBL's rugged DuraFlexT finish and is braced to maximize low-frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

下载

  Version Language Size Uploaded
Brochures
file type icon MRX Brochure
updated: 10月22日
    2.2 MB 10月22日
Compliances
file type icon MRX500 Series Declaration of Conformity
updated: 10月18日
    90.5 KB 10月18日
Owner's Manuals
file type icon MRX518S Information
updated: 7月17日
    48.1 KB 7月17日
Spec Sheets (Pdf)s
file type icon MRX518S Spec Sheet
updated: 10月23日
    210.1 KB 10月23日
Hi Res Images
file type icon MRX518S
updated: 10月23日
    720.6 KB 10月23日
User Guides
file type icon MRX User Guide
updated: 10月22日
    2.5 MB 10月22日
Images
file type icon MRX Family
updated: 10月18日
    392.3 KB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
