15" Two-Way Bass Reflex, Main PA Applications


15" Two-Way Bass Reflex, Main PA Applications

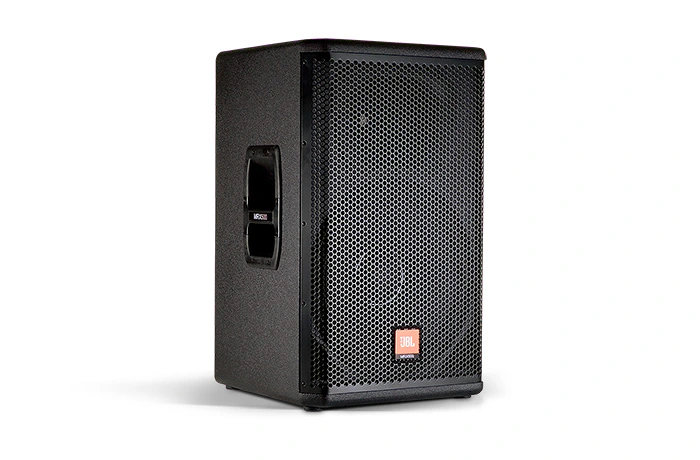

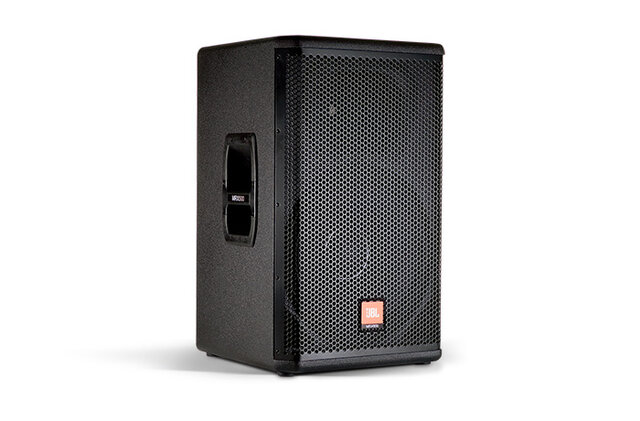

The MRX515 is a portable, fifteen-inch, two-way speaker system designed for reinforcement of music and speech.


  • Lightweight and high-power
  • 15" Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5" annular polymer diaphragm compression driver 70° x 70° coverage
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • Reinforcement of music and speech in entertainment, live or pre-recorded applications
  • High-performance satellite speaker for use with subwoofers
  • The MRX515 is high-power, lightweight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The MRX515 is comprised of a 380 mm (15 in) 265H Differential Drive® woofer which handles 400 watts (continuous) yet the entire system weighs only 19.5 kg (43 lbs). For the high frequencies, the 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver is mounted to a 70° x 70° horn. JBL's dual angle pole mount allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlexT finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.


  Version Language Size Uploaded
file type icon MRX Brochure
updated: 10月22日
    2.2 MB 10月22日
file type icon MRX500 Series Declaration of Conformity
updated: 10月18日
    90.5 KB 10月18日
Owner's Manuals
file type icon MRX515 Information
updated: 7月17日
    48.1 KB 7月17日
Spec Sheets (Pdf)s
file type icon MRX515 Spec Sheet
updated: 10月22日
    329.4 KB 10月22日
Hi Res Images

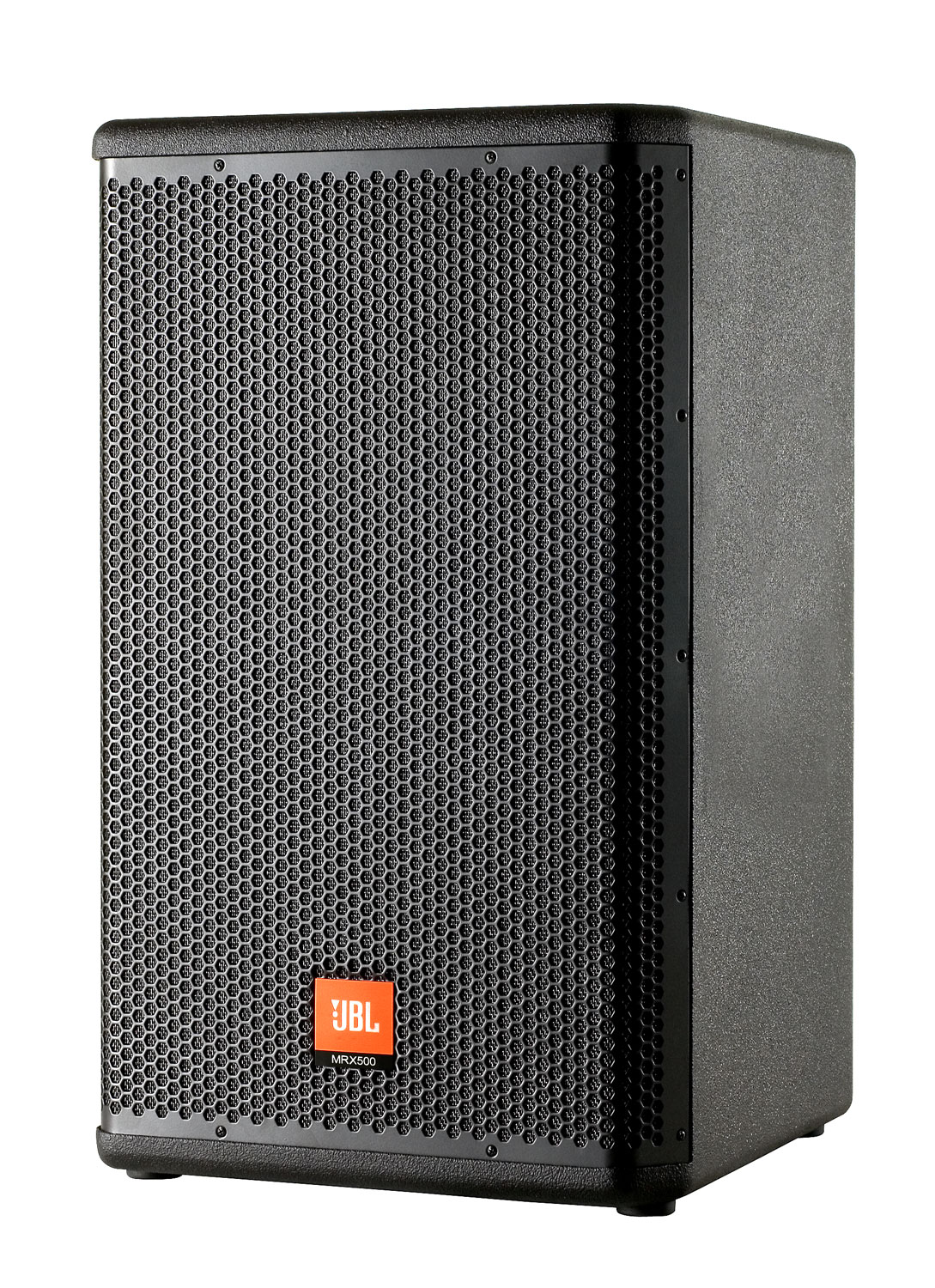

file type icon MRX512M angle
updated: 10月22日
    544.6 KB 10月22日
User Guides
file type icon MRX User Guide
updated: 10月22日
    2.5 MB 10月22日
file type icon MRX Family
updated: 10月18日
    392.3 KB 10月18日

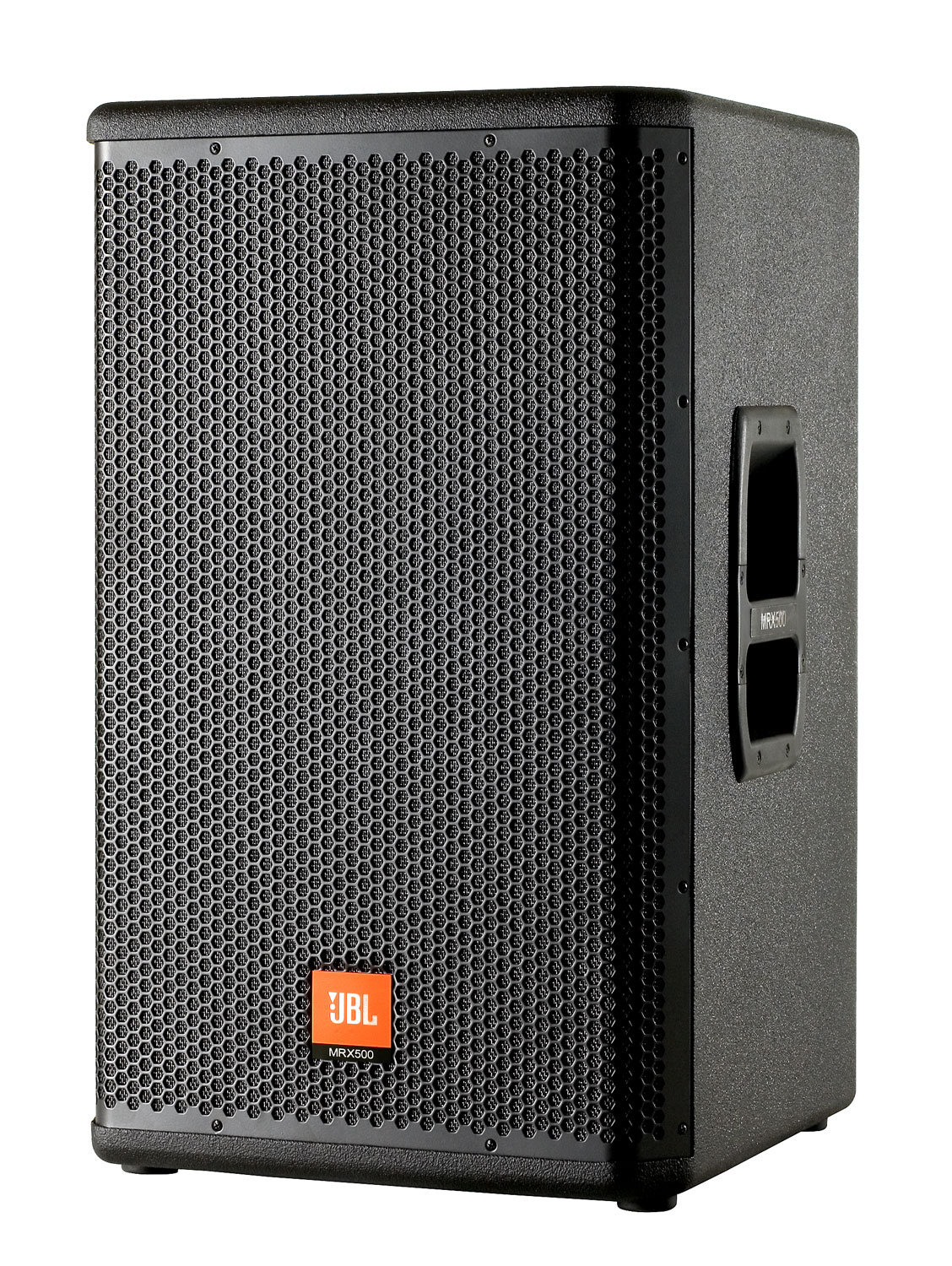

file type icon MRX515
updated: 10月18日
    560.5 KB 10月18日
Speaker Tunings
file type icon MRX500 Series Tunings
updated: 10月18日
    5.3 KB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
