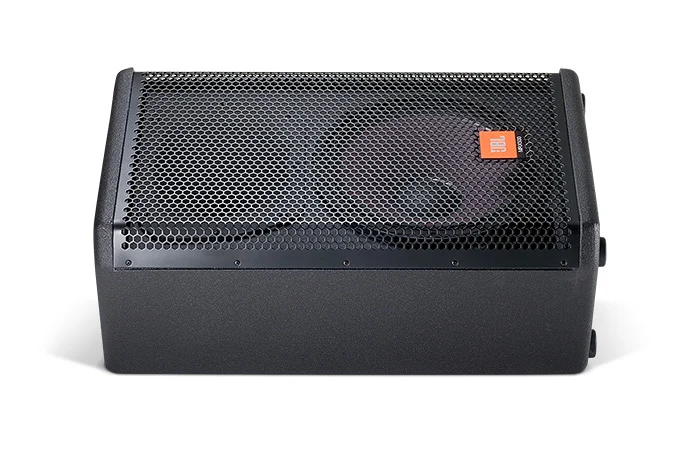

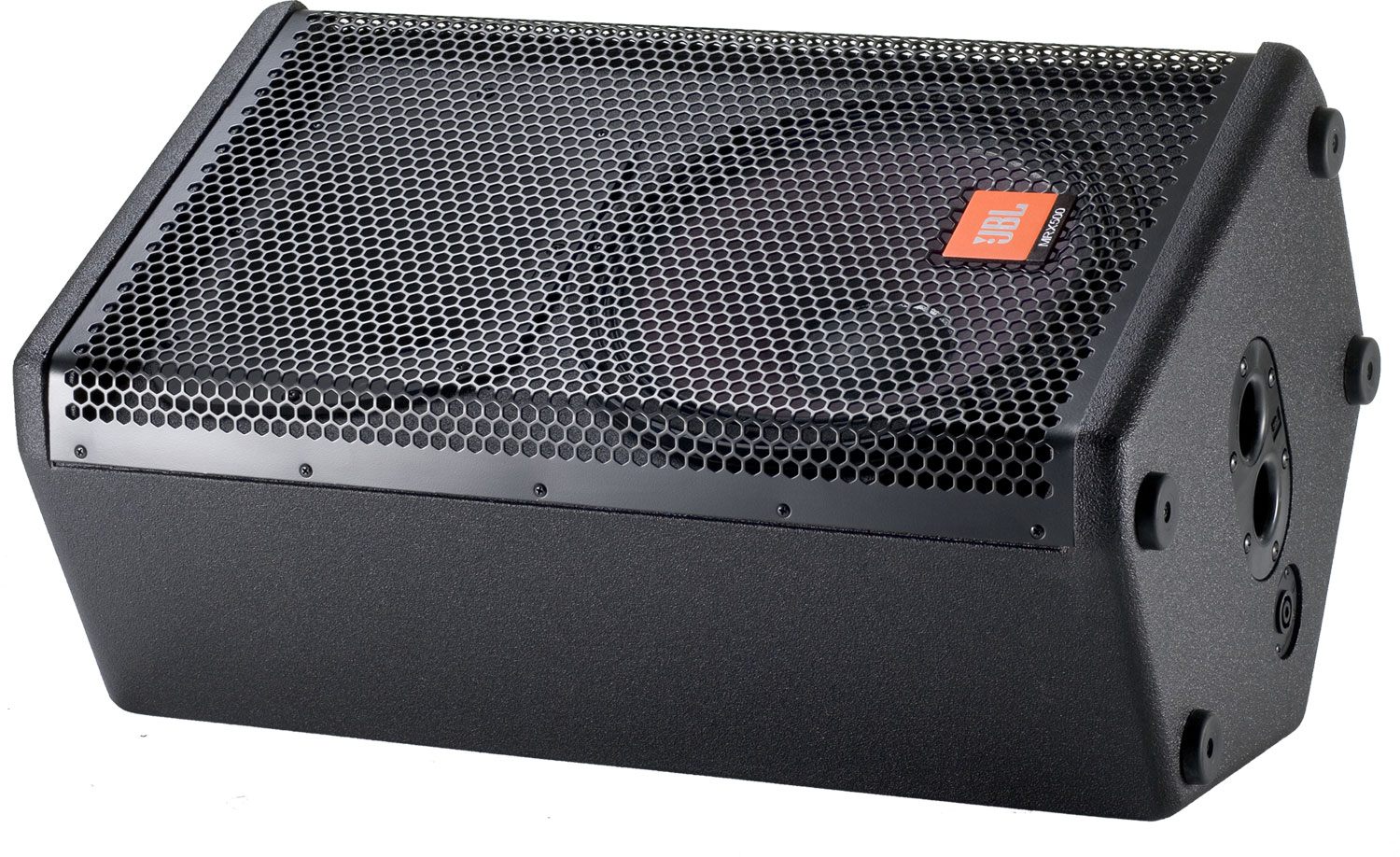

MRX512M

12" Two-Way Bass Reflex, Main PA / Monitor Applications

较大的图像

12" Two-Way Bass Reflex, Main PA / Monitor Applications

The MRX512 is a portable, twelve-inch, two-way speaker system designed specifically for sound reinforcment stage monitoring applications.

特点

  • 12" Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5" annular polymer diaphragm compression driver
  • Compact and low-profile for minimal obstruction of audience sight-lines
  • 70° x 70° coverage for even and smooth response on and off axis
  • Dual-angle pole socket for applications requiring tripod mounting
  • Heavy Duty 16 gauge protective screen backed steel grille
  • Tough DuraFlex™ enclosure finish
  • Speech reinforcement
  • Live performance stage monitoring
  • Reinforcement of vocal and acoustic music
  • High-performance satellite speaker for use with subwoofers
  • The MRX512M is a premium, utility/monitor speaker. The MRX512M uses a JBL 262H 305 mm (12 in) Differential Drive® woofer and a 2408H 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver. A 70° x 70° horn provides smooth, even coverage whether used in the vertical (mains) or horizontal (monitor) orientation. NL4 connectors are provided on both ends of the speaker to keep cable runs tidy on stage when used in the monitor application and for easy access when used on tripods.
  • A passive network provides accurate reproduction throughout the cross-over region. For use on a tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. The enclosure is constructed of quality plywood and coated in JBL's rugged DuraFlexT finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

下载

  Version Language Size Uploaded
Brochures
MRX Brochure
updated: 10月22日
    2.2 MB 10月22日
Compliances
    90.5 KB 10月18日
Owner's Manuals
MRX512M Information
updated: 7月17日
    48.1 KB 7月17日
User Guides
MRX User Guide
updated: 10月22日
    2.5 MB 10月22日
Spec Sheets (Pdf)s
MRX512M Spec Sheet
updated: 10月22日
    305.3 KB 10月22日
Hi Res Images
MRX512M
updated: 10月22日
    378.0 KB 10月22日
Images
MRX Family
updated: 10月18日
    392.3 KB 10月18日
Speaker Tunings
MRX500 Series Tunings
updated: 10月18日
    5.3 KB 10月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
