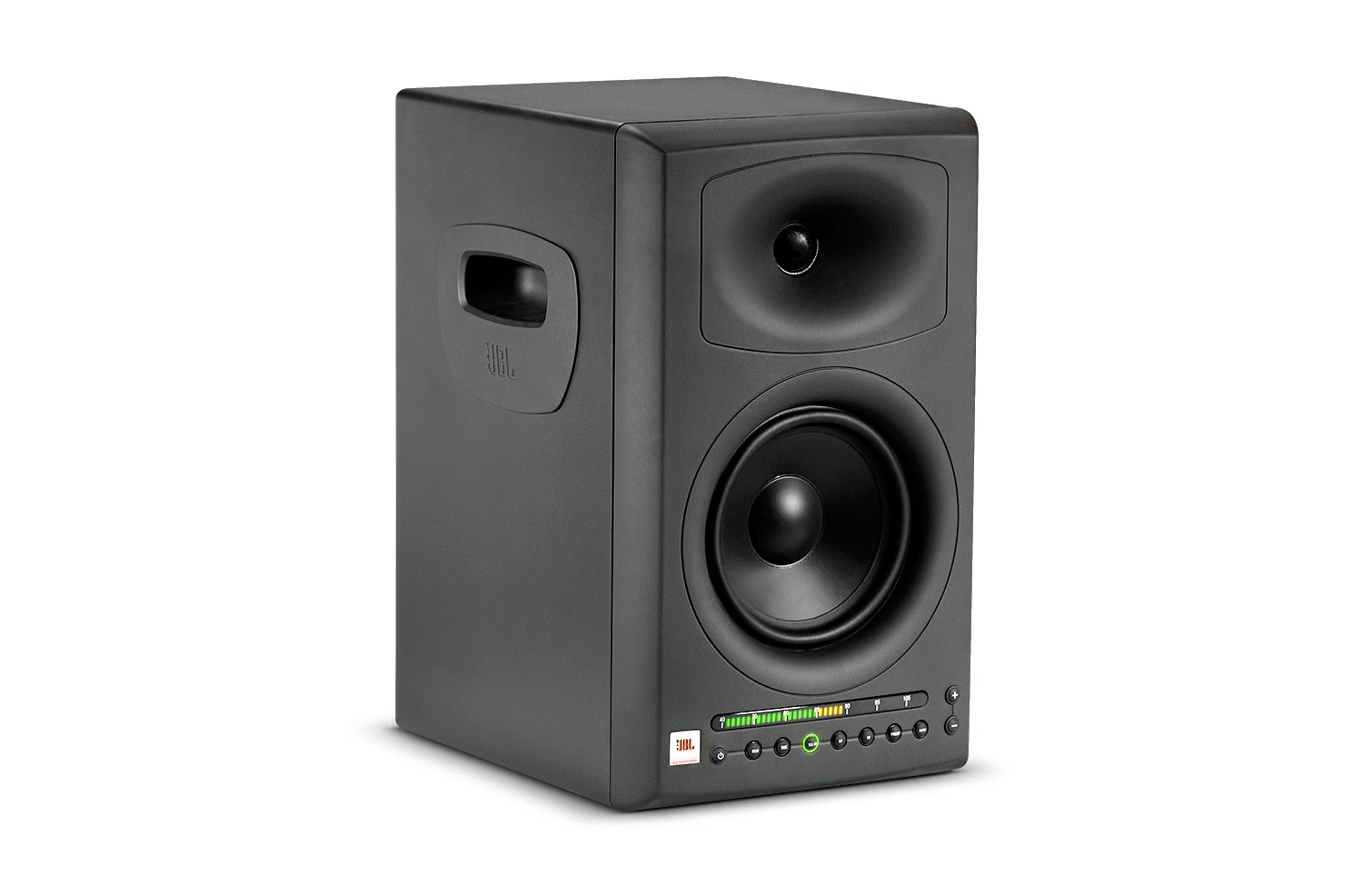

LSR4326P (停产)

A powered 6.25" two-way system

LSR4326P
较大的图像

A powered 6.25" two-way system

The 4326P features RMC™ Room Mode Correction, JBL's exclusive technology that automatically analyzes and corrects the response of each speaker in the room for absolute accuracy at the mix position.



特点

  • Advanced Linear Spatial Reference design ensures flatter-off-axis response for greater clarity at the mix position
  • RMC™ Room Mode Correction provides electronic control of room modes.
  • Integrated bi-amplification with factory calibrated sensitivities.
  • Silk dome transducer with Elliptical Oblate Spheroidal waveguide for precise pattern control.
  • Magnetically shielded transducers minimize interference when used in close proximity to video monitors.
  • Reinforced enclosure and convenient mounting points for mounted installation.
  • Integral handles facilitate ease of positioning.


下载

  Version Language Size Uploaded
Brochures
file type icon LSR4300 Brochure
updated: 10月 2020
    1.2 MB 10月 2020
Software
platform icon LSR4300 Control Center Software Mac
version 2.9, updated: 1月 2020
2.9     48.1 MB 1月 2020
platform icon LSR4300 Control Center Software PC
version 2.1.3.0, updated: 1月 2020
2.1.3.0     47.3 MB 1月 2020
Firmware
platform icon LSR4300 Series Firmware Update Mac
version 2.5, updated: 1月 2020
2.5     876.8 KB 1月 2020
platform icon LSR4300 Series Firmware Update PC
version 2.5, updated: 1月 2020
2.5     30.1 MB 1月 2020
User Guides
file type icon Control Center Software User Guide
updated: 10月 2020
    3.4 MB 10月 2020
Owner's Manuals
file type icon LSR4328P/4326P Owners Manual Appendix F - Trouble
updated: 10月 2020
    149.8 KB 10月 2020
file type icon LSR4328P, LSR4326P Studio Monitors Owners Manual
updated: 10月 2020
    2.7 MB 10月 2020
Install Guides
file type icon LSR4326P/4328P Speaker Type Setting Procedure
updated: 10月 2020
    42.4 KB 10月 2020
file type icon LSR 4300 Firmware Update Installation Instruction
updated: 10月 2020
    15.9 MB 10月 2020
file type icon R&B Mounting Brackets
updated: 10月 2020
    26.2 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

频率响应

+/-1.5 dB: 55 Hz – 20 kHz-3 dB: 47 Hz – 22 kHz10 dB: 39 Hz – 32 kHz
SPL / 1m (Continuous/Peak) 106 dB / 112 dB
单元 6.25in 436H / 1in 431 G; Self- Shielded, Neodymium Motor Structures
Sensitivity +4 dBu, -10 dBV 94 dB / 1m
Amplification 150 w/ 70 w
Digital Processing 24 Bit, 96 kHz
模拟输入 XLR, 1/4” Balanced, +4 dBu, -10 dBV
数字输入 AES/EBU XLR, S/PDIF RCA
Data Connections Harman HiQnet™ Network, USB, RMC Mic
重量 12.7 kg (28 lb)
尺寸(高 x 宽 x 厚) 387 mm x 236 mm x 262 mm15.25 in x 9.3 in x 10.3 in
