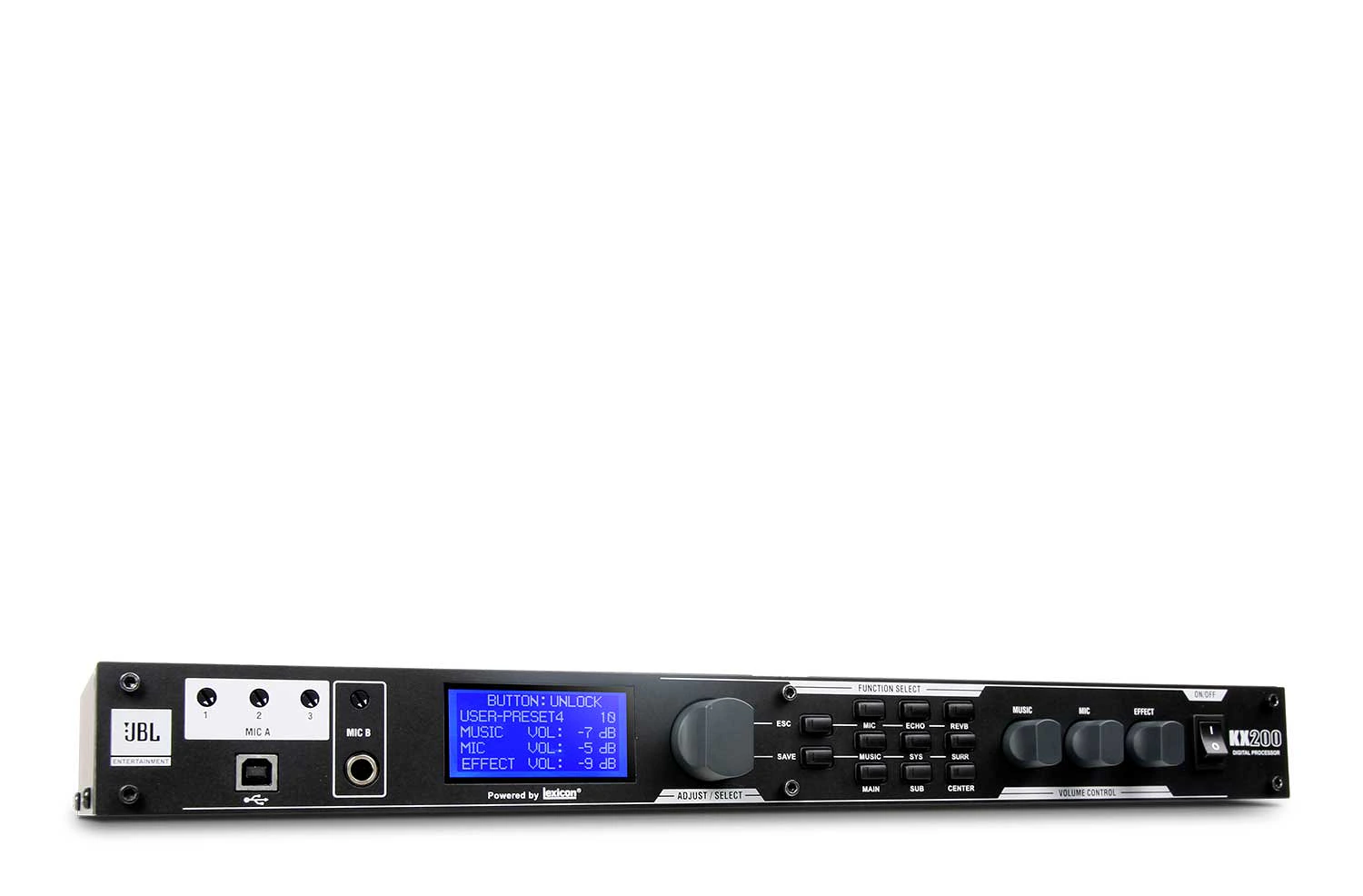

KX200 (停产)

Full-Featured Digital Processor


Full-Featured Digital Processor

Karaoke singers require unique reverb and effects to help untrained singers sound as good as possible. The JBL KX200 dedicated karaoke processor has all the effects needed and digital signal processing (DSP) to configure input microphones and program material as well as setup any type of speaker.


  • Two separate and adjustable microphone input channels
  • Optical and coaxial digital audio inputs
  • USB port on the front panel for convenience
  • dbx patented AFS™ (Automatic Feedback Suppressions) technology
  • 15-band parameter equalizer for microphone inputs
  • 8-band parameter equalizer for program inputs
  • Six separate and adjustable signal outputs
  • 10 custom presets and 5 factory presets
  • Preloaded settings for HARMAN JBL speakers
  • T9 keypad unlock screen


  Version Language Size Uploaded
file type icon Karaoke Catalogue Brochure
updated: 10月 2020
    4.1 MB 10月 2020
platform icon KX200 PC-GUI Firmware
version, updated: 12月 2019     13.5 MB 12月 2019
User Guides
file type icon KX200 Quick Start Guide CN
updated: 12月 2019
    4.6 MB 12月 2019
file type icon KX200 Quick Start Guide EN
updated: 12月 2019
    4.7 MB 12月 2019
Owner's Manuals
file type icon KX200 Manual EN & CN
updated: 12月 2019
    5.0 MB 12月 2019
file type icon KX200 PC-GUI Firmware V1.1.3.3
updated: 10月 2020
    13.5 MB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


Microphone input type XLR and ¼" balanced
阻抗 600 Ohm
EIN < -80 dBu, 20 KHz bandwidth
Level Control - ∞ to +14.2 dBu
Line Input Left & right channel RCA unbalanced
线路输入的阻抗 24 K Ohm
XLR Output Balanced or Unbalanced
XLR Output Impedance 30 Ohm balanced, 15 Ohm unbalanced
RCA Output Left and Right Channel Unbalanced
RCA Output Impedance 100 Ohm


20 Hz - 20 KHz, +/- 1 dB
THD + N < 0.007% 20 Hz - 20 KHz
动态范围 > 103 dB
Analog / Digital Signal Conversion 24 bit, 48 KHz
Processor 32 bit
Computer Connection USB 2.0
尺寸(高 x 宽 x 厚) 44.20 mm x 440.54 mm x 139.25 mm
Shipping Weight: 2.5 kg
Net Weight: 1.8 kg
