KP6018S

18 Inch High-Power Passive Subwoofer

较大的图像

18 Inch High-Power Passive Subwoofer

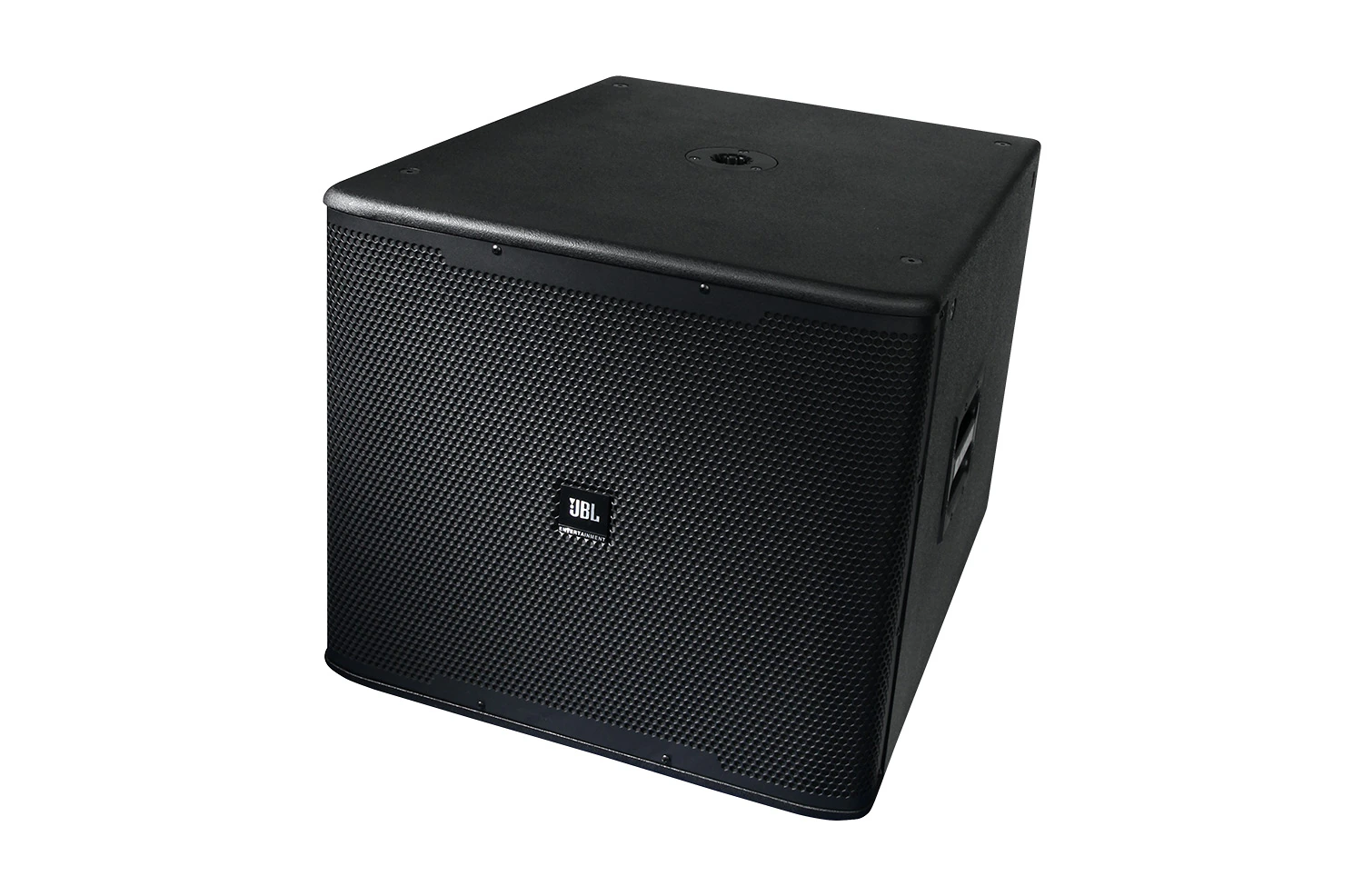

The KP6018S is a compact, high power subwoofer system containing a JBL long excursion with high moving mass 457 mm (18″) woofer in a front-loaded, vented enclosure.

特点

  • 18″, Long excursion with high moving mass driver for extended low-frequency output
  • Large vent for reducing distortion
  • Low profile and compact
  • Enclosure constructed of 18 mm plywood with rugged durable painting finish
  • Heavy duty 16 gauge steel grille
  • Top-mounted, 35 mm pole mount socket
  • Karaoke sound reinforcement
  • Bar and club live or pre-recorded sound reinforcement

下载

  Version Language Size Uploaded
Brochures (Pdf)s
Karaoke Catalogue Brochure
updated: 12月02日
    4.1 MB 12月02日
Spec Sheets (Pdf)s
KP6018S Spec Sheet - CN
updated: 12月02日
    692.5 KB 12月02日
KP6018S Spec Sheet - EN
updated: 12月02日
    563.0 KB 12月02日
Data Sheets
KP6018S Data Sheet - CN
updated: 12月02日
    7.6 MB 12月02日
KP6018S Data Sheet - EN
updated: 12月02日
    7.5 MB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 18″, bass-reflex
频率范围 (-10dB) 38 Hz – 250 Hz
Frequency Response (±3 dB) 50 Hz – 250 Hz
System Sensitivity (1w @ 1m) 95 dB (near corner), 89 dB (center of wall)
标称阻抗 8 ohms
Maximum SPL 124 dB (130 dB peak)
Power Rating (Continuous/Program/Peak) 600 W/1200 W/2400 W
尺寸(高 x 宽 x 厚) 540 mm x 600 mm x 700 mm (21.3 in x 23.6 in x 27.6 in)
净重量 34.8 Kg (76.8 lbs)
低频驱动单元 1 x 18″ woofer
输入连接器 2 x Neutrik® Speakon® NL4MP
Enclosure Rectangular, 18 mm, plywood
Optional Accessory SS3-BK: Satellite speaker pole
