12 Inch 2-Way Full Range Loudspeaker System


12 Inch 2-Way Full Range Loudspeaker System

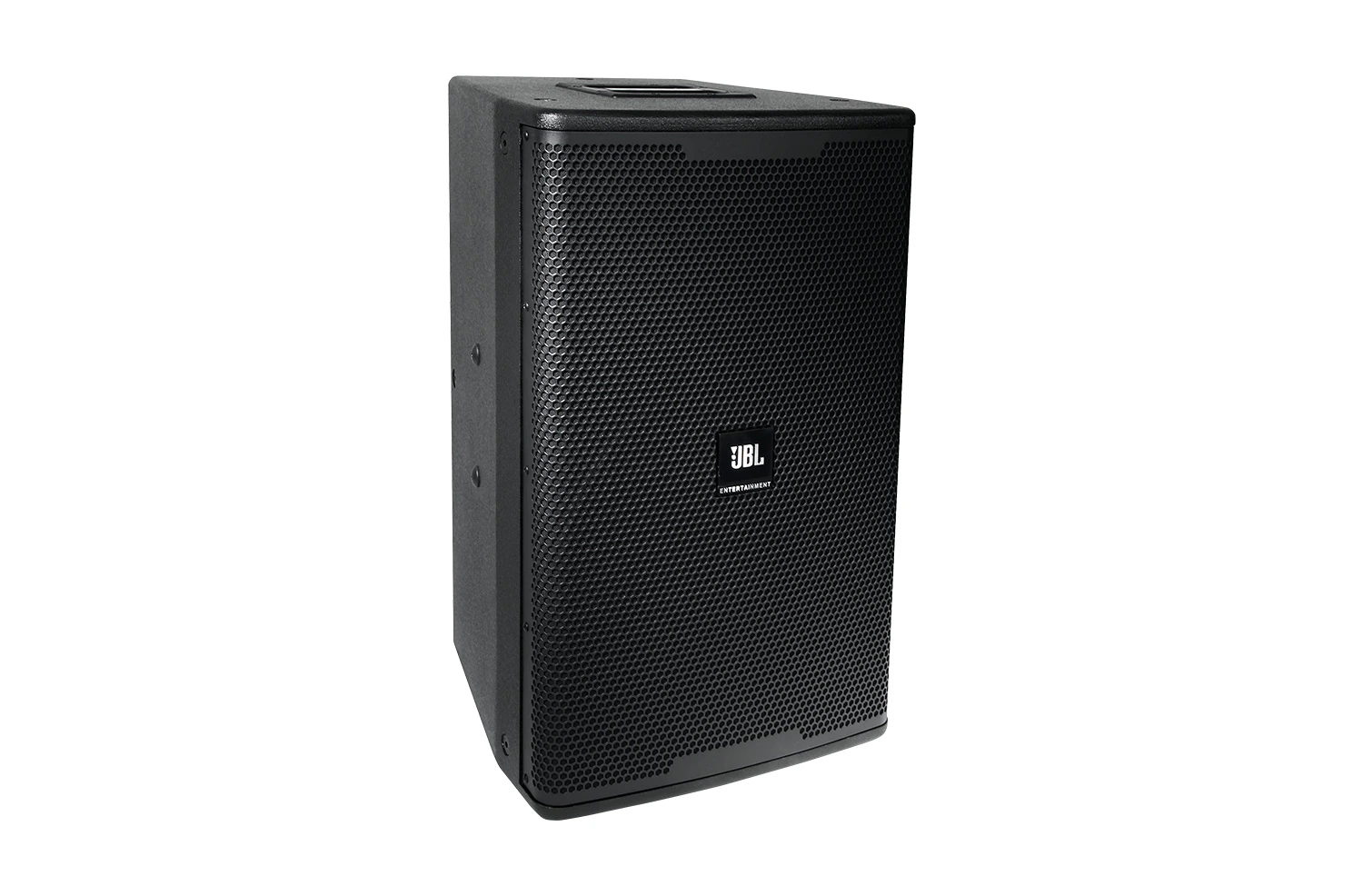

The KP6012 is a premium high-output lightweight full-range loudspeaker.

The KP6012 uses a JBL 262H-1 305 mm (12 in) Differential Drive® woofer and a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 350 watts power capacity. 70° x 60° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-slope passive network minimizes band overlap.


  • 12″ Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm plywood with rugged durable painting
  • 70° x 60° coverage pattern for even and smooth response on and off axis
  • Attractive 16 gauge protective screen backed steel grille
  • Precision engineered crossover for optimal power response and performance in the vocal midrange region
  • Single position pole socket for applications requiring pole mounting
  • SonicGuard™ protects high frequency driver from excess power without interrupting the performance
  • Rotatable JBL ENTERTAINMENT logo for easy coherence to your application
  • Karaoke sound reinforcement
  • Bar and club live or pre-recorded sound reinforcement
  • High-performance satellite speaker for use with subwoofers


  Version Language Size Uploaded
Data Sheets
file type icon KP6012 Data Sheet - CN
updated: 10月22日
    7.6 MB 10月22日
file type icon KP6012 Data Sheet - EN
updated: 10月22日
    7.5 MB 10月22日
file type icon Karaoke Catalogue Brochure
updated: 10月22日
    4.1 MB 10月22日
Spec Sheets
file type icon KP6012 Spec Sheet - CN
updated: 10月22日
    624.3 KB 10月22日
file type icon KP6012 Spec Sheet - EN
updated: 10月22日
    516.7 KB 10月22日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


系统类型 12″, 2-way, bass-reflex
频率范围 (-10dB) 71 Hz - 20 KHz
Frequency Response (±3 dB) 90 Hz - 20 KHz


97 dB (1 kHz - 8 kHz)
标称阻抗 8 Ohms
Maximum SPL (1m) 124 dB (130 dB peak)
Power Rating (Continuous/Program/Peak) 350 W/700 W/1400 W
覆盖范围 70° x 60° (H x V)
尺寸(高 x 宽 x 厚) 600 mm x 350 mm x 382 mm 23.6 in x 13.8 in x 15.0 in
净重量 14.7 Kg (32.5 lbs)
LF Drivers 1 x JBL 262H-1 300 mm (12 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
HF Drivers 1 x JBL 2408H-1
输入接口 2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, plywood
