KP6010

10 Inch 2-Way Full Range Loudspeaker System

较大的图像

10 Inch 2-Way Full Range Loudspeaker System

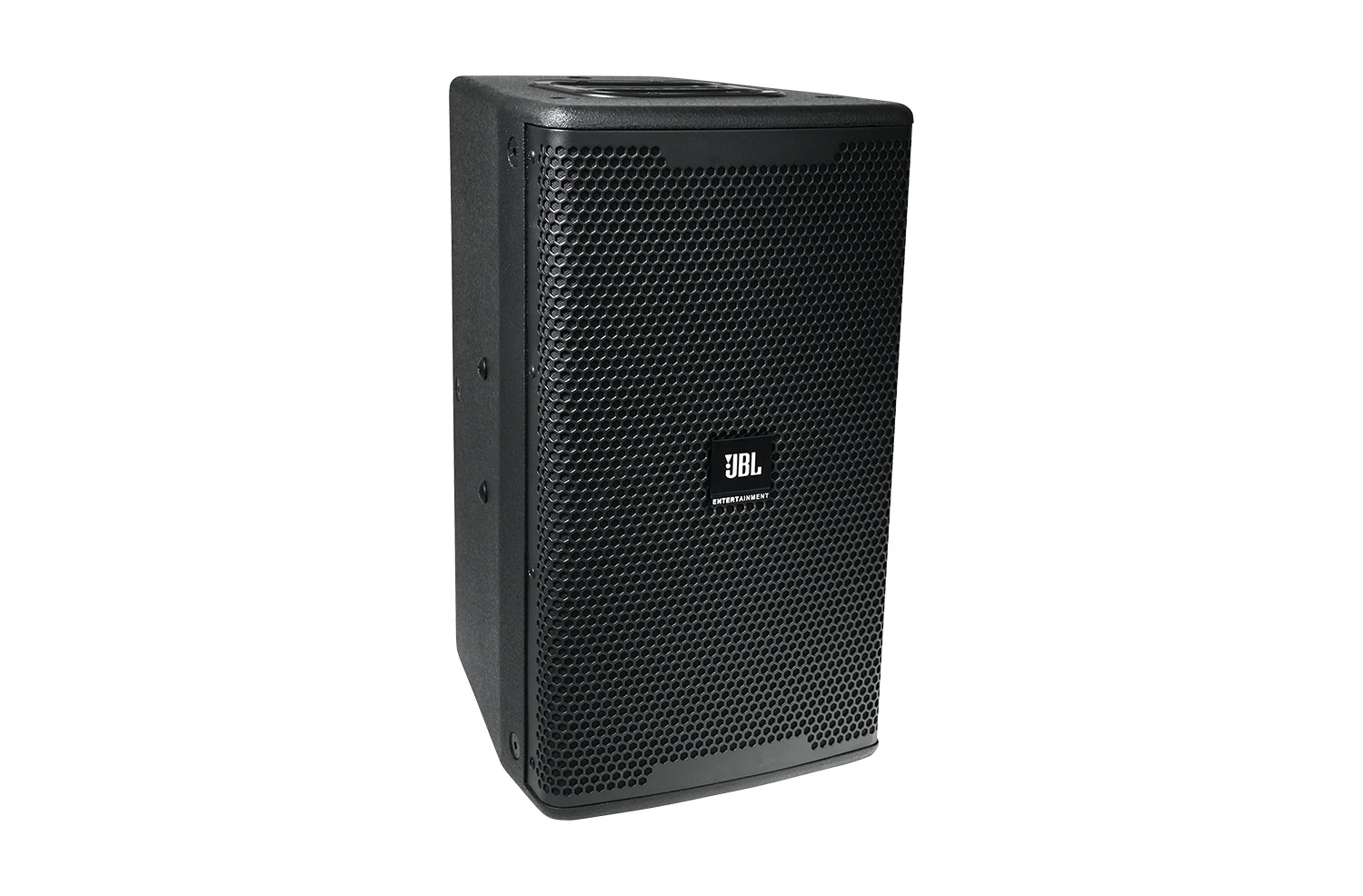

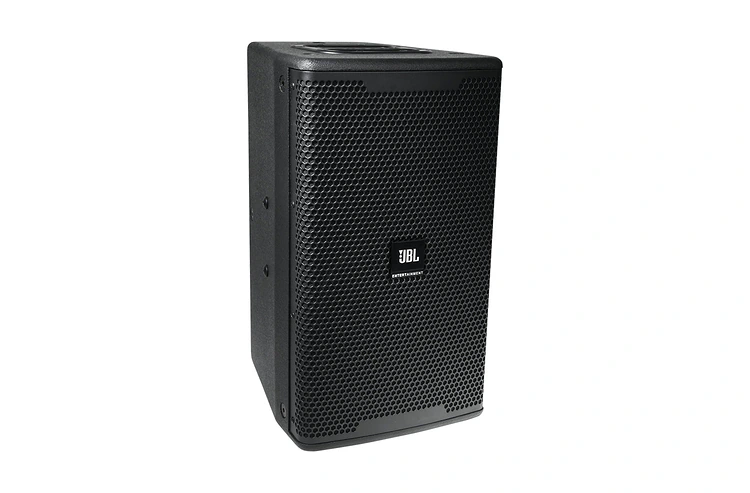

The KP6010 is a premium high-output lightweight full-range loudspeaker.

The KP6010 uses a JBL 261H 254 mm (10 in) Differential Drive® woofer and a 2408H-1 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 300 watts power capacity. 80° x 70° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-slope passive network minimizes band overlap.

特点

  • 10″ Differential Drive® woofer for high-power capacity and very lightweight
  • 1.5″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm plywood with rugged durable painting
  • 80° x 70° coverage pattern for even and smooth response on and off axis
  • Attractive 16 gauge protective screen backed steel grille
  • Precision engineered crossover for optimal power response and performance in the vocal midrange region
  • Single position pole socket for applications requiring pole mounting
  • SonicGuard™ protects high frequency driver from excess power without interrupting the performance.
  • Rotatable JBL ENTERTAINMENT logo for easy coherence to your application
  • Rotatable JBL ENTERTAINMENT logo for easy coherence to your application
  • Bar and club live or pre-recorded sound reinforcement
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures (Pdf)s
Karaoke Catalogue Brochure
updated: 12月02日
    4.1 MB 12月02日
Spec Sheets (Pdf)s
KP6010 Spec Sheet - CN
updated: 12月02日
    602.8 KB 12月02日
KP6010 Spec Sheet - EN
updated: 12月02日
    494.3 KB 12月02日
Data Sheets
KP6010 Data Sheet - CN
updated: 12月02日
    7.6 MB 12月02日
KP6010 Data Sheet - EN
updated: 12月02日
    7.5 MB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 10″, 2-way, bass-reflex
Frequency Range (-10 dB) 72 Hz - 20 KHz
Frequency Response (±3 dB) 90 Hz - 20 KHz
System Sensitivity (1w @ 1m) 95 dB (near corner), 89 dB (center of wall)
标称阻抗 8 ohms
Maximum SPL 122 dB (128 dB peak)
Power Rating (Continuous/Program/Peak) 300 W/600 W/1200 W
覆盖范围 80° x 70° (H x V)
尺寸(高 x 宽 x 厚) 524 mm x 300 mm x 340 mm 20.6 in x 11.8 in x 13.4 in
净重量 11.9 Kg (26.2 lbs)
LF Drivers 1 x JBL 261H
HF Drivers 1 x JBL 2408H-1
输入连接器 2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, plywood
