KP4015

15 Inch 2-Way Full Range Loudspeaker System

较大的图像

15 Inch 2-Way Full Range Loudspeaker System

The KP4015 is a compact and premium high-output full-range loudspeaker. The KP4015 uses a 380 mm (15 in) humidity protection woofer with optimal demodulating/cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 400 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

特点

  • 15″ High efficiency woofer design
  • 1.5″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm birch plywood with rugged durable finish
  • 70° x 100° coverage pattern for even and smooth response on and off axis
  • Attractive cloth backed robust steel grille design
  • Precision engineered crossover for optimal driver integration
  • Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications

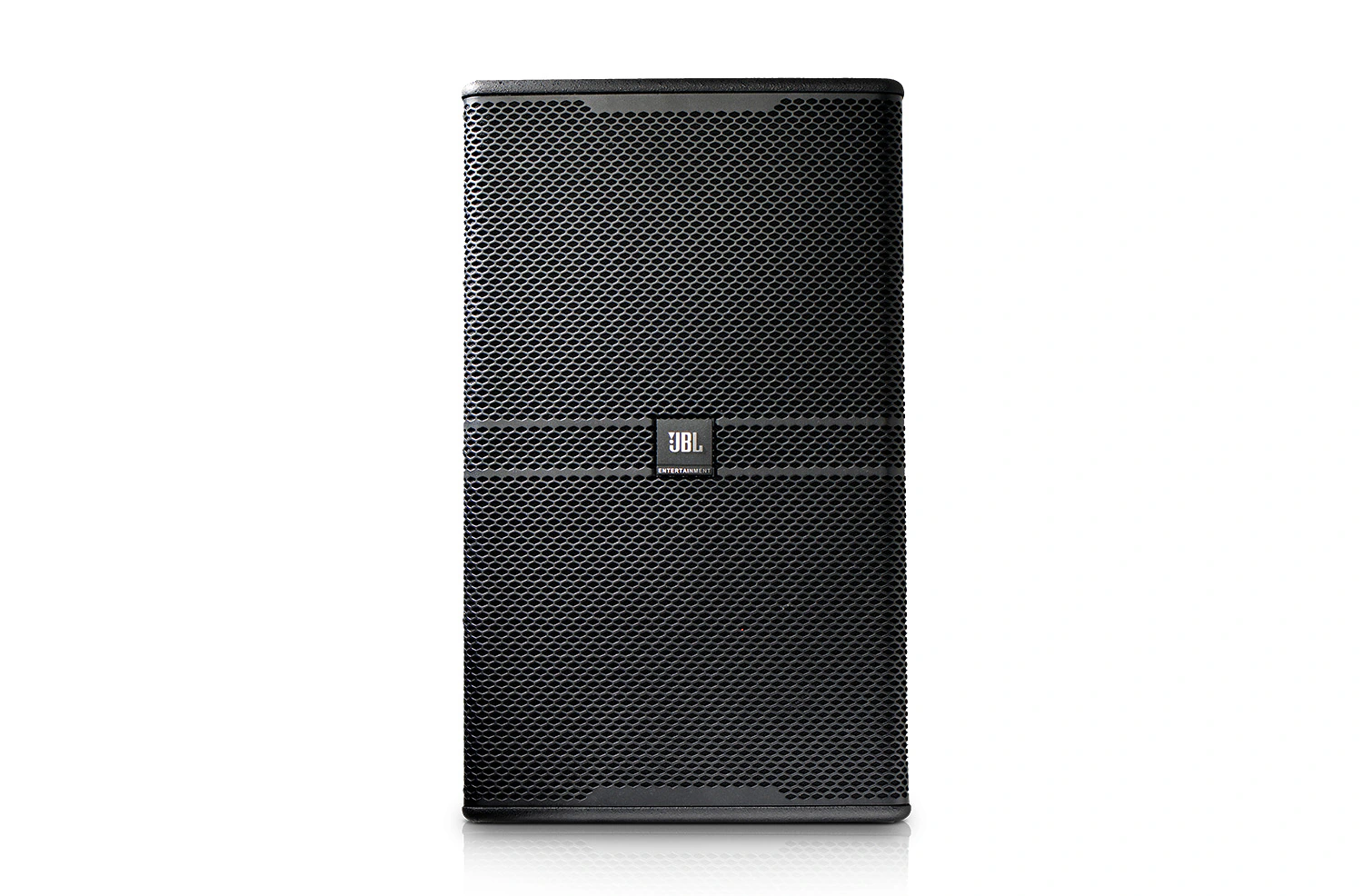

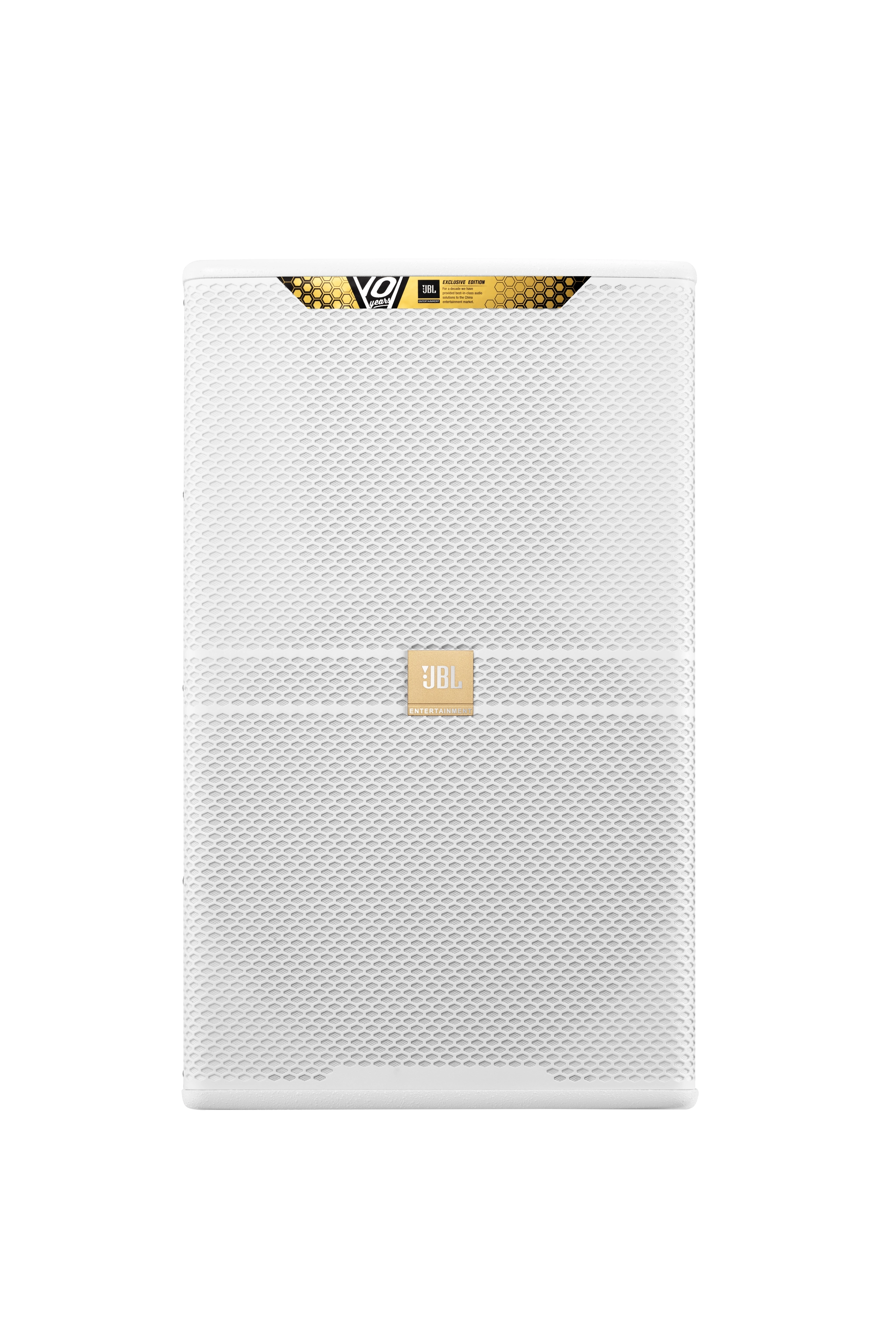

  • Two enclosure color option: Black (KP4015) or White (KP4015-WH)
  • Karaoke sound reinforcement
  • Club live sound reinforcement
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures (Pdf)s
Karaoke Catalogue Brochure
updated: 12月02日
    4.1 MB 12月02日
Spec Sheets (Pdf)s
KP4015 Spec Sheet - English
updated: 12月02日
    570.8 KB 12月02日
KP4015 Spec Sheet - Chinese
updated: 12月02日
    676.3 KB 12月02日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System Type 15″, 2-way, bass-reflex
Frequency Range (-10 dB) 45 Hz - 20 KHz
Frequency Response (±3 dB) 75 Hz - 20 KHz
System Sensitivity (1w @ 1m) 99 dB
标称阻抗 8 ohms
Maximum SPL 127 dB (133 dB peak)
Power Rating(Continuous/Program/Peak) 400 W/800 W/1600 W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 680 mm x 410 mm x 440 mm (26.8 in x 16.1 in x 17.3 in)
净重量 23.0 Kg (50.7 lbs)
低频驱动单元 1 x 15 inch woofer, 3 inch voice coil, ferrite magnet
HF 驱动程序 1 x 2408H-2 compression driver, 1.5 inch voice coil, NEO magnet
输入连接器 2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, plywood
Enclosure Color Black (KP4015)/White(KP4015-WH)
