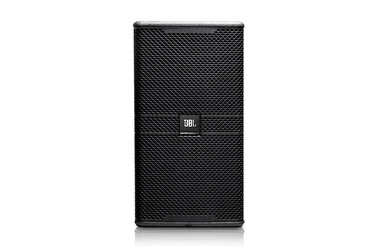

KP4010

10 Inch 2-Way Full Range Loudspeaker System

KP4010
较大的图像

10 Inch 2-Way Full Range Loudspeaker System

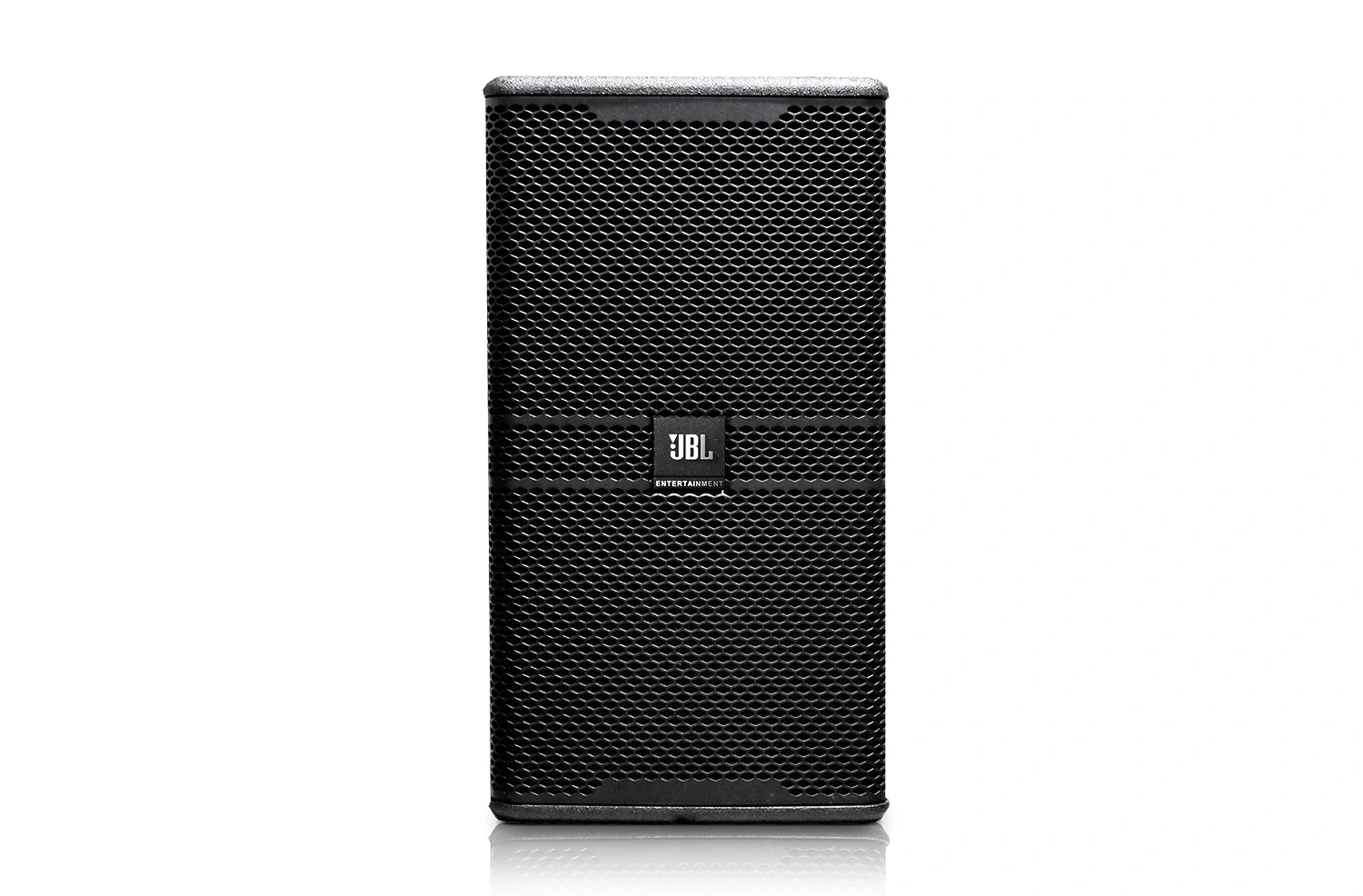

The KP4010 is a premium high-output compact full-range loudspeaker. The KP4010 uses a 254 mm (10 in) humidity protection woofer with optimal demodulating/cooling aluminium ring inside, which is high power, low distortion and low power compression, and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver for 300 watts power capacity. 70° x 100° coverage pattern provides smooth, even coverage whether used in the vertical or horizontal orientation. The high-order passive network minimizes band overlap.

特点

  • 10″ high efficiency woofer design
  • 1.5″ annular polymer diaphragm compression driver
  • Enclosure constructed of 15 mm birch plywood with rugged durable finish
  • 70° x 100° coverage pattern for even and smooth response on and off axis
  • Attractive cloth backed robust steel grille design
  • Precision engineered crossover for optimal driver integration
  • Rotatable JBL ENTERTAINMENT logo for both horizontal and vertical applications

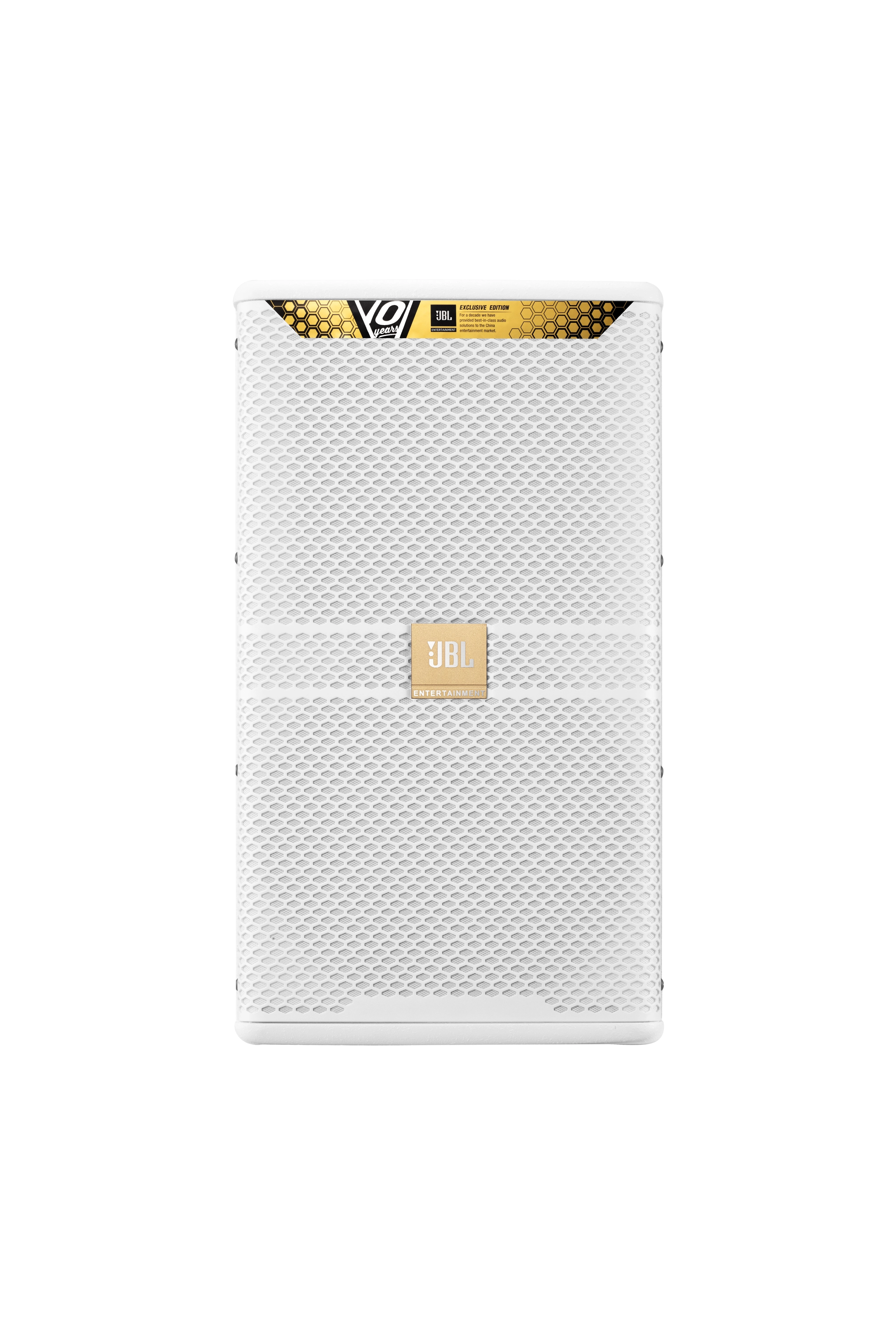

  • Two colors for multiple applications: Black and JBL ENTERTAINMENT 10th anniversary exclusive edition
  • Karaoke sound reinforcement
  • Club live sound reinforcement
  • High-performance satellite speaker for use with subwoofers

下载

  Version Language Size Uploaded
Brochures
file type icon Karaoke Catalogue Brochure
updated: 10月 2020
    4.1 MB 10月 2020
Spec Sheets
file type icon KP4010 Spec Sheet - English
updated: 1月 2023
    574.8 KB 1月 2023
file type icon KP4010 Spec Sheet - Chinese
updated: 1月 2023
    679.0 KB 1月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

系统类型 10″, 2-way, bass-reflex
频率范围 (-10dB) 50 Hz - 20 KHz
Frequency Response (±3 dB) 85 Hz - 20 KHz
System Sensitivity (1w @ 1m) 95 dB
标称阻抗 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
Power Rating(Continuous/Program/Peak) 300 W/600 W/1200 W
覆盖范围 70° x 100° (H x V)
尺寸(高 x 宽 x 厚) 533 mm x 300 mm x 340 mm (21.0 in x 11.8 in x 13.4 in)
净重量 14.8 Kg (32.6 lbs)
低频驱动单元 1 x 10 inch woofer, 2.5 inch voice coil, ferrite magnet
HF 驱动程序 1 x 2408H-2 compression driver, 1.5 inch voice coil, NEO magnet
输入接口 2 x Neutrik® Speakon® NL4MP
ENCLOSURE CONSTRUCTION Trapezoid, 15 mm, plywood
Enclosure Color Black(KP4010)/White(KP4010-WH)
