Dual 15" Two-Way Sound Reinforcement Loudspeaker System
The JRX125 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

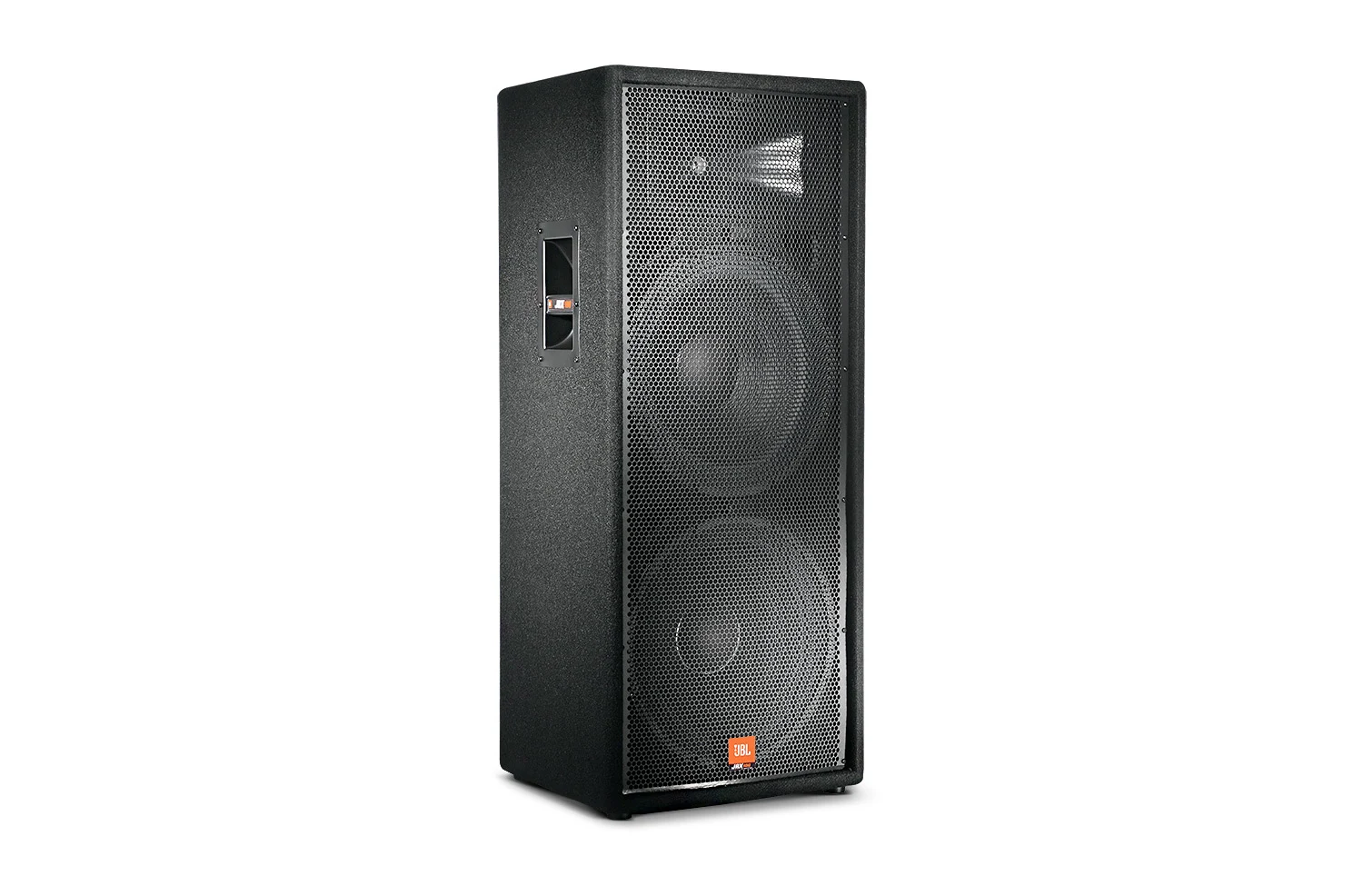

较大的图像
特点
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
下载
| Size | ||||
Specifications | ||||
JRX125 Spec Sheet
updated: 10月 2020
|
174.2 KB | |||
Brochures | ||||
|
JRX Brochure
updated: 10月 2020
|
1.5 MB | |||
Compliances | ||||
|
JRX100 Series Declaration of Conformity
updated: 10月 2020
|
90.4 KB | |||
Images | ||||

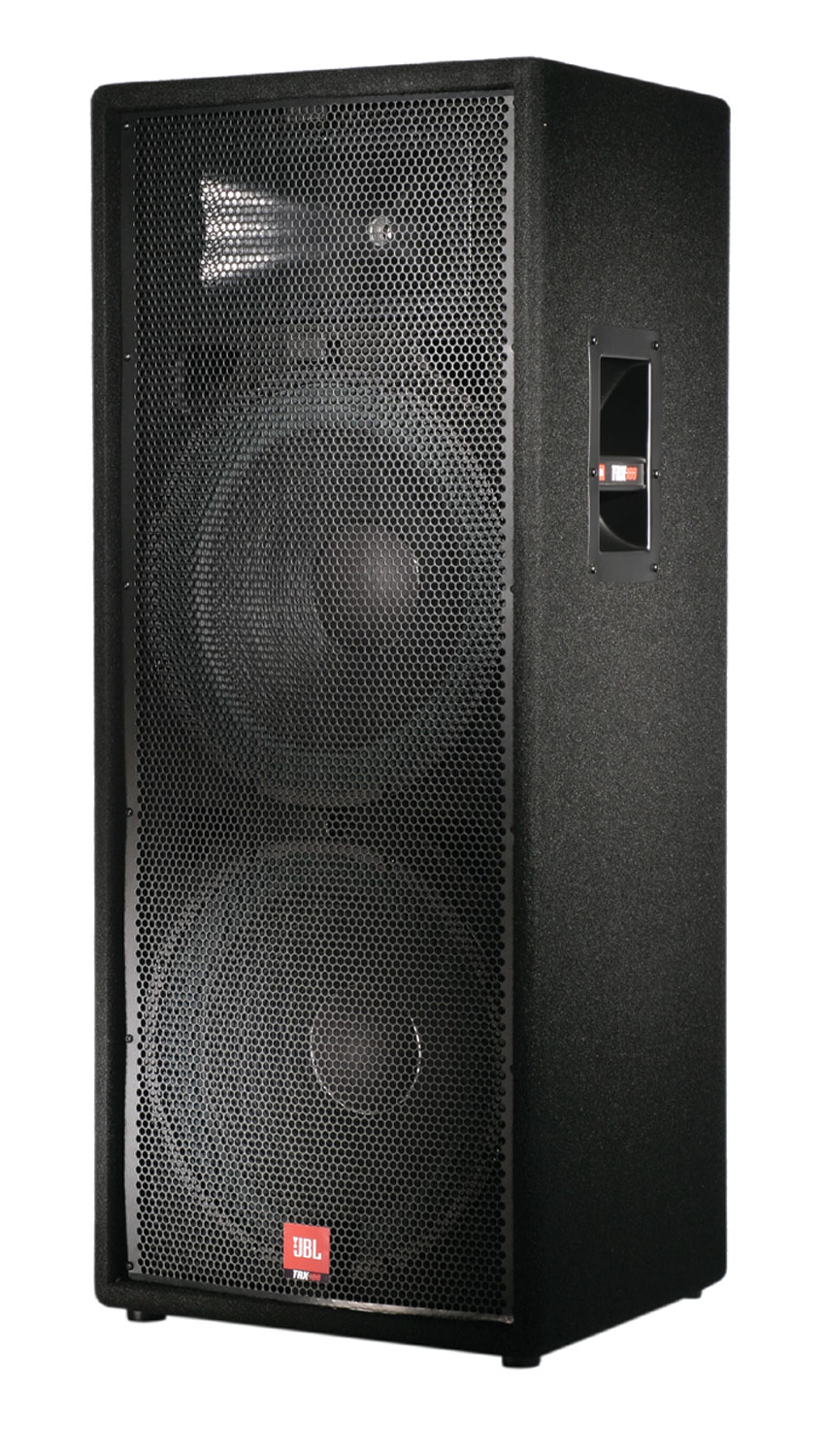

JRX125 Front Angle
updated: 10月 2020
|
267.5 KB | |||
Speaker Tunings | ||||
|
JRX100 Series Tunings
updated: 10月 2020
|
10.9 KB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 额定功率 | 500 W / 2000 W |
| 频率范围 | 36 Hz - 16 kHz (-10 dB) |
| 尺寸（高 x 宽 x 厚） | 1099 mm x 464 mm x 432 mm (43.25 in x 18.25 in x 17 in) |
频率响应 |
45 Hz - 12 kHz (±3 dB) |
灵敏度 |
100 dB SPL (1w/1m) |
| 标称阻抗 | 4 ohms |
| Recommended Amplifier Power | 500 W to 1000 W into 4 ohms |
| Maximum SPL (1m) | 133 dB |
| Nominal Dispersion | 90º x 50º |
| 分频点 | 2 kHz |
| 重量 | 42.6 kg (94 lb) |
| HF 驱动程序 | JBL 2412 1 in exit compression driver mounted on Progressive Transition™ Waveguide |
| 低频驱动单元 | JBL M128 x 2 |
| 输入接口 | Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel |
