18 in. Powered Subwoofer


18 in. Powered Subwoofer

For those who prefer the simplicity of a self-powered subwoofer, there's the JRX118SP.



  • The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved lowfrequency performance. The enclosure is covered in black carpet.
  • Heavy duty, all steel handles are used.
  • A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX118SP as a base for a mid-high speaker cabinet.
  • Built-in 500 W (peak), 300 W (continuous) amplifier. Controls, connectors, and indicators are clearly labeled with large, highcontrast graphics for easy operation in poorly lit environments.
  • Integral, preset limiter prevents clipping distortion. An LED illuminates to indicate that limiting is taking place.
  • Line-level stereo inputs are summed before being sent to the subwoofer's internal amplifier. This feature allows the JRX118SP to operate in stereo systems using a single subwoofer.
  • An integral crossover also provides balanced, line-level, stereo, highpassed outputs to feed powered satellite speakers or an external amplifier for passive satellites.
  • A speaker-level, .25 in TS phone jack is provided. This input is useful in applications, such as those employing powered mixers, in which it is more practical to bring a full-range, speaker-level signal to the subwoofer amplifier.


  Version Language Size Uploaded
file type icon JRX118SP Spec Sheet
updated: 10月 2020
    625.5 KB 10月 2020
file type icon JRX Brochure
updated: 10月 2020
    1.5 MB 10月 2020
file type icon JRX118SP Declaration of Conformity
updated: 10月 2020
    97.5 KB 10月 2020
User Guides
file type icon JRX118SP User Guide
updated: 10月 2020
    320.7 KB 10月 2020

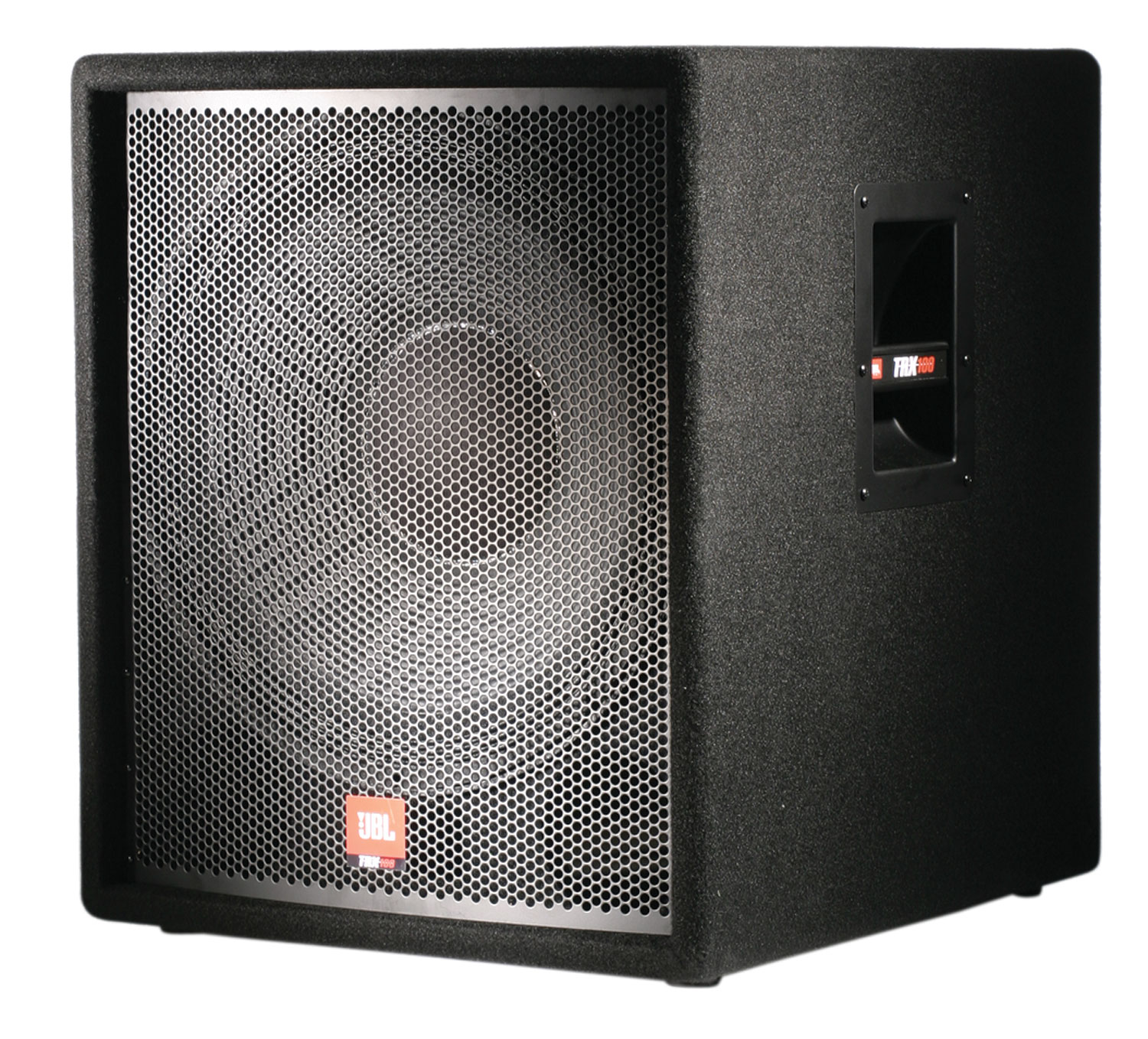

file type icon JRX118SP Front Angle
updated: 10月 2020
    462.3 KB 10月 2020

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service


额定功率 300 W / 500 W
频率范围 38 Hz - 300 Hz (-10 dB)
尺寸(高 x 宽 x 厚) 597 mm x 516 mm x 597 mm (23.5 in x 20.3 in x 23.5 in)


55 Hz - 300 Hz (±3 dB)
Maximum SPL (1m) 123 dB
重量 40.4 kg (89 lb)
低频驱动单元 JBL 2043-G
输入接口 XLR/M (x2) (line level, balanced): .25 in TS phone jack (x1) (speaker level)
输出连接器 XLR/F (x2) (Selectable, Thru or High Pass)
