JRX118S

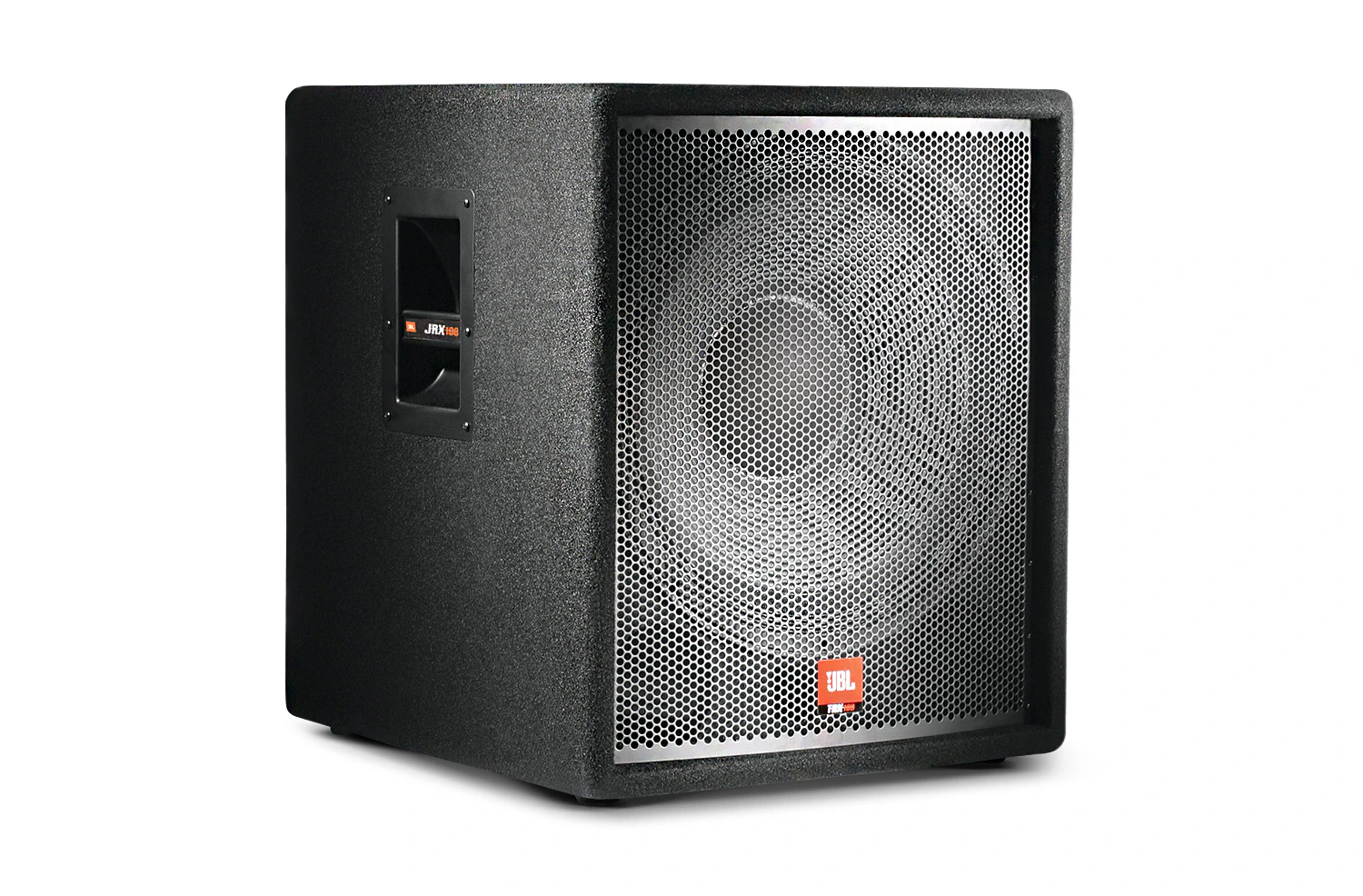

较大的图像

18" 紧凑型超低音扬声器

JRX118S 搭载功能强大的 JBL 18" 低音单元，采用铸铁框架和 3" 音圈设计。



特点

  • 18英寸紧凑型超低音音箱。
  • 350 W（连续）、1400 W（峰值）功率容量。
  • 坚固的箱体采用19 mm（0.75英寸）中密度纤维板（MDF）构造，运用先进的粘合剂和机械紧固件技术，确保耐久性并改善低频性能。箱体外覆黑色地毯。
  • 顶部安装的铸铝35 mm极柱座可配接可选的SS3BK极柱，便于将JRX118SP用作中高频音箱的底座。
  • 采用无谐振设计的全钢把手。
  • 18号穿孔钢栅网保护内部组件免受损伤。
  • 35 mm极柱座与卫星音箱兼容。


下载

Specifications
  大小 上传日期
file type icon JRX118S Spec Sheet
更新: 10月 2020
201.2 KB 10月 2020
Brochures
  大小 上传日期
file type icon JRX Brochure
更新: 10月 2020
1.5 MB 10月 2020
Compliances
  大小 上传日期
file type icon JRX100 Series Declaration of Conformity
更新: 10月 2020
90.4 KB 10月 2020
Images
  大小 上传日期

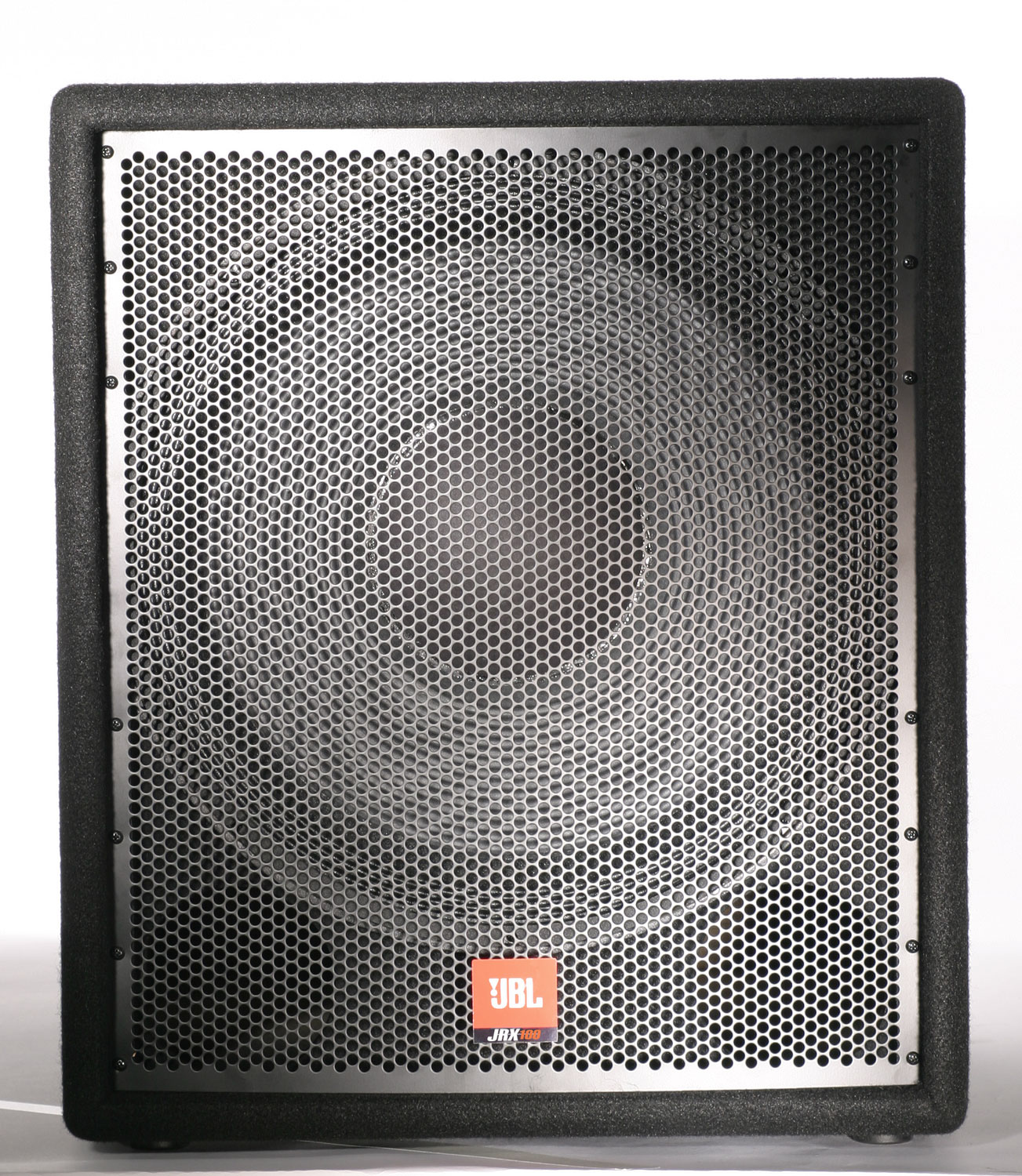

file type icon JRX118S Front
更新: 10月 2020
588.9 KB 10月 2020

如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。

零件与服务

性能

额定功率 350 W / 1400 W
频率范围 38 Hz - 300 Hz (-10 dB)
尺寸（高 x 宽 x 厚） 597 mm x 516 mm x 559 mm (23.5 in x 20.3 in x 22 in)

频率响应

 55 Hz - 300 Hz (±3 dB)

灵敏度

 96 dB SPL
Nominal Impedence 4 ohms
Recommended Amplifier Power 350 W to 700 W into 4 ohms
Recommended Crossover Settings 30 Hz HPF, 24 dB / octave; 80 - 100 Hz LPF, 24 dB / octave
Maximum SPL (1m) 127 dB
重量 32.2 kg (71 lb)
低频驱动单元 JBL 2043-G
输入接口 Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
