JRX115I

15 in. Two-Way Loudspeaker System

JRX115I

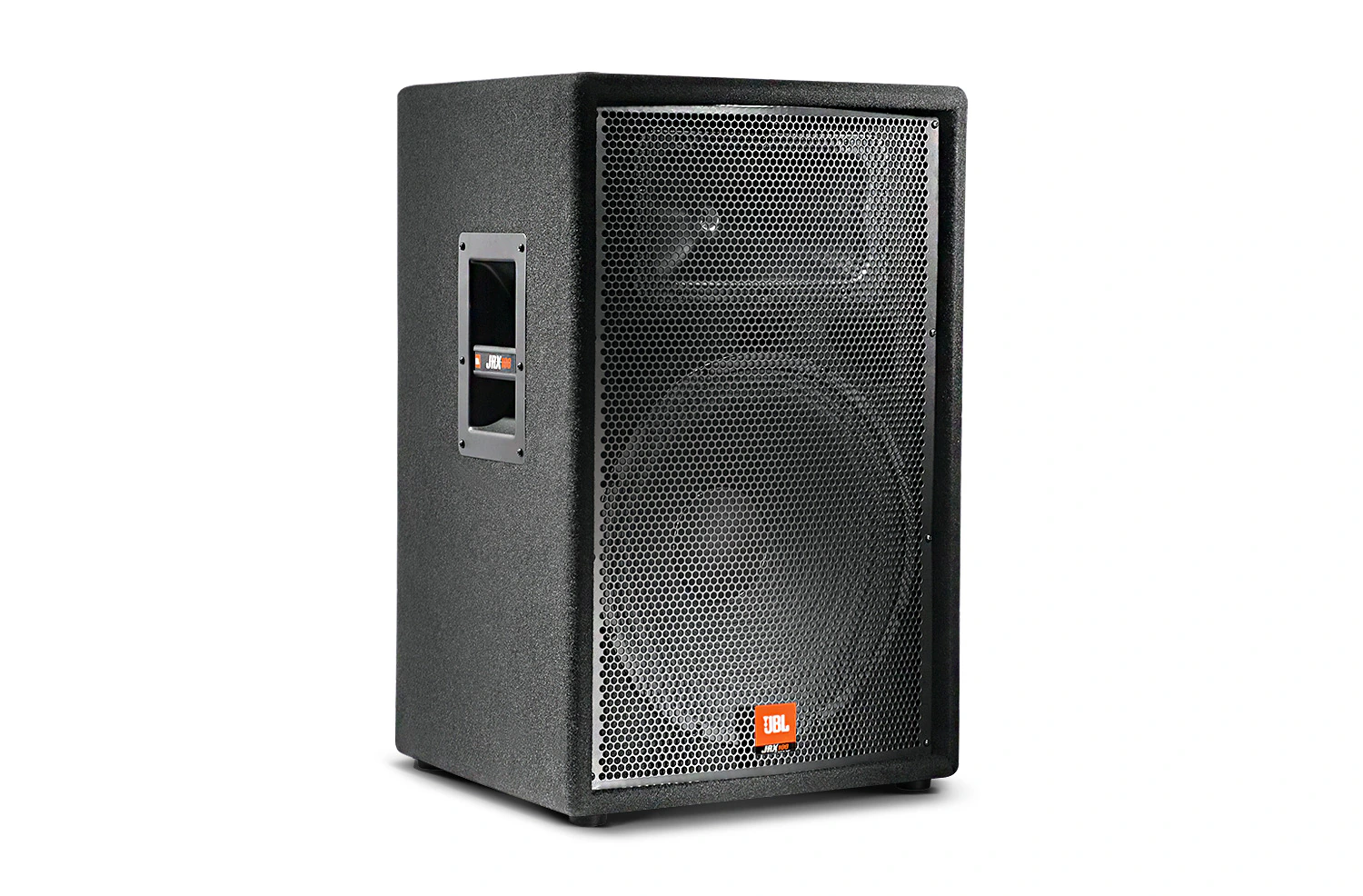

较大的图像

15 in. Two-Way Loudspeaker System

The JRX115i is an economical, suspendable, fifteen-inch, two-way speaker system designed for installation where ground stacking or pole mounting is impractical or undesirable.



特点

  • 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than # round wire designs, for greater efficiency and power handling.
  • Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
  • Attractive 18-gauge perforated, steel grille protects components from damage.
  • Cabinet is fitted with three M10 threaded suspension points.
  • Rigging hardware kit containing three 10 mm forged shoulder eyebolts with washers is included.


下载

  Version Language Size Uploaded
Specifications
file type icon JRX115I Spec Sheet
updated: 10月 2020
    411.4 KB 10月 2020
Manuals
file type icon JRX112Mi and JRX115i Installation Guide
updated: 10月 2020
    1.2 MB 10月 2020
Brochures
file type icon JRX Brochure
updated: 10月 2020
    1.5 MB 10月 2020
Compliances
file type icon JRX100 Series Declaration of Conformity
updated: 10月 2020
    90.4 KB 10月 2020
Images

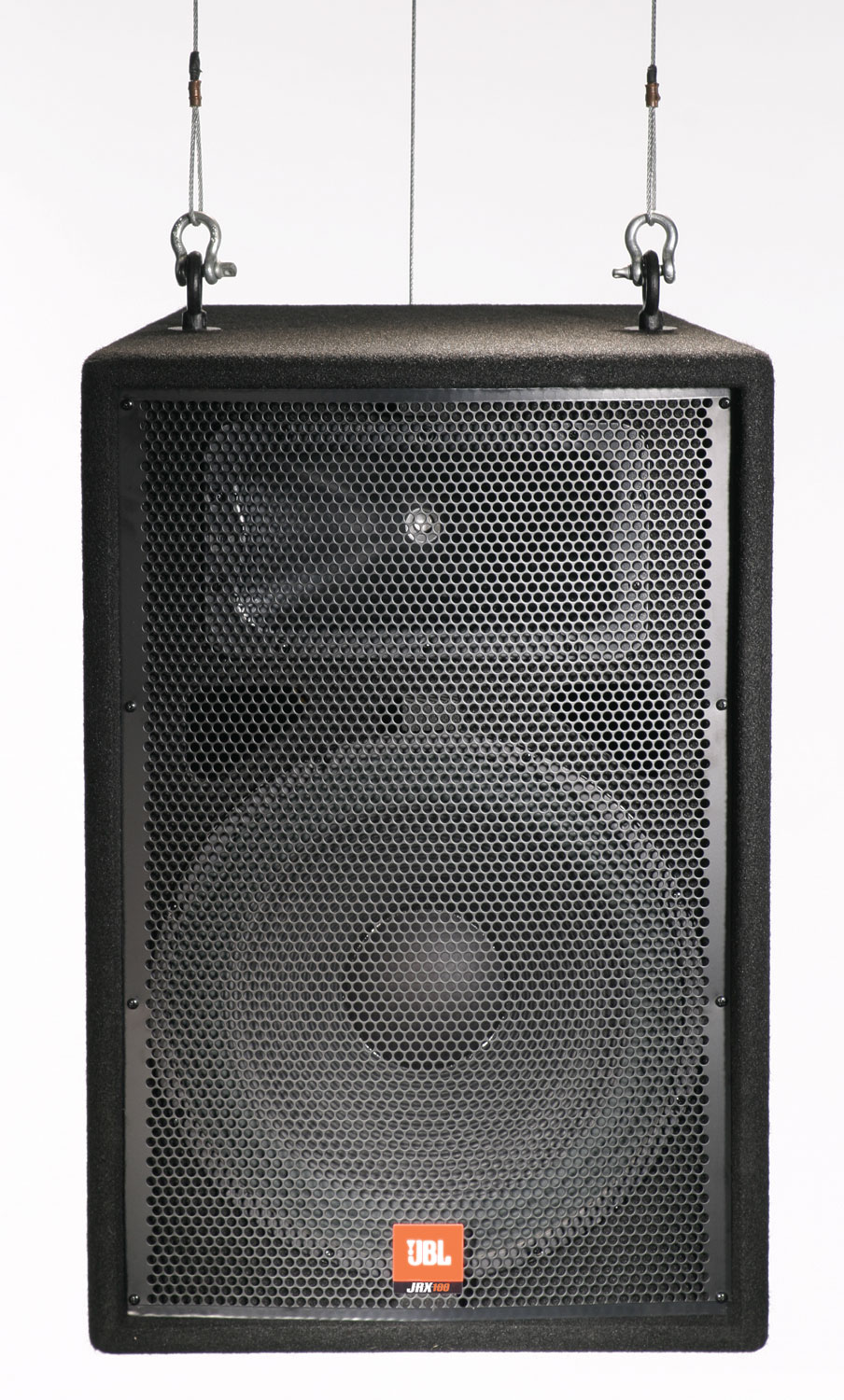

file type icon JRX115I Front
updated: 10月 2020
    324.6 KB 10月 2020
Ease Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
    21.0 MB 3月 2022

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

额定功率 250 W / 1000 W
频率范围 38 Hz - 16 kHz (-10 dB)
尺寸(高 x 宽 x 厚) 686 mm x 470 mm x 432 mm (27 in x 18.5 in x 17 in)

频率响应

50 Hz - 12.5 kHz (±3 dB)

灵敏度

98 dB SPL (1w/1m)
标称阻抗 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL (1m) 128 dB
Nominal Dispersion 90º x 50º
分频点 1.6 kHz
重量 27.4 kg (60.5 lb)
HF 驱动程序 JBL 2412 1 in exit compression driver mounted on Progressive Transition™ Waveguide
低频驱动单元 JBL M115-8A
nput Connectors Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
