12 in. Two-Way Loudspeaker System
The JRX112Mi is an economical, suspendable, twelve-inch, two-way speaker system designed for installation where ground stacking or pole mounting is impractical or undesirable.
较大的图像
特点
- JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Attractive 18-gauge perforated, steel grille protects components from damage.

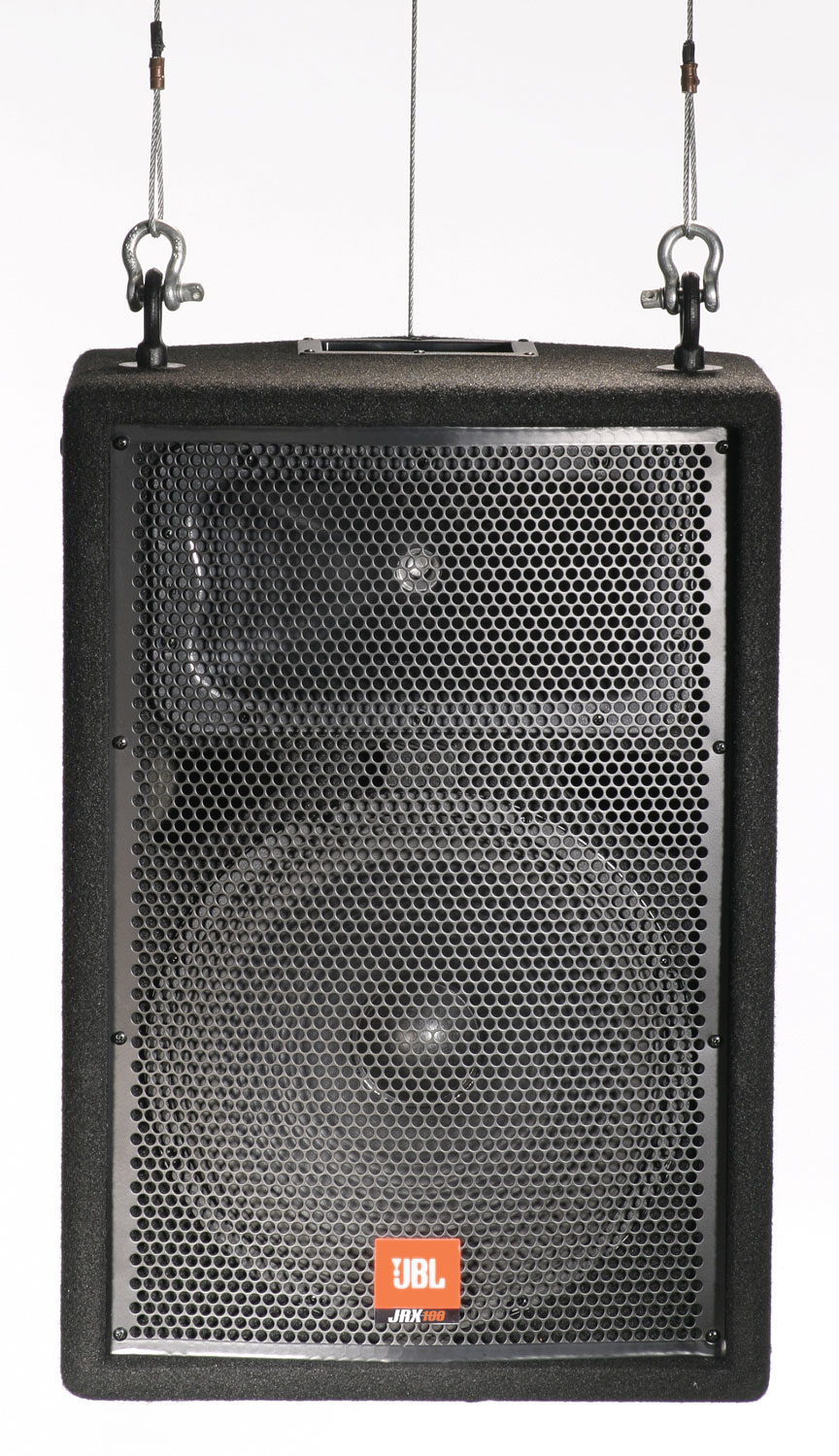

- Cabinet is fitted with three M10 threaded suspension points.
- Rigging hardware kit containing three 10 mm forged shoulder eyebolts with washers is included.
下载
| Size | ||||
Specifications | ||||
JRX112MI Spec Sheet
updated: 10月 2020
|
465.9 KB | |||
Manuals | ||||
|
JRX112Mi and JRX115i Installation Guide
updated: 10月 2020
|
1.2 MB | |||
Brochures | ||||
|
JRX Brochure
updated: 10月 2020
|
1.5 MB | |||
Compliances | ||||
|
JRX100 Series Declaration of Conformity
updated: 10月 2020
|
90.4 KB | |||
Images | ||||

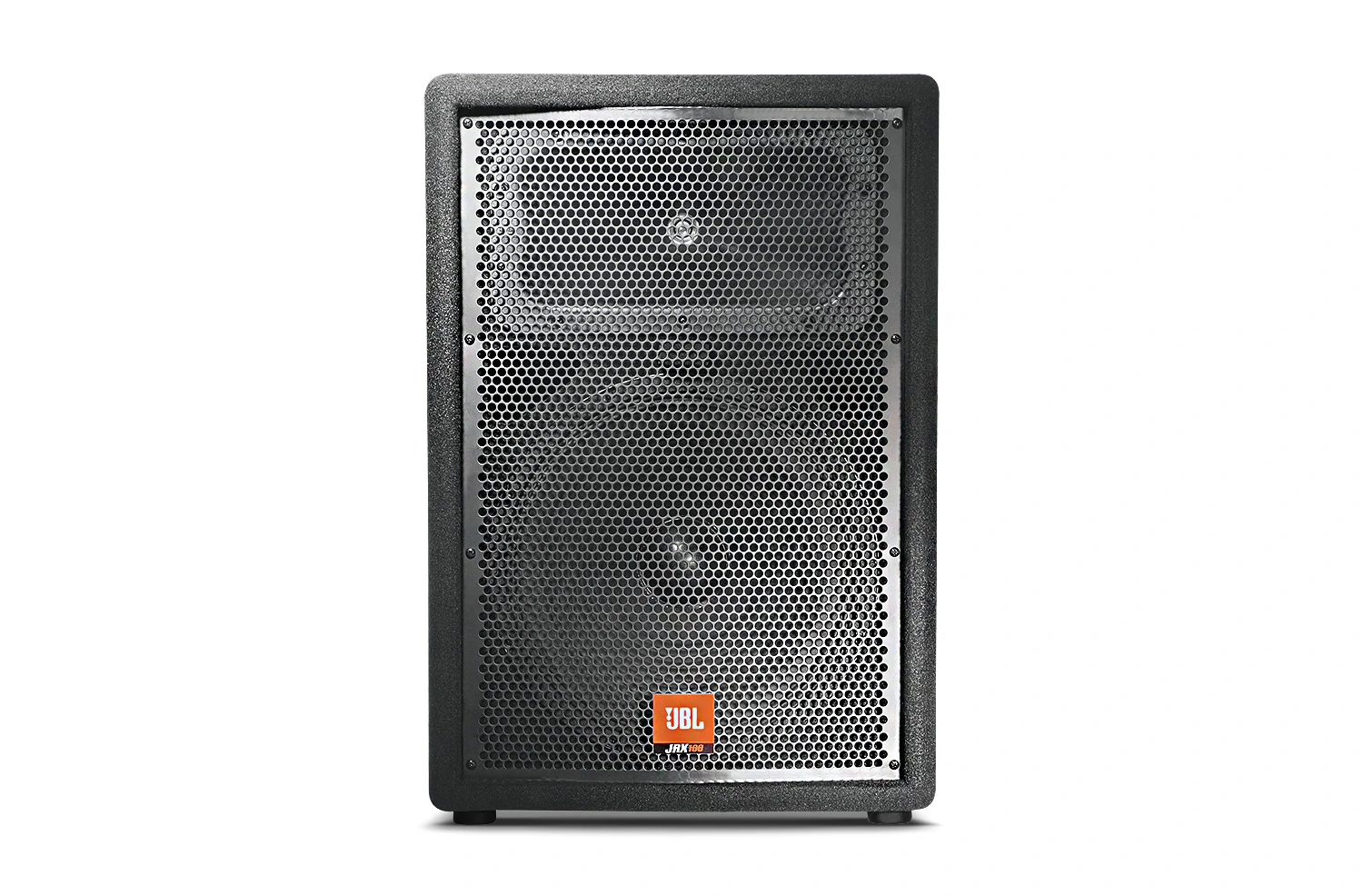

JRX112MI Front
updated: 10月 2020
|
330.6 KB | |||
Ease Data | ||||
|
Ease SPK/DLL Files - Full JBL Pro Line
updated: 3月 2022
|
21.0 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Parts & Service
性能
| 额定功率 | 250 W / 1000 W |
| 频率范围 | 60 Hz - 16 kHz (-10 dB) |
| 尺寸（高 x 宽 x 厚） | 577 mm x 399 mm x 325 mm(22.7 in x 15.7 in x 12.8 in) |
频率响应 |
70 Hz - 12 kHz (±3 dB) |
| 标称阻抗 | 8 ohms |
灵敏度 |
99 dB SPL (1w/1m) |
| Recommended Amplifier Power | 250 W to 500 W into 8 ohms |
| Maximum SPL (1m) | 129 dB |
| Nominal Dispersion | 90º x 50º |
| 分频点 | 1.8 kHz |
| 重量 | 19.5 kg (43 lb) |
| HF 驱动程序 | JBL 2412 1 in exit compression driver mounted on Progressive |
| 低频驱动单元 | JBL M112-8 |
| 输入接口 | Neutrik® Speakon® NL-4 (x1); .25 in |
