JRX112M

12 in. Two-Way Stage Monitor Loudspeaker System

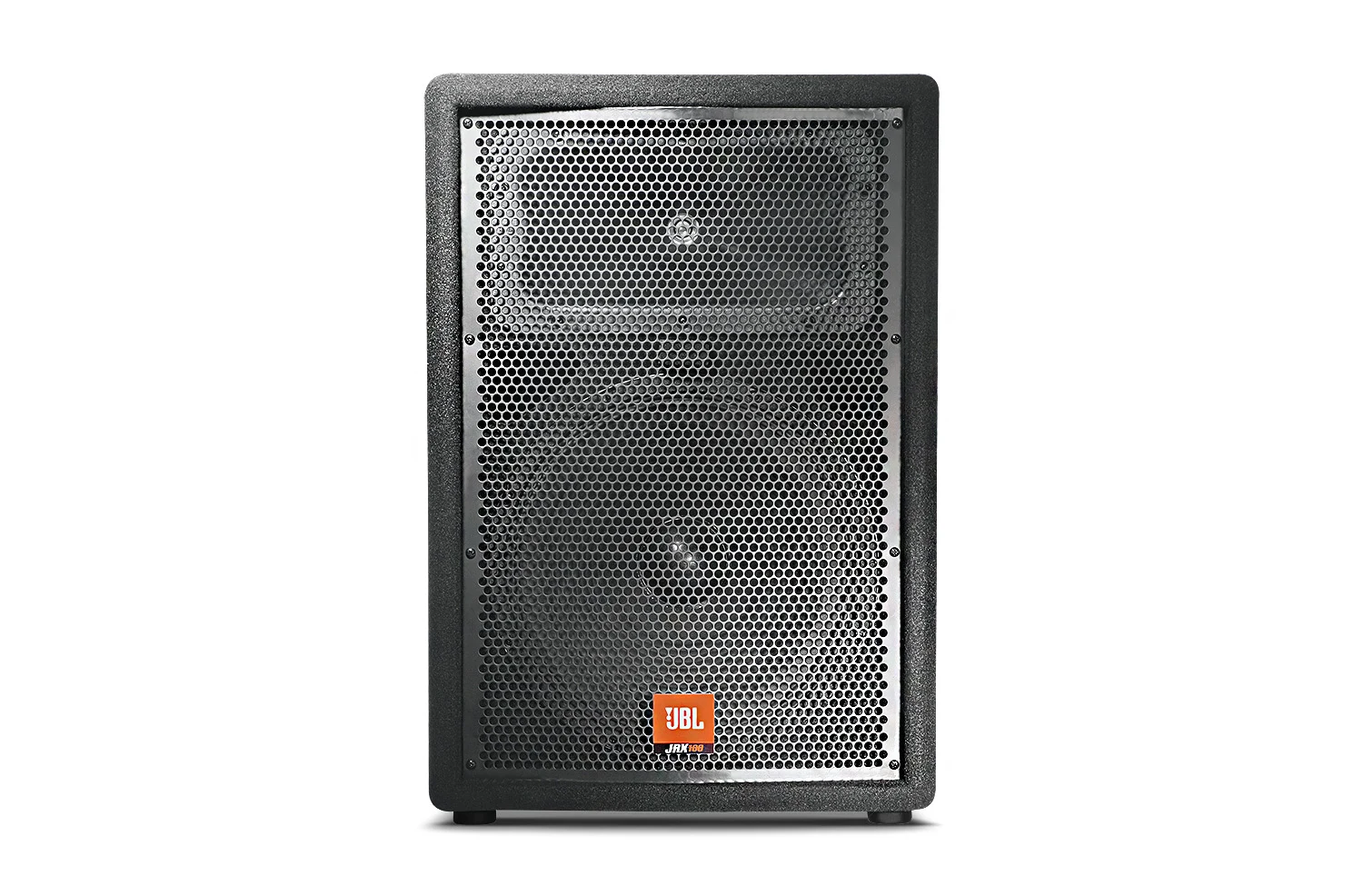

较大的图像

12 in. Two-Way Stage Monitor Loudspeaker System

The JRX112M is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.



特点

  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.


下载

  Version Language Size Uploaded
Specifications
JRX112M Spec Sheet
updated: 7月16日
    200.3 KB 7月16日
Brochures
JRX Brochure
updated: 7月16日
    1.5 MB 7月16日
Compliances
JRX100 Series Declaration of Conformity
updated: 10月18日
    90.4 KB 10月18日
Images

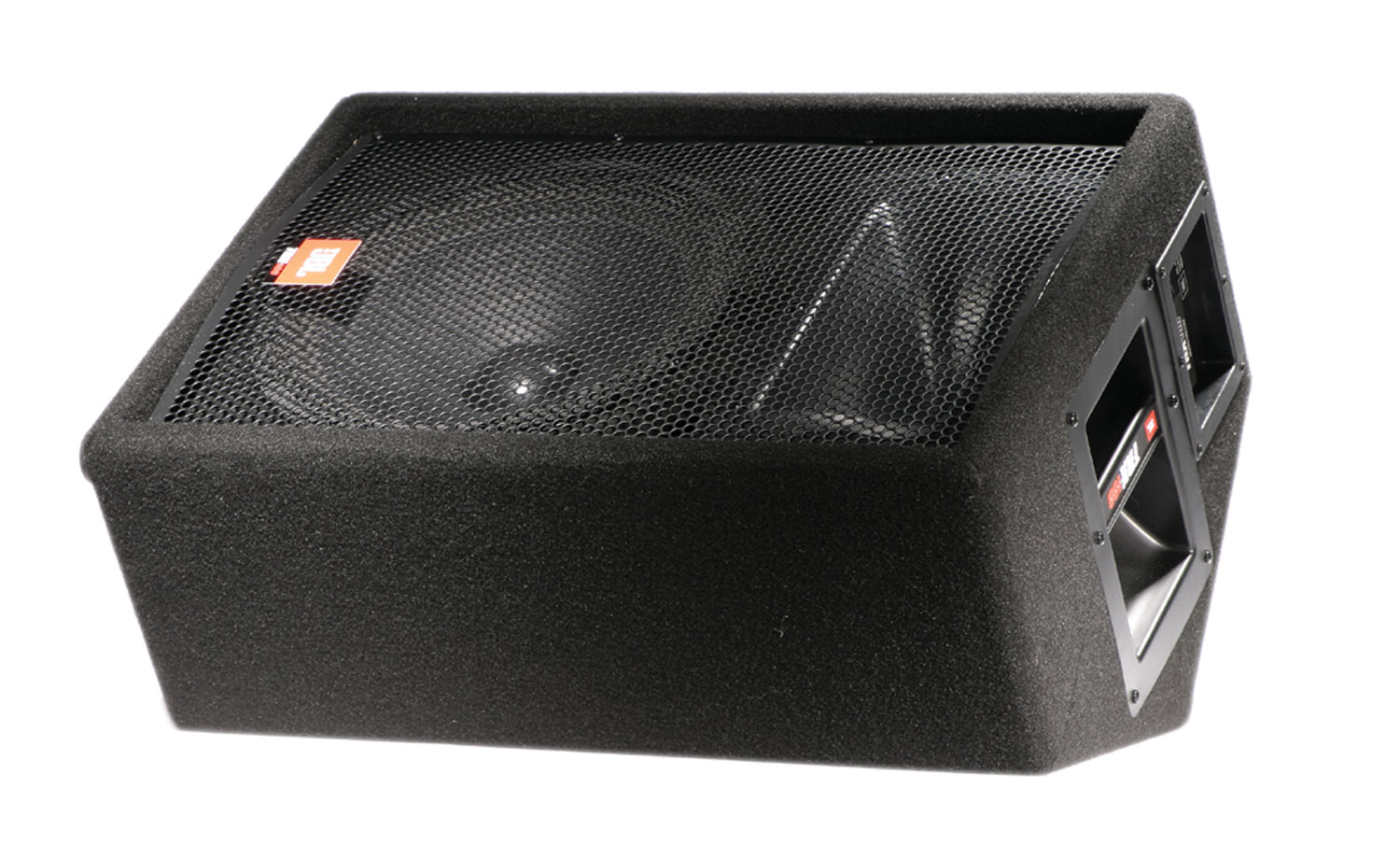

JRX112M Front Angle
updated: 7月16日
    216.4 KB 7月16日
Speaker Tunings
JRX100 Series Tunings
updated: 10月18日
    10.9 KB 10月18日
Ease Data
Ease SPK/DLL Files - Full JBL Pro Line
updated: 7月08日
    20.5 MB 7月08日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

额定功率 250 W / 1000 W
频率范围 60 Hz - 16 kHz (-10 dB)
尺寸(高 x 宽 x 厚) 572 mm x 394 mm x 318 mm(22.5 in x 15.5 in x 12.5 in)

频率响应

70 Hz - 12 kHz (±3 dB)
标称阻抗 8 ohms

灵敏度

99 dB SPL (1w/1m)
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL (1m) 129 dB
Nominal Dispersion 90º x 50º
分频频率 1.8 kHz
重量 19.5 kg (43 lb)
HF 驱动程序 JBL 2412 1 in exit compression driver mounted on Progressive Transition™ Waveguide
低频驱动单元 JBL M112-8
输入连接器 Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
