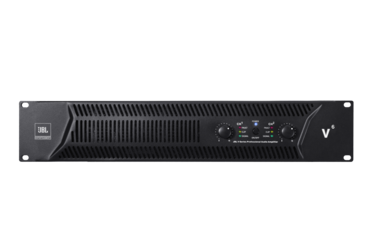

JBL Professional JBL V6

较大的图像

JBL V6 is a cost-effective two-channel professional audio amplifier, which is specially designed to meet low and medium power output demand and provides performance matching for JBL entertainment speakers.

JBL V6 features two-channel audio amplification and built-into 2U rack-mounted amplifier housing. With Harman customized amplification transistor, it redefines innovative circuit design according to JBL's acoustic requirements to deliver high-fidelity acoustic sound for JBL entertainment loudspeakers. Balanced XLR input and throughput are provided. Signals can be sent to another device through the balanced connector. Speakon^® audio connection and output binding post design facilitate quick and easy KTV applications.

Presently available in China only.

特点

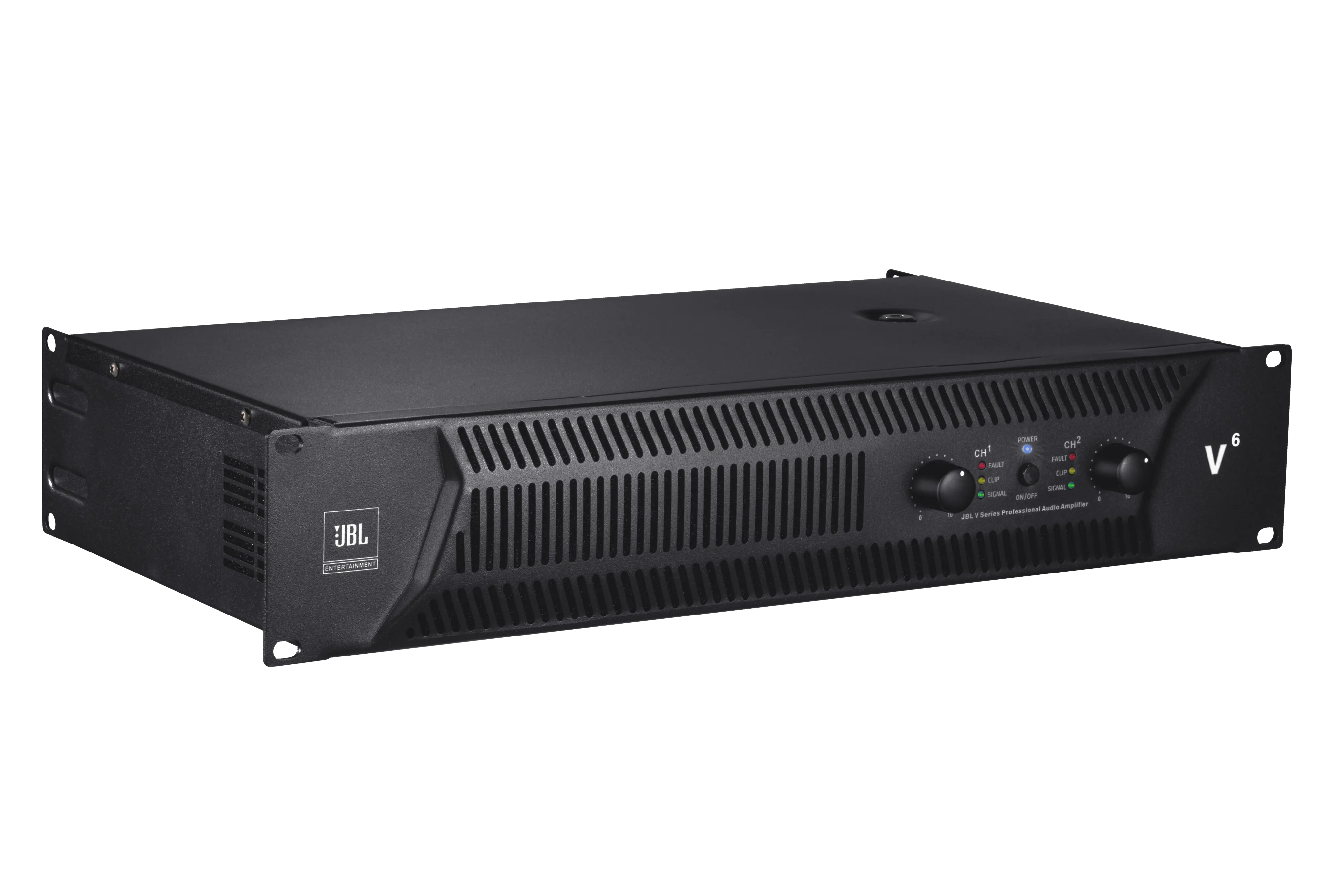

2U rack-mounted amplifier housing fits into standard professional audio equipment cabinet

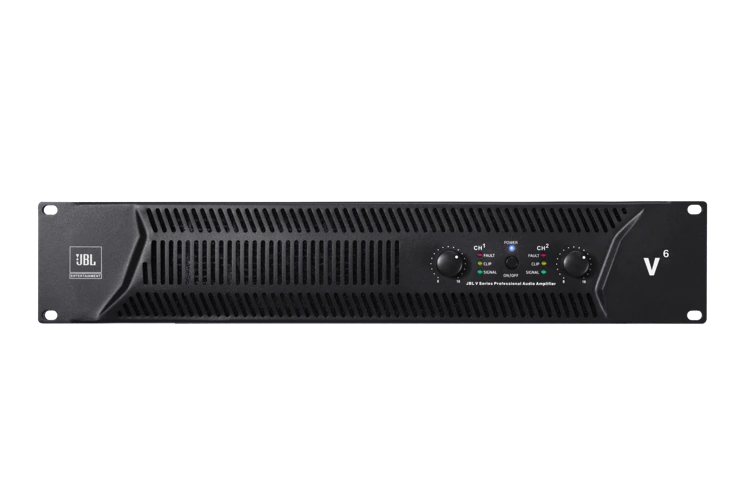

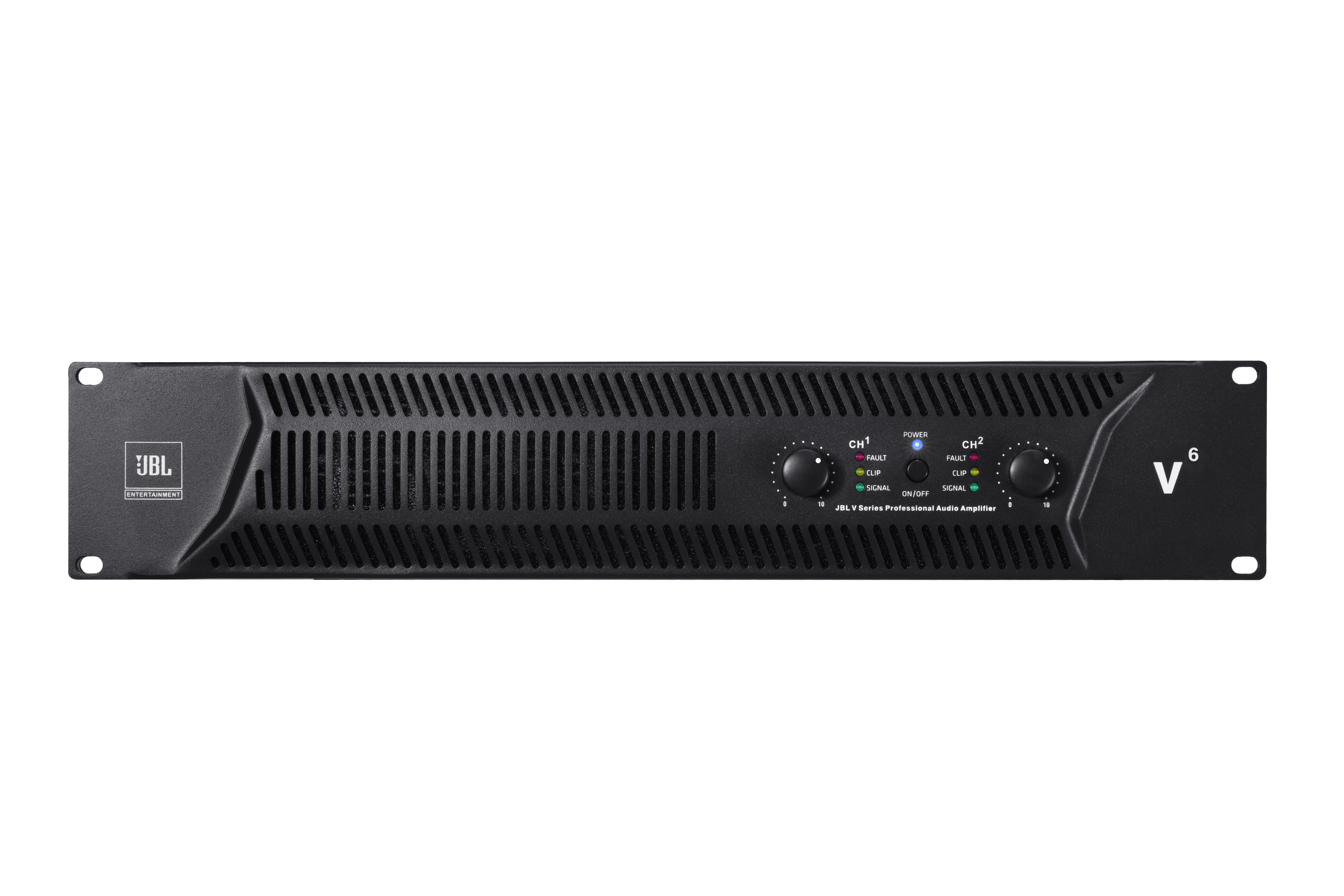

Intuitive front panel at-a-glance, simplistic and functional design
Support stereo, parallel and bridge-mono modes
Provide three power output options: 2 x 640W @ 4ohms, 2 x 500W @ 8ohms, and 1280W @ 8ohms (bridge mode)
Equipped with Harman advanced amplification transistor and specially tuned for JBL entertainment loudspeakers ensuring delivering high-fidelity acoustic sound
Amplifier is specially tuned with JBL Entertainment speaker, enabling easier and faster setup and installation
Speakon^® audio connection and output binding post design facilitate quick and easy application
Equipped with a variable-speed fan and detachable dust filter for easy maintenance

下载

	Version	Language	Size	Uploaded
Manuals
JBL V Series User Manual English and Chinese updated: 4月 2023			23.6 MB	4月 2023
Spec Sheets
JBL V Series Spec Sheet updated: 4月 2023			1.4 MB	4月 2023
JBL V Series Spec Sheet updated: 4月 2023			1.5 MB	4月 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service

性能

Minimum Guaranteed Power
4 ohms stereo (per channel)	640 W
8 ohms stereo (per channel)	500 W
8 ohms bridge mono	1280 W
Frequency Response (1W)	20 Hz – 20 kHz, +0/-1 dB
Frequency Response (1W) notes	Measured in a full space (4π) condition.
总谐波失真 (THD)	< 0.5%, 20 Hz – 20 kHz
Transient Intermodulation Distortion (IMD)	< 0.6 % (60 Hz and 7 kHz at 4:1, from full rated output to -30 dB)
Conversation Rate	> 10 V/μs
电压增益	36 dB
Damping Coefficient	> 200 (8 ohms, 10 Hz to 400 Hz)
Signal-to-Noise Ratio	> 100 dB
Signal-to-Noise Ratio notes	Referenced to rated output power, 20 Hz to 20 kHz, A-weighted
串音	-75 dB @ 1 kHz, -59 dB @20 kHz
Crosstalk notes	Referenced to rated output power
Input Sensitivity (Rated power @ 8 ohms)	0.775 V
Input Sensitivity notes	According to IEC standard, tested for 2 hours under pink noises with a crest factor of 6 dB.
Input Impedance (Rated)	20k ohms (balanced inputs) 10k ohms (non-balanced inputs)
Signal Input/ Output Connector	One balanced XLR input and one XLR LINK output per channel
Amplifier Output Connector	One Speakon signal output interface and one set of terminal output interface per channel
Front Panel Control	Power switch and channel gain knob
Rear Panel Control	Output mode switch: Stereo, Parallel, Bridge-mono
Power Indicator	Blue
Signal Indicator	Green
Clipping Indicator	Yellow
Fault Indicator	Red
Power Cord Specifications	Plug: 10 A, 250 V Cable: CCC 3 x 1.0 mm2 x 1.5 m
Amplifier Housing	Built-in 2U standard rack
保护	Protection against short circuit, no load, power on/off noise, radio interference and abnormal temperature
Ventilation	Air convection mechanism from front to back
散热	DC motor fan for heat dissipation and cooling
Dimension (W x H x D)	482 mm x 88 mm x 238.5 mm
净重量	11 Kg
