JBL NANO K8

8” Full-range Powered Reference Monitor

较大的图像

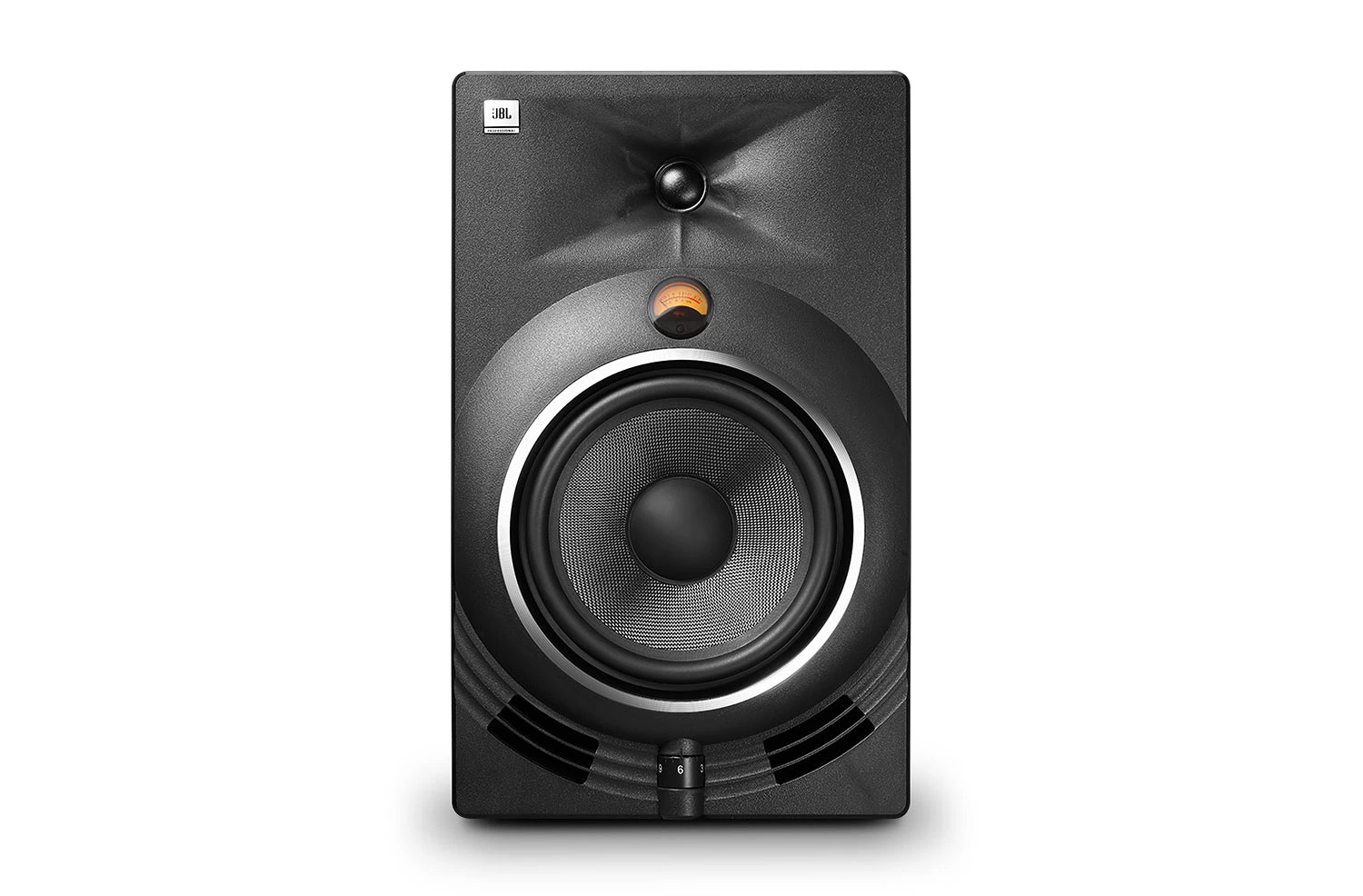

The NANO K8 powered reference monitor is an 8” standalone speaker that delivers legendary JBL sound quality and accuracy for audio production applications. Perfect for home or professional studios, the NANO K8 features the premium audio performance and detail needed for referencing, mixing and mastering. The monitor also features a sleek design, making it well-suited for any studio or production environment.

Like the rest of the NANO K Series, the K8 features JBL’s patented Image Control Waveguide technology—derived from the flagship M2 master reference monitors—which delivers excellent depth and detail across a broad sweet spot. With this level of accuracy and performance, the monitors provide an ideal referencing experience that allows you to make critical decisions about your mix.

Beyond JBL’s renowned sound quality, the NANO K8 features a vintage-style VU meter, which is positioned between the tweeter and woofer for quick monitoring of input levels. Plus, if Bluetooth functionality is desired, the NANO K8 easily pairs with the Nano KX Bluetooth volume controller, which adds wireless streaming capabilities to your monitor. Altogether, with iconic JBL audio quality, a stylish form factor and simple controls, the NANO K8 reference monitor is ideal for any studio or workspace.

特点

  • Legendary JBL sound quality and accuracy for audio production
  • Image Control Waveguide delivers precise imaging and clarity with a broad sweet spot
  • Optimally positioned tweeter and woofer provides aligned acoustic center and eliminates phasing issues found in other speakers
  • Vintage-style VU meter offers quick and simple monitoring of levels
  • Stylish design with bright orange ring around woofer and music-themed silhouette on rear
  • Power switch and volume control on the front panel offer easy control
  • Pairs perfectly with JBL NANO KX Bluetooth volume controller for Bluetooth integration and wireless streaming capabilities


更多详情

Legendary JBL Sound

Continuing JBL’s storied history in professional-grade studio speakers, the NANO K8 powered reference monitor delivers premium sound performance for producing, mixing and mastering applications. Whether you’re an award-winning producer or an emerging content creator, NANO K8 brings exceptional acoustics to any studio or production environment.

Patented Image Control Waveguide

Originally developed for JBL’s flagship M2 master reference monitors, the patented Image Control Waveguide technology delivers precise imaging and detail across a broad sweet spot. With neutral frequency response and excellent clarity, NANO K8 provides the accuracy needed to make critical decisions about your mixes.

Sleek, Modern Design

In addition to excellent sound quality, the NANO K8 has a premium look and feel that matches its audio performance. In addition to its stylish enclosure that makes a striking statement in any studio or production workspace, the NANO K8 features a vintage-style VU meter between the woofer and tweeter for easy level monitoring.

下载

  Version Language Size Uploaded
Spec Sheets (Pdf)s
Nano K8 Spec Sheet
en updated: 2月18日
  en  229.0 KB 2月18日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

频率范围 36 Hz - 20 kHz
交叉 Amp 2.3 kHz
Maximum SPL (1m) 112 dB
最大输入电平 Unbalanced: +6 dBV; Balanced: +20.3 dBV
输入连接器 1 x RCA (unbalanced); 1 x TRS or 1 x XLR (balanced)
Input Sensitivity (-10 dBV input) 92 dB @ 1m
HF DRIVER SIZE 25 mm
LF DRIVER SIZE 8” (203.2 mm)
HF DRIVER POWER AMP 100 W Class AB
LF DRIVER POWER AMP 100 W Class AB
HF TRIM CONTROL +1 dB, 0 dB,-1 dB, -2 dB @ 10 kHz
LF Trim Control +2 dB, 0,-1 dB, -2 dB @ 60 Hz
AC INPUT VOLTAGE 220 VAC ±10%, 50-60 Hz
THD+N < 0.2%
噪音 < 0.3 mV
S/N > 95 dB
ENCLOSURE CONSTRUCTION 15 mm MDF
ENCLOSURE FINISH PVC
BAFFLE CONSTRUCTION ABS + PC
尺寸(高 x 宽 x 厚) 434 x 265 x 300.6 mm
重量 12.03 Kg / piece
DISPLAY CARTON (H x W x D) 362 x 335 x 522 mm
SHIPPING CARTON (H x W x D) 380 x 353 x 540 mm

运输重量

13.33 Kg / piece
Unit(s) Per Package 1 piece
