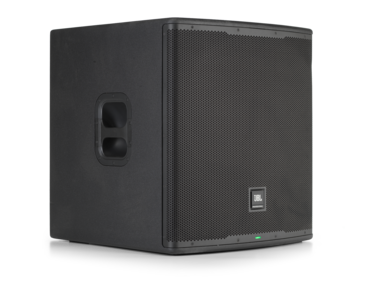

JBL-EON718S

18英寸有源PA低音炮

JBL-EON718S
较大的图像

18-inch Powered Subwoofer

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON718S 18-inch subwoofer is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.

特点

  • Custom-engineered 18-inch woofer
  • Power: 1,500W peak / 750W RMS
  • Frequency response: 31–150 Hz (-10 dB); 40–120 Hz (-3 dB)
  • Max SPL: 131 dB
  • Audio I/Os: 2 XLR Combo, 2 XLR loop-outs
  • Advanced dbx DSP: Parametric EQ, polarity inversion, speaker delay
  • Built-in 2-channel digital mixer
  • Parametric EQ, polarity inversion and speaker delay
  • Color backlit LCD screen provides easy access to functions
  • Durable birch plywood cabinet with patented DuraFlex finish and metal grille
  • Universal JBL Pro Connect app control using powerful BLE technology
  • Ergonomic handles simplify transport
  • Built-in threaded pole mount expands system configuration options
  • Stackable cabinets simplify cardioid configurations and equipment storage
  • Dimensions: 26.3 x 24 x 25.1 in (667 x 609 x 637mm) (HxWxD)
  • Weight: 81.5 pounds (37 kg)
  • Shipping dimensions: 29.6 x 28.42 x 29.3 x (744 x 722 x 752 mm) (HxWxD)
  • Shipping weight: 94.4 pounds (42.8 kg)

更多详情

Iconic Acoustics, Superior Sound

The EON718S produces smooth, natural bass down to 31 Hz, thanks to a newly engineered acoustic package with a completely redesigned woofer and 1,500 watts of ultra-efficient amplification.

Advanced DSP and Control

The EON718S’s advanced DSP package includes built-in parametric EQ, polarity inversion and speaker delay. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. The EON700 Series’ built-in Bluetooth 5.0 audio streaming (full-range speakers) and control take advantage of the newest protocol’s security features, low latency, broad range and improved audio fidelity.

System Versatility

The EON718S subwoofer features a threaded pole mount for full-range speakers and can be easily stacked for cardioid configurations. Full-range models can be used as main PA speakers or floor monitors. Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport.

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it’s turned on.

EON700 Series full-range speakers feature FEA optimized composite enclosures, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. The EON718S subwoofer is housed in a rugged 15-ply birch enclosure; computer-optimized ergonomic handles make moving these speakers and subwoofers a breeze.

Like every JBL Professional product, the 718S undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

下载

Specifications
  大小 上传日期
file type icon EON718S Spec Sheet
更新: 11月 2021
1.1 MB 11月 2021
Brochures
  版本 语言 大小 上传日期
file type icon JBL 2025 PPA Brochure
en 版本 B, 更新: 8月 2025
en  8.5 MB 8月 2025
BIM Objects
  大小 上传日期
file type icon EON718S BIM Object
更新: 9月 2022
9月 2022
Software
  版本 大小 上传日期
Android download icon Pro Connect - Alternate Android Download
版本 2, 发布: 3月 2024
2   57.5 MB 3月 2024
Android download icon Pro Connect
版本 2.4, 发布: 11月 2025
2.4   11月 2025
iOS download icon Pro Connect
版本 2.4, 发布: 11月 2025
2.4   11月 2025
download icon for Pro Connect Pro Connect
版本 2.4, 更新: 5月 2026
2.4   59.5 MB 5月 2026
User Guides
  语言 大小 上传日期
file type icon EON718S User Guide
en 更新: 3月 2022
en  6.2 MB 3月 2022
file type icon EON718S User Guide
de 更新: 3月 2022
de  6.1 MB 3月 2022
file type icon EON718S User Guide
es 更新: 3月 2022
es  6.1 MB 3月 2022
file type icon EON718S User Guide
fr 更新: 3月 2022
fr  6.1 MB 3月 2022
file type icon EON718S User Guide
it 更新: 3月 2022
it  6.1 MB 3月 2022
file type icon EON718S User Guide
pt 更新: 3月 2022
pt  6.1 MB 3月 2022
Quick Start Guides
  版本 语言 大小 上传日期
file type icon EON718S Quick Start Guide
pt 版本 B, 更新: 1月 2022
pt  6.1 MB 1月 2022
file type icon EON718S Quick Start Guide
it 版本 B, 更新: 1月 2022
it  6.1 MB 1月 2022
file type icon EON718S Quick Start Guide
fr 版本 B, 更新: 1月 2022
fr  6.1 MB 1月 2022
file type icon EON718S Quick Start Guide
es 版本 B, 更新: 1月 2022
es  6.1 MB 1月 2022
file type icon EON718S Quick Start Guide
de 版本 B, 更新: 1月 2022
de  6.1 MB 1月 2022
file type icon EON718S Quick Start Guide
en 版本 B, 更新: 1月 2022
en  559.2 KB 1月 2022

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

系统类型 18IN Powered Subwoofer
Woofer Model 718G
Woofer Size 18"
Woofer Magnet Ferrite
Woofer Voice Coil 3"
Transducer Impedence 4 ohm rated
Max SPL 131dB @1m/2Pi
Freq Range -10 31Hz - 150Hz
Freq Range -3 40Hz -120Hz
Hor Dispersion Omni
Vert Dispersion Omni
分频点 80, 100, 120Hz selectable
额定功率 1500W Peak Power
1500W Peak / 750W RMS
AC power input 100V-120V or 220V-240V
散热 Passive
LED指示灯 1 Power LED, 1 System Limit, 1 Front LED

输入阻抗

50k/100k un-balanced/balanced
Input Gain -∞to +36db
I/O 2 XLR Combo
2 XLR M Thru
Cabinet 18mm Duraflex-coated Birch Plywood
网罩 16GA perforated steel with acoustically transparent black cloth backing
Suspension / Mounting 1 M20 Threaded Polecup
Handles 2
净重量 35.5kg (78.26 in.)
Gross Weight 42.5kg (93.70 in.)
Product Dims HxWxL 674x609x637mm (26.54x23.98x25.08 in.)
Shipping Dims HxWxL 722x743x713mm (28.43x29.25x28.07 in.)

配件

EON718S-CVR | JBL EON718S Slip On Cover
EON718S-CVR Main photo
较大的图像
EON718S-CVR detail thumbnail #1 EON718S-CVR detail thumbnail #2 EON718S-CVR detail thumbnail #3 EON718S-CVR detail thumbnail #4

Speaker Slipcover Designed for JBL EON718S Powered 18-Inch Subwoofer

  • 600D Polyester Exterior Fabric: Provides tough, water-resistant protection from the elements
  • 210D Polyester Interior Fabric: Provides a soft inner lining with 10mm foam padding for superior protection
  • Dual Side Handle Cutouts: With hook-and-loop flap closure for easy transport
