JBL-3830

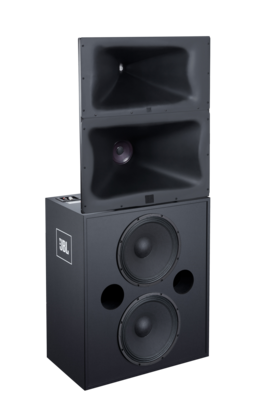

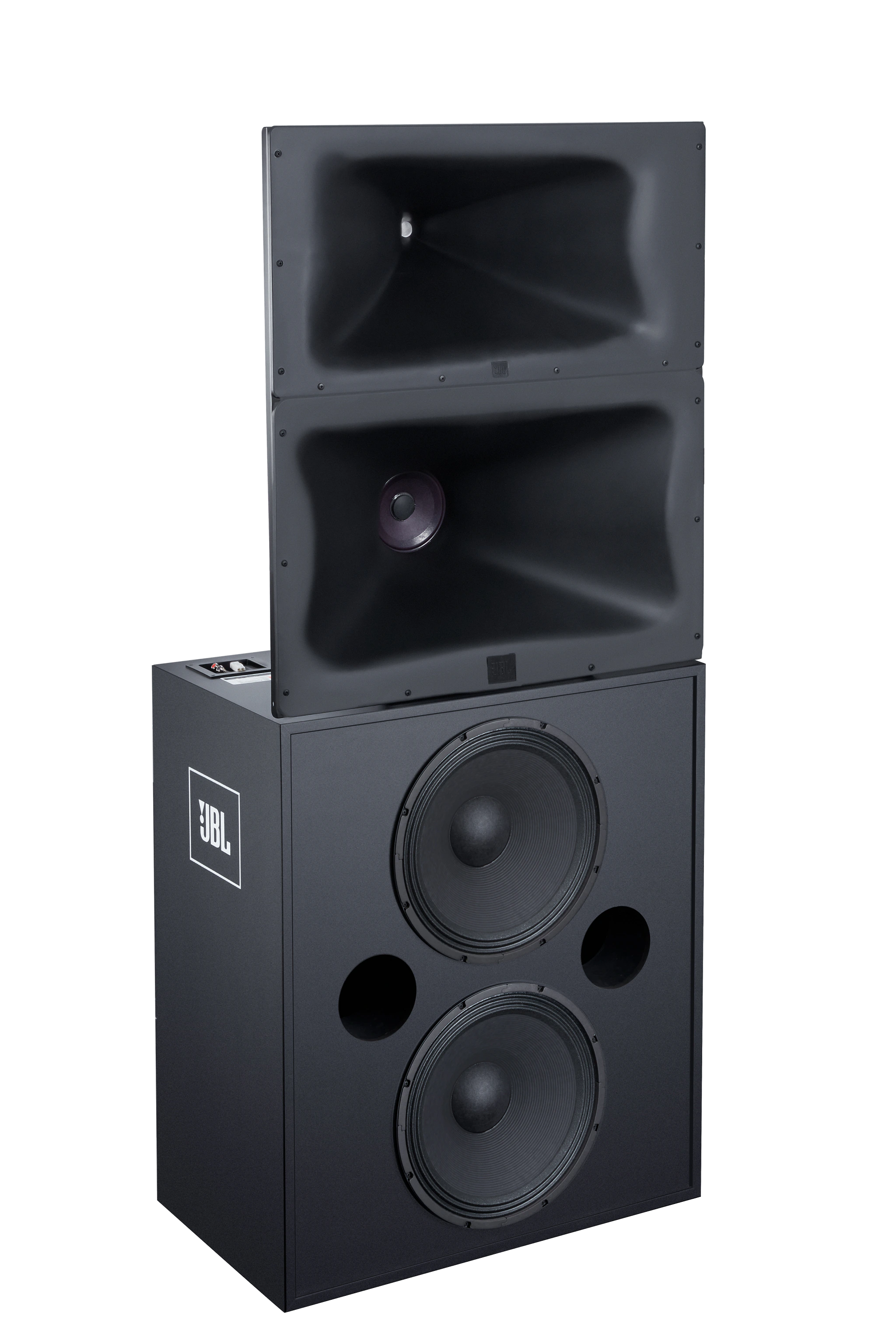

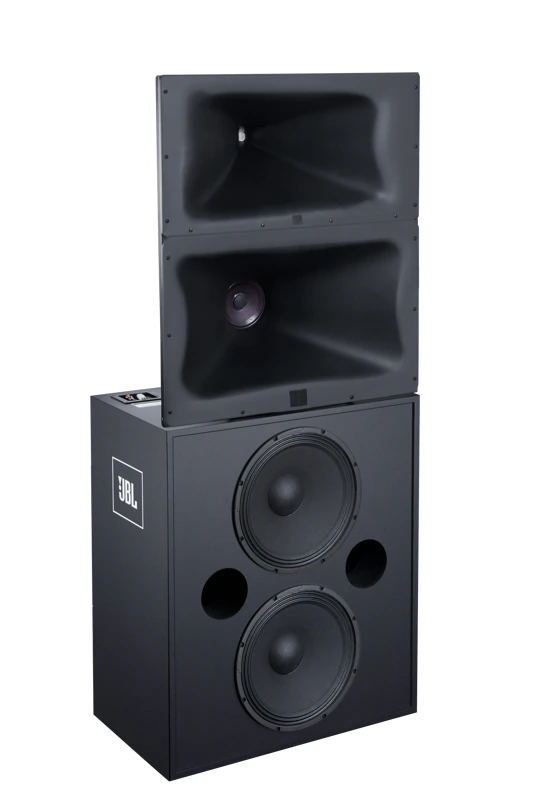

Three-Way Bi-Amplified / Passive ScreenArray® Cinema Loudspeaker System

JBL-3830
较大的图像

Three-Way Bi-Amplified / Passive ScreenArray® Cinema Loudspeaker System

The JBL Professional 3830 Three-Way Bi-Amplified / Passive ScreenArray® Cinema Loudspeaker System is ideal for 100 – 150 seat cinemas. Today’s premier cinemas require perfect coverage in every seat of the auditorium, wide dynamic range and extended bandwidth, as well as inaudible levels of distortion. Digital soundtracks require sound systems for premier auditoriums that can accurately reproduce the sound exactly as recorded.

The 3830 ScreenArray provides smooth and accurate reproduction of cinema soundtracks in a compact system. The ScreenArray horn features a patented design that compensates for high frequency spreading caused by perforated screens for greatly improved audience coverage.

The 3830 ScreenArray is enhanced by advanced engineering. JBL’s latest technical innovations are integrated into a system design that provides superior coverage, maximum power handling and uniform acoustic power output, along with extremely low distortion. The ScreenArray design provides ideal power response and directivity control with seamless transitions between acoustic sections.

特点

  • Three-way ScreenArray® design for maximum output, optimal coverage and minimum distortion
  • Bi-amplified or fully passive switchable operation (tri-amp option available)
  • SSC™ Screen Spreading Compensation
  • Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
  • Low-frequency section features dual 15” transducers with ribbon wire voice coils for low distortion and high efficiency
  • Flat front waveguide design for easy baffle wall installation
  • Shallow profile for minimum behind-screen depth requirements
  • Connection on top of the speakers for easy wiring behind screen
  • HF driver protection

下载

  Version Language Size Uploaded
Specifications
file type icon 3830 Spec Sheet
zh updated: 12月13日
  zh  664.3 KB 12月13日
file type icon 3830 Spec Sheet
en updated: 12月13日
  en  606.4 KB 12月13日

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

性能

System
Frequency Range 30 Hz – 18 kHz
Nominal Coverage 90º horizontal, -30º/+20º vertical
Net Weight 67.1 kg (147 lbs)
Shipping Weight 78.1 kg (172 lbs)
Dimensions (H x W x D) 173.4 mm x 762 mm x 450 mm (68.25 in x 30 in x 17.75 in)
Passive System
Crossover Frequencies 450 Hz, 2 kHz
System Sensitivity 105 dB SPL, 2.83 V @ 1 m (3.3 ft)
Nominal Impedance 4 ohms
Minimum Impedance 2.7 ohms @ 150 Hz
Input Power Handling (AES 100-Hour Rating) 600 W
Bi-Amp System
Input Power Handling (AES 2-Hour Rating) LF: 500 W
M/HF: 125 W
LF Component Electronics – Model 3839
Low Frequency Transducers 2 x M115-8A, 380 mm (15 in) diameter, 64 mm (2.5 in) edgewound ribbon voice coil transducers mounted in a 4509 LF enclosure
Input Connectors Push terminal binding posts
Nominal Impedance 4 ohms
Minimum Impedance 2.7 ohms @ 150 Hz
Input Power Handling (AES 2-Hour Rating) 500 W, 600 W recommended amplifier
Free-Field Sensitivity 104 dB SPL, 2.83V @ 1 m (3.3 ft)
Dimensions (H x W x D) 883 mm x 762 mm x 450 mm (34.75 in x 30 in x 17.75 in)
Net Weight 56 kg (123 lbs)
Shipping Weight 64.5 kg (142 lbs)
M/HF Component Electronics – Model 3830-M/HF
Mid Frequency Transducer (Ships Fully Assembled) 1 x 195H, 165 mm (6.5 in) diameter, 38 mm (1.5 in) voice coil
High Frequency Transducer (Ships Fully Assembled) 1 x 2414H, 25 mm (1 in) polymer diaphragm, neodymium compression driver
Input Connectors Screw terminal barrier strip
Device Nominal Impedance MF: 8 ohms
HF: 8 ohms
M/HF Nominal Impedance 4 ohms
M/HF Minimum Impedance 3 ohms @ 1850 Hz
Device Sensitivity MF: 104 dB SPL, 2.83 V @ 1 m (3.3 ft)
HF: 106 dB SPL, 2.83 V @ 1 m (3.3 ft)
M/HF Free-Field Sensitivity 105dB, 2.83 V @ 1m
M/HF Input Power Handling (AES 2-Hour Rating) 125 W
Dimensions (H x W x D) 852 mm x 762 mm x 360 mm (33.5 in x 30 in x 14.1 in)
Net Weight 11.1 kg (24 lbs)
Shipping Weight 13.6 kg (30 lbs)
