GHD5

15英寸全频扬声器

较大的图像

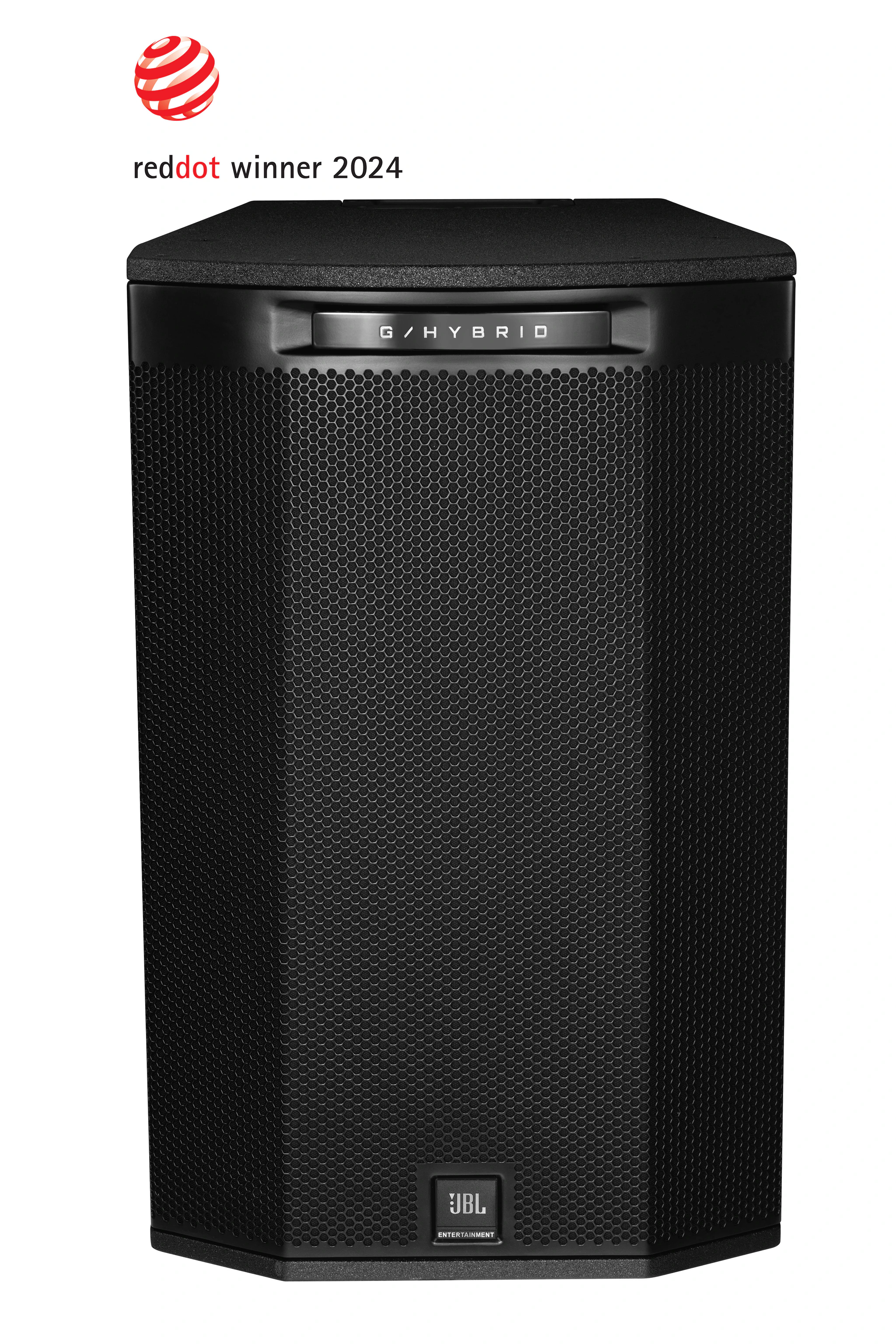

The JBL Entertainment GHD5 15-inch full-range speaker, together with the available subwoofer models of the same series, delivers a premium solution, specially designed for KTV party rooms.

It features the advanced JBL 2432H-1 neodymium voice coil compression driver, delivering the distinctive JBL signature sound with woofers of the same series. The main speaker adopts JBL 15" low-frequency woofers, ensuring deep and resonant bass output. Front ventilation ensures full power delivery for dancing and DJing applications with an output power of 800 W.

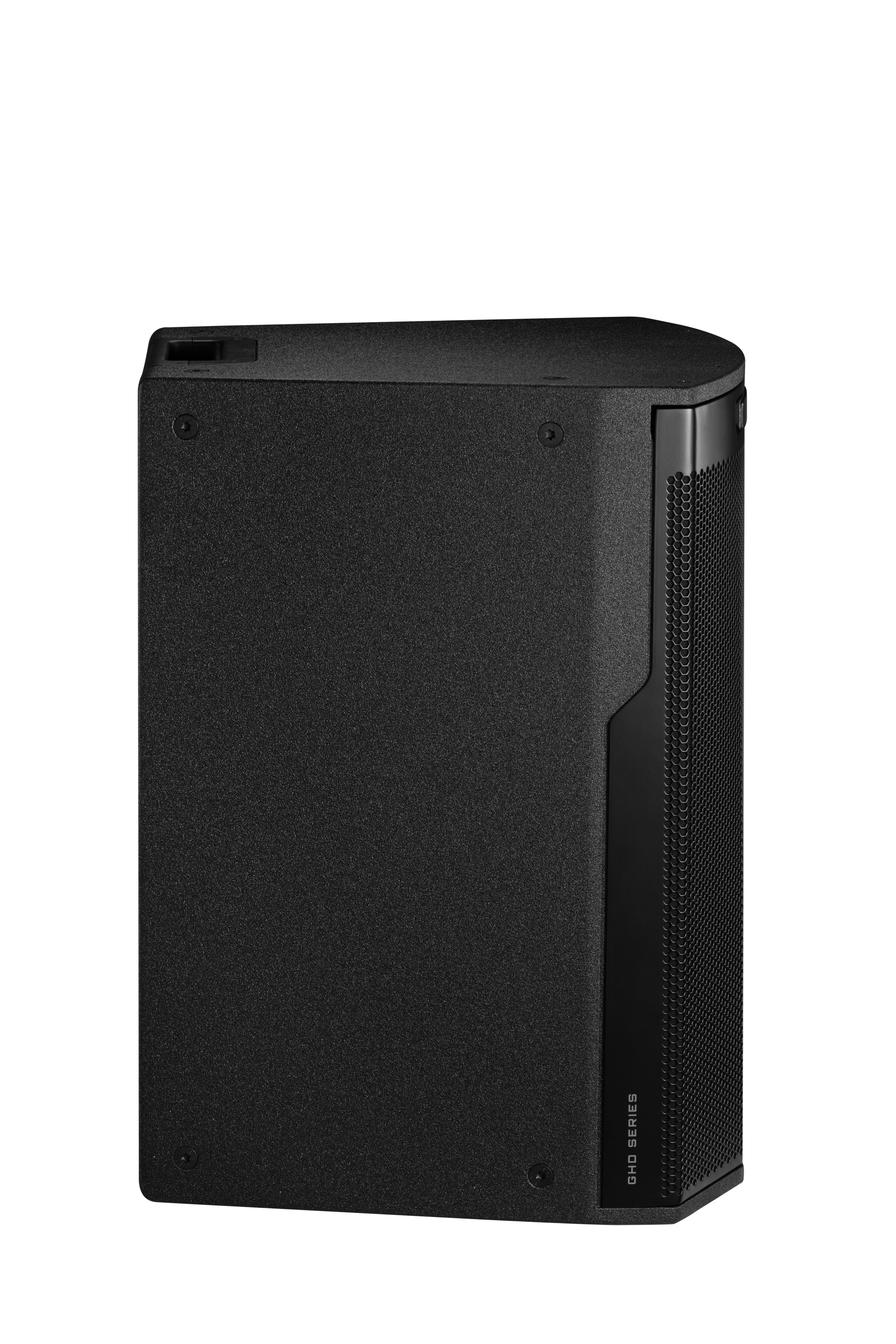

GHD5 features a distinctive structural innovation that sets it apart from conventional KTV speakers. Its main speaker boasts a front-loaded ventilation design, which optimizes power delivery by reducing impact from the back wall. The combined integration ensures uninterrupted and robust performance. Additionally, high power and luminous font ensure elegant, and fashionable looks as well as seamless integration into any party room decor.

Presently available in China only.

特点

  • 提供 800 W 输出功率
  • 直观的前面板设计,一目了然、简洁实用
  • 配备 JBL 15" 低音单元和 JBL 2432H-1 钕磁音圈高频压缩驱动单元,提供 JBL 标志性音效和强劲的全频响应
  • PSL 照明技术使 JBL G/Hybrid 标志在播放动感音乐时随之发光,彰显现代时尚魅力
  • 前置通风设计使扬声器能够实现高功率输出,并减少背墙反射干扰
  • 耐用的分频板确保出色的音频还原,呈现清晰精准的音效
  • NL4 Neutrik Speakon® 连接器便于多只扬声器无缝环通连接,轻松实现系统扩展
  • 高端美学设计彰显高级外观,尽显奢华与品质
  • 多用途集成式安装吊点支持竖直和水平安装,满足不同的安装需求
  • 可旋转的 JBL Entertainment 标识适用于水平和竖直安装
  • GHD 系列在墨西哥制造,为投资者提供高品质产品,完美匹配高端装饰风格

下载

Spec Sheets
  语言 大小 上传日期
file type icon GHD5 Spec Sheet
en 更新: 7月 2025
en  626.0 KB 7月 2025

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Model Name JBL-GHD5 15-Inch Full-Range Speaker
频率响应(±3 dB) 75 Hz - 18 kHz
Peak, unweighted SPL, measured under full-space conditions.
频率范围 (-10dB) 45 Hz - 20 kHz
Measurement conducted under full-space (4π) conditions.
Coverage 80° × 80°
Power Rating (Continuous/Program/Peak) 800 W / 1600 W / 3200 W
Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards.
Maximum SPL (1m) 128 dB continuous average (140 dB peak)
Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor.
System Sensitivity (1w @ 1m) 99 dB
Measurement conducted under full-space (4π) conditions.
标称阻抗 8 ohms
HF 驱动程序 JBL 2432H-1 neodymium voice coil suppression driver
低频驱动单元 JBL 15" low-frequency woofers
Enclosure 15 mm birch plywood
外观颜色 Duraflex finish
网罩 High-gloss grille surface
Input Connector NL4 Neutrik Speakon® in parallel for loop-thru
尺寸(高 x 宽 x 厚) 691.5 mm × 441.5 mm × 502 mm
净重量 31.5 Kg
