GHD1

10英寸全频扬声器

GHD1
较大的图像

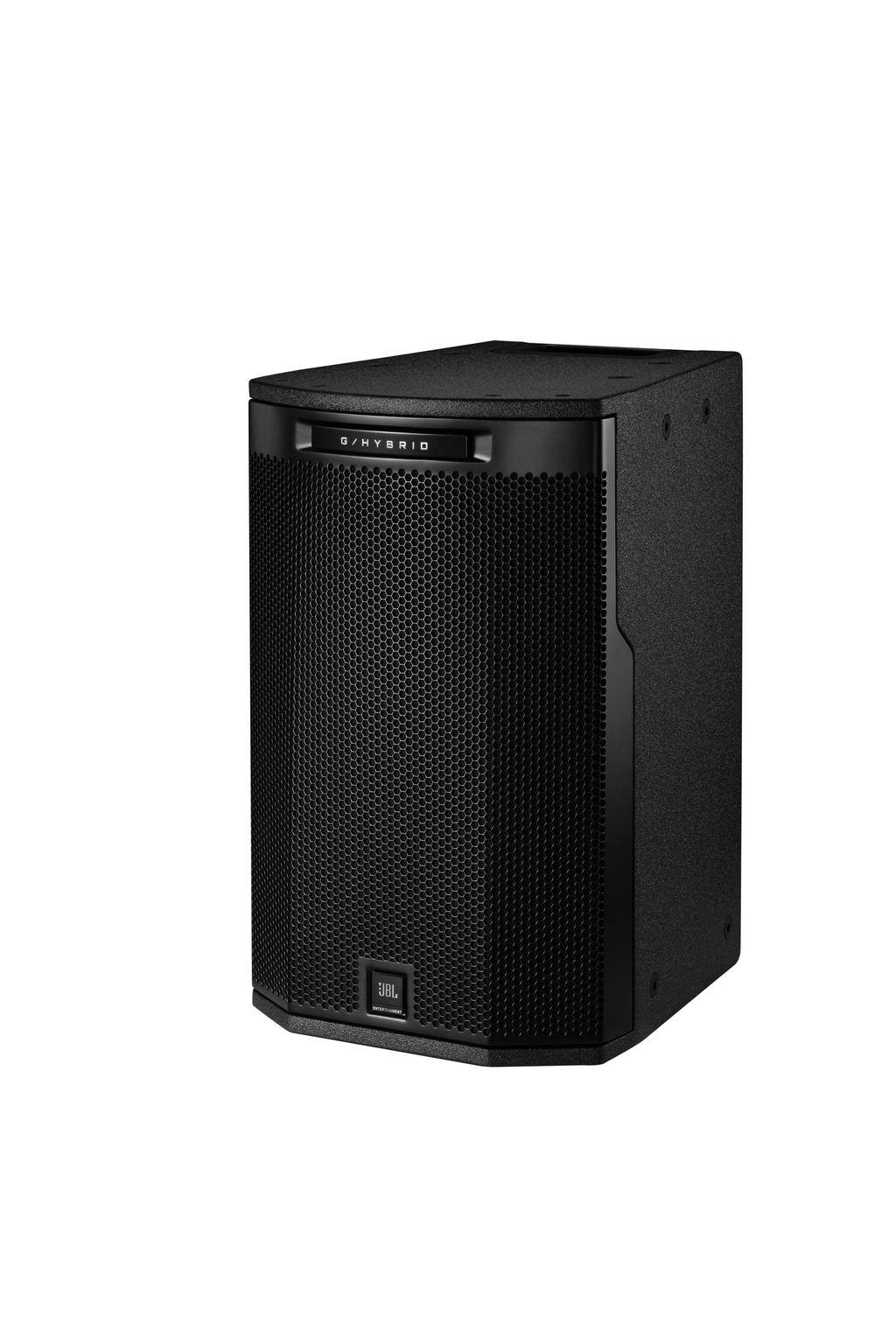

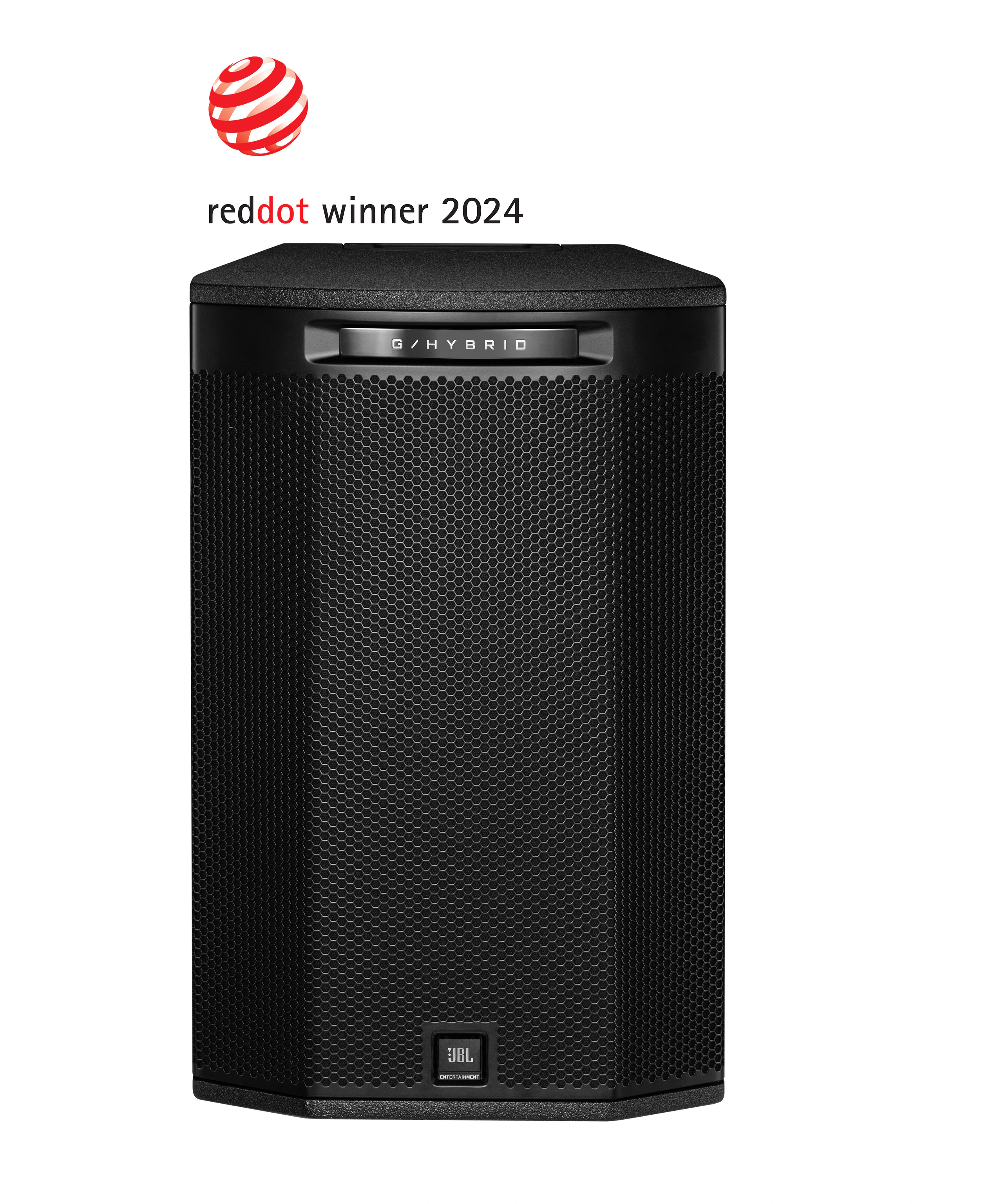

JBL 娱乐 GHD1 10 英寸全频扬声器,结合同系列的可用低音炮型号,提供了一种优质解决方案,专为 KTV 派对房间设计。

它采用先进的 JBL 2432H-1 钕磁音圈压缩驱动单元,与同系列的低音喇叭一起,提供了独特的 JBL 标志性声音。主扬声器采用 JBL 2206H 低频低音喇叭,确保深沉而共鸣的低音输出。前置通风口确保高达 450 W 的功率输出,适用于舞蹈和 DJ 应用。GHD1 具有独特的结构创新,使其与传统 KTV 扬声器区别开来。

其主扬声器采用前置通风设计,通过减少背墙的影响来优化功率输出。组合集成确保了不间断且强劲的性能。此外,高功率和醒目的外观确保其优雅且时尚的外观,并无缝融入任何派对房间的装饰。

目前仅在中国有售。

特点

  • Provides 450 W output power
  • Intuitive front panel at-a-glance, simplistic and functional design
  • JBL 2206H low-frequency woofers and JBL 2432H-1 neodymium voice coil compression driver to provide JBL signature sound and robust full-range response
  • PSL Lighting Technology enables the JBL G/Hybrid logo to illuminate when vibrant music is playing, enhancing its modern and stylish appeal
  • Front-loaded ventilation allows the speaker to achieve high power output and reduce interference from the back wall
  • Endurable cross-overboard contributes to exceptional sound reproduction, resulting in clear and precise audio output
  • NL4 Neutrik Speakon® connectors facilitate seamless loop-thru connection of multiple speakers to achieve system extension with minimal effort
  • High-end aesthetic design contributes to the premium appearance that radiates luxury and quality
  • Multi-purpose mounting points support vertical and horizontal installations to cater to different mounting preferences
  • Rotatable JBL Entertainment Logo supports both horizontal and vertical installations
  • The GHD Series is built in Mexico, fulfilling investors needs to have high quality product to match their premium decor

下载

Spec Sheets
  语言 大小 上传日期
file type icon GHD1 Spec Sheet
en 更新: 7月 2025
en  626.8 KB 7月 2025

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Model Name JBL-GHD1 10-Inch Full-Range Speaker
Frequency Response (±3 dB) 85 Hz - 18 kHz
Measurement conducted under full-space (4π) conditions.
Frequency Range (-10 dB) 52 Hz - 20 kHz
Peak, unweighted SPL, measured under full-space conditions.
Coverage 80° × 80°
Power Rating:(continuous / program / peak ) 450 W / 900 W / 1800 W
Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards.
Maximum SPL (1m) 122 dB continuous average (134 dB peak)
Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor.
System Sensitivity (1w @ 1m) 95 dB
Measurement conducted under full-space (4π) conditions.
标称阻抗 8 ohms
HF 驱动程序 JBL 2432H-1 neodymium voice coil suppression driver
低频驱动单元 JBL 2206H low-frequency woofers
Enclosure 15 mm birch plywood
外观颜色 Duraflex finish
网罩 High-gloss grille surface
Input Connector NL4 Neutrik Speakon® in parallel for loop-thru
尺寸(高 x 宽 x 厚) 543 mm × 346.5 mm × 379 mm
净重量 19.7 Kg
