GC2

双 18 英寸高性能超低音音箱

较大的图像

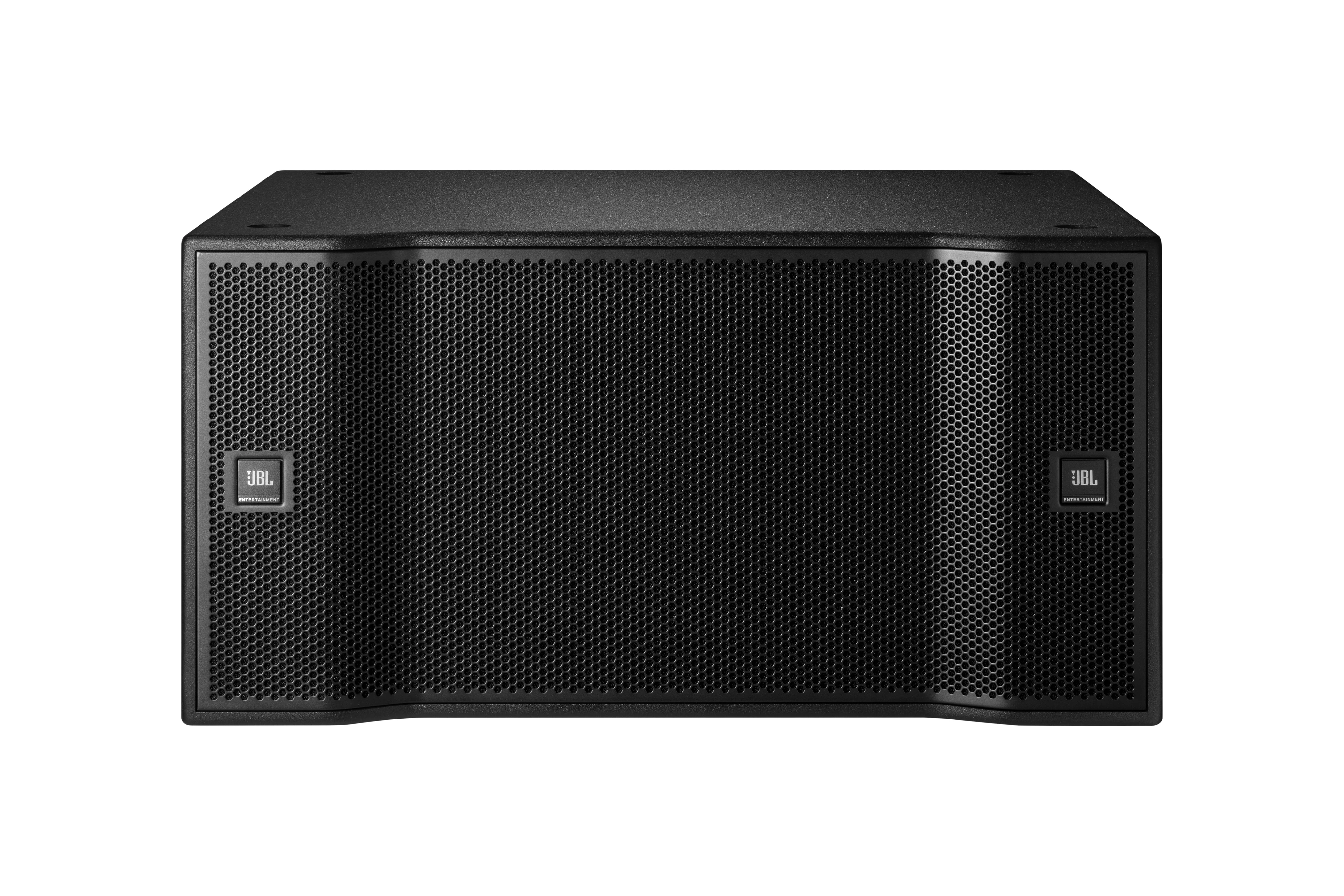

JBL GC2 dual 18" high performance subwoofer is specially designed for bars, clubs and music restaurants that require sound reinforcement, live sound amplification and advanced low-frequency response.

JBL GC2 features two innovative 18-inch dual voice coil woofer drivers, which possess long excursion capabilities and high-power handling, resulting in extended and powerful lower frequencies with minimal distortion. The utilization of Differential Drive® technology and magnetic gap neodymium magnet cone enables improved heat dissipation, lightweight construction, extended excursion capabilities, and enhanced low-frequency performance, thereby meeting the requirements of demanding applications.

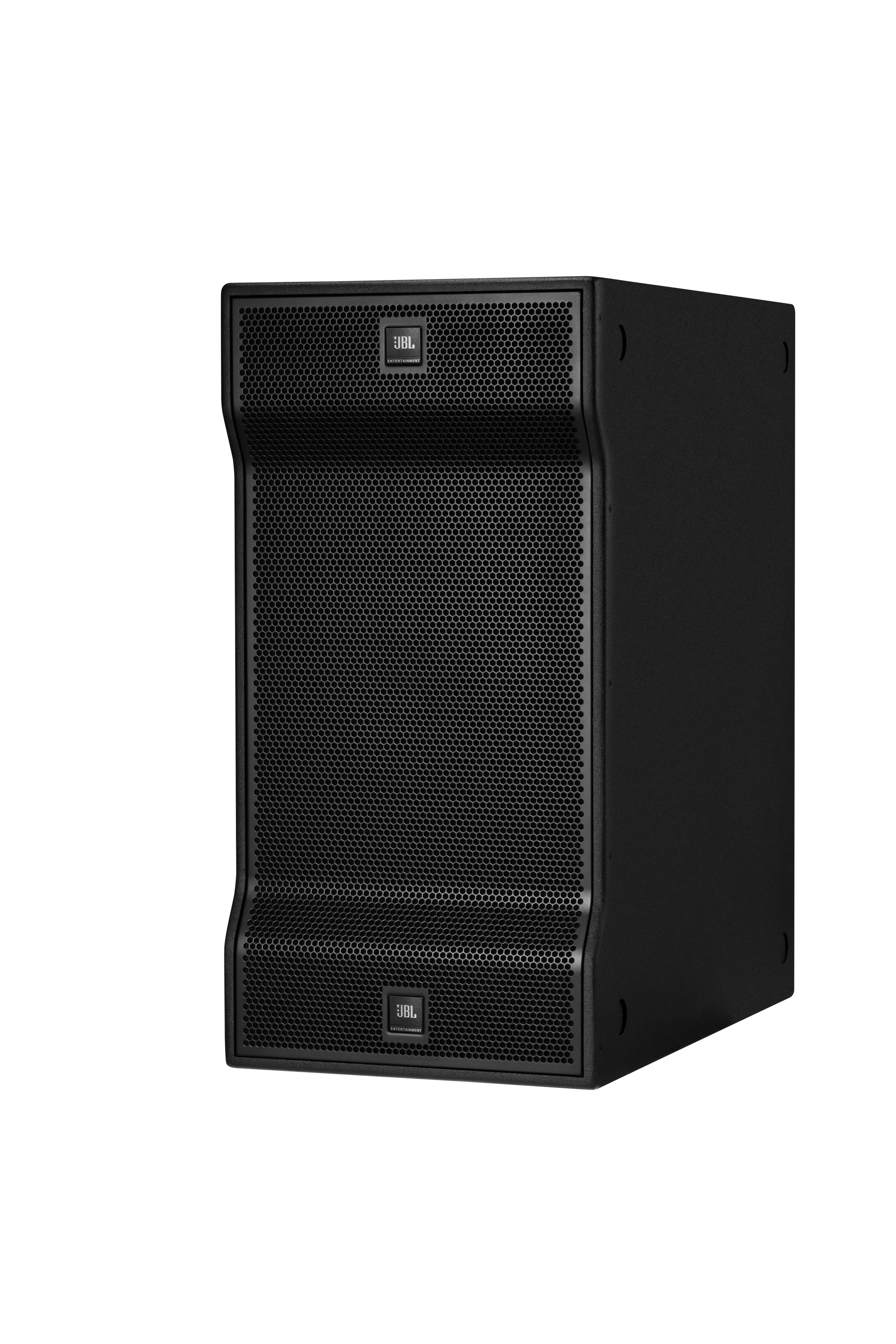

JBL GC2 redefines the internal structure of cabinet, which uses "Baltic" birch wood panels to maintain lower low frequency performance and sustain large dynamic and high intensity output, making it ideal for top venues requiring advanced low-frequency response. For added convenience and versatility, JBL GC2 is equipped with removable double-layer feet (rubber + plastic), catering to fixed installations and supporting stacking applications in both horizontal and vertical orientations. The tilting connector box allows for a close fit to the wall without requiring additional space for cable installation. The NL4 Neutrik Speakon® connectors allow loop-thru connection of multiple speakers and system extension can be accomplished with minimum effort.

Presently available in China only.

特点

  • 18" 低频驱动单元采用全新设计,具有高功率和长冲程特性,可实现出色的低频下潜与低失真表现。
  • 加强型内部支撑结构设计提供最佳低频响应,同时将箱体共振降至最低。
  • 创新的箱体内部结构降低非线性失真,改善低频动态响应。
  • Differential Drive® 技术与磁隙钕磁铁锥盆设计实现更好的散热性能、重量轻、超长冲程和卓越的低频性能。
  • 可旋转 JBL ENTERTAINMENT 标志和可拆卸双层脚垫(橡胶+塑料)设计满足固定安装需求,支持水平及竖直堆叠应用。
  • NL4 Neutrik Speakon® 连接器便于系统扩展。
  • 倾斜式连接器盒设计可紧贴墙壁安装,无需预留电缆安装空间。
  • 适用于酒吧、迪斯科舞厅、俱乐部的扩声,以及音乐餐厅的现场音乐扩声。
  • 与 GC 系列全频扬声器搭配使用。

下载

Specifications
  版本 语言 大小 上传日期
file type icon GC2 Spec Sheet
zh 版本 B, 更新: 4月 2024
B  zh  983.9 KB 4月 2024
file type icon GC2 Spec Sheet
en 版本 B, 更新: 4月 2024
B  en  928.5 KB 4月 2024

如果上述任何链接在您的浏览器中显示为奇怪的字符,请右键点击文件以将其保存到您的计算机。

零件与服务

性能

Model Name Dual 18-Inch-High Performance Subwoofer
Frequency Range (-10 dB)¹ 30 Hz – 250 Hz
1: Measurement conducted under half-space (2π) conditions.
Frequency Response (±3 dB)¹ 38 Hz – 135 Hz
1: Measurement conducted under half-space (2π) conditions.
Rated Input Power³ 3600 W / 7200 W / 14400W
3: Testing conducted for 2 hours under pink noise with a crest factor of 6 dB, in accordance with IEC standards. JBL is consistently dedicated to product updates. It integrates new materials, manufacturing processes, or improved designs into existing products without additional notifications. As a result, some of the current JBL products may differ from the descriptions provided in product literature. Unless otherwise stated, these updated products perform equivalently or surpass the original designs in terms of performance or specifications.
额定阻抗 4 ohms
Sensitivity (1w@1m)¹ 102 dB
1: Measurement conducted under half-space (2π) conditions.
Maximum SPL² 137dB continuous average (149 dB peak)
2: The maximum sound pressure level is calculated based on rated power. Peak, unweighted SPL, measured under half-space conditions at 1 meter using broadband pink noise with a 12dB crest factor.
低频驱动单元 2 × 18"; 460 mm (18") diameter; 100 mm (4") dual-coil, dual-gap neodymium Differential Drive ® VGC™ driver
Box Structure 18 mm birch plywood, fitted with 2 handles at each side
网罩 1.8 mm thick with acoustically transparent black cloth backing
Input Connector 2 x NL4 Neutrik Speakon®
Pin Assignments Low Frequency: 1+, 1-
尺寸(高 x 宽 x 厚) 585 mm × 1162 mm × 1033 mm
净重量 111.15 kg
