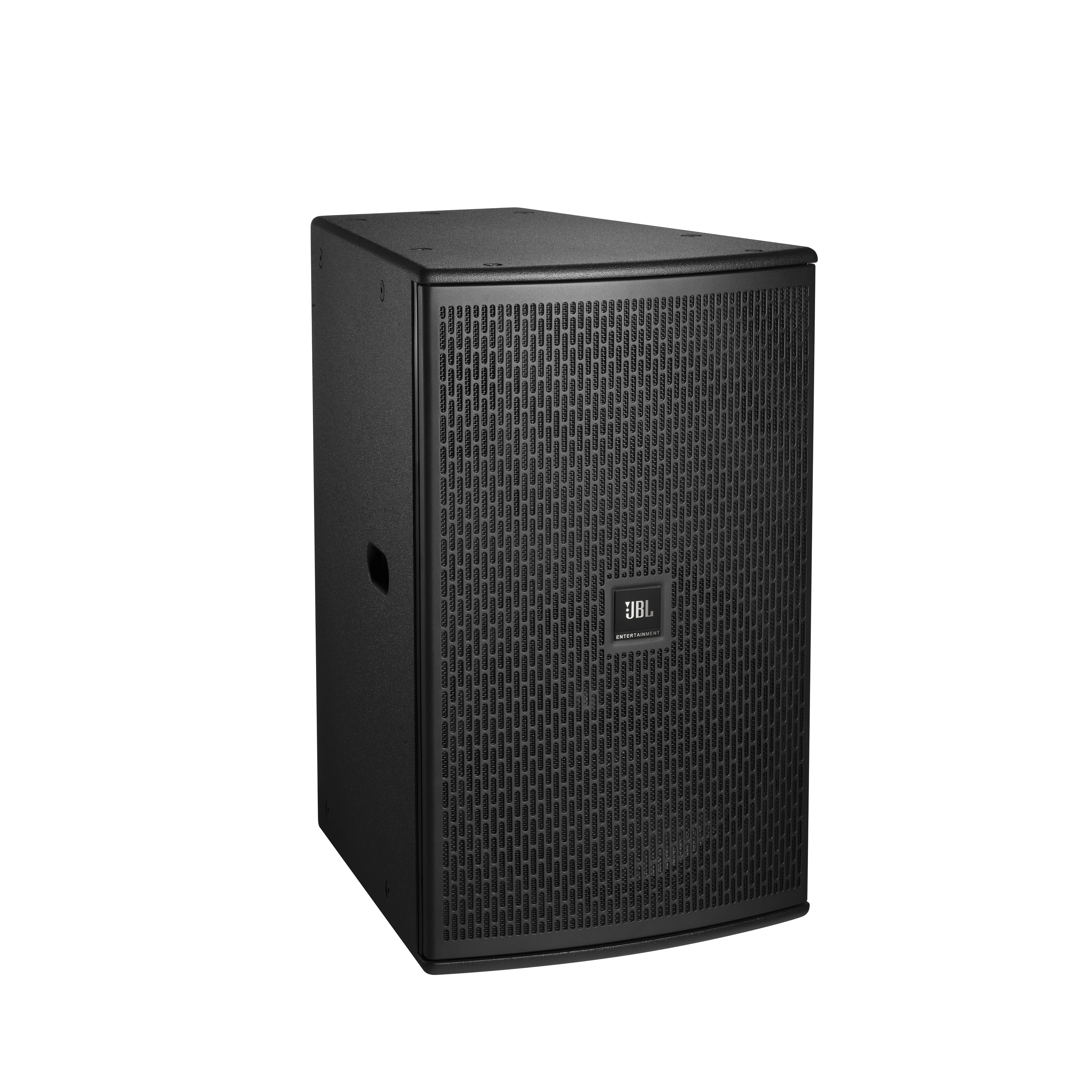

JBL GC15 是一款高品质扬声器，专为酒吧、俱乐部和音乐餐厅等娱乐场所的现场音响扩声而设计。
JBL GC15 采用 1.5 英寸专利 D2 双振膜双音圈压缩驱动单元，即使在高或微弱的听音水平下，亦能确保高频平滑延伸且失真极低。配备 15 英寸低频驱动单元，JBL GC15 能够重现更宽广的频率范围，提供更平坦的频率响应曲线和更低的失真率。新设计的分频网络进一步提升音频性能，确保低频和高频驱动单元之间的无缝过渡，从而实现清晰、锐利且高保真的音乐重放。
JBL GC15 采用耐用的桦木胶合板制成，消除箱体共鸣并改善低频响应。它提供无源或双功放模式的灵活性，以满足不同的调音要求或应用场景。NL4 Neutrik Speakon® 连接器支持多个扬声器的环路连接，系统扩展可轻松实现。
| 大小 | |
|
|
469.0 KB |
|
|
496.4 KB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
| System | |
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
| 频率响应(±3 dB) | 57 Hz - 19 kHz |
| Coverage | 80° × 80° |
| System Power Rating (IEC, 2 hrs) (continuous/music/peak) | 550 W/1100 W/2200 W |
| Maximum SPL (1m)1 | 127 dB continuous average (139 dB peak) 1: Measurement conducted under full-space (4π) conditions. Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor. |
| System Sensitivity (4π) | 100 dB |
| 标称阻抗 | 8 ohms |
| Transducer | |
| 低频驱动单元 | 1 × 15" (3081 mm) woofer with 3" (101.6 mm) voice coil |
| HF 驱动程序 | 1 × JBL D2415K 1.5" (38.1 mm) dual voice coil, dual annular diaphragm |
| Physical | |

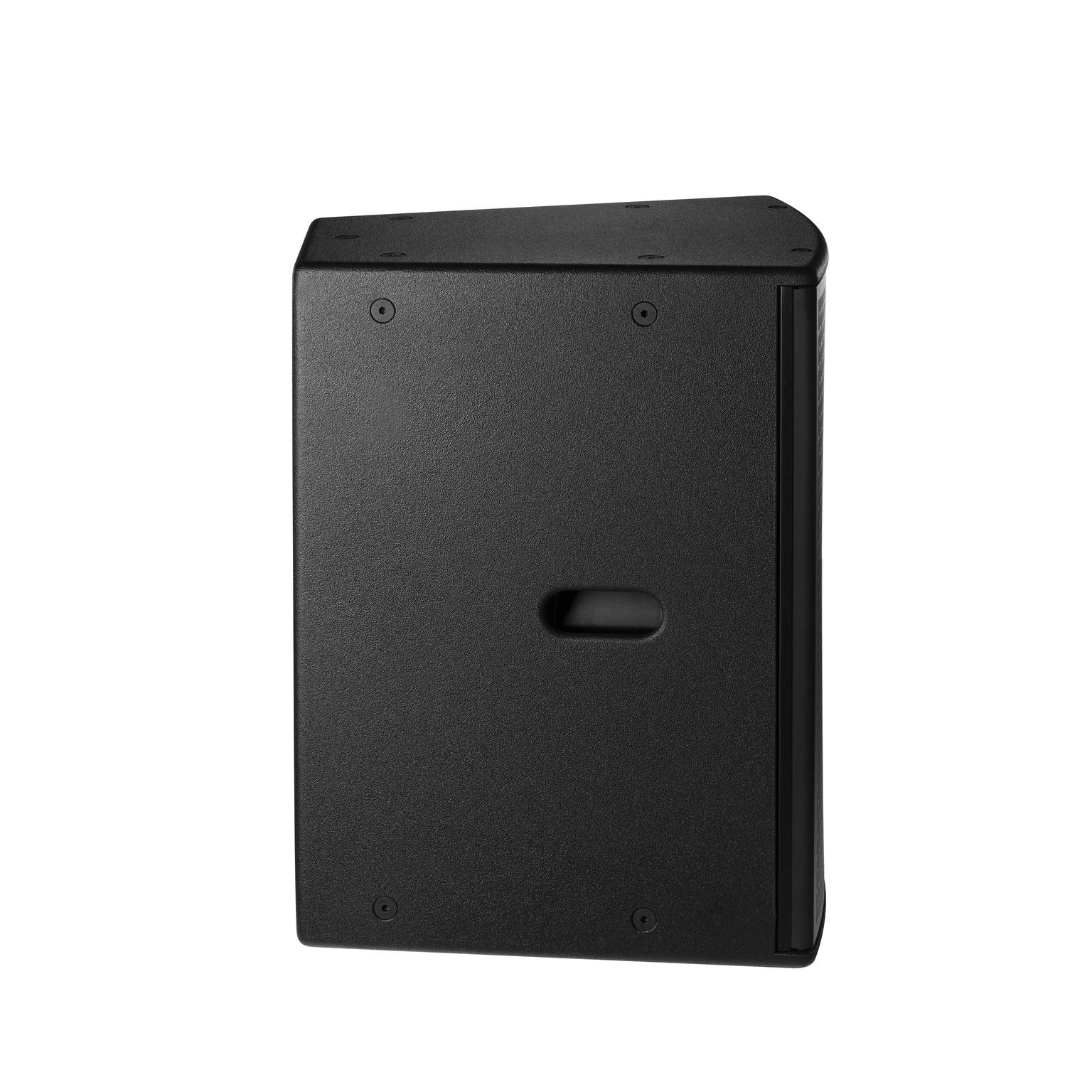

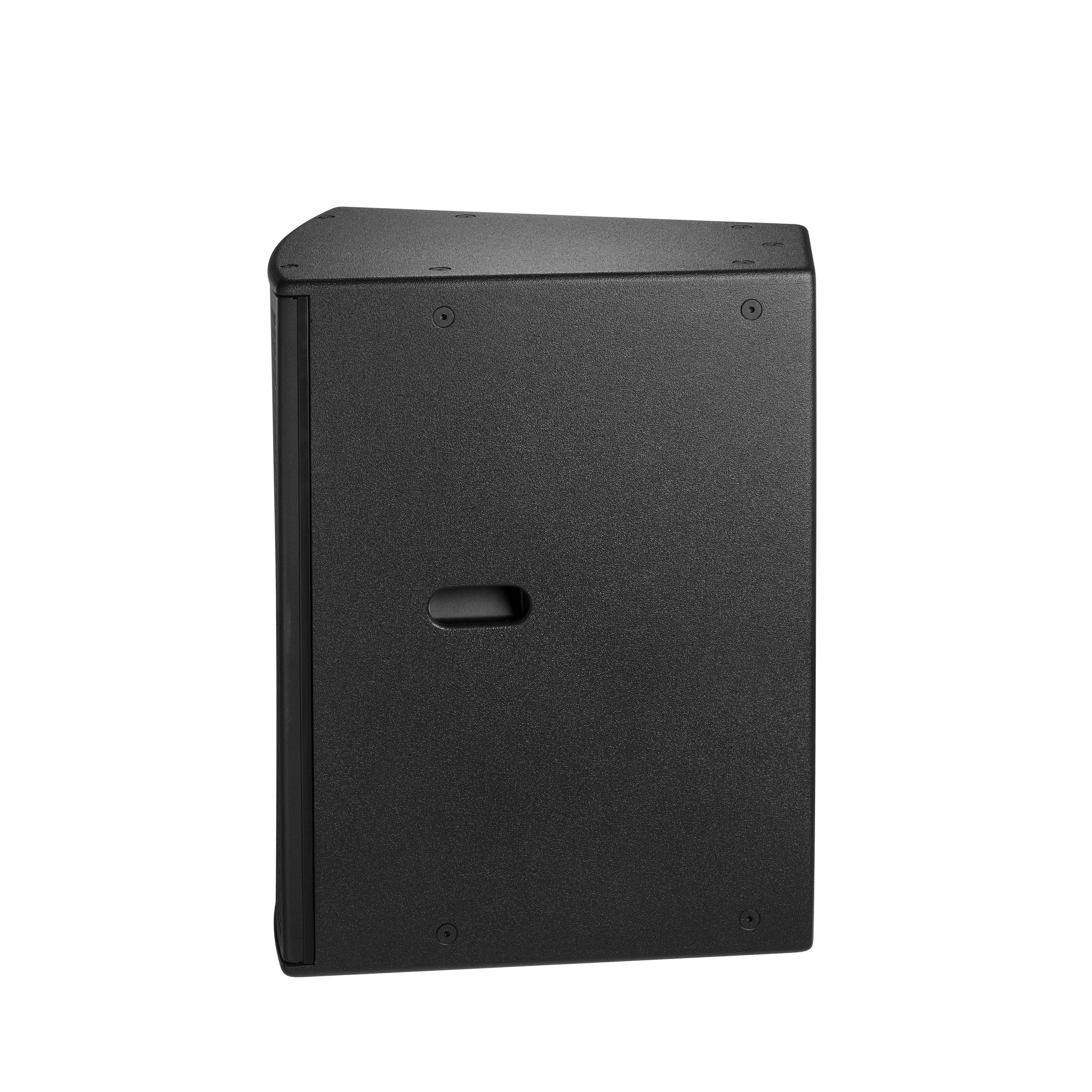

| Enclosure | Trapezoidal with 20 degree side angles, 15 mm birch plywood, fitted with handles |
| Suspension / Mounting | 19 × M10 threaded points (5@top, 4@bottom, 4@each side, 2@rear)35 mm Omni pole-mounting socket |
| 外观颜色 | Black DuraFlex TM finish |
| 网罩 | Powder coated, 1.8 mm perforated steel with acoustically transparent black fibre cloth backing |
| Input Connector | NL4 Neutrik Speakon® in parallel for loop-thru |
| Switch | Selectable passive and bi-amp mode |
| Dimension (W x H x D) | 700 mm × 436 mm × 549 mm 27.6" × 17.2" × 21.6" |
| 净重量 | 30.7 kg (67.7 lbs) |
