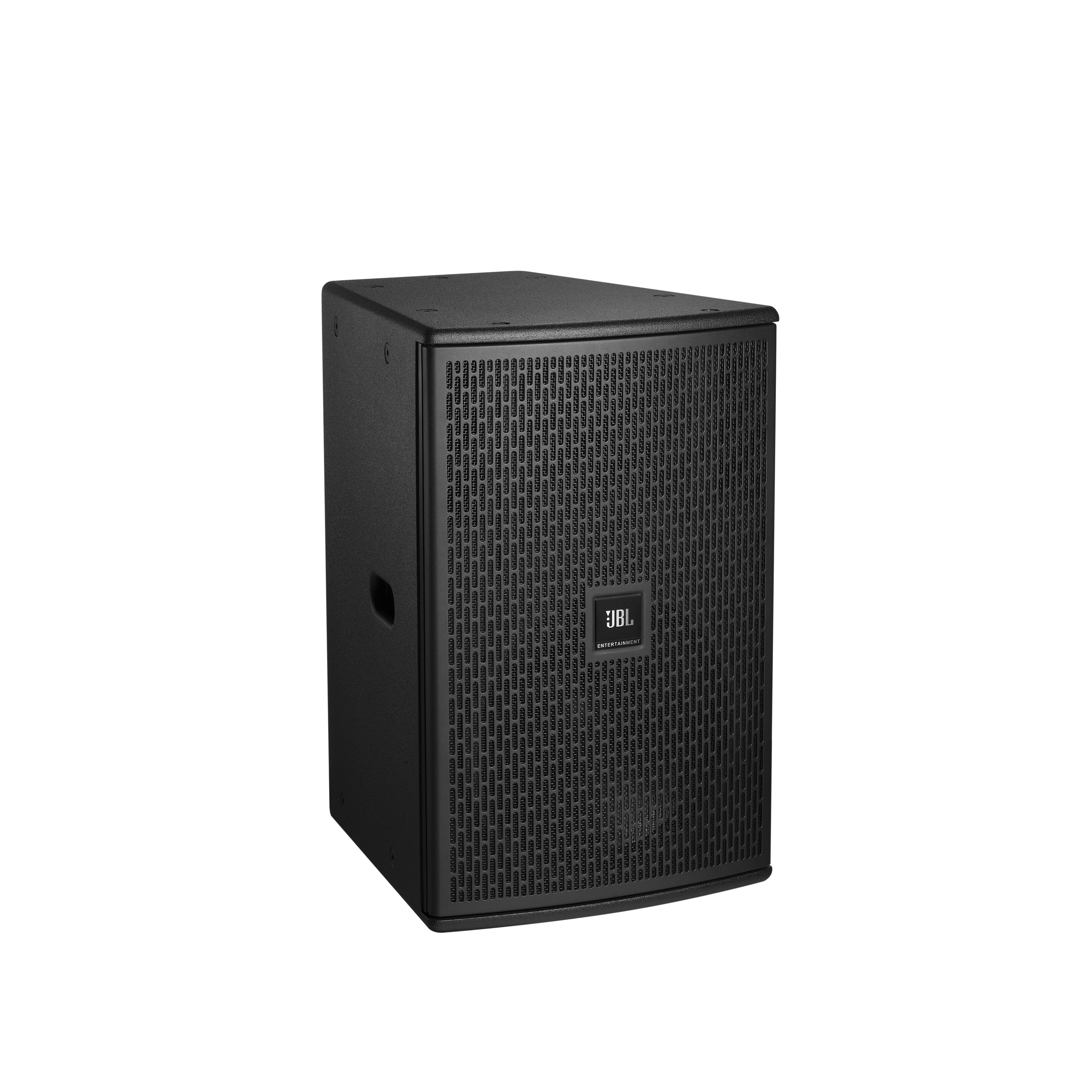

JBL GC12 是一款全频高质量点声源扬声器，专为酒吧、俱乐部等娱乐场所以及音乐餐厅的现场扩音而设计。
JBL GC12 采用 1.5" 专利 D2 双振膜双音圈压缩驱动器，即使在高音量或细微聆听级别下，也能确保平顺而延伸的高频响应，超低失真。配备 12" 低频驱动器，JBL GC12 可重现更宽广的频率范围，频率响应曲线更加平坦，失真率更低。全新设计的分频网络进一步增强了声学性能，确保低频和高频驱动器之间的无缝衔接，实现清晰、饱满和高保真的音乐重现。
JBL GC12 采用耐用的桦木胶合板构造，有效消除箱体谐振并改善低频响应。它在无源或双功放工作模式间提供灵活选择，以满足不同的调整要求或应用场景。NL4 Neutrik Speakon® 连接器支持多个扬声器的环路连接，系统扩展可轻松实现。
| 大小 | |
|
|
508.5 KB |
|
|
476.9 KB |
如果上述任何链接在您的浏览器中显示为奇怪的字符，请右键点击文件以将其保存到您的计算机。
| System | |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| 频率响应(±3 dB) | 60 Hz - 19 kHz |
| Coverage | 80° × 80° |
| System Power Rating (AES, 2 hrs) (continuous/music/peak) | 500 W/1000 W/2000 W |
| Maximum SPL (1m)1 | 126 dB continuous average (138 dB peak) 1: Measurement conducted under full-space (4π) conditions. Peak, unweighted SPL, measured under full-space conditions at 1 meter using broadband pink noise with a 12dB crest factor. |
| System Sensitivity (4π) | 99 dB |
| 标称阻抗 | 8 ohms |
| Transducer | |
| 低频驱动单元 | 1 × 12" (304.8 mm) woofer with 3" (76.2 mm) voice coil |
| HF 驱动程序 | 1 × JBL D2415K 1.5" (38.1 mm) dual voice coil, dual annular diaphragm |
| Physical | |

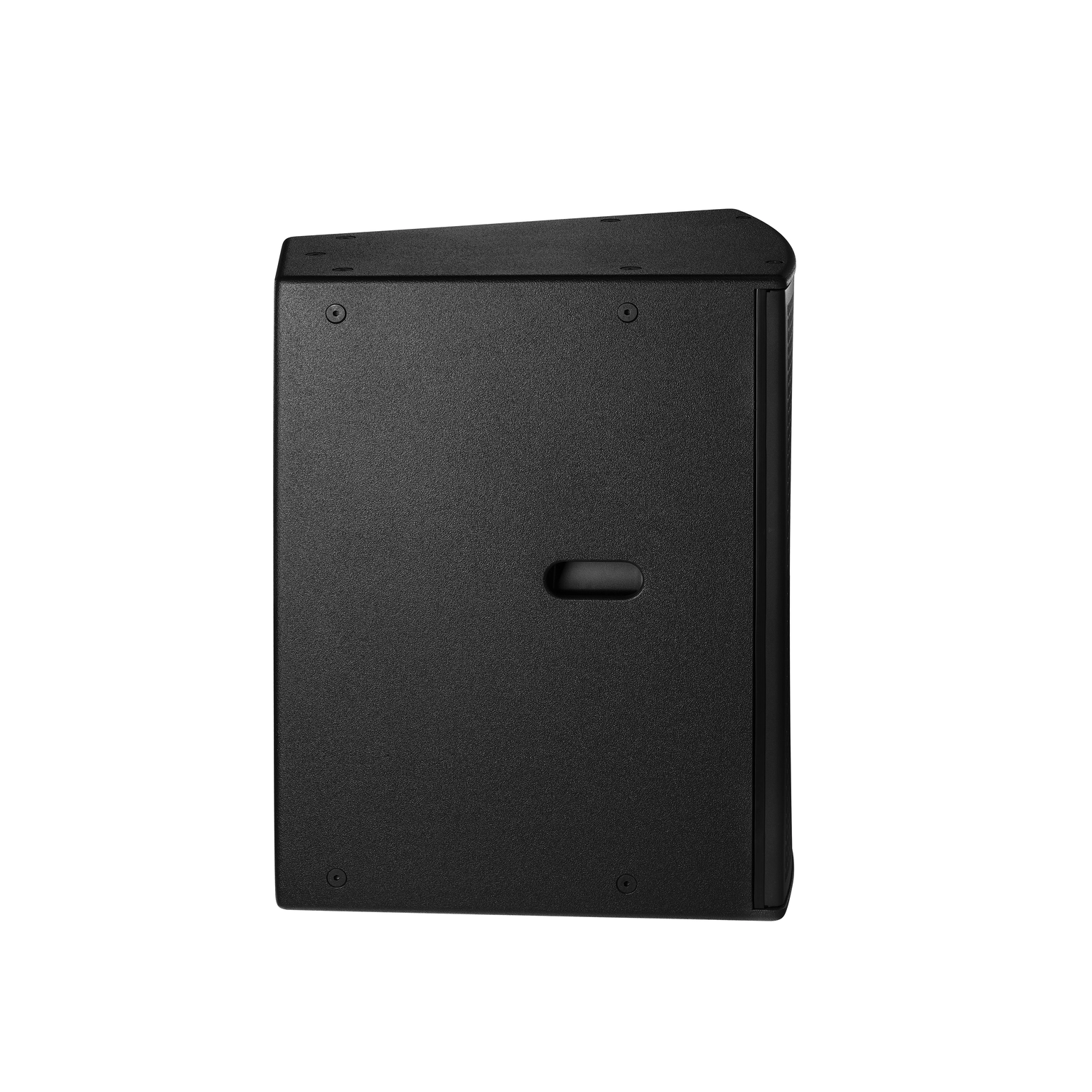

| Enclosure | Trapezoidal with 20 degree side angles, 15 mm birch plywood, fitted with handles |
| Suspension / Mounting | 19 × M10 threaded points (5@top, 4@bottom, 4@each side, 2@rear)35 mm Omni pole-mounting socket |
| 外观颜色 | Black DuraFlex TM finish |
| 网罩 | Powder coated, 1.8 mm perforated steel with acoustically transparent black fibre cloth backing |
| Input Connector | NL4 Neutrik Speakon® in parallel for loop-thru |
| Switch | Selectable passive and bi-amp mode |
| Dimension (W x H x D) | 600 mm × 395 mm × 459 mm 23.6" × 15.6" × 18.1" |
| 净重量 | 24.6 kg (54.2 lbs) |
